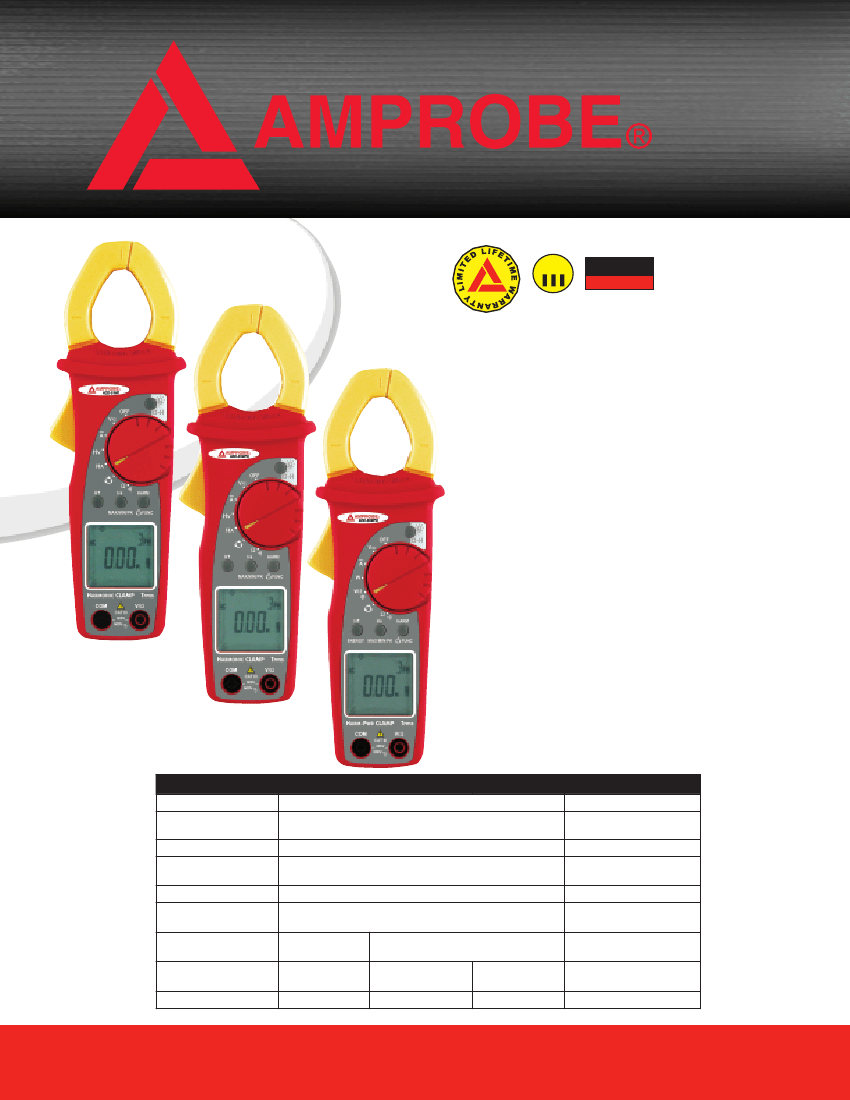

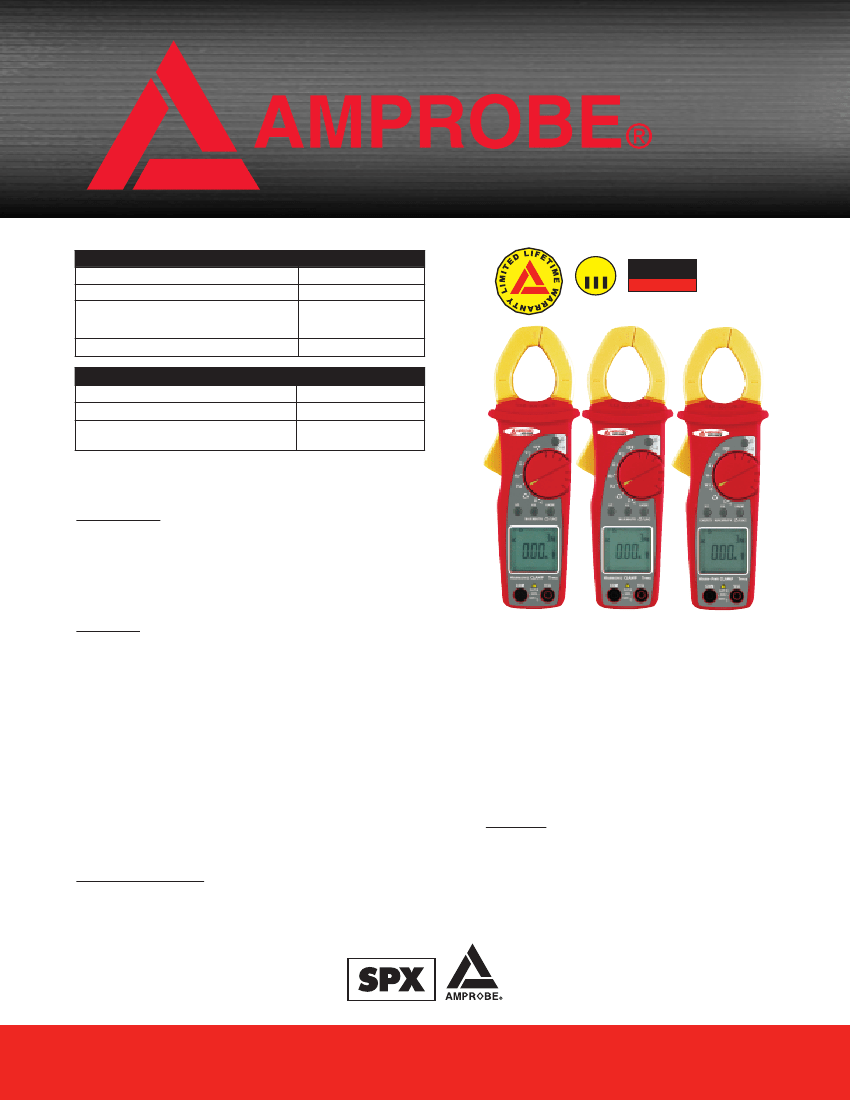

ACD-51HP, ACD-55HPQ, ACD-56HPQ
Power & Power Quality Clamp-ons
CAT
600V
TRUE
R M S
z
Enjoy the versatility of improved technology. Amprobe
offers basic power quality capability combined with TRMS
clamp-on ammeter functionality.
• TRMS Measurements
• AC Current up to 400A
• AC/DC Voltage up to 600V
• Voltage and Current Harmonics up to 25th with
THD% (ACD-55 HPQ and ACD- ACD-56 HPQ only)
• Active, Reactive and Apparent Power Single/Three
Phase (ACD-51HP and ACD-56 HPQ only)
• Power Factor, Cos Ø Single/Three Phase / Energy
(ACD-51HP and ACD- ACD-56 HPQ only)
• Frequency (with test leads and jaw)
• Phase seqence with single wire (patented)
• Autoranging
• Auto Power OFF
• Backlight
• Data Hold
• MAX / MIN / AVG recording
• Fast PEAK function (1ms)
• Low battery indication
• Safety CAT III 600V
FEATURES
ACD-51HP
ACD-55HPQ
ACD-56HPQ
ACCURACY
AC/DC Voltage
1.6 - 599.9 V
±(1% Rdg + 3 LSD)
AC Peak Voltage @
10 to 850 V
±(5% Rdg + 10 LSD)
1ms response time
AC Current
0 - 399.9 A
±(1% Rdg + 3 LSD)
AC Peak Current @
10 to 800A
±(5% Rdg + 10 LSD)
1ms response time
Resistance
0 – 499.9 / 999/ 1999 Ohms
±(1% Rdg + 5 LSD)
Frequency (with test
40.0 - 399.9 Hz
±(0.5% Rdg + 1 LSD)
leads and jaw)
Voltage / Current
THD, Individual harmonics 1 to 25 Harmonics 1 to 16
Harmonics
@ ±(10.0% rdg + 5 dgt)**
Active, Reactive and
0.00 – 99.99 / 999.9
0.00 – 99.99 / 999.9 ±(3.5% Rdg + 3 LSD)
Apparent Power
kW, kVAR, kVA
kW, kVAR, kVA
Power Factor, Cos Ø
0.20 - 1.00
0.20 - 1.00 ±(2% Rdg + 2 LSD)
www.AMPROBE.com
ACD-51HP, ACD-55HPQ, ACD-56HPQ
Power & Power Quality Clamp-ons
OPTIONAL ACCESSORIES
Line Splitter (Energizer)
3000A AC Flexible Clamp-on Attachment
Single Input Thermocouple
Temperature Attachment
Alligator Clips (For test leads)
REPLACEMENT PARTS
(supplied with product)
Test lead holder
Carrying case
Test leads with set of alligator clips
(alligator clips are not supplied with product)
PART NUMBER
A47L
ACF-3000 AK
TMA-K
VRC-320
PART NUMBER
MTL-CAP
SV-U
MTL-90B
CAT
600V
TRUE
R M S
z
SPECIFICATIONS
Safety Standards
Comply with:
Insulation:
Pollution:
For inside use, max height:
Over voltage:
General Data
Mechanical Characteristics:
Size:
Weight (including battery):
Jaws opening:
Max conductor size:
Power Supply:
Battery type:
Low battery indication:
Battery life:
Display Characteristics:
Sample rate:
Conversion mode:
EN 61010
Class 2, double reinforced insulation
Level 2
2000m
CAT III 600V between terminals and ground
Operating humidity:
Storage temperature:
Storage humidity:
<80% RH
-10 - 60 °C
<80% RH
205(L) x 64 (W) x 39(D)mm
about 280g
30mm
30mm
2 batteries 1.5V AAA.
Symbol "" is displayed when battery level is too low.
About 90 hours of continued measurement
4 dgt LCD with maximum reading 9999 units plu
decimal point and sign.
64 samples in 20ms
TRMS
EMC:
This apparatus was designed in accordance with EMC standards in
force and its compatibility has been tested in accordance EN61326
(1997) + A1 (1998) + A2 (2001).
This product conforms to the prescriptions of the European
directive on low voltage 73/23/EEC (LVD) and to EMC directive
89/336/EEC, amended by 93/68/EEC.
Accessories
Environmental Conditions
Climatic Conditions:
Reference temperature:
Operating temperature:
23° ± 5°C
5 - 40 °C
Standard accessories:
The accessories contained inside the packaging are the following:
• Instrument
• Rubber holster (MTL-CAP)
• Test leads (MTL-90B)
• Carrying Case (SV-U)
• User’s manual
