801-44-033-10-012000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-44-033-10-012000

801-44-033-10-012000: DescriptionBoard Connector, 33 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size623KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

801-44-033-10-012000 Overview

Board Connector, 33 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

801-44-033-10-012000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (200)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	801
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	33
Base Number Matches	1

Preview

Download Datasheet

View All

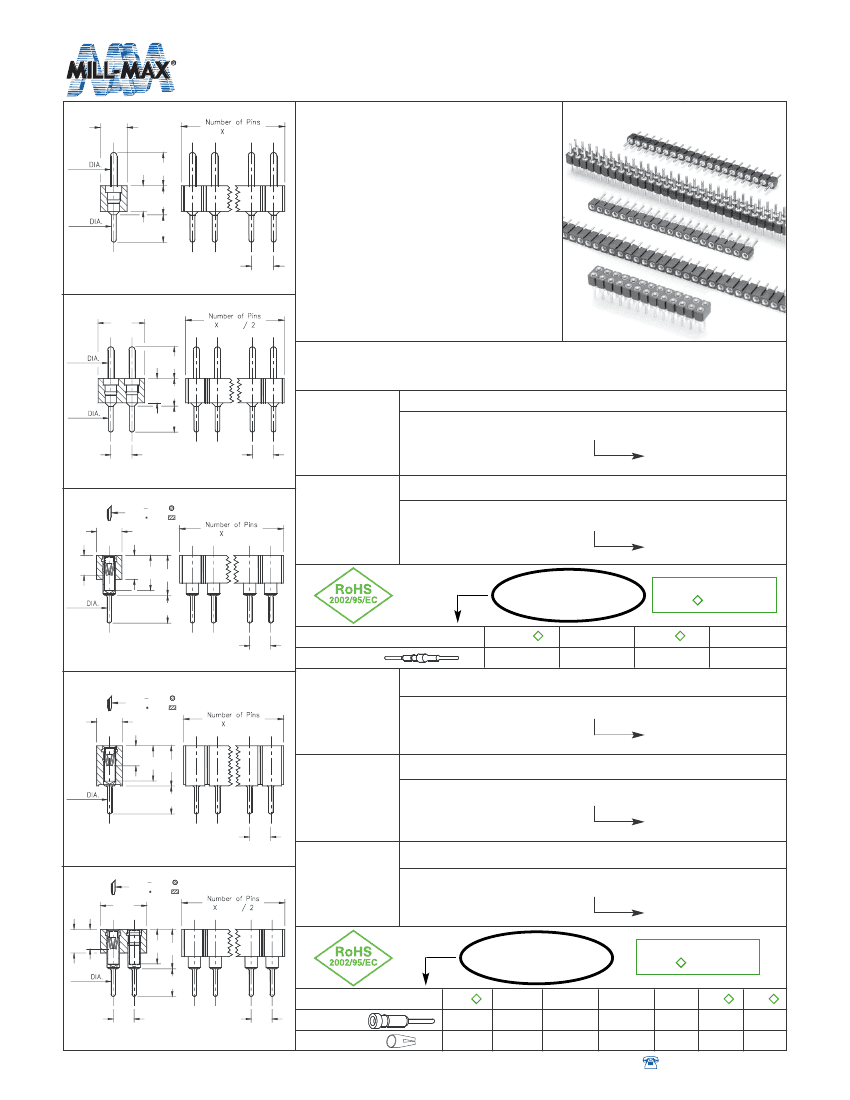

INTERCONNECTS

0,76 dia. Low Profile Pins

Single and Double Row

2,54

Series 800, 801

802, 803

•

Series 800 and 802 single and double

row pin headers use MM #5016 pins.

See page 173 for details.

•

Series 801 and 803 single and double

row sockets use MM #1303 pins. See

pages 148 for details.

•

Series 801 and 803 receptacles use

Hi-Rel, 6-finger BeCu #47 contacts

rated at 4.5 amps. Receptacles accept

0,76 diameter and 0,64 square pins.

See page 211 for details.

•

Insulators are high temp. thermoplastic.

0,76

3,61

2,79 3,18

0,61

3,0

2,54

Fig. 1

5,08

2,54

0,76

3,61

2,79 3,18

Ordering Information

Single Row

Low Profile Pin Header

800-XX-0_ _-10-002000

Specify # of pins

Double Row

01-64

Low Profile Pin Header

802-XX-0 _ _-10-002000

Specify # of pins

XX= Plating Code

See Below

2,54

0,61

3,0

Fig. 1

2,54

Fig. 2

0,64 0,94

0,64 0,64

2,54

Fig. 2

02-64

For RoHS compliance

select plating code.



5,08µm Sn

2,24

2,79

3,71 4,19

0,56

3,18

SPECIFY PLATING CODE XX=



0,25µm Au

5,08µm Sn/Pb

Fig. 3

0,64 0,94

0,64 0,64

2,54

Pin Plating

Single Row

Low Profile Socket

(short insulator)

801-XX-0 _ _-10-002000

01-64

Fig. 3

2,54

Specify # of pins

Single Row

2,24

3,71 4,19

0,56

3,18

Fig. 4

2,54

Low Profile Socket

(long insulator)

801-XX-0 _ _-10-012000

01-36

Specify # of pins

Fig. 4

0,64 094

0,64 0,64

5,08

2,54

Fig. 5

Double Row Low Profile Socket

803-XX-0 _ _-10-002000

Specify # of pins

XX= Plating Code

See Below

02-72

For RoHS compliance

select plating code.



2,79

2,24

3,71 4,19

0,56

3,18

SPECIFY PLATING CODE XX=

2,54



0,76µm Au

10µ” Au

Sleeve (Pin)

Contact (Clip)

0,25µm Au

200µ” Sn/P

5,08µm Sn/Pb 5,08µm Sn/Pb

200µ”Sn

5,08µm Sn 5,08µm Sn

0,76µm Au 5,08µm Sn/Pb

10µ” Au

0,76µm Au 5,08µm Sn

Fig. 5

w w w. m i l l - m a x . c o m



516-922-6000
