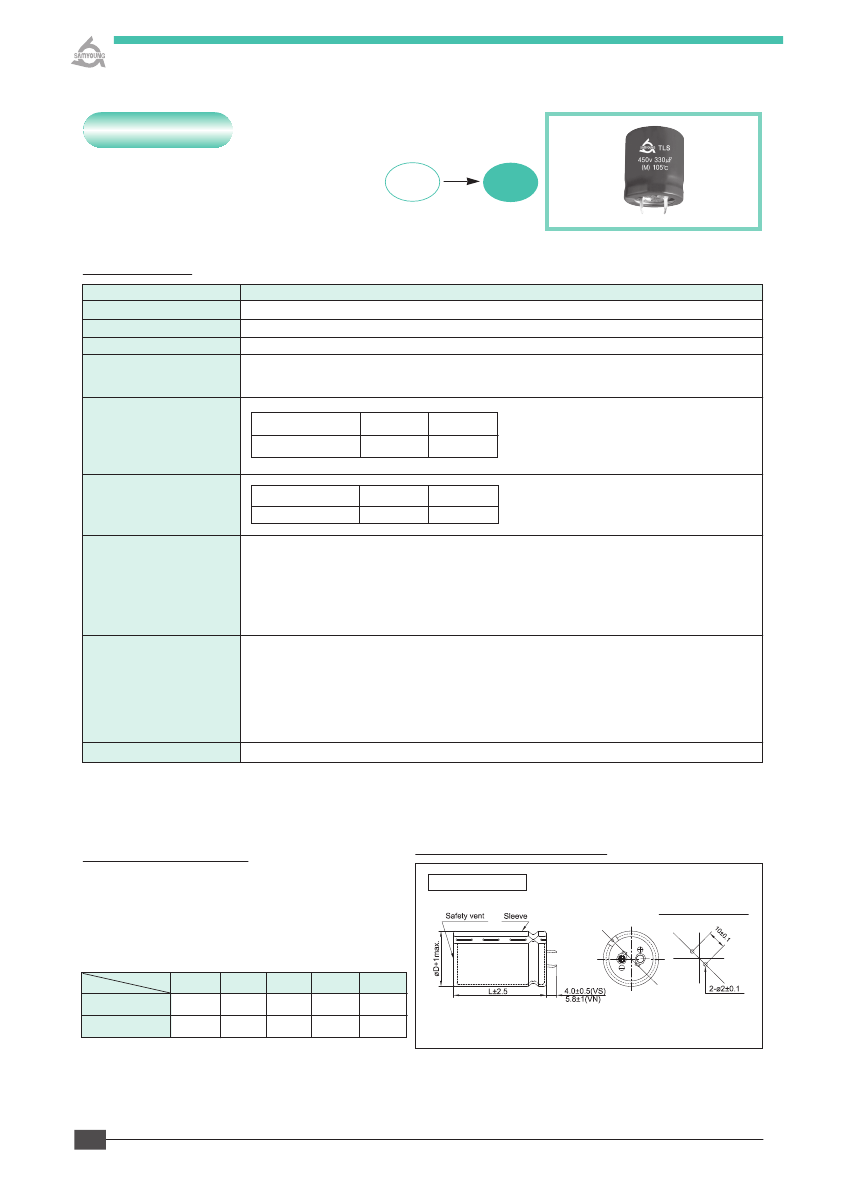

LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS
TLS
Series
•
105℃ 3,000Hrs assured.
•Non-solvent proof.
•Downsized.
•High Ripple Capability.
•For SMPS, Inverter.
•RoHS
compliant.
•Halogen-free
capacitors are also available.
SPECIFICATIONS
Item
Rated Voltage Range
Operating Temperature Range
Capacitance Tolerance
Leakage Current
TLA
Downsized
TLS
Characteristics
1 6 0 ~ 55 0 V
DC
-25 ~ +105℃
±20%(M)
(at 20℃, 120Hz)
I=0.02CV or 3m A, whichever is smaller.
Where, I:Leakage Current(μ C:Nominal capacitance(μ V:Rated voltage(V
DC
)
A),
F),
(at 20℃, 5minutes)
Rated voltage(V
DC
)
Tan δ
(Max.)
※
Dissipation
F a c t o r( T a n δ
)
160~400
0.15
450~550
0.20
(at 20℃, 120Hz)
Temperature Characteristics
(Max. Impedance ratio)
Rated voltage(V
DC
)
160~400
4
450~550
8
(at 120Hz)
Z(-25℃)/Z(20℃)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated
voltage is applied for 3,000 hours at 105℃.
Load Life
Capacitance change ≦ ±20% of the initial value
Tan δ
≦ 200% of the initial specified value
Leakage current
≦ The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after the
exposing them at 105℃ for 1,000 hours without voltage applied.
The rated voltage shall be applied to the capacitors for a minimum of 30 minutes, at least
24 hours and not more than 48 hours before the measurements.
Capacitance change ≦ ±20% of the initial value
Tan δ
≦ 200% of the initial specified value
≦ The initial specified value
Leakage current
Satisfied characteristics KS C IEC 60384-4
Shelf Life
Others
※For capacitors with CV products ≻100,000 higher Tanδvalue may apply.
When the capacitance exceeds 1,000μ 0.01 shall be added every 1,000μ increase.
F,
F
RATED RIPPLE CURRENT
When capacitor are operated in any other condition
at 120Hz, the maximum ripple current must be
multiplied by the figure shown in the table.
DIMENSIONS OF TLS Series
ØD=Ø22~Ø35
VN/VS type
Unit
(mm)
PC board pin-out
Frequency multiplying factor
V
DC
Freq.(Hz)
60
0.81
0.77
120
1.00
1.00
300
1.17
1.16
1k
1.32
1.30
10k~
1.45
1.41
Marking : BROWN SLEEVE, SILVER INK
The standard design has no bottom plate.
160~250V
DC
315~550V
DC
220
