Digital Storage Oscilloscopes
TBS1000B Series Datasheet
Built-in context-sensitive help
Multiple-language user interface
Small footprint and lightweight - Only 4.9 in. (124 mm) deep and 4.4 lb.
(2 kg)
Connectivity
USB 2.0 host port on the front panel for quick and easy data storage
USB 2.0 device port on rear panel for easy connection to a PC
Seeing signal details
The TBS1000B Digital Storage Oscilloscope Series provides you with
affordable performance in a compact design. Packed with standard
features - including USB connectivity, 34 automated measurements, limit
testing, data logging, frequency counter, TrendPlot
™
and a context-
sensitive help menu - the TBS1000B Series oscilloscopes helps you get
more done, in less time.
To properly analyze signals you need to make sure that you can see them
in enough detail. The TBS1000B comes standard with a 7-inch high
resolution TFT display for a clear view of all of your signals and critical on
screen information. The instrument is further enhanced by a user interface
inspired by the award winning Tektronix MSO/DPO series of instruments.
The interface is easy to use, provides quick access to all of the oscilloscope
functions and includes a high resolution "Pan & Zoom" feature enabling you
to see even more signal details of up to 10 times normal resolution.
Key performance specifications
200MHz, 150 MHz, 100 MHz, 70 MHz, 50 MHz, and 30 MHz
1
bandwidth models
2-channel models
Up to 2 GS/s sample rate on all channels
2.5k point record length on all channels
Advanced triggers including pulse and line-selectable video triggers
Key features
7 inch WVGA (800X480) Active TFT Color Display
34 automated measurements
Dual window FFT, simultaneously monitors both the time and
frequency domains
Built-in waveform limit and TrendPlot
™
testing
Dual channel frequency counter
Zoom Function
Automated, extended data logging feature
Autoset and auto-ranging functions

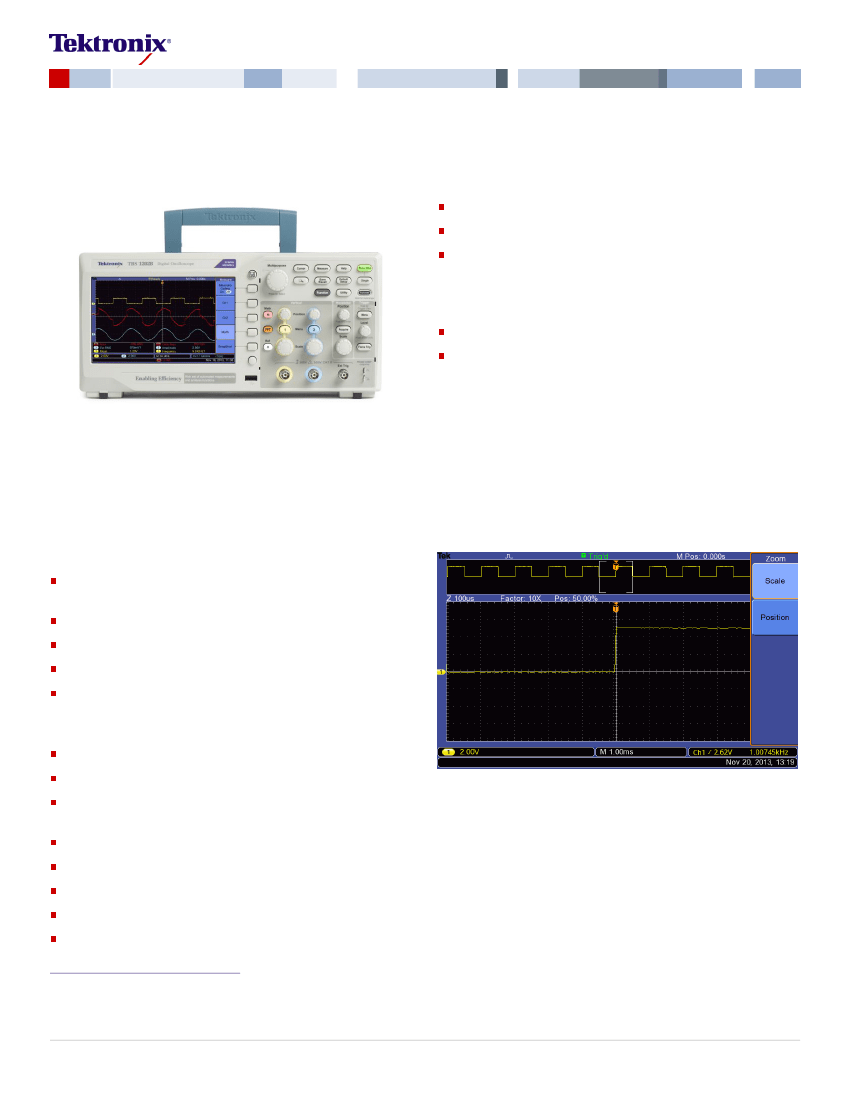

The zoom function shows details in an event of up to 10X the normal view.
1
30 MHz model available only in North America and Europe.
www.tektronix.com 1
Datasheet
Digital precision for accurate measurements
With up to 200 MHz bandwidth, 2 GS/s maximum sample rate and 3%
vertical measurement accuracy the TBS1000B allows you to see the details
of your signals. With the Tektronix proprietary sampling technology there
are no compromises, you will get the stated real-time sampling rate on all
channels, all the time with at least of 10X oversampling. The sampling
performance is not reduced when changing horizontal settings or when
using multiple channels, enabling you to see the true characteristics of your
signals.
Quickly analyze signals with the standard 34 automated measurements.
A dedicated front panel button provides quick access to the FFT function
that is capable of showing both frequency and time domain waveforms
simultaneously, which provides a convenient way to see the relationship
between signals and the FFT results.
See all the details other oscilloscopes might miss with Tektronix proprietary digital real-
time sampling.
Critical tools for troubleshooting your device
The TBS1000B oscilloscope comes standard with a variety of advanced
triggers used to debug today's complex circuitry. Flexible options for
utilizing rising or falling edges, pulse widths and video trigger set-ups
enable users to quickly isolate their signals of interest.

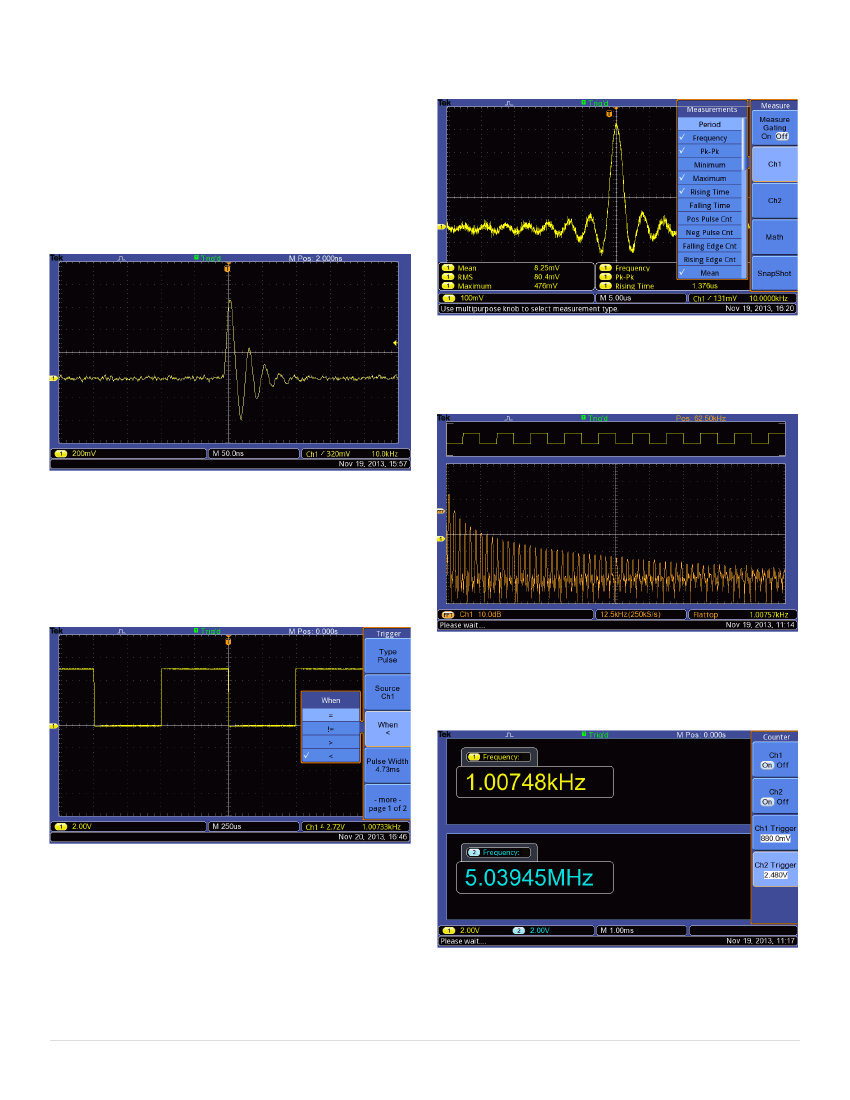

Quickly perform an FFT with a dedicated front panel button.
For accurate frequency measurements the TBS1000B also comes with
built-in dual channel frequency counters. Independent control of each
counter's trigger level provides an easy way to monitor two different signal
frequencies simultaneously.
The pulse trigger function can easily capture critical events.
Once signals are captured, the TBS1000B offers advanced math and
measurement capabilities making it easy to evaluate signal quality . Users
can add, subtract and multiply waveforms or use any one of 34 automated
measurements to quickly and reliably calculate important signal
characteristics such as frequency, rise time or overshoot.
Dual channel - 6 digit frequency counters come standard with all TBS1000 models.
2 www.tektronix.com
TBS1000B Digital Storage Oscilloscopes
Extensive monitoring and analysis tools
Intermittent faults can be hard to evaluate, simply because they do not
repeat often making them difficult to capture. The TrendPlot
™
function
helps find those faults by plotting measurement values over long periods of
time. Select the measurement to capture on either or both channels and
then set-up the oscilloscope to continuously monitor those measurements,
plot the data on the display and simultaneously save the information to a
USB thumb drive. Depending on the oscilloscope setting, you'll be able to
capture data for minutes, hours or even days; the only limitation is the size
of the thumb drive.
Flexible data transfer
The USB host port on the front panel enables you to save your instrument
settings, screenshots, and waveform data onto a USB memory device. This
port also supports the built-in Data Logging feature which enables you to
set up the oscilloscope to save user- specified triggered waveforms to a
USB device for up to 24 hours. You can also select the "Infinite" option for
continuous waveform monitoring. In the infinite mode you can save your
triggered waveforms to an external USB memory device without a duration
limitation until the memory device is full. The oscilloscope will then guide
you to insert another USB memory device to continue saving waveforms.
To find intermittent faults the TrendPlot
™
function can monitor measurements for long
periods of time.

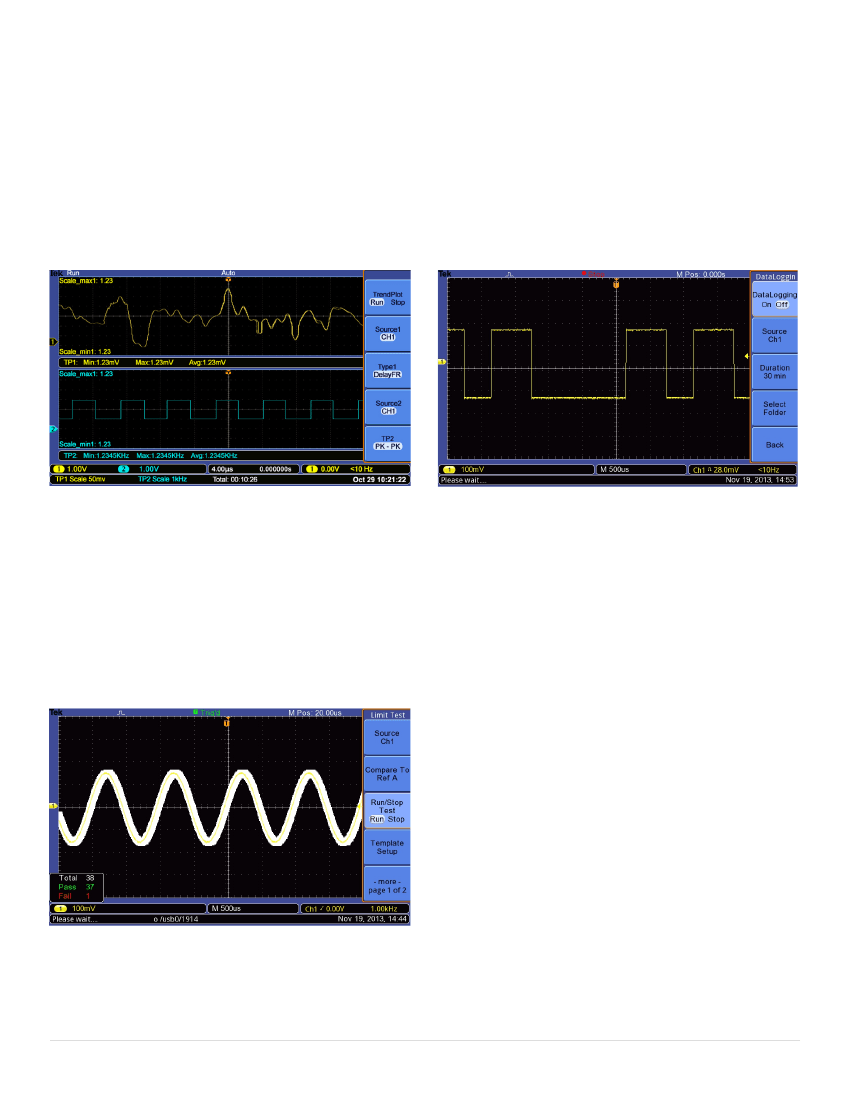

Data logging enables automatic saving of triggered waveforms.
Often, only Pass/Fail data is needed to determine if a signal is good. This
can be accomplished easily with the TBS1000B Limit Test feature. The
oscilloscope can be set-up to automatically monitor a source signals and
output Pass or Fail results by evaluating whether the acquired waveform
falls within predefined boundaries. The TBS1000B Limit Test feature allows
users to create templates based on one or two independent reference
waveforms, providing more flexibility when creating masks for complex
signals. If a failure is detected, a series of specific actions can be triggered
which include; stopping waveform acquisition, halting Limit Test functions,
saving a screen image of the failed waveform, or any combination of the
above.
Designed to make your work easy
The TBS1000B series oscilloscopes are designed with the ease of use and
familiar operation you have come to expect from Tektronix.
Intuitive operation
The intuitive user interface with dedicated per-channel vertical controls,
auto-setup, and auto-ranging makes these instruments easy to use,
reducing learning time and increasing efficiency.
The Limit Test feature provides a quick Pass/Fail comparison between any triggered
input signal and a user- defined template.
www.tektronix.com 3
Datasheet
Help when you need it, where you need it
The built-in Help menu provides you with important information about your
oscilloscope's features and functions. Help is provided in the same
languages as the user interface.
Performance you can count on
In addition to industry-leading service and support, every TBS1000B series
oscilloscope comes backed with a 5-year warranty as standard.

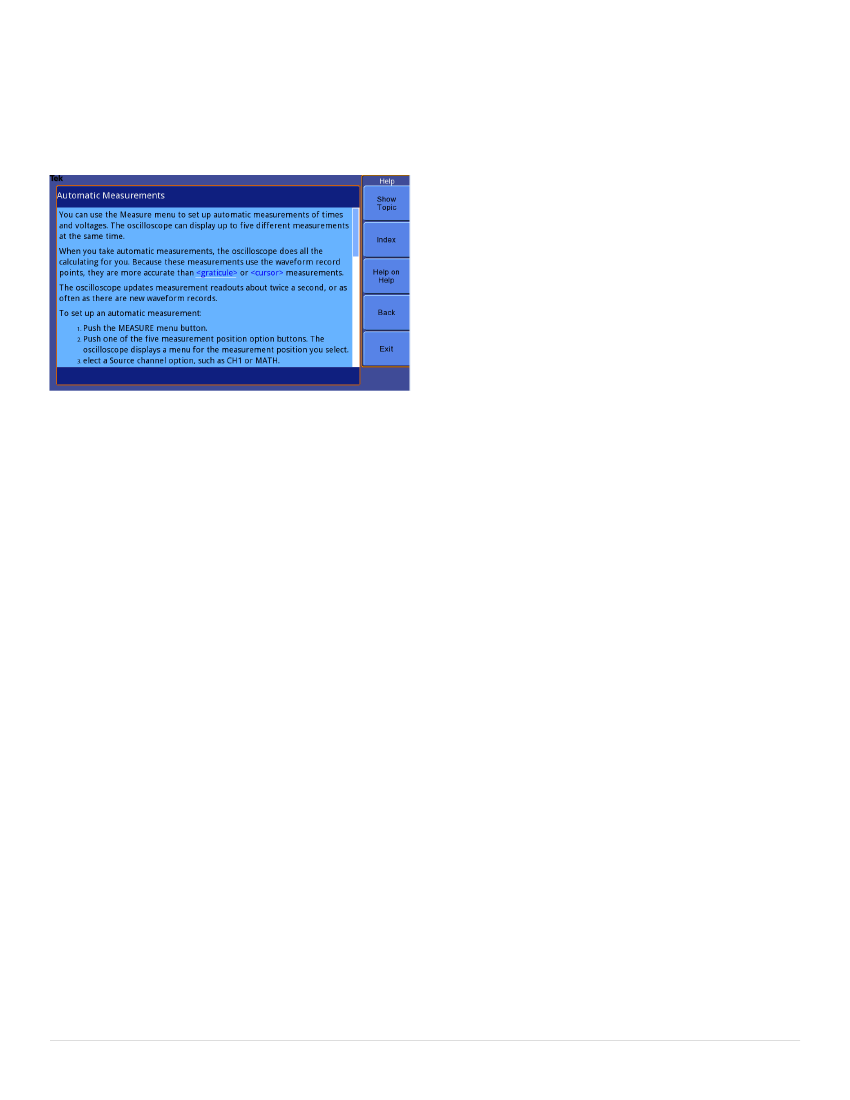

The context-sensitive help system provides important information specific to the task you
are working on.
4 www.tektronix.com
TBS1000B Digital Storage Oscilloscopes
Specifications
All specifications apply to all models unless noted otherwise.
Model overview
TBS1032B
2
Bandwidth
Channels
Sample rate on each channel
Record length
30 MHz
2
500 MS/s
TBS1052B
50 MHz
2
1.0 GS/s
TBS1072B
70 MHz
2
1.0 GS/s
TBS1102B
100 MHz
2
2 .0 GS/s
TBS1152B
150 MHz
2
2 .0 GS/s
TBS1202B
200 MHz
2
2 .0 GS/s
2.5k points at all-time bases
Vertical system – Analog channels
Vertical resolution
Input sensitivity range
DC gain accuracy
Maximum input voltage
Offset range
8 bits
2 mV to 5 V/div on all models with calibrated fine adjustment
±3%, from 10 mV/div to 5 V/div
300 V
RMS
CAT II; derated at 20 dB/decade above 100 kHz to 13 V
p-p
AC at 3 MHz and above
2 mV to 200 mV/div: ±1.8 V
>200 mV to 5 V/div: ±45 V
Bandwidth limit
Input coupling
Input impedance
Vertical zoom
20 MHz
AC, DC, GND
1 MΩ in parallel with 20 pF
Vertically expand or compress a live or stopped waveform
Horizontal system — Analog channels
Time base range
30 MHz model
3
50 MHz and 70 MHz models
100MHz, 150MHz and 200MHz
models
Time base accuracy
Horizontal zoom
10 ns to 50 s/div
5 ns to 50 s/div
2.5 ns to 50 s/div
50 ppm
Horizontally expand or compress a live or stopped waveform
2
3
Available only in North America and Europe.
Available only in North America and Europe.
www.tektronix.com 5
