www.murata-ps.com
DMS-20LCD-0/1 Series
Self-Powered, +12V and +24V, LCD Display
2-Wire DC Voltage Monitors
FEATURES
Self-powered, only two connections required
+6.50-18.00Vdc (0.01V resolution) or
+8.0-50.0Vdc (0.1V resolution) input ranges
for battery-powered systems
Ideal
Reverse polarity protected
Built-in “VDC” annunciator
Large (0.37”/9.4mm) LCD displays
Subminiature 1.38” x 0.88” x 0.66” packages
Rugged, ABS package
Functional Specifications
Input
Voltage Range:
➀
DMS-20LCD-0-DCM
DMS-20LCD-1-DCM
Max. Current Consumption:
DMS-20LCD-0-DCM
DMS-20LCD-1-DCM
Performance
Sampling Rate
Accuracy @ +25°C:
DMS-20LCD-0-DCM
DMS-20LCD-1-DCM
Temperature Drift (0 to +60°C):
DMS-20LCD-0-DCM
DMS-20LCD-1-DCM
Mechanical
Display Type:
DMS-20LCD-0-DCM
DMS-20LCD-1-DCM
Weight
Case Material
Environmental
➁
Operating Temperature
Storage Temperature
Humidity (Non-condensing)
+6.50 to +18.00Vdc
+8.0 to +50.0Vdc
2mA @+12V, 7mA @ +18V
2mA @ +24V, 6mA @ +50V
2.5 readings/second
±0.01V (typ.), ±0.03V (max.)
±0.1V (typ.), ±0.2V (max.)
±0.4 counts/°C (max.)
±0.04 counts/°C (max.)
Murata Power Solutions’ new DMS-20LCD-0/1-DCM, self-contained, self-powered, dc
voltage monitors set new standards for quality, performance, size and cost. Simply apply
power to the two rear terminals and the unit is operational. No additional components are
required! The large, 0.37”/9.4mm, LCD display, with
built-in “VDC” annunciator, can be easily read from 10
feet. Two models are available: one for 12Vdc nominal
operation (+6.50-18.00V range, 0.01V resolution),
the other for 24Vdc nominal operation (+8.0-50.0V
range, 0.1V resolution). Reverse polarity protection is
standard on both models.
The DMS-20LCD-DCM utilizes a precision
analog-todigital converter and ultra-stable passive
components to achieve excellent performance over the
operating temperature range of 0 to +60°C. A rugged,
ABS plastic package provides excellent protection
against shock and vibration. DMS-20LCD-DCM’s are
without a doubt the most costeffective, LCD-display,
digital voltmeters available anywhere, at any price.

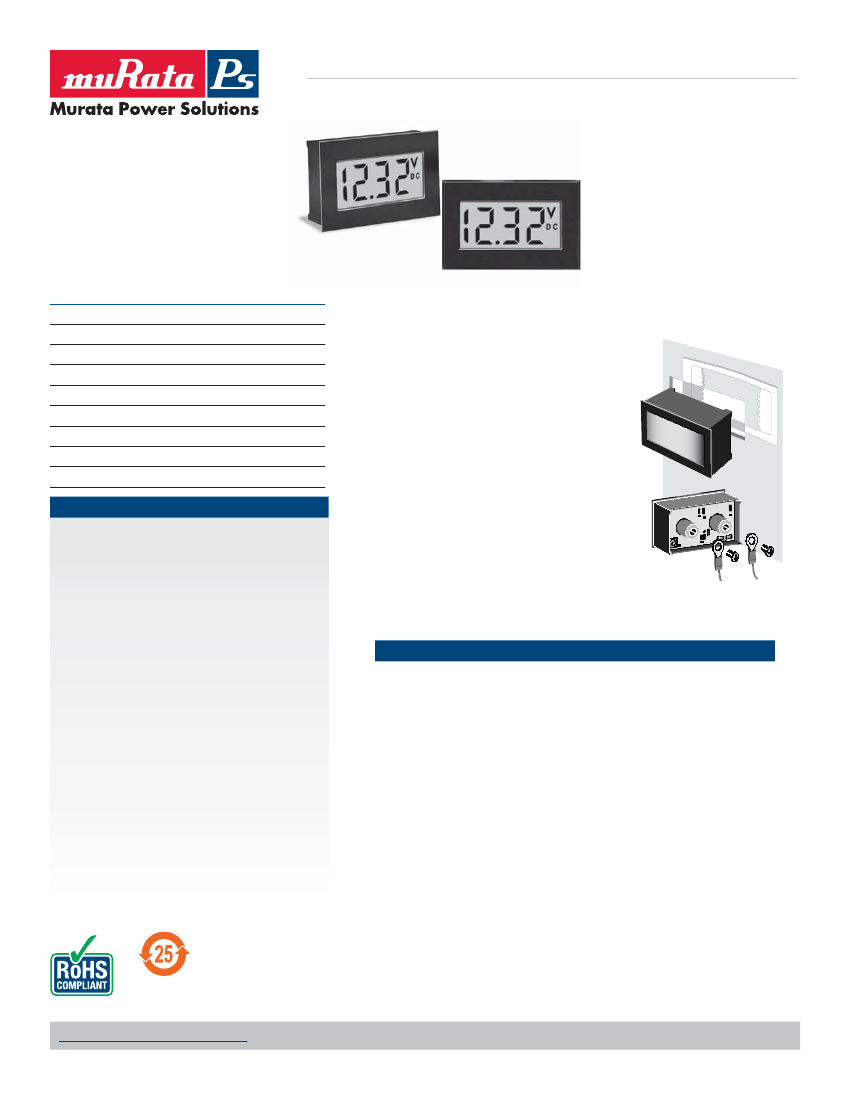

Typical panel mount installation and
suggested wiring (user supplied).
Ordering Information
DMS-20LCD-0-DCM-C
DMS-20LCD-1-DCM-C
DMS-20-CP
DMS-BZL3-C
DMS-BZL4-C
+6.50 to 18.00V dc voltage monitor
+8.0 to 50.0V dc voltage monitor
Panel cutout punch
Panel mount bezel
Panel mount bezel with sealing gasket
Brass screws (6-32 thread) and a panel-mount retaining clip are supplied with each meter.
3½ digit LCD, 0.37"/9.4mm high
3 digit LCD, 0.37"/9.4mm high
0.5 ounce (14 grams)
ABS
0 to +60°C
– 20 to +75°C
0 to 85%
➀
Operation and accuracy at voltages above or below these ranges
are not specified.
➁
Meters are not sealed; Do not expose to moisture or other contaminants.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
MPM_DMS-20LCD-01-DCM.C01
Page 1 of 2
DMS-20LCD-0/1 Series
Self-Powered, +12V and +24V, LCD Display
2-Wire DC Voltage Monitors
Dimensions in inches (millimeters)
Tolerances: 2 PL Dec ±0.02 (±0.51)
3 PL Dec ±0.010 (±0.254)
Recommended panel cutout dimensions: 1.336 (33.93)W × 0.838 (21.29)H
Internal corner radii 0.032 (0.81) Max.
0.025
(0.64)
1.30
(33.0)
0.04
(1.016)
0.04
(1.016)
#6-32
UNC THD
0.04
(1.016)
1.38
(35.1)
–
+
0.38
(9.7)
0.800
(20.3)
0.25 DIA.
0.880
(22.4)
DC
0.37
(9.4)
0.75
(19.1)
0.27
(6.9)
0.43
(10.9)
0.66
(16.8)
#2-56 INSERT
0.156 (3.96 DEEP)
0.19
(4.8)
1.07
(27.2)
DMS-BZL3
OPTIONAL BEZEL
1.28
(32.5)
0.10
(2.5)
1.63 (41.4)
1.83 (46.5)
0.10
(2.5)
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
This product is subject to the following operating requirements
and the Life and Safety Critical Application Sales Policy:
Refer to:
http://www.murata-ps.com/requirements/
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2015 Murata Power Solutions, Inc.
www.murata-ps.com/support
MPM_DMS-20LCD-01-DCM.C01
Page 2 of 2
