Data Sheet
DDS Function Generators
Models 4007B and 4013B
Features & Benefits
I
I
I
I
I
I
I
I
Sine and square waveforms up to 12 MHz
Bright easy-to-read display
Linear and logarithmic sweep
Variable DC offset
Adjustable duty cycle
Store and recall up to 9 instrument settings
Output On/Off button
Overvoltage, overcurrent, and short circuit
protection on main output

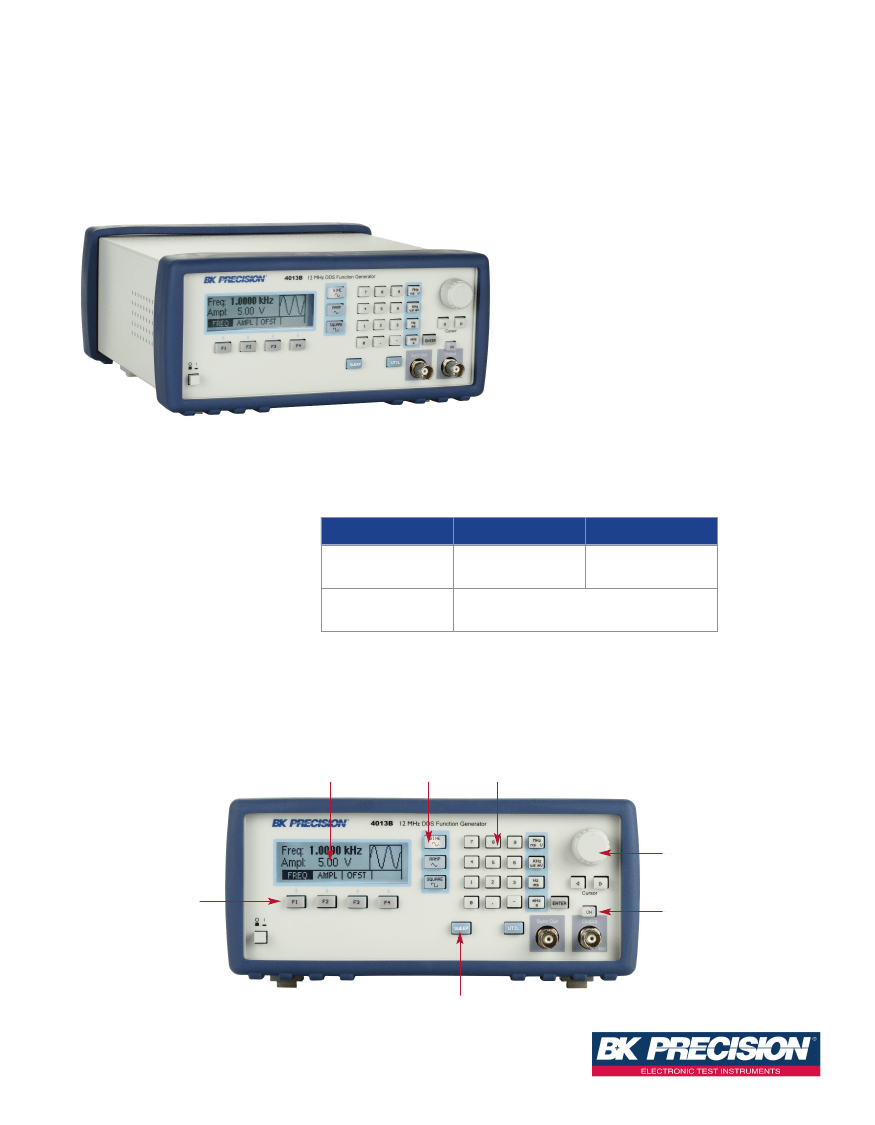

Models 4007B and 4013B are versatile DDS
(direct digital synthesis) sweep function
generators with high signal precision and stability.
These instruments generate sine and square
waveforms up to 7 MHz or 12 MHz, including
triangle/ramp waveforms up to 1 MHz. Both
models provide variable output voltages from
0 to 10 Vpp into 50 ohms or up to 20 Vpp into
open circuit. A continuously variable DC offset
allows the output to be injected directly into
circuits at the correct bias level.
These models are suitable for education and
other applications that need basic DDS function
generators with sweep capability.
Model
Sine and square
frequency range
Triangle/ramp
frequency range
4007B
0.1 Hz - 7 MHz
4013B
0.1 Hz - 12 MHz
0.1 Hz - 1 MHz
Intuitive user interface
Easily change all waveform parameters using the intuitive menu-driven front panel keypad, control knob, and easy-to-read LCD. Convenient waveform and range
selection buttons let users make quick and precise adjustments.
Bright LCD
Waveform keys
Numeric keypad
Rotary control knob
Menu function keys
Output On/Off button
Lin/Log sweep key
Technical data subject to change
© B&K Precision Corp. 2012
www.bkprecision.com
DDS Function Generators
Models 4007B and 4013B
Specifications
Frequency Characteristics
4007B
0.1 Hz to 7 MHz
0.1 Hz to 7 MHz
0.1 Hz to 1 MHz
5 digits or 100 mHz
0.01% ± 0.186 Hz
20 mVpp to 20 Vpp (open circuit);
10 mVpp to 10 Vpp (into 50
Ω)
3 digits (1,000 counts)
4013B
0.1 Hz to 12 MHz
0.1 Hz to 12 MHz
Sine
Square
Triangle
Resolution
Accuracy
Output Characteristics
Amplitude Range
Amplitude Resolution
Amplitude Accuracy
Flatness
DC Offset Range
DC Offset Resolution
DC Offset Accuracy
Output Impedance
Output Protection
Waveform Characteristics
± 2 % ± 20 mV of programmed output from 1.01 V – 10 V
± 1 dB to 7 MHz
-4.5 V to 4.5 V (into 50
Ω)*
10 mV, 3 digits
± 2 % ± 10 mV (into 50
Ω)
50
Ω
± 2%
Protected against short circuit or accidental overvoltage practically available in
electronic laboratories, applied to the main output connector
± 1 dB to 12 MHz
Harmonic Distortion
(at 10 Vp-p into 50
Ω)
Square Rise/Fall Time
Duty Cycle
Symmetry Accuracy at 50%
Sweep Characteristics
DC - 100 kHz, -55 dBc
100 kHz - 1 MHz, < -45 dBc
1 MHz – 7 MHz, <-30 dBc
DC - 100 kHz, -55 dBc
100 kHz - 1 MHz, < -45 dBc
1 MHz – 12 MHz, <-30 dBc
≤
20 ns (10% to 90% at full amplitude into 50
Ω)
Adjustable 20% - 80% up to 1 MHz for square and triangle
± 1%
Linear or Logarithmic, up or down
20 ms to 100 s
TTL pulse at programmed frequency; 50
Ω
source impedance
9 instrument settings
100 V – 240 V AC ± 10%
0 °C to 50 °C (32 °F to 122 °F)
-10 °C to 70 °C (14 °F to 158 °F)
95% R.H. 0 °C to 30 °C
8.39” x 3.46” x 8.27” (213 x 88 x 210 mm)
4.4 lbs (2 kg)
Meets EMC Directive 2004/108/EC, EN55011, EN55082
Meets Low Voltage Directive 2006/95/EC, EN61010
Sweep Shape
Sweep Time
Input and Output
Sync Out
General
Memory Storage
Power Requirements
Operating Temperature
Storage Temperature
Humidity
Dimensions (W x H x D)
Weight
Electromagnetic Compatibility
Safety
Three Year Warranty
Supplied Accessories
*Depending on the amplitude setting
Note: All specifications apply to the unit after a temperature stabilization time of 15 minutes over an ambient temperature range of 23 ºC ± 5 ºC.
Specifications are subject to change without notice.
Manual on CD, power cord, certificate of calibration
