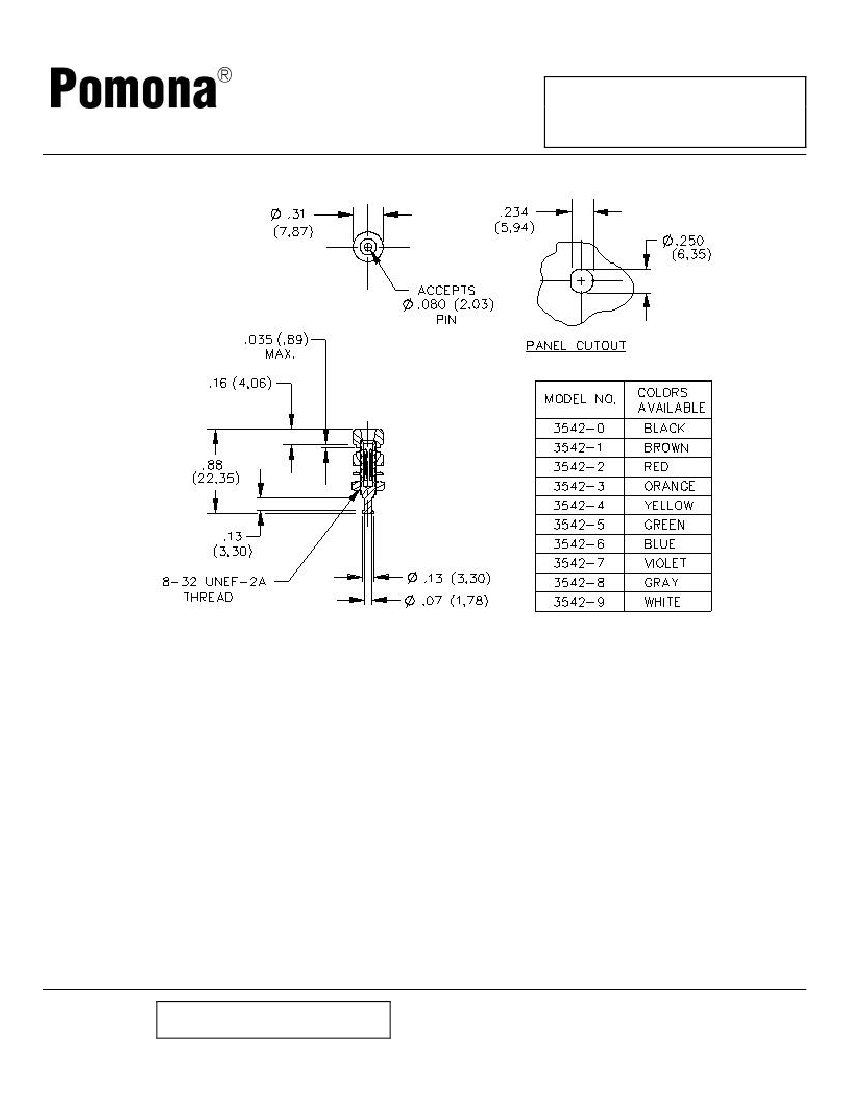

Model 3542

Insulated Pin Tip Jack

FEATURES:

•

Accepts .080 pin tip plugs

•

Mounts in panels up to .250” thick.

MATERIAL:

Insulation – Polycarbonate - Molded to pin

tip jack body

Lockwasher, #8 Internal Tooth – Steel - Nickel

plated

Hex Nut, #8-32 – Brass – Nickel plated

Pin Tip Jack Body: Brass – Gold plated

RATINGS:

Operating Temperature: +115°C. (+239°F.) Max.

Operating Voltage: 1500 VDC

Current: 5 Amperes.

ORDERING INFORMATION:

Model 3542-*

*=Color Code – See Tabulation Block

Sold in packages of 10

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

5/29/02 SY/EH/LS

Last saved by PN

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90193

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

S:\Engineering\Release\DataSheets\FlukeDataSheet \d3542_1_02.doc
