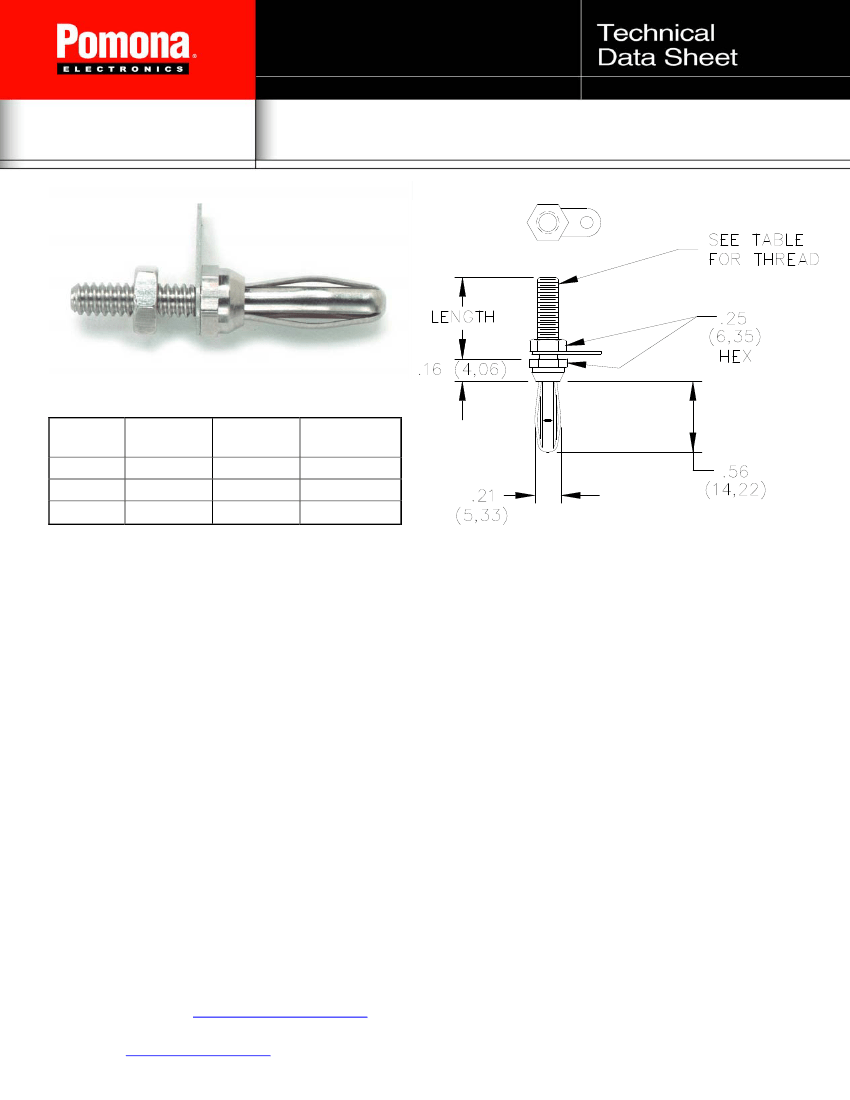

Model 3263, 3264, 4512
Standard Banana Plug with Threaded Stud and Solder Lug
Model
3263
3264
4512
Length
0.50"
0.50"
0.63"
Thread
6-32
8-32
8-32
Torque
In/Lb
7.9
7.9
7.9
Features
•
•
•
•
Threaded stud for rapid mounting.
Furnished with hex nut and tin plated solder lug.
Ideal for connecting power supplies or test
equipment to prototype circuit boards.
Mates to Model #1581 or any standard banana jack.
Ratings
Working Voltage: 5000 VRMS
Current: 15 Amperes
Ordering Information
Model 3263
Model 3264
Model 4512
Parts are packaged ten per bag, unassembled
Materials
Banana Plug:
Spring: Beryllium Copper, Berylco 25 per QQ-C-
533, Cond. HT
Plug Body: Brass per QQ-B-626, Alloy 360, ½ Hard
Solder Lug:
Material: Copper per QQ-C-576
Finish: Electro-tin plated
Hex Nut:
Material: Brass per QQ-B-626, Composition 22,
½ Hard
Finish: Nickel plated
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D1093994 Rev. 101
Page 1 of 1
