34340350PR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 34340350PR

34340350PR: DescriptionPushbutton Switch, SPDT, Momentary, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size68KB，1 Pages; ManufacturerArcolectric; Environmental Compliance

Download Datasheet Parametric Compare View All

34340350PR Overview

Pushbutton Switch, SPDT, Momentary, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT

34340350PR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Arcolectric
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	ROUND TYPE
body width	15 mm
body height	31.3 mm
Body length or diameter	24.8 mm
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Manufacturer's serial number	340
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

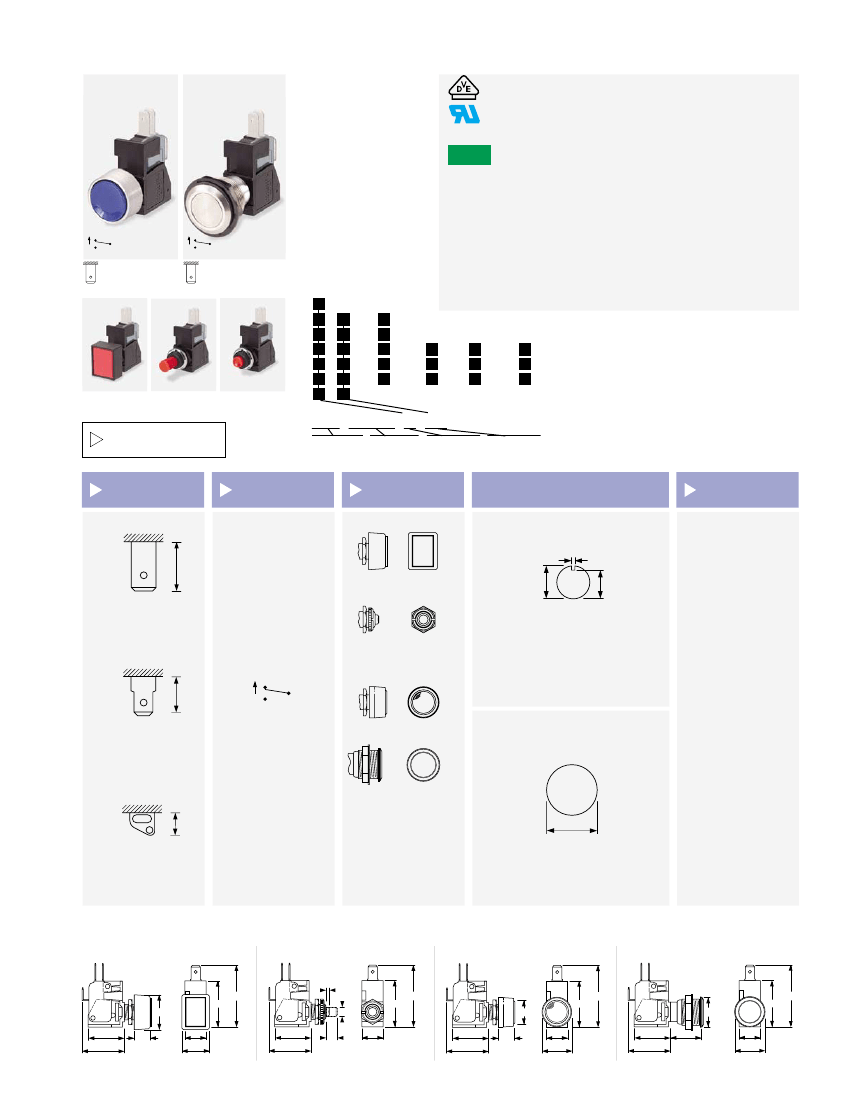

340 Push Button Snap Action Switches

15(4)A 250Vac

Snap action switches

Ratings up to 16A,

250V ac

Round and rectangular

buttons

Stainless steel, IP68

vandal resistant button

Approvals apply to switch mechanism only.

µ contact gap.

Full rating details and technical data on pages 50 & 51.

16(4)A 250Vac 50E3

16A 125/250Vac 3/4hp T85 50E3 UL file no. E45221

125V

HP, 250V

HP, 0.4A 125Vdc, 0.2A 250Vdc

RoHS

RoHS compliant

343 40350 K BL

343 40350 V

Blank for switch only

Red

Black

Red

Black

Red

Black

Blue

Green

White

Red

Black

Blue

Green

White

Red

Black

Blue

Green

White

Stainless steel

343 40350 RR 343 40350 PR 343 40350 ER

343 40350 K BL

ORDER FORMAT

TERMINAL

FUNCTION

TERMINAL FUNCTION ACTUATOR ACTUATOR

CODE

COLOR

ACTUATOR

Rectangular bezel

1.3

BODY

Color

OPTIONS

343

12.5

Short

6.3 x 0.8

12.7

11.1

Call factory for

custom colors

A full range is available for

large orders

Cover M323

Panel Cut-out (N/A for V actuator)

Available for “P” actuator

only

345

40350

9.9

with satin chrome bezel

with nylon bezel

Panel thickness

Both nuts 2.5mm

No backnut 4.0mm

4.8 x 0.5

ON - ON

(momentary 1 side)

Vandal resistant

Stainless steel chamfer profile bezel

342

6.4

19.2

Panel Cut-out (for V actuator only)

Solder

Panel thickness

8.0mm

Covers have internal nylon nut

Dimensions

(mm)

P&E

K&M

Vandal resistant designed to IP66

1.7(P)

31.3

23.9

43.5

7.7

31.3

43.5

31.3

17.8

43.5

21.5

31.3

43.5

24.8

10.8

28.7

15.0

20.1

24.8

28.7

8.1(E)

15.0

24.8

28.7

10.9

15.0

22.0

24.8

28.7

20.0

15.0

21.5

ARCOLECTRIC CORPORATION

31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com
