PS-900 Soldering System
High Power.
Superior Control.
Cost Effective.
The power to solder demanding loads,
the control to assure consistent results.
The
OKi PS-900 Soldering System,
powered by
SmartHeat
®
Technology,
is part of a new generation of
cost-effective soldering systems from OK International.
The PS-900 packs power and provides exceptional ther-
mal control into a small benchtop footprint. The PS-900
provides operators the repeatability to produce high quality
solder connections with exceptional speed.
More Applications
The PS-900 increases productivity by performing a wide
range of applications. It is suited for lead-free soldering
processes, multilayer boards and thermally demanding
components. What's more, SmartHeat technology enables
the PS-900 to solder at lower temperatures, even for such
demanding applications as
lead-free soldering
processes.
This means operators are more productive and materials
are safe from damaging temperatures.
Low Operating Costs
The PS-900 is designed for simplicity and low mainte-
nance. With SmartHeat Technology at its core, it requires
no calibration. Moreover, it uses high quality tips that as-
sure low ongoing operating costs. Its low cost makes it the
perfect choice for small or large production environments,
which need exceptional performance, while being mindful
of operating budgets.
Key Features & Benefits
SmartHeat
®
Temperature Control
Fixed temperature, variable
power with no thermal over
shoot
Assures operator comfort
and improved productivity
Provides exceptional
durability
Reduces tip oxidation in
stand and increases tip life
Extends tip life
For minimum operator
“down time”
Ergonomic, lightweight handle
Rugged cast aluminum housing
Autosleep Workstand
Added plating thickness to tips
Low cost, quick-change coil
assembly
Hand-piece is Ergonomic and
Lightweight
w w w. o k i n t e r n a t i o n a l . c o m
Jan. 2008
E
PS-900 Soldering System
Part No.
PS-900
Description
Complete System: PS-PW900, PS-HC3, WS2, AC-CP2
Power Supply, 100 to 240 VAC, 50/60 Hz, 90W Max. Input
Hand-piece w/cord (PS-H3) and Coil Assembly (PS-CA3)
Coil Assembly, PS-900 System
Hand-piece with Cord, NO Coil Assembly
Auto-sleep Workstand, Black Cradle
Auto-sleep Workstand, Green Cradle
Tip Removal Pad
D
A
B
C
F
Accessories
PS-PW900
PS-HC3
PS-CA3
PS-H3
WS2
WS2G
AC-CP2
A. PS-H3 Hand-piece with Cord, NO Coil Assembly
B. PS-CA3 Coil Assembly
C. SxV Soldering Tip
D. PS-PW900 Power Supply
E. WS2 Auto-sleep Workstand
F. PS-HC3 Hand-piece w/cord and Coil Assembly

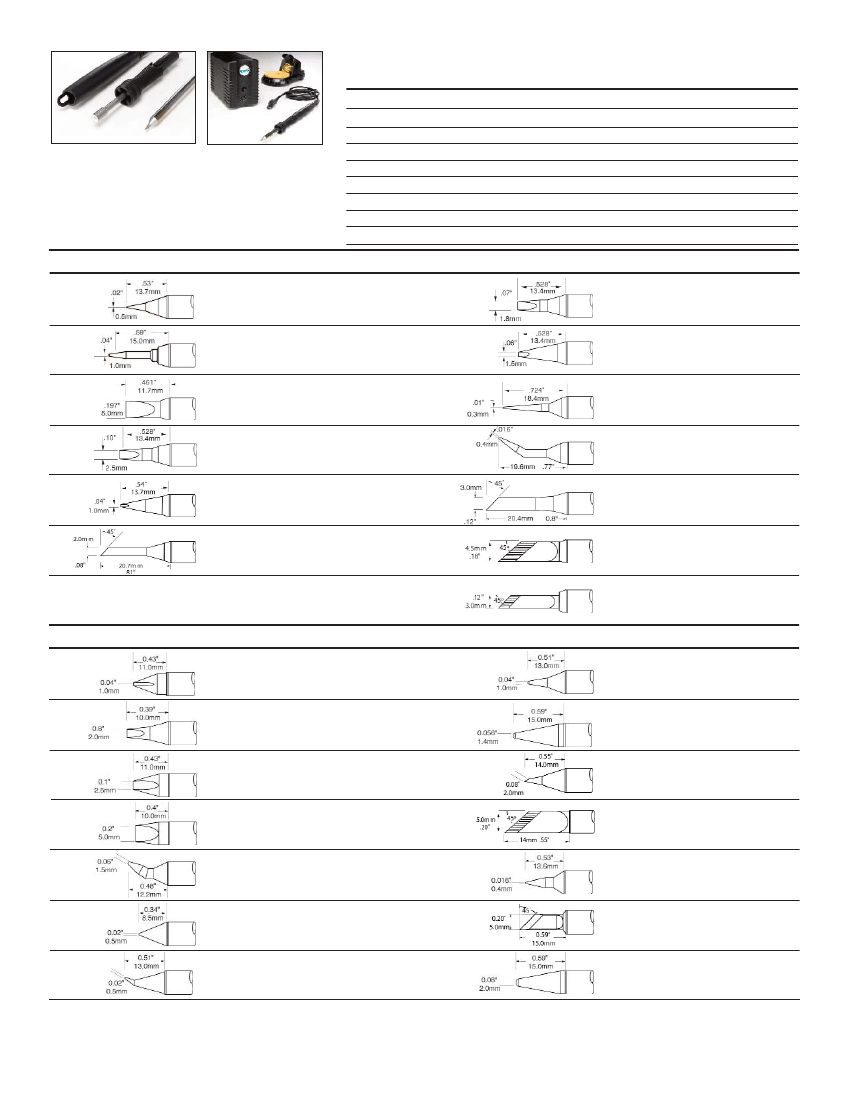

EASY ACCESS SOLDERING TIPS
for longer reach touch up applications
SFV-CN05A
Conical Solder Tip
0.5mm
(.02")
SFV-CNL10A
Conical Long Solder Tip
1.0mm
(.04")
SFV-CH50A
Chisel Solder Tip
5.0mm
(.197")
SFV-CH25A
Chisel Solder Tip
2.5mm
(.10")
SFV-CH10A
Chisel Solder Tip
1.0mm
(.04")
SFV-DRH420A
Hoof Solder Tip 45°
2.0mm
(.08")
SFV-CH18A
Fine Solder Tip
1.8mm
(.07")
SFV-CH15A
Chisel Solder Tip
1.5mm
(.06")
SFV-CNL03A
Conical Long Solder Tip
0.3mm
(.01")
SFV-CNB04A
Conical Bent Solder Tip
0.4mm
(.016")
SFV-DRH430A
Drag Solder Tip
Hoof, 3.0mm
(.12")
SFV-DRK45A
Knife Solder Tip
4.5mm
(.177")
SFV-DRK30A
Knife Solder Tip
3.0mm
(.12")
SOLDERING TIPS
for heavy duty applications
SFV-CH10
Chisel Solder Tip
30° 1.0mm
(.04")
SFV-CH20
Chisel Solder Tip
2.0mm
(.08")
SFV-CH25
Chisel Solder Tip
2.5mm
(.10")
SFV-CH50
Extra Large Chisel Solder Tip
5.0mm
(.20")
SFV-CHB15
Chisel Bent 30°Solder Tip
1.5mm
(.06")
SFV-CN05
Conical Solder Tip
0.5mm
(.02")
SFV-CNB05
Conical Bent Solder Tip
0.5mm
(.02")
SFV-CNL10
Conical Long Solder Tip
1.0mm
(.04")
SFV-CNL14
Conical Long Solder Tip
1.4mm
(.056")
SFV-DRH20
Conical Bevel Solder Tip
2.0mm
(.08")
SFV-DRK50
Knife Solder Tip
5.0mm
(.20")
SFV-CNL04
Conical Long Solder Tip
0.4mm
(.016")
SFV-DRK50S
Drag Soldering Tip
Knife 5.0mm
(.20")
SFV-CNL20
Conical Tip Long
2.0mm
(.08")
The second digit denotes substrate material (damage tolerance).
F=
FR4 / Glass Fiber, for most standard applications. Two other series are also available, just
replace F with either T or C.
T
= Temperature Sensitive,
C
= Ceramic
www.okinternational.com
