BU15TA2WNVX-TR Overview

LDO Voltage Regulators High-Speed Load CMOS 1.5V Out 200mA

BU15TA2WNVX-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SON
package instruction	HVSON, SOLCC4,.06,25
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Adjustability	FIXED
Nominal dropback voltage 1	1 V
Maximum absolute input voltage	6.5 V
Maximum input voltage	5.5 V
Minimum input voltage	2.5 V
JESD-30 code	R-PDSO-N4
length	1.6 mm
Maximum grid adjustment rate	0.02%
Maximum load regulation	0.08%
Number of functions	1
Output times	1
Number of terminals	4
Working temperatureTJ-Max	125 °C
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.2 A
Maximum output voltage 1	1.525 V
Minimum output voltage 1	1.475 V
Nominal output voltage 1	1.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	HVSON
Encapsulate equivalent code	SOLCC4,.06,25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	0.6 mm
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1.67%
width	1.2 mm

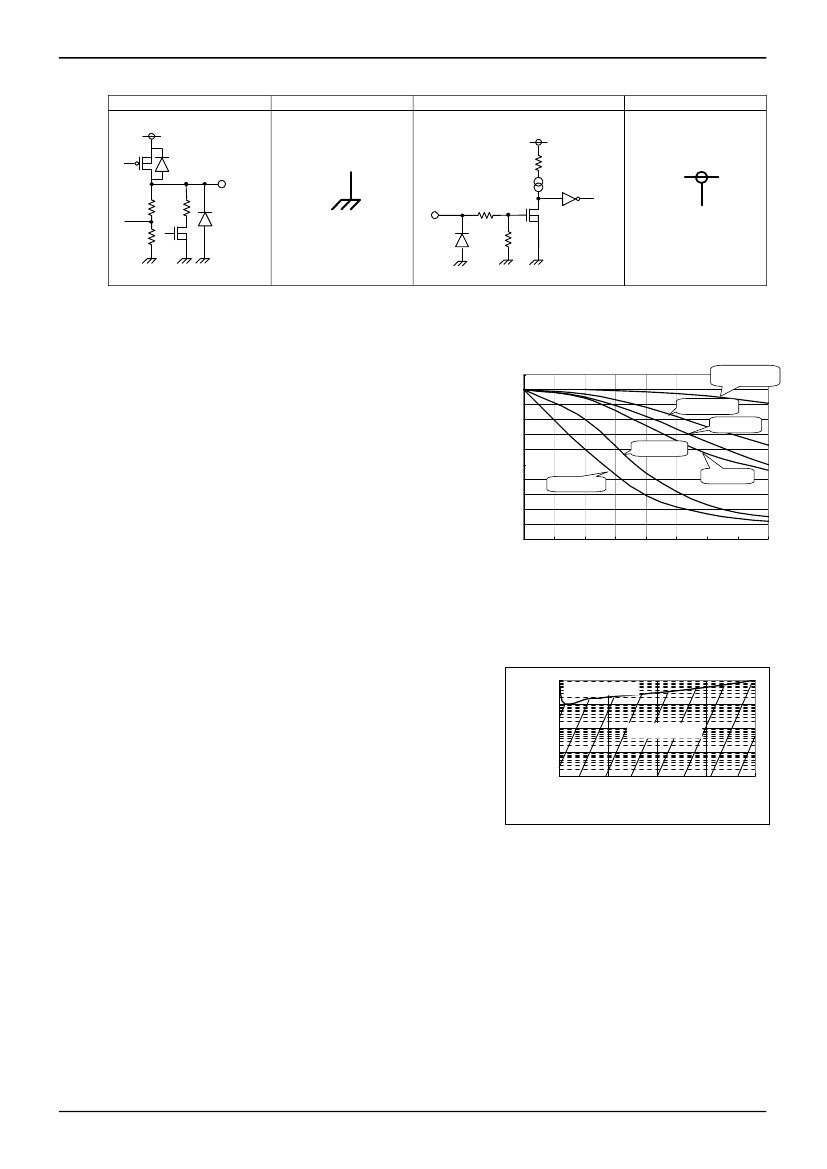

Preview

Download Datasheet

View All

CMOS LDO Regulators for Portable Equipments

1ch 200mA

CMOS LDO Regulators

BUTA2WNVX series, BUTA2WHFV series

No.11020ECT01

●Description

BU□□TA2WNVX /HFV series is high-performance FULL CMOS regulator with 200-mA output, which is mounted on

microminiature package SSON004X1216 (1.2 mm



1.6 mm



0.6 mm) &HVSOF5(1.6mm



1.6mm



0.6mm). It has

excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 40 µA.

It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.

Microminiature package SSON004X1216 & HVSOF5 with built-in heatsink is adopted for the package, which contributes to

the space-saving design of the set.

●Features

1) High-accuracy output voltage of

1%

(25 mV on 1.5-V & 1.8-V products）

2) High ripple rejection: 70 dB (Typ., 1 kHz, VOUT1.8 V))

3) Compatible with small ceramic capacitor (C

=Co=1.0 µF)

4) Low current consumption: 40 µA

5) ON/OFF control of output voltage

6) With built-in overcurrent protection circuit and overheat protection circuit

7) With built-in output discharge circuit

8) Adopting microminiature power package SSON004X1216

●Applications

Battery-powered portable equipment, etc.

●Line

■

200 mA BU□□TA2WNVX / HFV series

Product Name

BU□□TA2WNVX

BU□□TA2WHFV

1.5

○

1.8

○

2.5

○

2.6

○

2.7

○

2.8 2.85 2.9

○

3.0

○

3.1

○

3.2

○

3.3

○

3.4

○

Package

SSON004X1216

HVSOF5

Model name: BH□□TA2W□□□

Symbol

Contents

Specification of output voltage

□□

Package

Output voltage (V)

1.5V(Typ.)

1.8V(Typ.)

2.5V(Typ.)

2.6V(Typ.)

2.7V(Typ.)

□□

NVX :SSON004X1216

HFV :HVSOF5

Output voltage (V)

2.8V(Typ.)

2.85V(Typ.)

2.9V(Typ.)

3.0V(Typ.)

3.1V(Typ.)

□□

Output voltage (V)

3.2V(Typ.)

3.3V(Typ.)

3.4V(Typ.)

www.rohm.com

1/29

2011.01 - Rev.C

BU15TA2WNVX-TR Related Products

	BU15TA2WNVX-TR	BU32TA2WNVX-TR	BU30TA2WNVX-TR	BU30TA2WHFV-TR	BU2JTA2WNVX-TR	BU33TA2WHFV-TR	BU27TA2WNVX-TR	BU31TA2WNVX-TR	BU29TA2WNVX-TR	BU26TA2WHFV-TR
Description	LDO Voltage Regulators High-Speed Load CMOS 1.5V Out 200mA		LDO Voltage Regulators High-Speed Load CMOS 3.0V Out 200mA	LDO Voltage Regulators CMOS LDO REGULATOR	LDO Voltage Regulators High-Speed Load CMOS 2.85V Out 200mA	USB Interface IC USB to Basic Serial UART IC SSOP-16	LDO Voltage Regulators High-Speed Load CMOS 2.7V Out 200mA	LDO Voltage Regulators High-Speed Load CMOS 3.1V Out 200mA	LDO Voltage Regulators High-Speed Load CMOS 2.9V Out 200mA	LDO Voltage Regulators CMOS LDO REGULATOR
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SON	SON	SON	SOF	SON	SOF	SON	SON	SON	SOF
package instruction	HVSON, SOLCC4,.06,25	HVSON, SOLCC4,.06,25	HVSON, SOLCC4,.06,25	ROHS COMPLIANT, HVSOF-5	HVSON, SOLCC4,.06,25	ROHS COMPLIANT, HVSOF-5	HVSON, SOLCC4,.06,25	HVSON, SOLCC4,.06,25	HVSON, SOLCC4,.06,25	HVSSOF, FL6,.047,20
Contacts	4	4	4	5	4	5	4	4	4	5
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V
Maximum absolute input voltage	6.5 V	6 V	6 V	6.5 V	6.5 V	6.5 V	6 V	6 V	6.5 V	6.5 V
Maximum input voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum input voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
JESD-30 code	R-PDSO-N4	R-PDSO-N4	R-PDSO-N4	R-PDSO-F5	R-PDSO-N4	R-PDSO-F5	R-PDSO-N4	R-PDSO-N4	R-PDSO-N4	R-PDSO-F5
length	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum load regulation	0.08%	0.08%	0.08%	0.08%	0.08%	0.08%	0.08%	0.08%	0.08%	0.08%
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	5	4	5	4	4	4	5
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Maximum output voltage 1	1.525 V	3.232 V	3.03 V	3.03 V	2.8785 V	3.333 V	2.727 V	3.131 V	2.929 V	2.626 V
Minimum output voltage 1	1.475 V	3.168 V	2.97 V	2.97 V	2.8215 V	3.267 V	2.673 V	3.069 V	2.871 V	2.574 V
Nominal output voltage 1	1.5 V	3.2 V	3 V	3 V	2.85 V	3.3 V	2.7 V	3.1 V	2.9 V	2.6 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HVSON	HVSON	HVSON	HVSSOF	HVSON	HVSSOF	HVSON	HVSON	HVSON	HVSSOF
Encapsulate equivalent code	SOLCC4,.06,25	SOLCC4,.06,25	SOLCC4,.06,25	FL6,.047,20	SOLCC4,.06,25	FL6,.047,20	SOLCC4,.06,25	SOLCC4,.06,25	SOLCC4,.06,25	FL6,.047,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	NO LEAD	NO LEAD	FLAT	NO LEAD	FLAT	NO LEAD	NO LEAD	NO LEAD	FLAT
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.5 mm	0.65 mm	0.5 mm	0.65 mm	0.65 mm	0.65 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	1.67%	1%	1%	1%	1%	1%	1%	1%	1%	1%
width	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maker	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor	-	-	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor
Factory Lead Time	10 weeks	10 weeks	10 weeks	10 weeks	-	10 weeks	10 weeks	-	10 weeks	10 weeks
Maximum grid adjustment rate	0.02%	-	0.02%	0.02%	0.02%	0.02%	0.02%	-	0.02%	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Base Number Matches	-	1	-	-	1	1	1	1	1	-
