MAX334CPE datasheet, PDF - EEWORLD Datasheet

MAX334CPE: DescriptionAnalog Switch ICs High Speed Break-Before-Make Quad SPST Analog Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size126KB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

MAX334CPE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAX334CPE	-	-	View	Buy Now

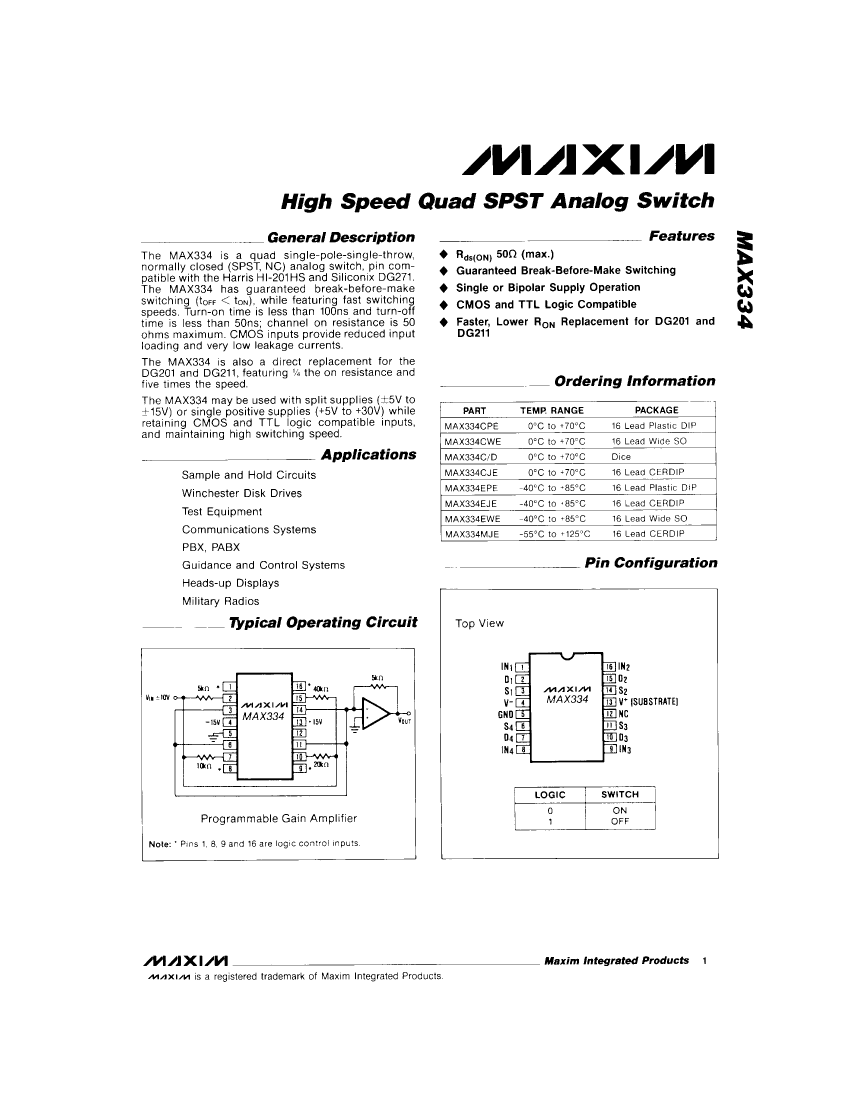

Analog Switch ICs High Speed Break-Before-Make Quad SPST Analog Switch

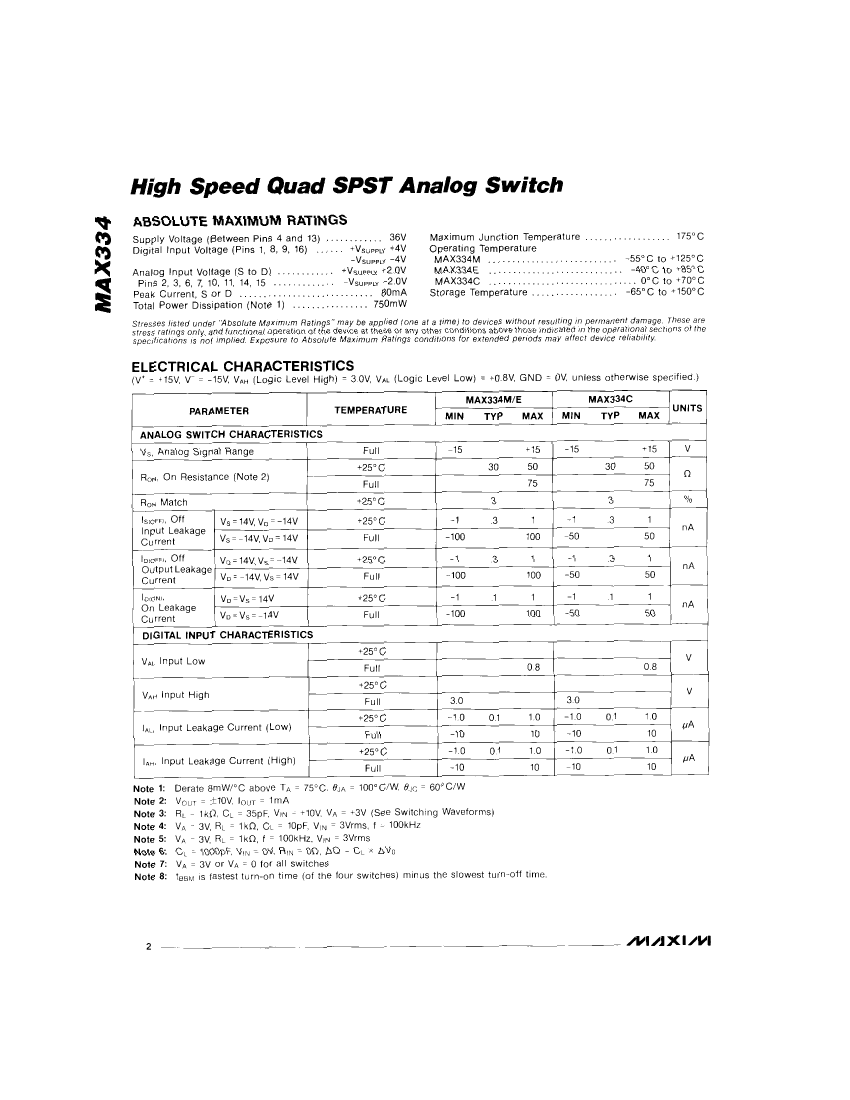

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ALSO OPERATES WITH 5 TO 15 SINGLE SUPPLY
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-15 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	4
Number of terminals	16

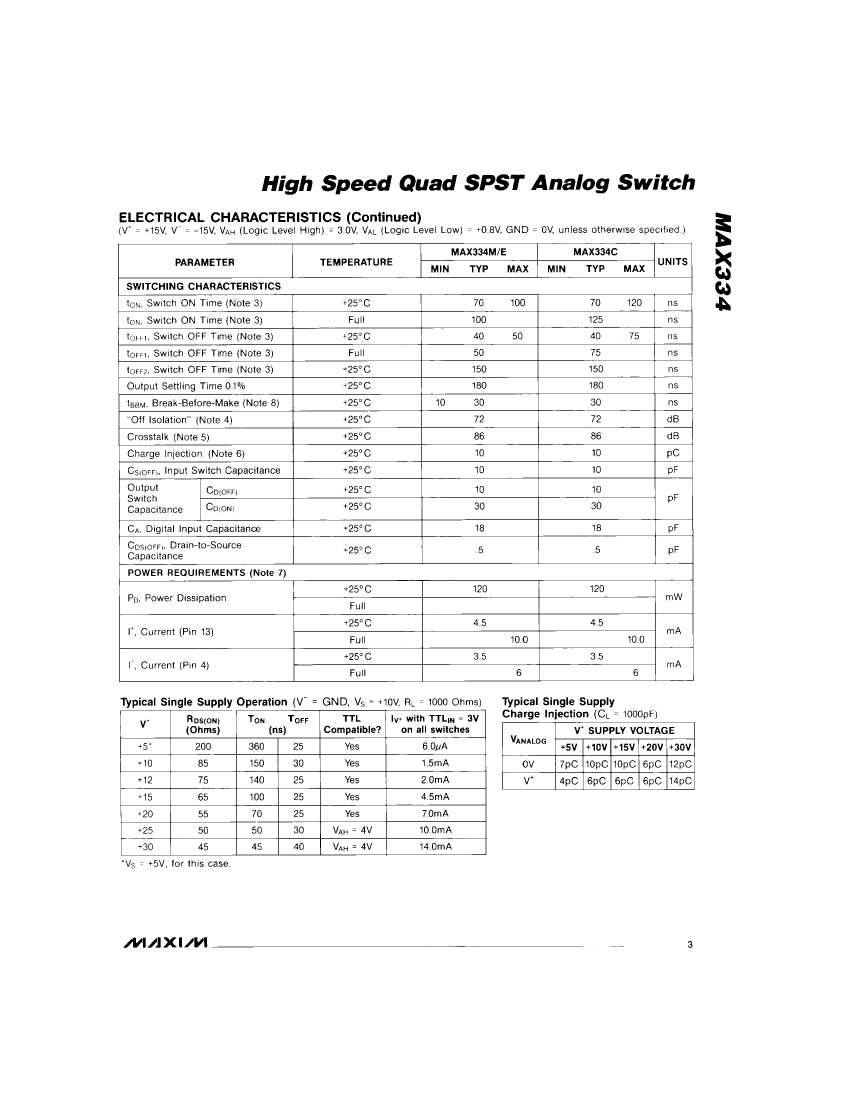

Nominal off-state isolation	72 dB
On-state resistance matching specifications	0.9 Ω
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO

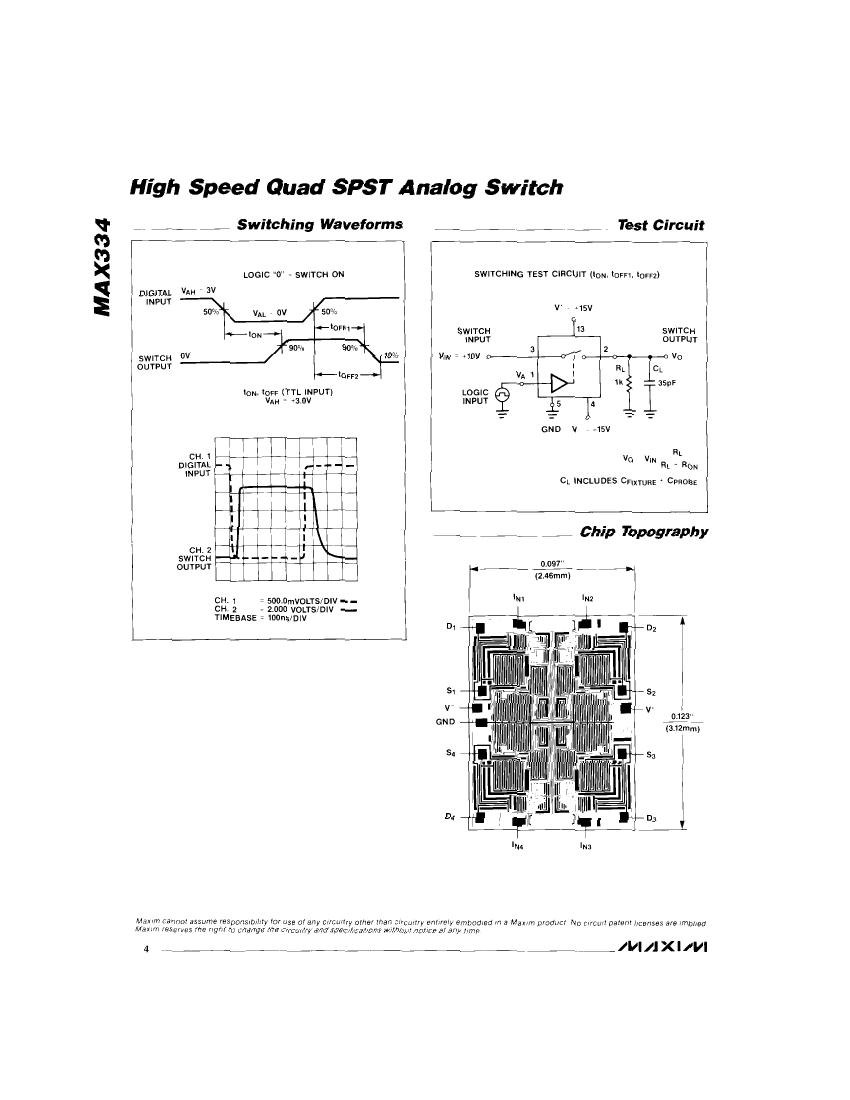

Maximum disconnect time	75 ns
Maximum connection time	120 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	7.62 mm
Base Number Matches	1
