MBR2X120A060
Schottky Rectifier
Module Type 240 A
Features
• High Surge Capability
• Type 60 V V
RRM
• Isolation Type Package
• Electrically Isolated Base Plate
• Not ESD Sensitive
SOT-227 Package
V
RRM
= 60 V
I
F(AV)
= 240 A
Maximum ratings
Parameter
Maximum recurrent peak reverse voltage
Maximum DC blocking voltage
Maximum RMS Voltage
Operating temperature
Storage temperature
Symbol
V
RRM
V
DC
V
RMS
T
j
T
stg
Conditions
Value
60
60
42
-40 to 150
-40 to 150
Unit
V
V
V
°C
°C
Electrical characteristics at 25 °C, unless otherwise specified
Parameter
Average forward current
Peak forward surge current
(per pkg)
(per leg)
Symbol
I
F(AV)
I
FSM
V
F
Conditions
T
C
= 110 °C
8.3 ms, half sine
I
FM
= 120 A, T
j
= 25 °C
I
FM
= 120 A, T
j
= 125 °C
T
j
= 25 °C
T
j
= 100 °C
T
j
= 150 °C
A.C. 1 minute
Value
240
1500
0.75
0.70
1
10
30
2500
Unit
A
A
V
V
mA
mA
mA
V
Maximum instantaneous forward voltage*
(per leg)
Maximum instantaneous reverse current at
rated DC blocking voltage (per leg)
Isolation voltage
I
R
V
iSO
Thermal characteristics
Maximum thermal resistance junction to case
(per leg)
* Pulse Test: Pulse width 300 µs, Duty < 2 %
R
Θjc
0.38
°C/W
www.genesicsemi.com/silicon-products/schottky-rectifiers/
1
MBR2X120A060

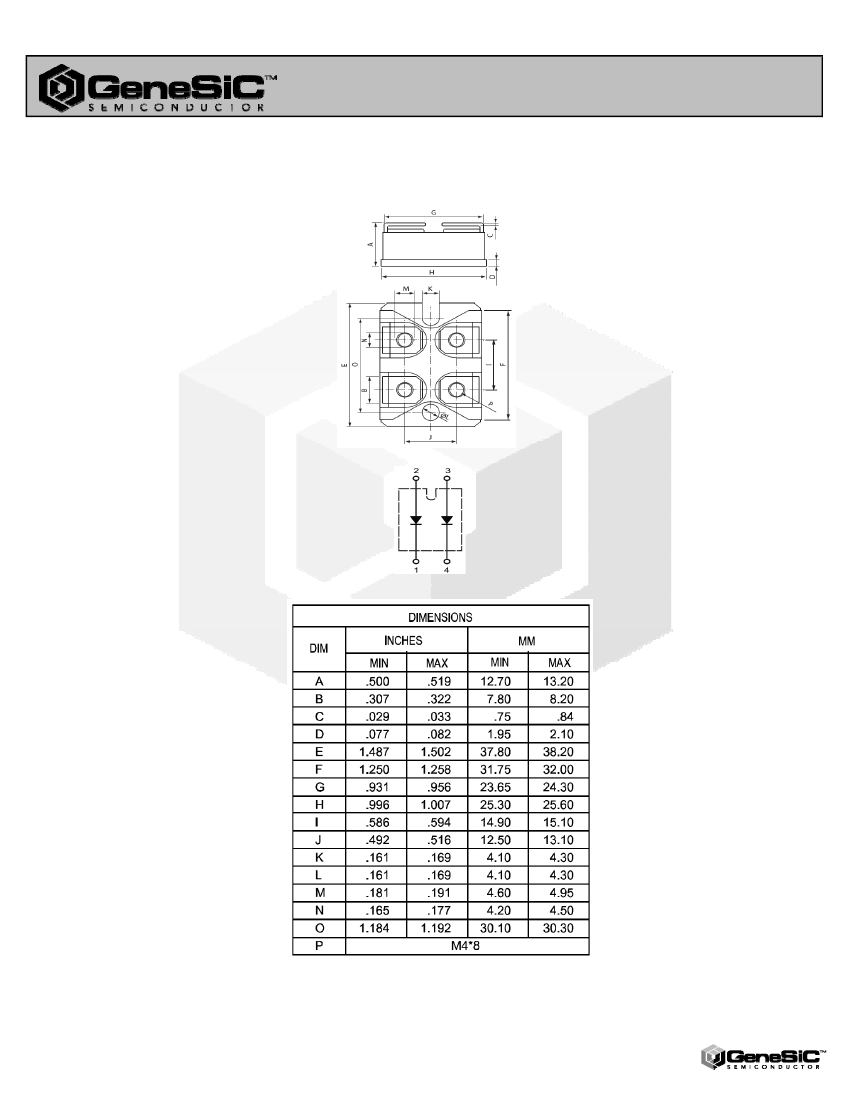

Package dimensions and terminal configuration
Product is marked with part number and terminal configuration.
www.genesicsemi.com/silicon-products/schottky-rectifiers/
3
