D
2
-PAK Tape and Reel Data
D
2
-PAK Packaging

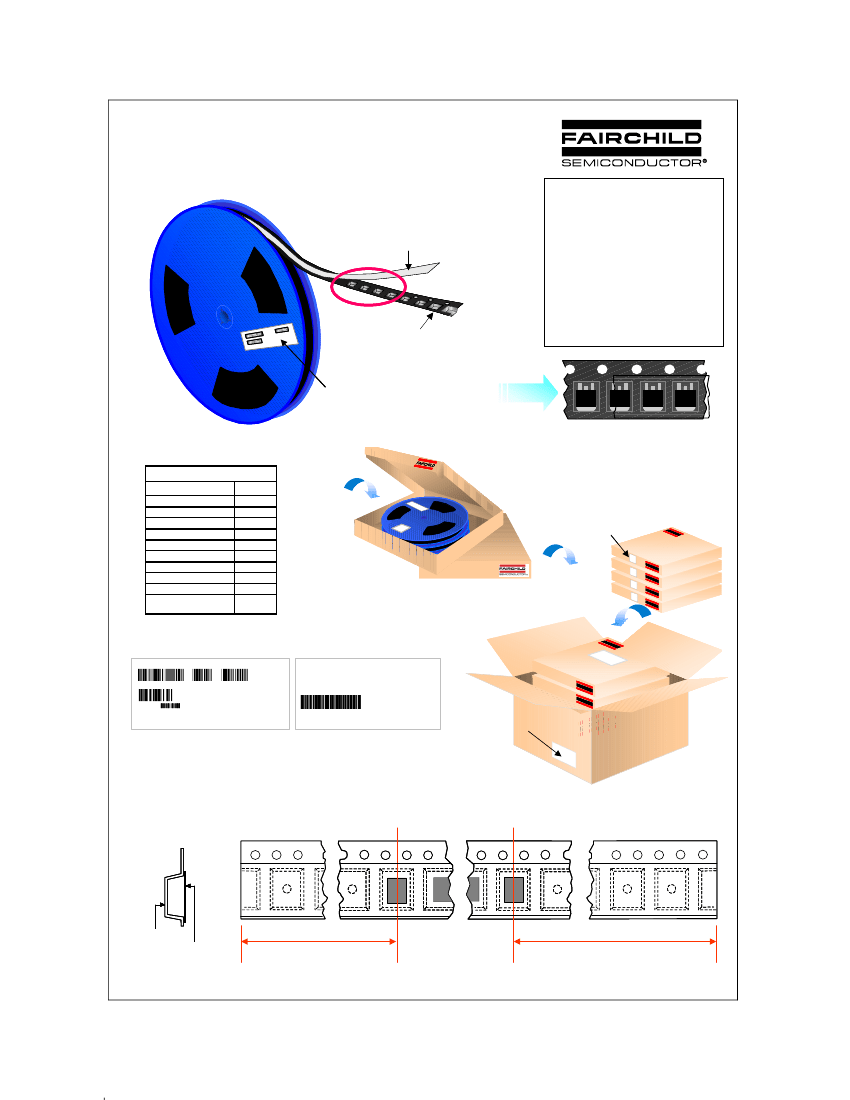

Configuration:
Figure 1.0
Packaging Description:
D
2
-PAK parts are shipped in tape. The carrier tape is
made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
800 units per 13” or 330cm diameter reel. The reels are
dark blue or black in color and is made of polystyrene
plastic (anti-static coated). This and some other options
are further described in the Packaging Information
table.These full reels are individually barcode labeled and
placed inside a standard intermediate box (illustrated in
figure 1.0) made of recyclable corrugated brown paper.
One box contains two reels maximum. And these boxes
are placed inside a barcode labeled shipping box which
comes in different sizes depending on the number of parts
shipped.
Antistatic Cover Tape
Static Dissipative
Embossed Carrier Tape
FKS Label
D
2
-PAK Unit Orientation
D
2
-PAK Packaging Information
Packaging Option
Packaging type
Qty per Reel/Tube/Bag
Reel Size
Inner Box Dimension (mm)
Max qty per Box
Max qty per Box
Weight per unit (gm)
Weight per Reel(kg)
Note/Comments
Standard
(TM)
TNR
800
13” Dia
339x352x68
1600
6,400
1.4689
-
2 Reels per box
FKS Label
Outer Box Dimension (mm)
390x370x310
339mm x 352mm x 68mm
Inner box(1,600cap)
Inner Box Barcode Label Sample
LOT:
PART ID:
D/C1:0211
D/C2:
QTY1:
QTY2:
Outer Box Barcode Label Sample
PART ID :
LOT NO :
QTY
:
0138
2002/ 03 /17
07:30:00
BG:FKS-IT
AR
QTY:
SPEC:
SPEC REV:
CPN:
2002/ 03 /17
07:30:00
BG:SA
LEAD FREE
M110020004
(BBX)1.0
FAIRCHILD SEMICONDUCTOR CORPORATION.
(F63TNR)3.2
FAIRCHILD SEMICONDUCTOR CORPORATION.
FKS Label
390mm x 370mm x 310mm
Outer box(6,400cap)
D
2
-PAK Tape Leader and Trailer
Configuration:
Figure 2.0
Carrier Tape
Cover Tape
Trailer Tape
360mm minimum or
45 empty pockets
Components
Leader Tape
1520mm minimum or
190 empty pockets
©2005 Fairchild Semiconductor Corporation
May 2005, Rev. C
FG1N60
XFD
115
FG1N60
XFD
115
FG1N60
XFD
115
FG1N60
XFD
115
TM
D
2
-PAK Tape and Reel Data, continued
D
2

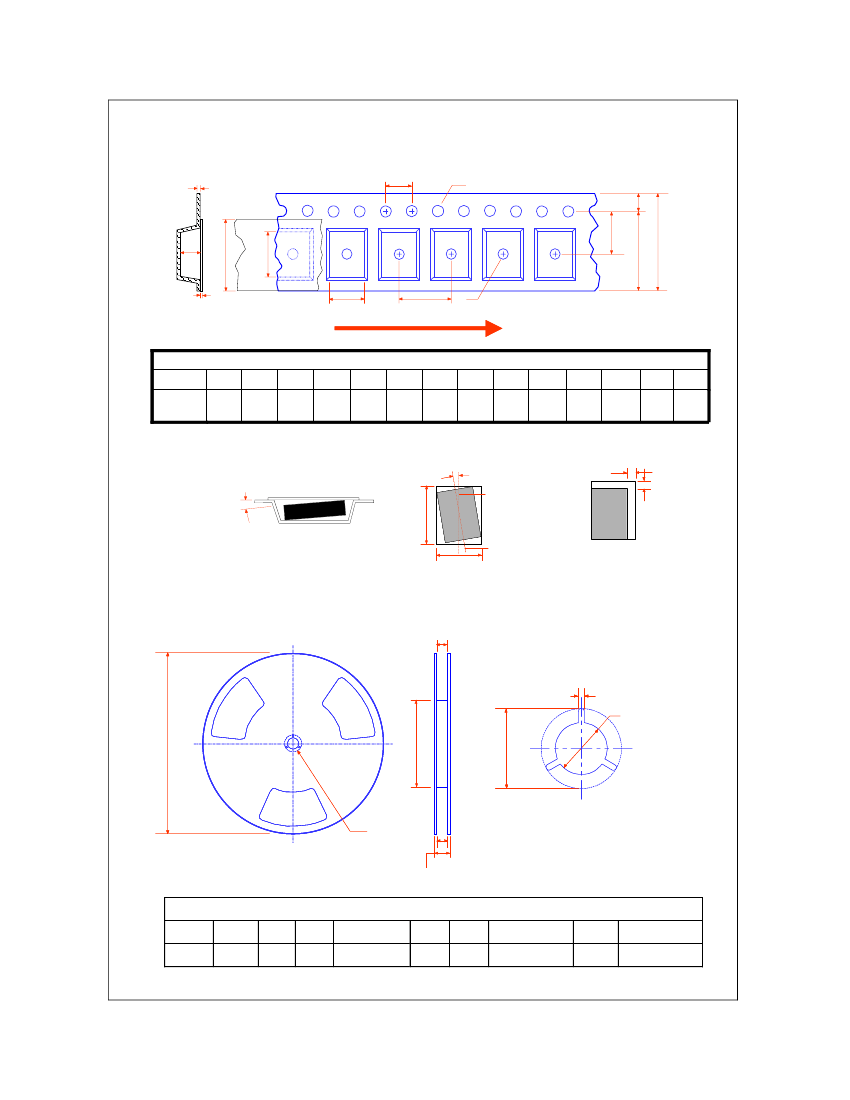

-PAK Embossed Carrier Tape
Configuration:
Figure 3.0
T
E1
P0
D0
F
K0
Wc
B0
E2
W
Tc
A0
User Direction of Feed
P1
D1
Dimensions are in millimeter
PKG type
D
2
-PAK TM
(24mm)
A0
10.60
+/-0.10
B0
15.80
+/-0.10
W
24.0
+/-0.3
D0
1.50
+0.10
/-0.00
D1
1.60
min
E1
1.75
+/-0.10
E2
22.25
min
F
11.50
+/-0.10
P1
16.0
+/-0.1
P0
4.0
+/-0.1
K0
4.90
+/-0.10
T
0.30
+/-0.05
Wc
21.3
+/-0.1
Tc
0.10
max
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
10 deg maximum
Typical
component
cavity
center line
1.0mm
maximum
B0
10 deg maximum component rotation
0.9mm
maximum
Sketch A (Side or Front Sectional View)
Component Rotation
A0
Sketch B (Top View)
Typical
component
center line
Sketch C (Top View)
Component lateral movement
Component Rotation
D
2
-PAK Reel
Configuration:
Figure 4.0
W1 Measured at Hub
B Min
Dim C
Dim A
max
Dim N
Dim D
min
DETAIL AA
See detail AA
W3
13” Diameter Option
W2 max Measured at Hub
Dimensions are in inches and millimeters
Tape Size
24mm
Reel
Option
13” Dia
Dim A
13.00
330
Dim B
0.059
1.5
Dim C
0.512 +0.020/-0.008
13 +0.5/-0.2
Dim D
0.795
20.2
Dim N
4.00
100
Dim W1
0.960 +0.078/-0.000
24.4 +2/0
Dim W2
1.197
30.4
Dim W3 (LSL-USL)
0.941 – 1.079
23.9 – 27.4
