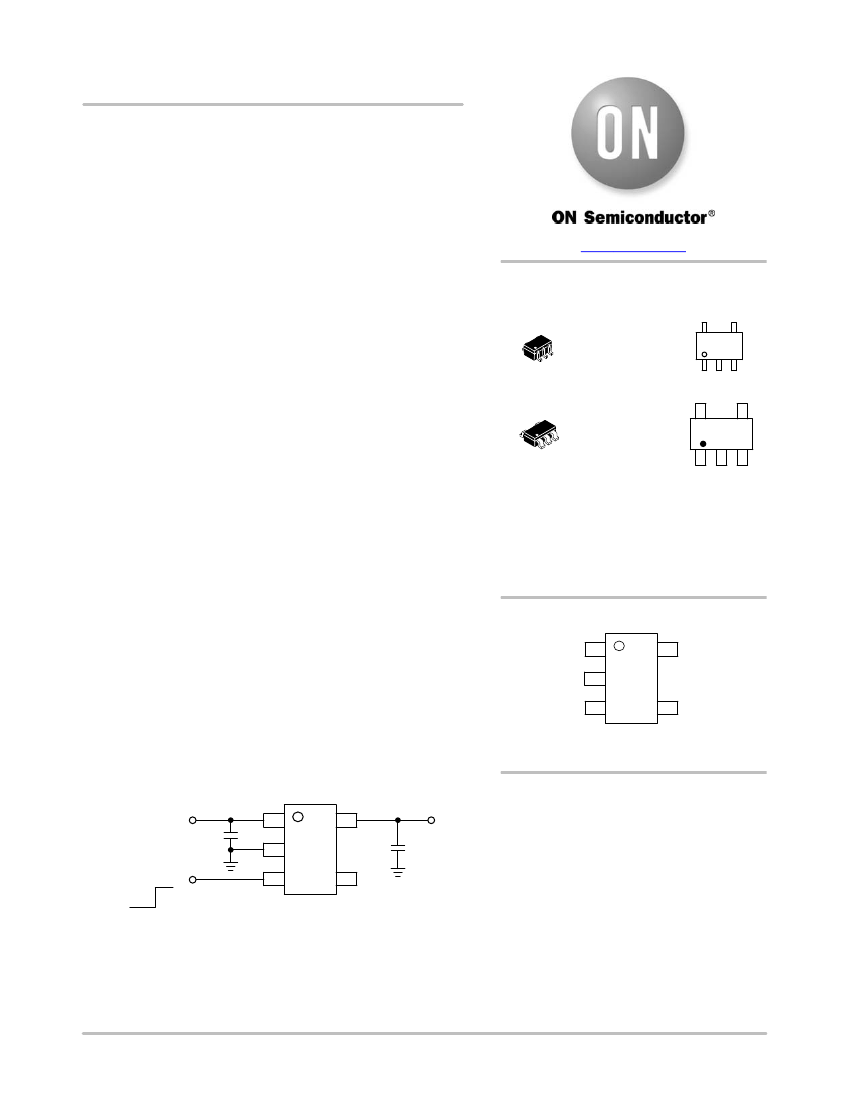

NCP502, NCV502
80 mA CMOS Low Iq,
Low-Dropout Voltage
Regulator
The NCP502 series of fixed output linear regulators are designed for
handheld communication equipment and portable battery powered
applications which require low quiescent. The NCP502 series features
an ultra−low quiescent current of 40
mA.
Each device contains a
voltage reference unit, an error amplifier, a PMOS power transistor,
resistors for setting output voltage, current limit, and temperature limit
protection circuits.
The NCP502 has been designed to be used with low cost ceramic
capacitors. The device is housed in the micro−miniature SC70−5 and
TSOP−5 surface mount packages. Standard voltage versions are 1.5 V,
1.8 V, 2.5 V, 2.7 V, 2.8 V, 2.9 V, 3.0 V, 3.1 V, 3.3 V, 3.4 V, 3.5 V, 3.6 V,
3.7 V and 5.0 V. Other voltages are available in 100 mV steps.
Features
www.onsemi.com
MARKING
DIAGRAM
4
5
12
3
SC70−5
SQ SUFFIX
CASE 419A
5
xxx MG
G
1
5
xxx AYWG
G
1
5
1
•
•
•
•
•
Low Quiescent Current of 40
mA
Typical
Excellent Line and Load Regulation
Low Output Voltage Option
Output Voltage Accuracy of 2.0%
Industrial Temperature Range of −40°C to 85°C,
NCV502, T
A
= −40°C to 125°C
•
NCP502: 1.3 V Enable Threshold High, 0.3 V Enable Threshold Low
•
NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
•
These are Pb−Free Devices
Typical Applications
TSOP−5
(SOT23−5, SC59−5)
SN SUFFIX
CASE 483
xxx = Specific Device Code
A
= Assembly Location
Y
= Year
W
= Work Week
M
= Date Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
PIN CONNECTIONS
V
in
GND
1
2
3
(Top View)
4
N/C
5
V
out
•
•
•
•
Cellular Phones
Battery Powered Consumer Products
Hand−Held Instruments
Camcorders and Cameras
Battery or
Unregulated
Voltage
Vout
C1
+
1
2
ON
OFF
This device contains 86 active transistors
3
4
5
+
C2
Enable
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
Figure 1. Typical Application Diagram
©
Semiconductor Components Industries, LLC, 2016
1
December, 2016 − Rev. 21
Publication Order Number:
NCP502/D
NCP502, NCV502
Thermal Resistance, Junction−to−Ambient, SC70−5
R
qJA
Single component mounted on a 80 x 80 x 15 mm FR4 PCB with stated copper head spreading area. Using the following
boundary conditions as stated in EIA/JESD 51−1, 2, 3, 7, 12.
2. True no connect. Printed circuit board traces are allowable.
3. This device series contains ESD protection and exceeds the following tests:
Human Body Model 2000 V per MIL−STD−883, Method 3015.
Machine Model Method 200 V..
NOTE:
www.onsemi.com
2
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
PIN FUNCTION DESCRIPTION
Pin No.
1
2
3
4
5
Pin Name
V
in
Description
Positive power supply input voltage.
Power supply ground.
GND
Enable
N/C
This input is used to place the device into low−power standby. When this input is pulled low, the device is
disabled. If this function is not used, Enable should be connected to Vin.
No internal connection.
V
out
Regulated output voltage.
MAXIMUM RATINGS
Rating
Symbol
V
in
Value
12
Unit
V
V
V
Input Voltage
Enable Voltage
Output Voltage
Enable
V
out
P
D
T
J
−0.3 to V
in
+0.3
−0.3 to V
in
+0.3
Power Dissipation and Thermal Characteristics
Power Dissipation
Operating Junction Temperature
Operating Ambient Temperature
Storage Temperature
Internally Limited
+150
W
°C
°C
°C
NCP502
NCV502
T
A
−40 to +85
−40 to +125
T
stg
−55 to +150
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
1. Latchup capability (85°C)
±100
mA DC with trigger voltage.
THERMAL CHARACTERISTICS
Rating
Thermal Characteristics, TSOP−5 (Note 2)
Thermal Resistance, Junction−to−Air (Note 3)
Symbol
R
qJA
Test Conditions
1 oz Copper Thickness, 100 mm
2
205
400
W
°C/W
Value
Unit
°C/W
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
NCP502, NCV502
ELECTRICAL CHARACTERISTICS
(V
in
= V
out(nom.)
+ 2.0 V, V
enable
= V
in
, C
in
= 1.0
mF,
C
out
= 1.0
mF,
T
J
= 25°C, unless otherwise noted.)
Characteristic
Output Voltage (T
A
= 25°C, I
out
= 10 mA) V
in
= V
out
(nom.) +1.0 V
1.5 V
1.8 V
2.5 V
2.7 V
2.8 V
2.9 V
3.0 V
3.1 V
3.3 V
3.4 V
3.5 V
3.6 V
3.7 V
5.0 V
Output Voltage (T
A
= T
low
to T
high
, I
out
= 10 mA) V
in
= V
out
(nom.)
1.5 V
1.8 V
2.5 V
2.7 V
2.8 V
2.9 V
3.0 V
3.1 V
3.3 V
3.4 V
3.5 V
3.6 V
3.7 V
5.0 V
Line Regulation (V
in
= V
out
+ 1.0 V to 12 V, I
out
= 10 mA)
Load Regulation (I
out
= 1.0 mA to 80 mA)
Output Current (V
out
= (V
out
at I
out
= 80 mA) −3%)
Dropout Voltage (T
A
= T
low
to T
high
, I
out
= 80 mA, Measured at V
out
−3.0%)
1.5 V−1.7 V
1.8 V−2.4 V
2.5 V−2.6 V
2.7 V−2.9 V
3.0 V−4.0 V
4.1 V−5.0 V
NCV502 − 5.0 V
Quiescent Current
(Enable Input = 0 V)
(Enable Input = V
in
, I
out
= 1.0 mA to I
o(nom.)
)
Output Short Circuit Current (V
out
= 0 V)
Ripple Rejection (f = 1.0 kHz, 15 mA)
Output Voltage Noise (f = 100 Hz to 100 kHz)
Enable Input Threshold Voltage (NCP502)
(Voltage Increasing, Output Turns On, Logic High)
(Voltage Decreasing, Output Turns Off, Logic Low)
Output Voltage Temperature Coefficient
4. Maximum package power dissipation limits must be observed.
T
*T
A
PD
+
J(max)
R
qJA
5. Low duty cycle pulse techniques are used during testing to maintain the junction temperature as close to ambient as possible.
Symbol
V
out
1.455
1.746
2.425
2.646
2.744
2.842
2.94
3.038
3.234
3.332
3.43
3.528
3.626
4.900
V
out
1.455
1.746
2.425
2.619
2.716
2.813
2.910
3.007
3.201
3.298
3.43
3.528
3.626
4.900
Reg
line
Reg
load
I
o(nom.)
V
in
−V
out
−
−
−
−
−
−
−
I
Q
−
−
I
out(max)
RR
V
n
V
th(en)
1.3
−
T
C
−
−
−
100
−
0.3
−
ppm/°C
90
−
−
0.1
40
200
55
180
1.0
90
500
−
−
mA
dB
mVrms
V
1500
1300
1000
850
850
600
700
1900
1700
1400
1300
1200
900
1100
mA
−
−
80
1.5
1.8
2.5
2.7
2.8
2.9
3.0
3.1
3.3
3.4
3.5
3.6
3.7
5.0
0.4
0.2
180
1.545
1.854
2.575
2.781
2.884
2.987
3.09
3.193
3.399
3.502
3.57
3.672
3.774
5.100
3.0
0.8
−
mV/V
mV/mA
mA
mV
1.5
1.8
2.5
2.7
2.8
2.9
3.0
3.1
3.3
3.4
3.5
3.6
3.7
5.0
1.545
1.854
2.575
2.754
2.856
2.958
3.06
3.162
3.366
3.468
3.57
3.672
3.774
5.100
V
Min
Typ
Max
Unit
V
www.onsemi.com
3
NCP502, NCV502
45
I
Q
, QUIESCENT CURRENT (mA)
I
Q
, QUIESCENT CURRENT (mA)
40
35
30
25
20
15
10
5
0
0
1
2
3
4
5
6
7
V
IN
, INPUT VOLTAGE (V)
V
OUT
= 3.0 V
45
42.5
40
37.5
35
32.5
30
−60
V
IN
= 5.0 V
V
OUT
= 3.0 V
−40
−20
0
20
40
60
80
100
T, TEMPERATURE (°C)

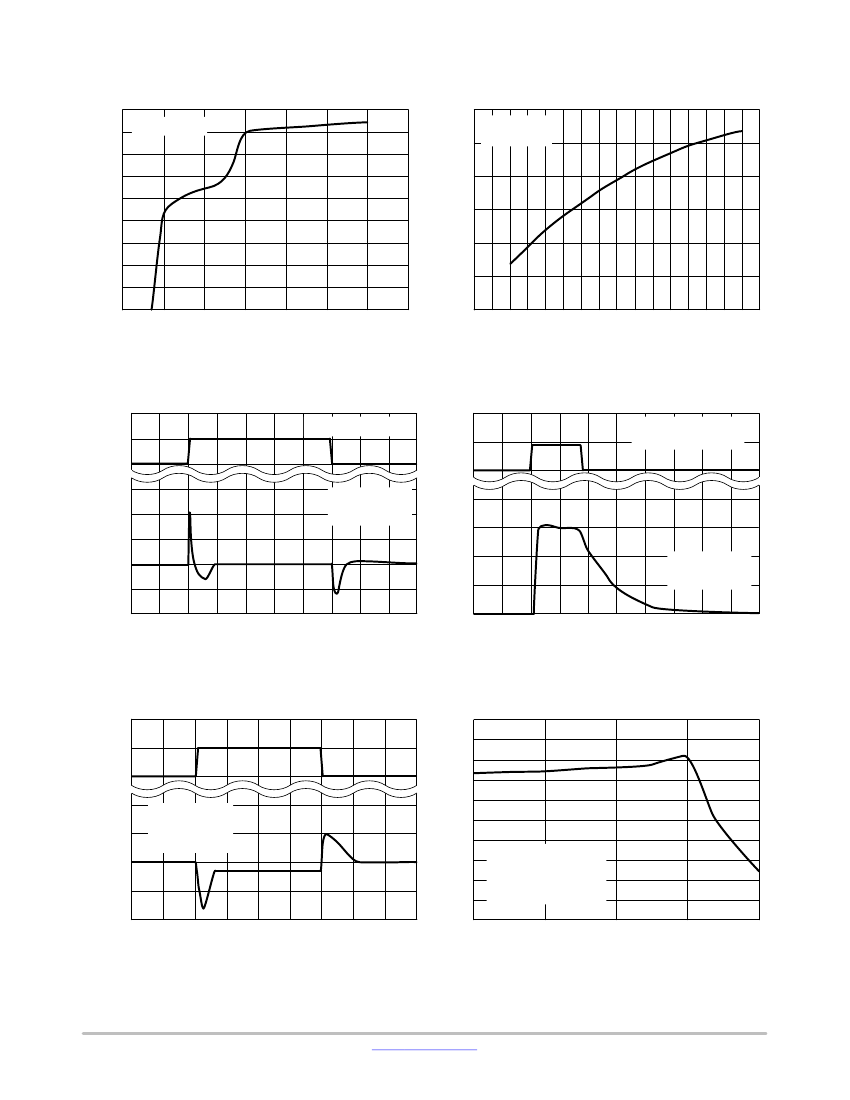

Figure 2. Quiescent Current versus Input Voltage
