Standard Keypads
SerieS 84S
Sealed
FeatureS
• Waterproof Silicone Rubber
• Easily Customized Legends
• Audible, Tactile Contacts
• Low Contact Resistance
• Optional RFI/EMI Shielding
• 3,000,000 Operations per Button
Keyboards and Keypads

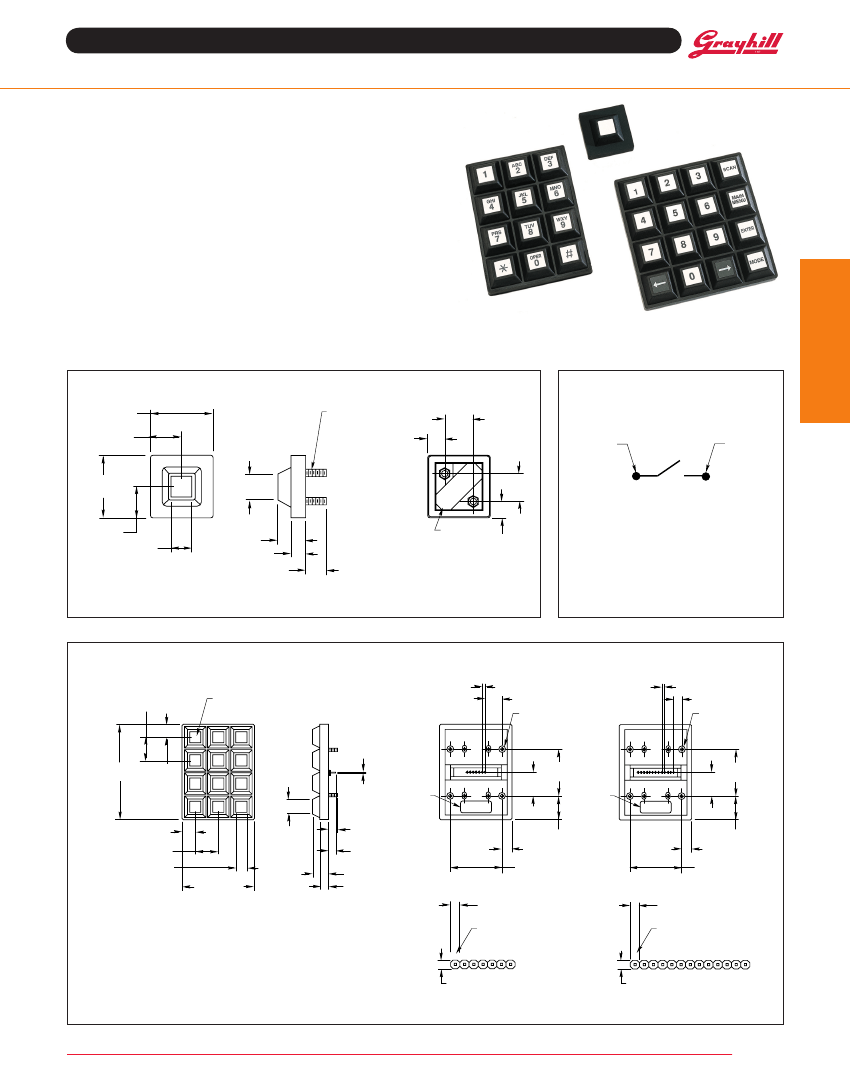

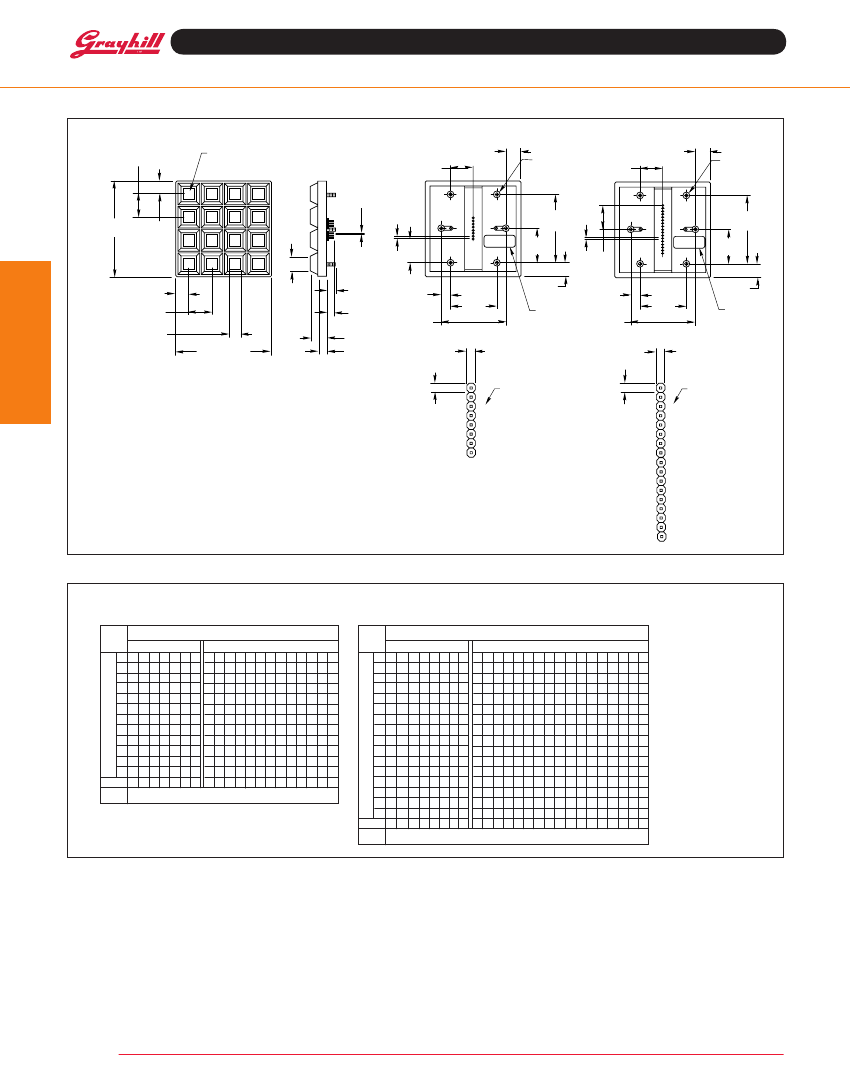

DimenSionS
in inches (and millimeters)
1 Button module
1.125 ± .020
(28,58 ± 0,51)
.562 (14,27)
CirCuitrY
#4-40 MTG. STUD,
2 PLACES (ALSO
SERVES AS
.313
TERMINALS)
(7,95)
.500
(12,7)
MTG.
STUD
.500
(12,7)
MTG.
STUD
1.125 ± .020
(28,58 ± 0,51)
.490
(12,45) SQ.
.562 (14,27)
.366 (9,30) SQ.
BUTTON AREA
LABEL
.500 (12,7)
.270 (6,86)
.362 ± .015
(9,19 ± 0,38)
Unless otherwise noted, linear dimension tolerances are ± .010 (0,25)
Note: Mounting studs serve as terminals.
.313
(7,95)
SINGLE THROW,
NORMALLY OPEN
3x4 Keyboard
.750 (19,05) 3 EQ. SPS.
TOL. NON-ACCUM.
SWITCH POSITION
IDENTIFICATION
.025 ± .002
(0,64 ± 0,05) SQ.
TERMINAL
PINS
matrix output
.100 (2,54) TYP.
.525 (13,34)
#6-32 MTG
STUD
4 PLACES
Single Pole/Common Bus
.100 (2,54) TYP.
.225 (5,72)
#6-32 MTG
STUD
4 PLACES
1
4
2
5
8
11
3
6
9
12
3.100 ± .020
(78,74 ± 0,51)
.425
(10,80)
7
10
.490
(12,45)
SQ.
LABEL
1.500
.750 (38,1)
(19,05)
LABEL
1.500
.750 (38,1)
(19,05)
.425 (10,80)
.750 (19,05) 2 EQ. SPS.
TOL. NON-ACCUM.
.366 (9,30) SQ.
BUTTON AREA
.337 ± .015
(8,56 ± 0,38)
.267 ± .015
(6,78 ± 0,38)
2.350 ± .020
(59,69 ± 0,51)
.500 (12,7)
.270 (6,86)
.350
(8,89)
.800
(20,32)
1.650 (41,91)
.350
(8,89)
.800
(20,32)
1.650 (41,91)
.100 (2,54) REF. TERMINAL
PIN HEADER
TERMINAL PIN
IDENTIFICATION
A B C D E F G
.098 (2,49) REF. TERMINAL
PIN HEADER
.100 (2,54) REF. TERMINAL
PIN HEADER
TERMINAL PIN
IDENTIFICATION
A H B J C K D L E M F N G
.098 (2,49) REF. TERMINAL
PIN HEADER
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Standard Keypads
DimenSionS
in inches (and millimeters)
4x4 Keyboard
.750 (19,05) 3 EQ. SPS.
TOL. NON-ACCUM.
SWITCH POSITION
IDENTIFICATION
.025 ± .002
(0,64 ± 0,05) SQ.
TERMINAL
.100
PINS
(2,54)
TYP.
matrix output
.490 (12,45)
.750
(19,05)
#6-32 MTG
STUD
6 PLACES
.100
(2,54)
TYP.
Single Pole/Common Bus
.490 (12,45)
.750
(19,05)
#6-32 MTG
STUD
6 PLACES
1
5
2
6
10
14
3
7
11
15
4
8
12
16
3.100 ± .020
(78,74 ± 0,51)
.425
(10,80)
9
13
.490
(12,45)
SQ.
2.250
(57,15)
1.125
(28,58)
2.250
(57,15)
1.125
(28,58)
.775
(19,69)
.800
(20,32)
.310 (7,87)
2.120 (53,85)
.425 (10,80)
.750 (19,05) 3 EQ. SPS.
TOL. NON-ACCUM.
.366 (9,30) SQ.
BUTTON AREA
.337 ± .015
(8,56 ± 0,38)
.267 ± .015
(6,78 ± 0,38)
.500 (12,7)
3.100 ± .020
(78,74 ± 0,51)
.270 (6,86)
.310
(7,87)
2.120
(53,85)
1.500
(38,1)
.425
(10,80)
LABEL
1.500
(38,1)
.425
(10,80)
LABEL
BUTTON LOCATION
BUTTON LOCATION
Keyboards and Keypads
.098 (2,49) REF.
TERMINAL
PIN HEADER
F
E
D
B
C
A
G
H
.098 (2,49) REF.
TERMINAL
PIN HEADER
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
TERMINAL PIN
IDENTIFICATION
.100 (2,54) REF.
TERMINAL
PIN HEADER
TERMINAL PIN
IDENTIFICATION
.100 (2,54) REF.
TERMINAL
PIN HEADER
CoDe anD truth taBleS
Dots in the chart indicate connected terminals when switch is closed. Terminals are identified on the keyboard.
12 Button Keypads
16 Button Keypads
CODES
CODES
Single Pole/Common Bus
3x4
1
2
3
4
5
6
7
8
9
10
11
12
C B A G F E D E C B F D A N K H M L J G
TERMINAL LOCATION
•
•
• •
•
• •
•
•
•
•
•
•
•
•
• •
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Matrix
Single Pole/Common Bus
4x4
•
•
•
•
•
•
•
•
•
•
•
•
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
•
•
•
•
•
•
•
•
•
•
• •
• •
•
•
•
•
•
•
Matrix
•
•
•
•
•
•
•
•
•
•
A B C D E F GH D B A C H F E G K M L J P R Q N
S
TERMINAL LOCATION
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
• •
••
SPeCiFiCationS
rating Criteria
rating at 24 Vdc: ≤10 milliamps resistive
Contact Bounce: 4 milliseconds maximum at
make; 10 milliseconds at break
Contact resistance:
MOS, TTL, and DTL
compatible. (10 ohms maximum)
life expectancy: 3 million operations/button
insulation resistance:
1,000 megohms
operating Force: 20 ± 4 ounces
humidity: 0 to 98% (no condensation)
minimum Push out Force Per Pin: 5 pounds
mounting Studs: Phosphor bronze
optional hex nut: Stainless steel, passivated
optional emi Shield: Aluminum foil
Keypad: Silicone rubber
Buttons:
ABS Cycolac, grade FR15U
materials and Finishes
operating Features
Pre-travel: .030 inches minimum
operating temperature: -55°C to 85°C
terminal Pins:
Copper alloy CDA 725,
solder-plated
PC Board: FR-4 glass cloth epoxy
Contact Dome:
Stainless steel, selectively
gold-plated
Dome retainer/rear Seal Sheet: Polyester
Shielding effectiveness
Results shown are typical for a standard Grayhill
Series 84S Keyboard. A conductive gasket will
generally increase the shielding, depending on
the size and shape of the gasket and its material.
Data derived for E-Field Radiation.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Standard Keypads
dB
100
80
60
40
20
0
ShielDing eFFeCtiVeneSS oF 84S-aC2
0.1 10 100 400 800 2000 6000 10000 18000
MHz
Represents shielding effectiveness
greater than or equal to line.
Frequency
mhz
0.1
10
100
400
800
2,000
6,000
10,000
18,000
rating
in dB
66.2
94.8
90.5
64.2
42.3
40.5
33.1
34.4
37.0
receiving equipment. A signal generator provided
the frequency source that was radiated from the
transmitting antenna to the enclosed receiving
antenna. The spacing between antennas was
maintained constant throughout the frequency
range. The effectiveness rating is determined
by establishing a reference reading without
obstruction between the two antennas and
determining the difference between that reading
and the test setup reading.
StanDarD legenDS
available through grayhill Distributors
note:
When measured in actual equipment, shielding
test method:
Measurements were made with the keyboard effectiveness is determined by many factors.
mounted to a brass plate, which in turn was This method accurately represents the shielding
mounted to a shielded enclosure containing the effectiveness of the Grayhill Series 84S under
ideal test conditions.
To order one of the configurations below, use the dash number shown here; select the keypad
size and code, and order the part number with the appropriate legend dash number. The
buttons in these keypads can be removed, and reinserted in any configuration.
Keyboards and Keypads
1
4
7
2
5
8
0
-112
3
6
9
1
4
7
a
2
5
8
0
-014
3
6
9
B
C
D
e
F
1
ghi
aBC
2
DeF
3
1
ghi
aBC
2
DeF
3
a
B
C
D
4
JKl
5
mno
6
4
JKl
5
mno
6
PrS
7
tuV
8
WXY
9
PrS
7
tuV
8
WXY
9
OPER
0
OPER
0
-113
-016
CuStom legenDS
library of legends
menu
Pro-
gram
moDe
eDit
adding Color
Use colored buttons to segregate button
groupings or to provide originality. Available in
black legends on white or yellow buttons, or
in white legends on black, green, red or blue
buttons. Two popular combinations, black on
white and white on black, are available from
Grayhill stock. Delivery time will increase for
other color combinations.
Set
loCK
inPut
holD
run
FWD
reV
StoP
CLEAR
Can-
Cel
on
oFF
Grayhill maintains a legend library which contains
the most often requested special legends and
many unusual ones. If the legend is in the library,
the cost to utilize this legend in your keypad
configuration is minimal. If the legend is not
available, Grayhill can list the charges required
to add your legend to the library. In this manner,
new legends are added on a periodic basis.
Custom legends to fit your unique requirements
may not be as expensive as you think, contact
Grayhill.
a
B
C
D
e
F
heaDer ConneCtorS
Compatible with: Samtec, inc. Header Series
BCS, BSW, CES, ESW, ESQ, SLW, SSW, SSQ,
IDSS and IDSD or equivalent.
available from your local grayhill
Distributor.
For prices and discounts, contact a local
Sales Office, an authorized local Distributor
or Grayhill.
orDering inFormation
84S-aC2-113-n
grayhill Series number
Shielded or non-Shielded option
S = Shielded; SN = Non-Shielded
Size option: A = 3x4; B = 4x4; C = 1 Button
Circuitry option
(B2 and C2 not applicable to 1 button)
B2 = Matrix in-line pins
C2 = Single pole/common bus, in-line pins
C3 = 1 Button, SPST–N.O., non-shielded only
mounting nut option
N = Provided with hex nuts for mounting; Blank = Nuts not provided
Standard legend Choices
3x4 Size: -112 or -113; -000, No buttons; -101, Blank Buttons
4x4 Size: -014 or -016; -000, No buttons; -001, Blank Buttons
1 Button Size: -001, No legend, white button
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
