RT314A06: DescriptionRT314A06; CategoryTopical application Mechanical and electrical/engineering/automation; File Size203KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RT314A06 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RT314A06	-	-	View	Buy Now

RT314A06 Overview

RT314A06

RT314A06 Parametric

Parameter Name	Attribute value
Power relay type	standard
Terminal limit breaking current (A)	16
Coil excitation system	bistable, 1 coil, polarized
Coil Power Rating (DC) (mW)	400
Coil resistance (Ω)	90
Coil characteristics	UL Coil Insulation Class F
Coil Voltage Rating (VDC)	6
Terminal switching voltage (max) (VAC)	400
Terminal Voltage Rating (VAC)	250
Insulation leakage between terminal and coil	10 mm [ .394 in ]
Initial dielectric between terminal and coil (Vrms)	5000
Insulation leakage type (mm)	8
Terminal limit continuous current (A)	16
Terminal limit short-time current (A)	16
Terminal limit closing current (A)	30
Open terminal insulation initial dielectric (Vrms)	1000
Coil/terminal insulation initial dielectric type (V)	4000
product weight	14 g [ .494 oz ]
Insulating properties	Tracking index of relay base PTI250
Terminal arrangement	1 Form C (CO)
Terminal current type (A)	10 – 20, 16
Contact Current Rating (Max) (A)	16
Terminal material	AgNi90/10
Number of terminal poles	1
Terminal type	PCB-THT, plug-in
Relay installation type	A printed circuit board
Product height	15.7 mm [ .618 in ]
Product length	29 mm [ 1.142 in ]
Product width	12.7 mm [ .5 in ]
Width type (mechanical) (mm)	12 – 16
Insulation gap between terminal and coil	10 mm [ .394 in ]
Height type (mechanical) (mm)	15 – 16
Insulation gap type (mm)	8
Length type (mechanical) (mm)	25 – 30
Environmental Protection Category	RTII
Ambient temperature (maximum)	85 °C [ 185 °F ]
Ambient temperature category (°C)	70 – 85
Encapsulation method	Carton, box and tube

Preview

Download Datasheet

View All

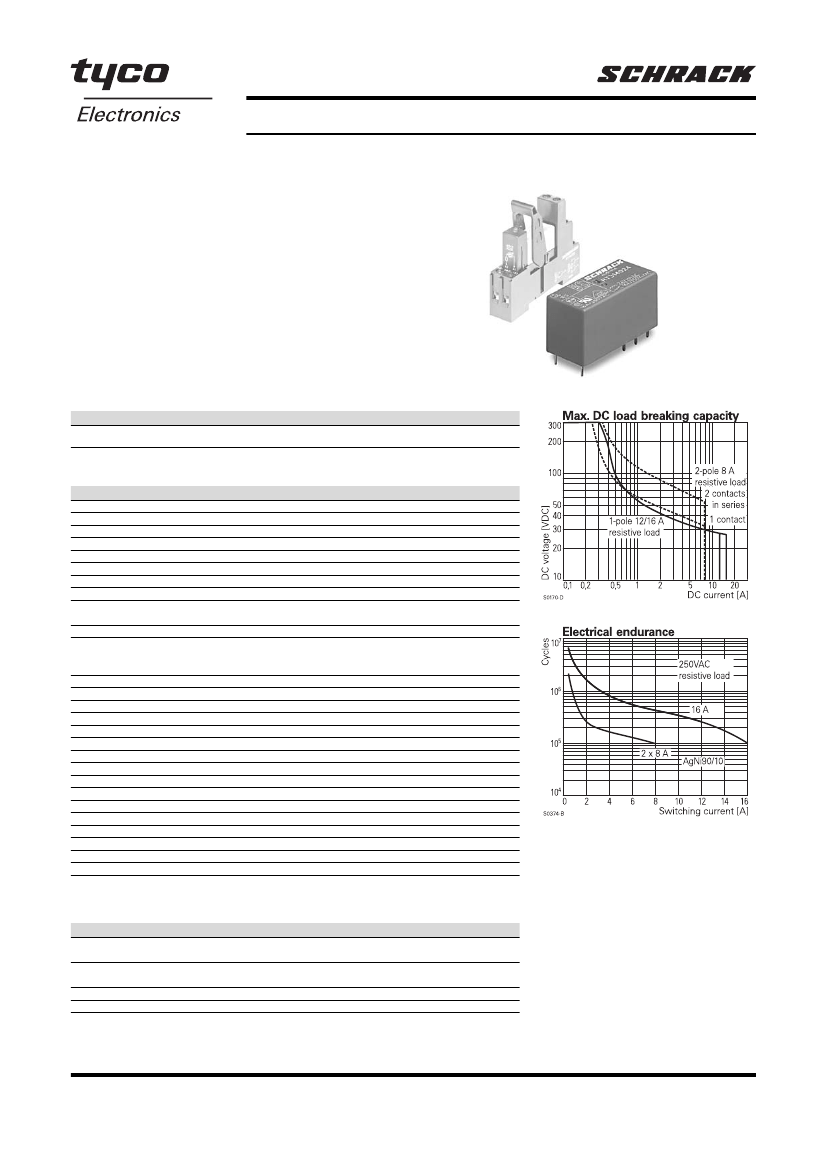

General Purpose Relays

Interface Power Relay RT

1 pole 12 / 16 A, 2 pole 8 A, 1 CO contact or 2 CO contacts

DC- or AC coil

Sensitive coil 400 mW

Reinforced insulation, protection class II (VDE 0700)

5 kV / 10 mm coil-contact

1pole 12 A with 3.5 or 5 mm pinning

Recycleable packaging

RoHS compliant (Directive 2002/95/EC)

as per product date code 0413

F0269-A

Applications

Panel boards, mechanical engineering

Approvals

REG.-Nr.

6106,

on request

E214025

Technical data approved types

Contact data

1-pole

2-pole

Contact configuration

1 CO

2 CO

Contact set

single contact

Type of interruption

micro disconnection

Rated current

12 / 16 A

Rated voltage / max.switching voltage AC

240/400 VAC

Maximum breaking capacity AC

3000 / 4000 VA

2000 VA

Limiting making capacity,max 4 s, df 10%

25 / 30 A

15 A

Contact material

AgNi 90/10

Mechanical endurance DC coil

> 30 x 10

>30 x 10

AC coil

> 10 x 10

>5 x 10

-1

Rated frequency of operation with / without load

6 / 1200 min

Contact

Type

RT314

RT424

ratings

Load

Cycles

16 A, 250 VAC, NO contact, 85°C, DF 10%, UL508

50x10

-1

16 A, 250 VAC, NC contact, 70°C, 30min

53x10

16 A, 250 VAC, CO contact, VDE 0435

30 x 10

1000 W incandescent lamp, 250 VAC

1.2x10

10 A, 250 VAC, cosϕ=0.6, CO contact, 70°C

200x10

5 A / 2 A, 250 VAC, cosϕ=1, motor, NO contact, 10min

-1

, 70°C

1.1x10

Pilot duty A300 (NO contact), B300 (CO/NC contact), UL508

1hp @ 240 VAC, 1/2hp @ 120 VAC, NO contact, UL508

AC15, 6 A, 250 VAC, NO and NC contact, 85°C, EN60947-5-1

DC13, 2 A / 24 VDC, 0.2 A / 250 VDC, NO and NC contact, 85°C, EN60947-5-1

8 A, 250 VAC, NO contact, 70°C, EN61810-1

100x10

6(2) A, 250 VAC, NO/NC contact, 85°C; EN60730-1

100x10

1/2hp @ 240 VAC, 1/4hp @ 120 VAC, UL508

Pilot duty B300, UL508

8 A, 30 VDC, General Purpose, UL508

Coil data

Rated coil voltage range DC coil

AC coil

Coil power DC coil

AC coil

Operative range

Coil insulation system according UL1446

5...110 VDC

24...230 VAC

typ 400 mW

typ 0.75 VA

class F

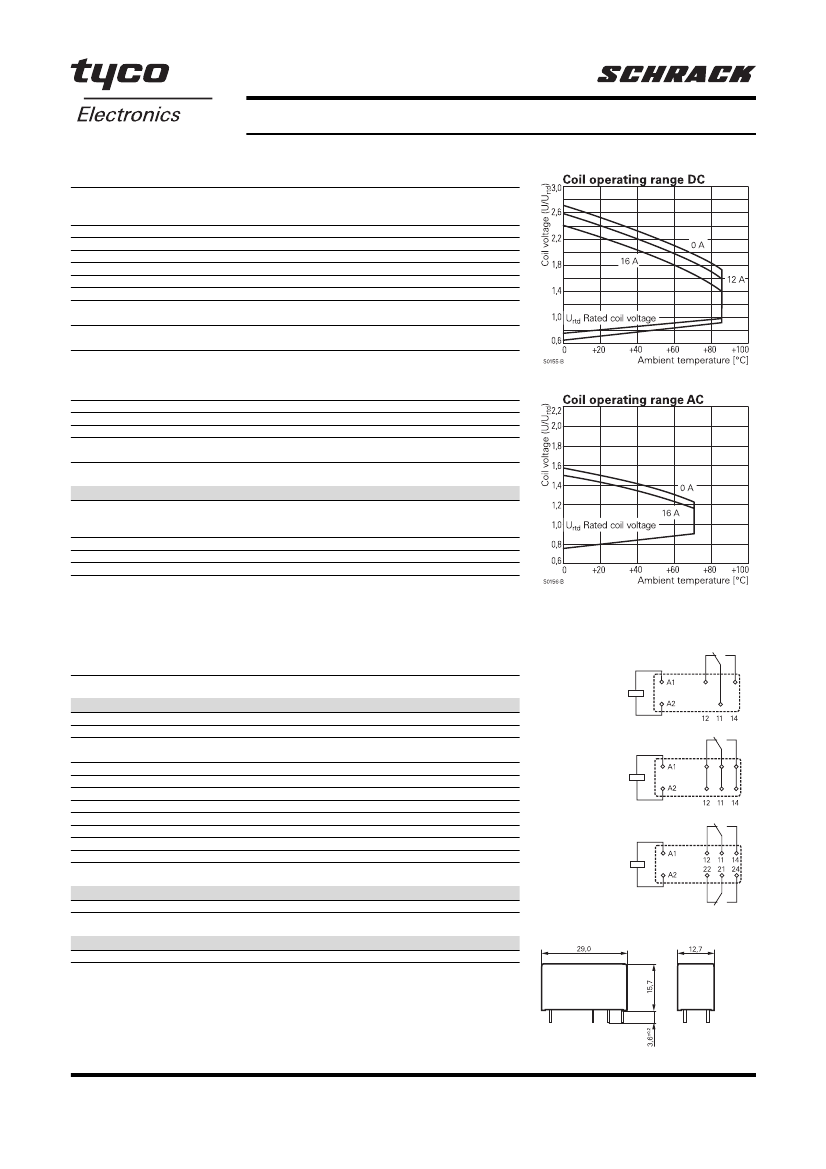

Datasheet

Rev. EK1

Issued 2005/11

www.tycoelectronics.com

www.schrackrelays.com

Dimensions are in mm unless

otherwise specified and are

shown for reference purposes

only.

Product specification

according to IEC 61810-1.

Product data, technical para-

meters, test conditions and

processing information

only to be used together

with the 'Definitions' at

schrackrelays.com in the

‘Schrack’ section.

Specifications subject to

change.

RT314A06 Related Products

	RT314A06	RT314060	RT424F06
Description	RT314A06	RT314060 (RT-RELAY)	RT424F06
Power relay type	standard	-	standard
Terminal limit breaking current (A)	16	-	8
Coil excitation system	bistable, 1 coil, polarized	-	bistable, 2 coils
Coil Power Rating (DC) (mW)	400	-	655
Coil resistance (Ω)	90	-	55
Coil characteristics	UL Coil Insulation Class F	-	UL Coil Insulation Class F
Coil Voltage Rating (VDC)	6	-	6
Terminal switching voltage (max) (VAC)	400	-	400
Terminal Voltage Rating (VAC)	250	-	250
Insulation leakage between terminal and coil	10 mm [ .394 in ]	-	10 mm [ .394 in ]
Initial dielectric between terminal and coil (Vrms)	5000	-	5000
Insulation leakage type (mm)	8	-	8
Terminal limit continuous current (A)	16	-	8
Terminal limit short-time current (A)	16	-	8
Terminal limit closing current (A)	30	-	15
Open terminal insulation initial dielectric (Vrms)	1000	-	1000
Coil/terminal insulation initial dielectric type (V)	4000	-	4000
product weight	14 g [ .494 oz ]	-	13 g [ .459 oz ]
Insulating properties	Tracking index of relay base PTI250	-	Tracking index of relay base PTI250
Terminal arrangement	1 Form C (CO)	-	2 Form C (CO)
Terminal current type (A)	10 – 20, 16	-	5 – 10, 16
Contact Current Rating (Max) (A)	16	-	8
Terminal material	AgNi90/10	-	AgNi90/10
Number of terminal poles	1	-	2
Terminal type	PCB-THT, plug-in	-	PCB-THT
Relay installation type	A printed circuit board	-	A printed circuit board
Product height	15.7 mm [ .618 in ]	-	15.7 mm [ .618 in ]
Product length	29 mm [ 1.142 in ]	-	29 mm [ 1.142 in ]
Product width	12.7 mm [ .5 in ]	-	12.7 mm [ .5 in ]
Width type (mechanical) (mm)	12 – 16	-	12 – 16
Insulation gap between terminal and coil	10 mm [ .394 in ]	-	10 mm [ .394 in ]
Height type (mechanical) (mm)	15 – 16	-	15 – 16
Insulation gap type (mm)	8	-	8
Length type (mechanical) (mm)	25 – 30	-	25 – 30
Environmental Protection Category	RTII	-	RTII
Ambient temperature (maximum)	85 °C [ 185 °F ]	-	85 °C [ 185 °F ]
Ambient temperature category (°C)	70 – 85	-	70 – 85
Encapsulation method	Carton, box and tube	-	Tube
