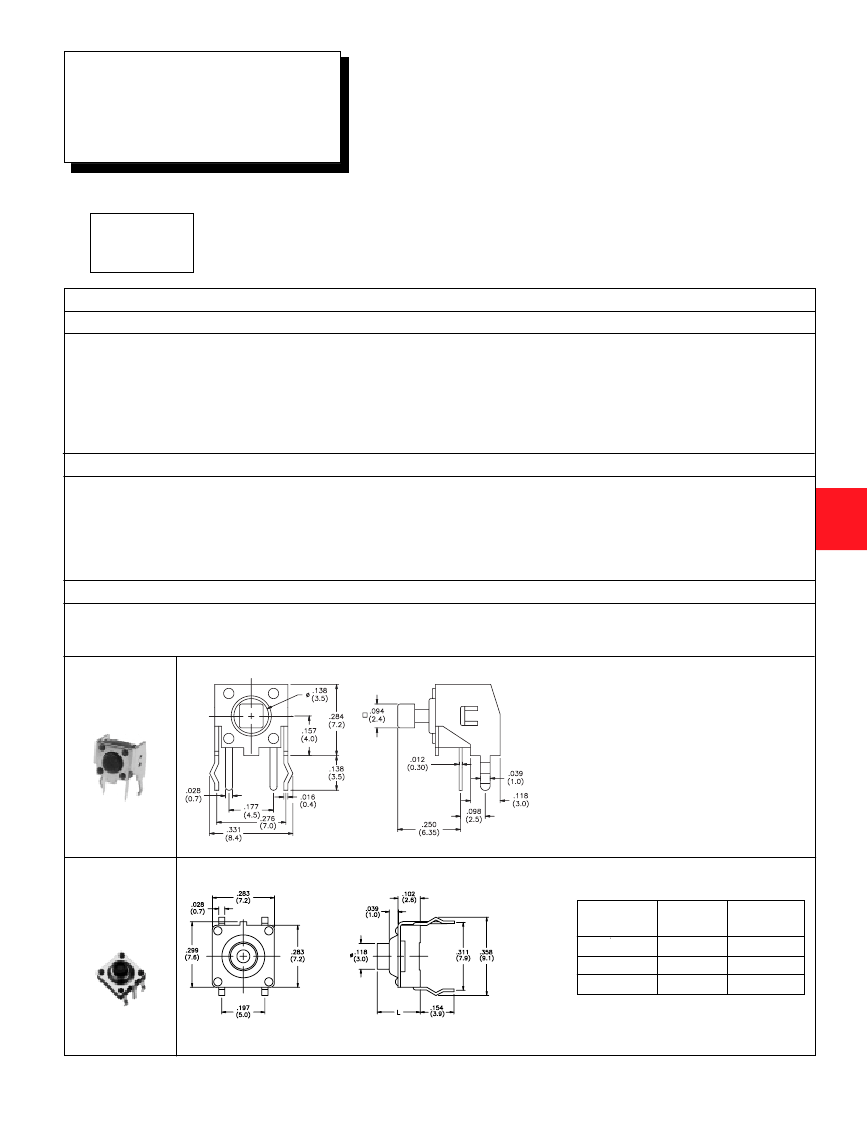

MJTP SERIES 6MM
THRU-HOLE MTG.
TACT SWITCHES
MATERIALS
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
FEATURES
Numerous single pole-single throw momentary configurations.
Excellent tactile feed-back (Snap dome).
Ultra-compact size.
Long operating life for high reliability.
Molded-in terminals minimize wicking of flux or solder.
Gold plating avail-
able on contacts &
terminals
- consult factory.
Case:
Thermoplastic, color black. UL94HB Standard.
Actuator:
Thermoplastic
Cover/Bracket: PET film, tin plated brass or stainless steel.
Terminals:
Silver plated brass.
Shorting Contact: Phosphor bronze or stainless steel with silver plating.
L.E.D. rating:
Forward voltage- 2.1 V (3.0 V Max.). Cont. fwd. current 20mA max.@ 25°C.
GENERAL SPECIFICATIONS
ELECTRICALS
Contact rating:
Insulation resistance:
Dielectric withstanding voltage:
Contact resistance:
Electrical life:
Contact bounce:
50 mA @ 12 VDC
100 megohms min. (100 VDC)
250 VAC for 1 minute
100 milliohms max. @ 5 VDC, 10 mA
100,000 cycles min. (except models MJTP1243 & 1250- 50,000 cycles)
1,000,000 cycles available - consult factory
less than 10 msec.
MECHANICALS, THERMALS, ENVIRONMENTALS
Plunger travel:
.010"+ .008", - .004" (0,25 +0,2, -0,1 mm)
Actuation force:
160 grams ±30 grams
Operating temperature range:
-20°C to +70°C
Storage temperature range:
-30°C to +80°C for 96 hours
Shock resistance:
30G per method 213, MIL-STD-202
Vibration resistance:
passes method 201, MIL-STD-202
SOLDERING
(note - non-washable except for models indicated 'process compatible' below).
IR reflow soldering:
240°C max. for 20 seconds max.
Wave soldering:
255°C max. for 5 seconds max.
Hand soldering:
320°C max. for 3.5 seconds max. (40 watt iron max.)
MJTP1105T
Right angle,
grounding
Caps available -
see end of section.
Bulk packaged.
M
US # MJTP1109
EU # PHAP3350
Process
compatible,
grounding
US Model
No.
Dim.
EU Model
L
(In./mm)
No.
MJTP1109
.197 (5.0)
PHAP3350
MJTP1109A
.354 (9.0)
PHAP3350A
MJTP1109B
.512 (13.0)
PHAP3350B
Bulk packaged.
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com

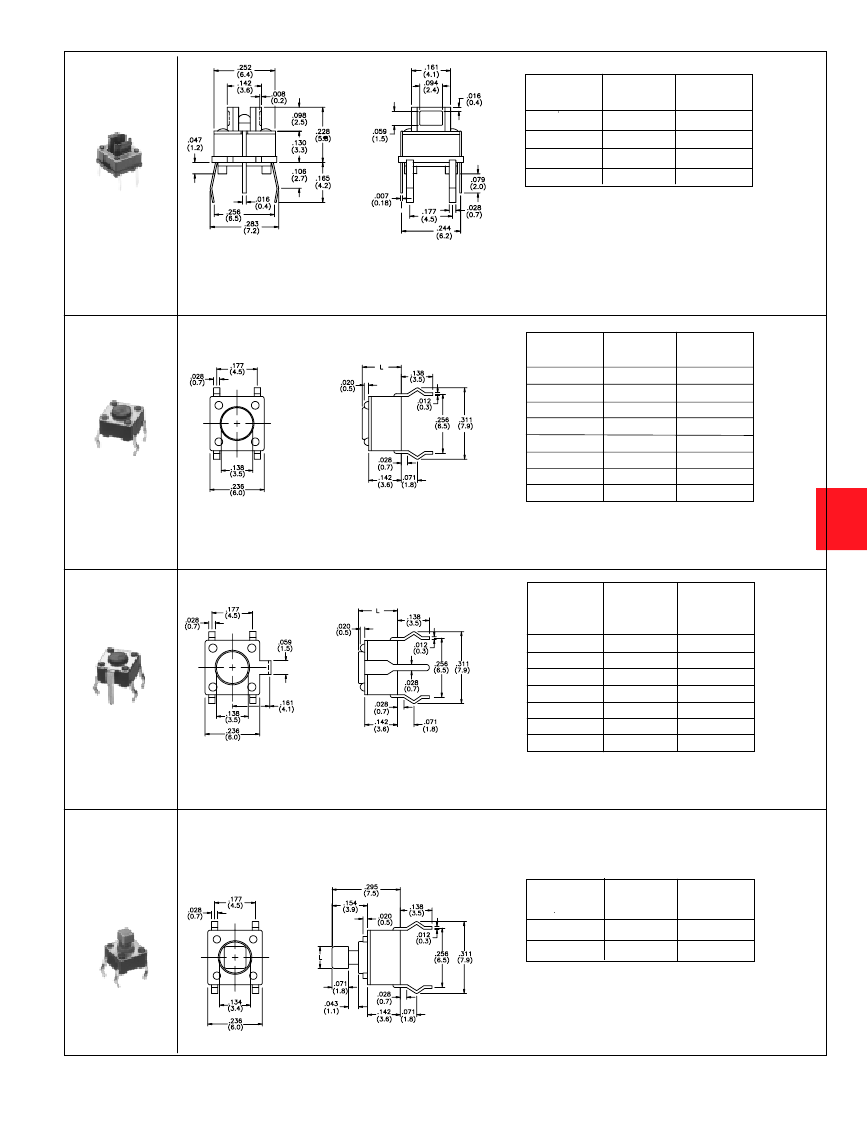

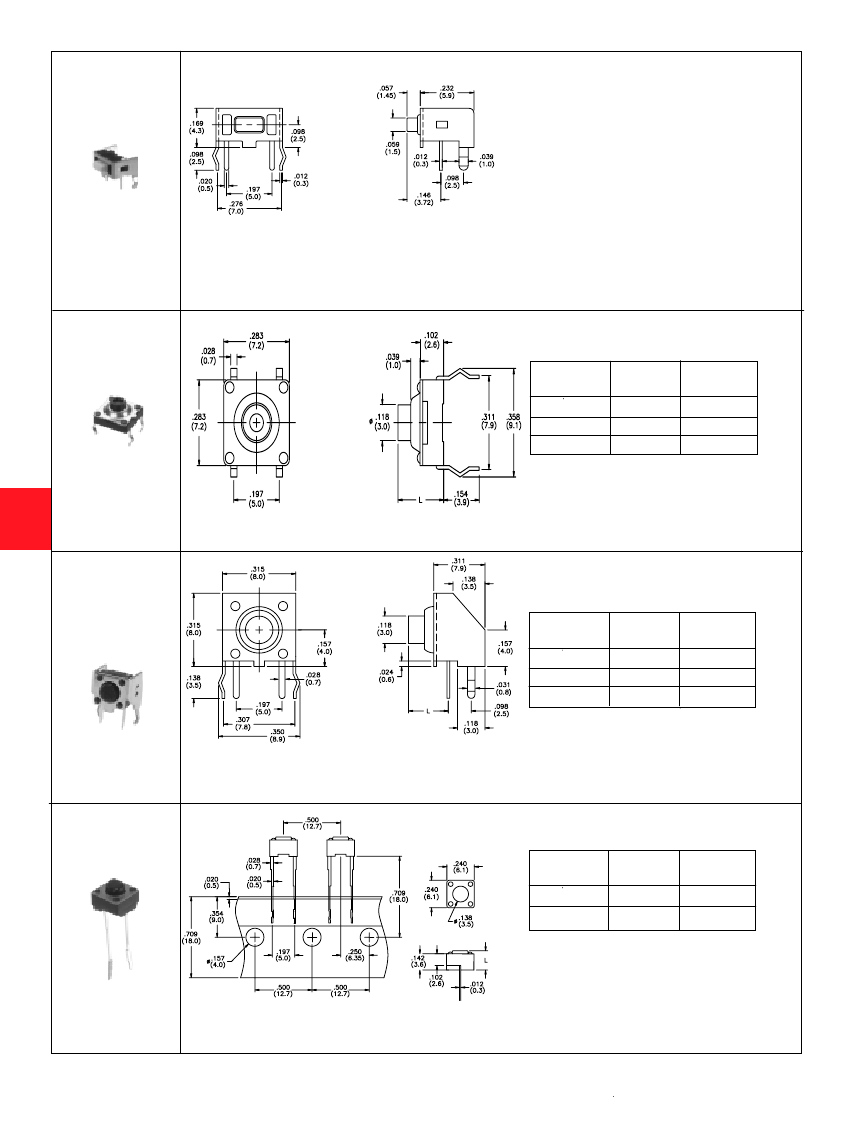

M3
US # MJTP1117
EU # PHAP3363
Right angle,
grounding
Bulk packaged.
New!
US # MJTP1119
EU # PHAP3351
Process compatible
US Model
No.
MJTP1119
Dim.
EU Model
L
(in./mm)
No.
.197 (5.0)
PHAP3351
MJTP1119A
.354 (9.0)
PHAP3351A
MJTP1119B
.512 (13.0)
PHAP3351B
Bulk packaged.
New!
M
US # MJTP1129
EU # PHAP1152
Right angle,
grounding,
process
compatible
US Model
No.
Dim.
EU Model
L
(in./mm)
No.
MJTP1129
.171 (4.35)
PHAP3352
MJTP1129A
.329 (8.35)
PHAP3352A
MJTP1129B
.486 (12.35)
PHAP3352B
Bulk packaged.

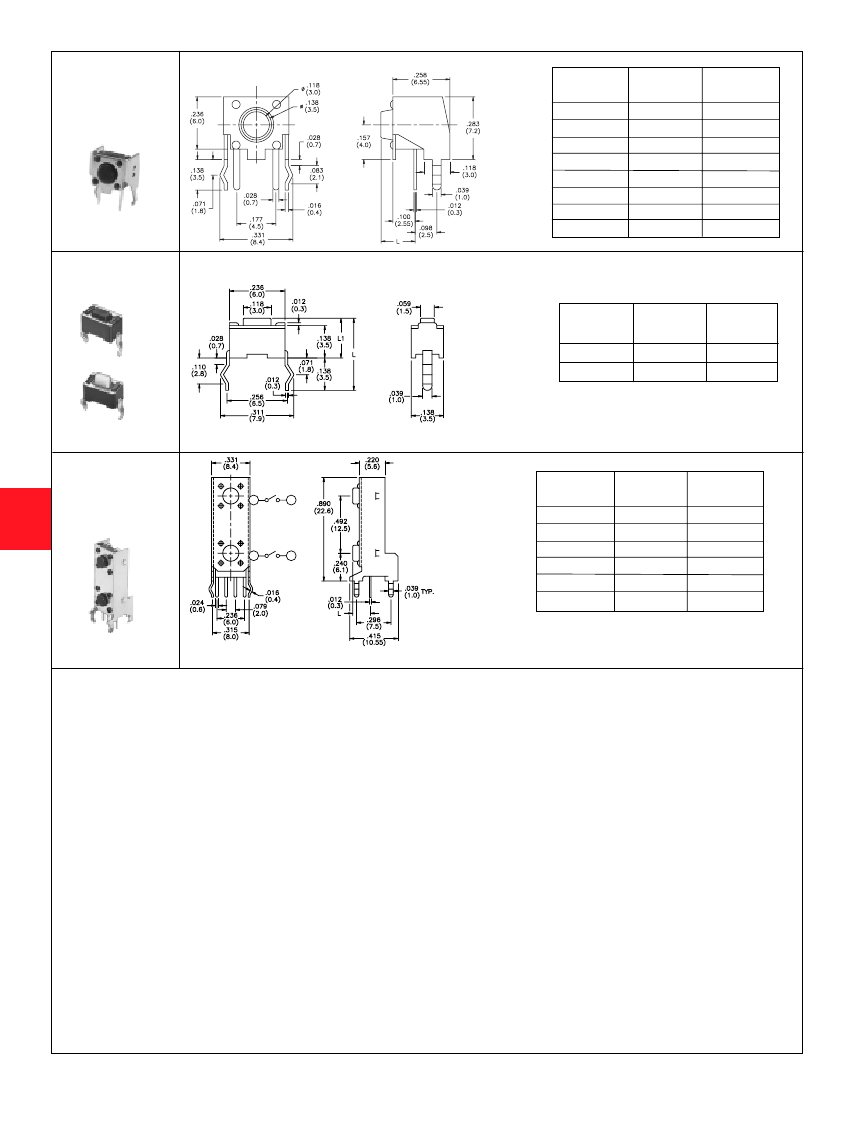

US # MJTP1141
EU # PHAP3307
Long terminals
US Model
No.
Dim.
EU Model
L
(in./mm)
No.
PHAP3307
PHAP3307A
MJTP1141
.169 (4.3)
MJTP1141A
.197 (5.0)
Packaged on tape. Note: other
models available with this tape
packaging - consult factory.
M4
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

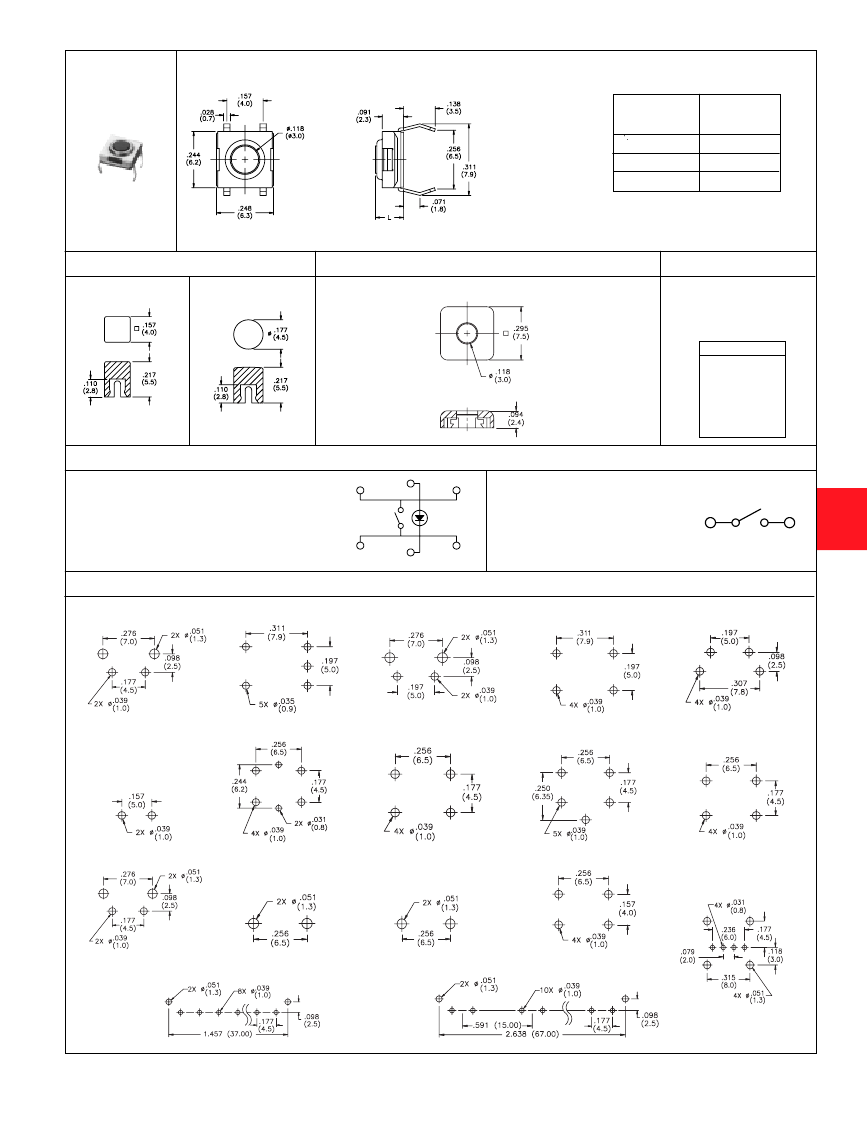

US # MJTPSHW
Process
compatible
US # Model
No.
MJTPSHW
MJTPSHWA
MJTPSHWB
Bulk packaged.
Dim.
L
(in./mm)
.122 (3,1)
.091 (2,3)
.146 (3,8)
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
CAPS
(for MJTP1105T and MJTP1234 only)
CAPS
(for MJTP1193 only)
New!
CAP COLORS
Note - add digit from table to
cap part number for color.
Example -
MJ612
indicates
square black cap.
No.
1
2
3
5
6
7
Color
blue
black
green
yellow
red
ivory
MJ61
Square cap
MJ62
Round cap
MJ3
Square cap (w/clear lens in center for LED illumina-
tion)
SCHEMATICS
MJTP1109
MJTP1119
MJTP1193
MJTP1230
MJTP1232
MJTP1234
MJTP2205
MJTP4102
MJTP5302
MJTPSHW
MJTP1105
MJTP1117
MJTP1129
MJTP1141
MJTP1144
MJTP1145
MJTP1236
MJTP1243
MJTP1250
MJTP2205
MJTP4102
MJTP5302
Note: LED is for
MJTP1193 only.
M
PRINTED CIRCUIT BOARD LAYOUTS
Layout tolerances; Linear: ± .004" ( ± 0,1MM) Holes: ± .002" ( ± 0,05MM)
MJTP1105T
MJTP1109
MJTP1117
MJTP1119
MJTP1129
MJTP1141, 44 & 45
MJTP1193
MJTP1230
MJTP1232
MJTP1234
4
3
2
1
MJTP1236
MJTP1243
MJTP1250
MJTPSHW
MJTP4102
MJTP5302
MJTP2205
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
M7
