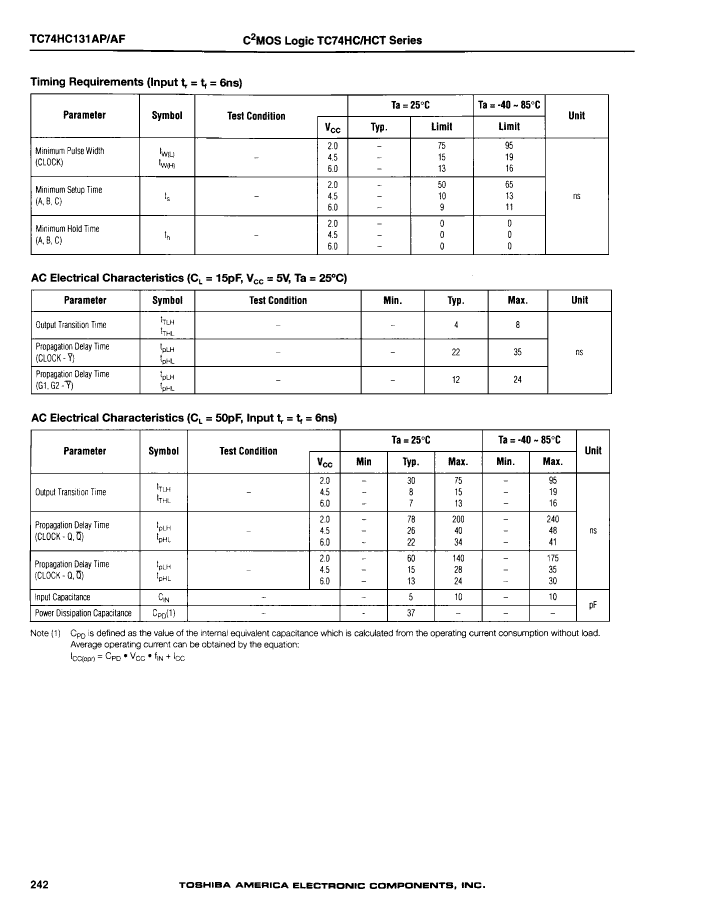

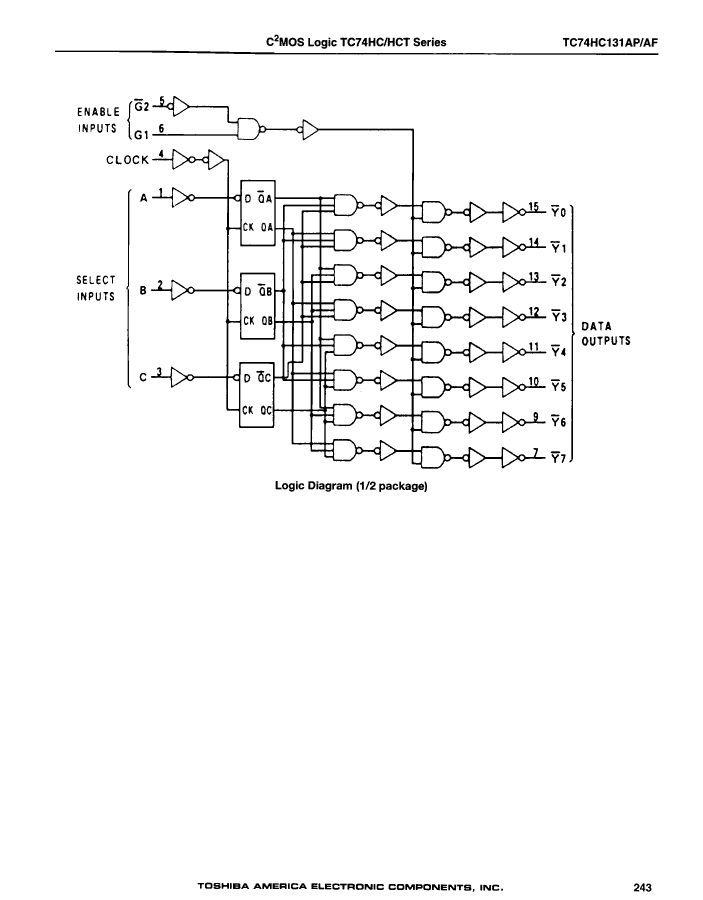

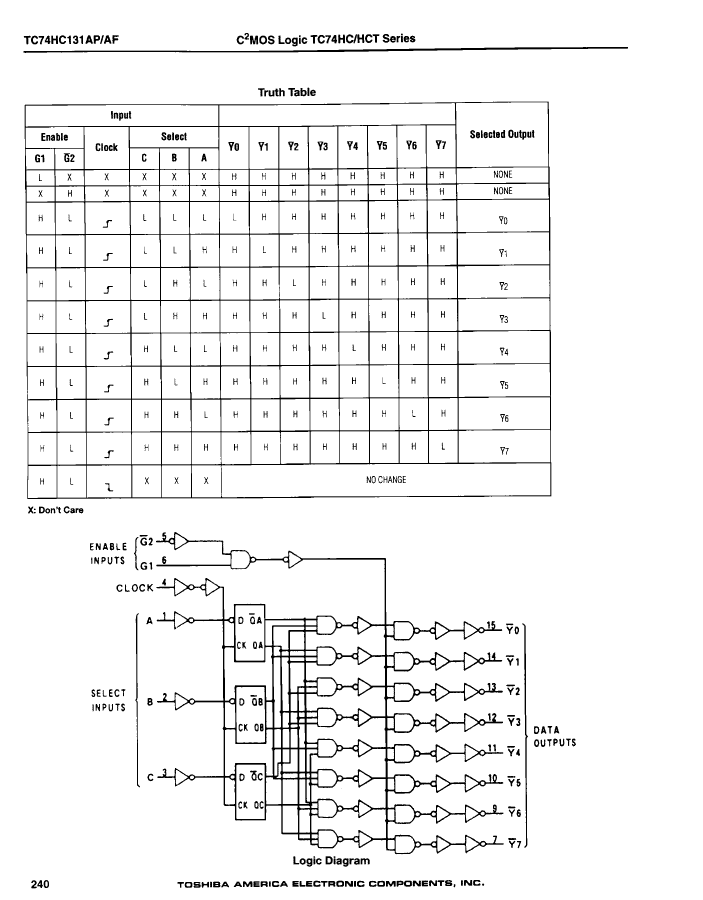

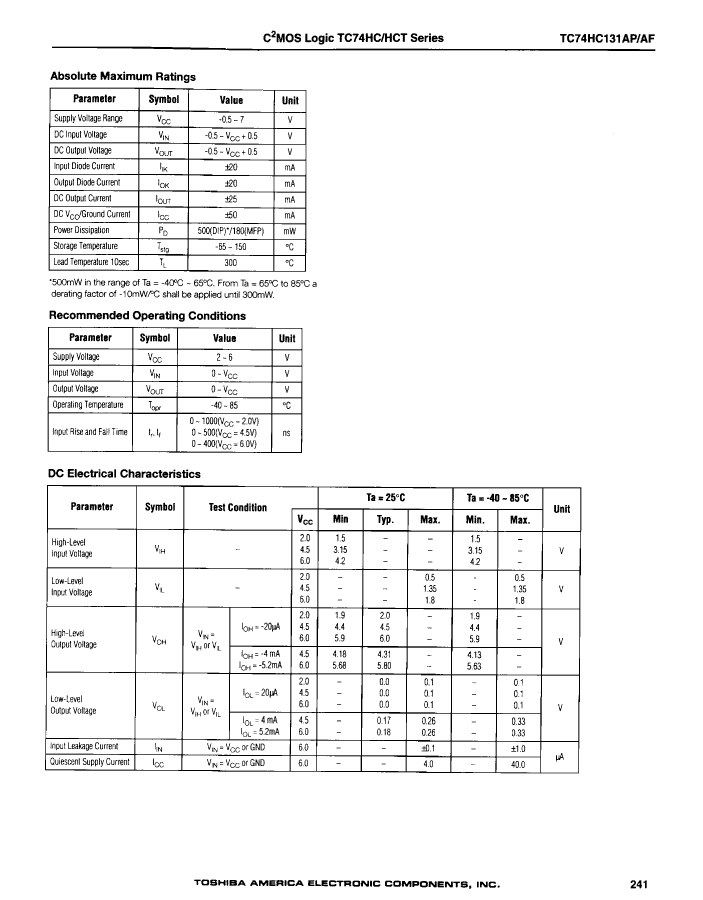

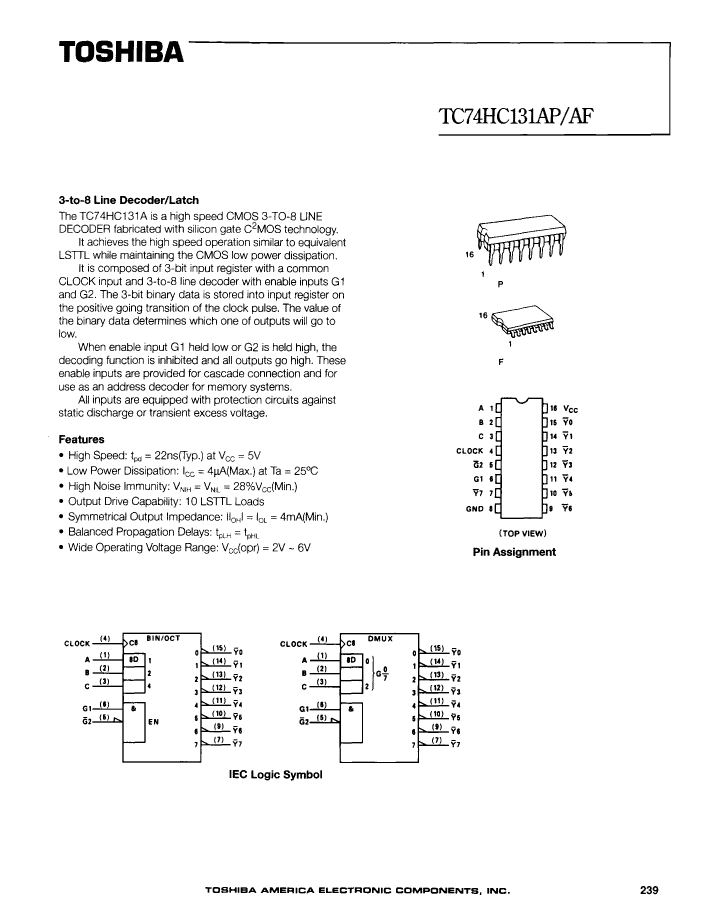

TC74HC131AF-TP2EL datasheet, PDF

Datasheet> All Categories > logic> logic> TC74HC131AF-TP2EL

TC74HC131AF-TP2EL: DescriptionIC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Decoder/Driver; Categorylogic logic; File Size122KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC131AF-TP2EL Overview

IC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Decoder/Driver

TC74HC131AF-TP2EL Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDRESS REGISTERS; 2 ENABLE INPUTS
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e2
length	10.3 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	48 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN COPPER/TIN SILVER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

TC74HC131AF-TP2EL Related Products

	TC74HC131AF-TP2EL	TC74HC131AP	TC74HC131AF-EL	TC74HC131AF-TP1	TC74HC131AF-TP2	TC74HC131AF-TP1EL	TC74HC131AF
Description	IC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Decoder/Driver	IC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, PLASTIC, DIP-16, Decoder/Driver	IC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Decoder/Driver	IC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Decoder/Driver	IC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Decoder/Driver	IC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Decoder/Driver	IC HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Decoder/Driver
Parts packaging code	SOIC	DIP	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	DIP, DIP16,.3	SOP,	SOP,	SOP,	SOP,	SOP, SOP16,.3
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ADDRESS REGISTERS; 2 ENABLE INPUTS	ADDRESS REGISTERS; 2 ENABLE INPUTS	ADDRESS REGISTERS; 2 ENABLE INPUTS	ADDRESS REGISTERS; 2 ENABLE INPUTS	ADDRESS REGISTERS; 2 ENABLE INPUTS	ADDRESS REGISTERS; 2 ENABLE INPUTS	ADDRESS REGISTERS; 2 ENABLE INPUTS
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e2	e0	e0	e0	e0	e0	e0
length	10.3 mm	19.25 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	48 ns	48 ns	48 ns	48 ns	48 ns	48 ns	48 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	4.45 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN COPPER/TIN SILVER	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	7.62 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm
Base Number Matches	1	1	1	1	1	1	1
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Is it lead-free?	-	-	Contains lead	Contains lead	Contains lead	Contains lead	-
Peak Reflow Temperature (Celsius)	-	-	240	240	240	240	-
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
