896
SONG CHUAN

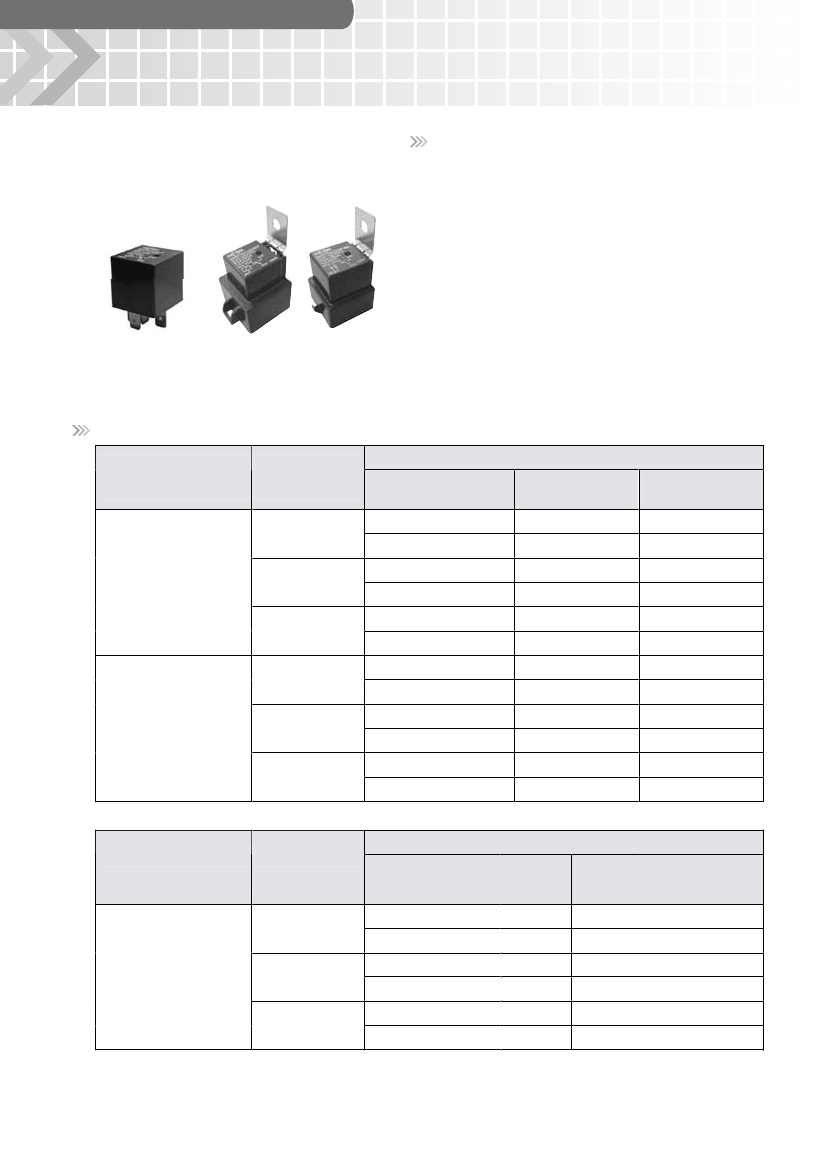

Features
Mini ISO high power automotive relay 30A/50A.
High temperature endurance up to 125 degree C.
Optional SPNC, SPNO, SPDT, DPNO contact
configurations.
Optional to be equipped with protection diode or
resistor.
Both available PCB terminal and quick connect
terminal versions.
Available for plain cover type, skirted cover flanged
cover, and weather proof versions.
Tinned terminal is available on request.
Comply with RoHS-Directive 2002/95/EC, and ELV-
Directive 2000/53/EC.
Type List
Terminal
style
Contact
form
1A (SPNO)
Dust cover
896-1AH-D
896H-1AH-D
Socket terminal
1C (SPDT)
896-1CH-D
896H-1CH-D
2A (DPNO)
896-2AH-D
896H-2AH-D
1A (SPNO)
896P-1AH-D
896HP-1AH-D
PCB terminal
1C (SPDT)
896P-1CH-D
896HP-1CH-D
2A (DPNO)
896P-2AH-D
896HP-2AH-D
Enclosure style
Flux tight
896-1AH-C
896H-1AH-C
896-1CH-C
896H-1CH-C
896-2AH-C
896H-2AH-C
896P-1AH-C
896HP-1AH-C
896P-1CH-C
896HP-1CH-C
896P-2AH-C
896HP-2AH-C
Sealed type
washable
896-1AH-S
896H-1AH-S
896-1CH-S
896H-1CH-S
896-2AH-S
896H-2AH-S
896P-1AH-S
896HP-1AH-S
896P-1CH-S
896HP-1CH-S
896P-2AH-S
896HP-2AH-S
Enclosure style
Terminal
style
Contact
form
Flanged cover
( dust cover)
896-1AH-D1
896H-1AH-D1
Socket terminal
1C (SPDT)
896-1CH-D1
896H-1CH-D1
2A (DPNO)
896-2AH-D1
896H-2AH-D1
Flanged cover
(flux tight)
896-1AH-C1
896H-1AH-C1
896-1CH-C1
896H-1CH-C1
896-2AH-C1
896H-2AH-C1
1A (SPNO)
306
SONG CHUAN
896
Steel bracket
(flux tight)
896-1AH-C1S
896H-1AH-C1S
896-1CH-C1S
896H-1CH-C1S
896-2AH-C1S
896H-2AH-C1S
Enclosure style
Terminal
style
Contact
form
Steel bracket
( dust cover)
896-1AH-D1S
896H-1AH-D1S
Socket terminal
1C (SPDT)
896-1CH-D1S
896H-1CH-D1S
2A (DPNO)
896-2AH-D1S
896H-2AH-D1S
1A (SPNO)
Terminal
style
Socket terminal
Contact
form
1C (SPDT)
Designation
(provided with)
Resistor
Enclosure style
Steel bracket
Steel bracket
( dust cover with shroud) ( dust cover with weather proof)
896H-1CH-D1SF-R1
896H-1CH-D1SW-R1
Ordering Information
896
1
1.
2.
896
H
2
P
3
-
1CH
4
-
C
5
-
R1
6
D1S
C1S
S1S
-
T
7
001
8
-- Basic series designation
Blank -- Standard type
H
-- High power type
Blank -- Socket terminal
P
-- PCB terminal
1AH
1BH
1CH
2AH
-- Single pole normally open, contact
material AgSnO
-- Single pole normally closed, contact
material AgSnO
-- Single pole double throw, contact
material AgSnO
-- Double pole double make, contact
material AgSnO
-- Dust cover
-- Flux tight
-- Sealed type washable
-- Flanged cover (flux tight)
-- Flanged cover (dust cover)
-- Flanged cover (sealed type
washable)
3.
-- Steel bracket (dust cover)
-- Steel bracket (flux tight)
-- Steel bracket (sealed type
washable)
D1SF -- Steel bracket (dust cover with
shroud)
D1SW -- Steel bracket (dust cover with
weather proof)
6.
Blank -- Standard type
R1
-- Coil parallel with resistor 1/2W for
12V 680
24V 2700
Blank -- Standard type
T
-- Special requirement for Tin plated
terminal
Blank -- Standard type
001
-- Coil parallel with diode IN4007 the
positive pole on # 85 terminal
002
-- Coil parallel with diode IN4007 the
negative pole on # 85 terminal
4.
7.
5.
D
C
S
C1
D1
S1
8.
307
896
Contact Rating
Type
Resistive load
Type
Resistive load
SONG CHUAN
896 1A
40A 14VDC
896H 1A
50A 14VDC
20A 28VDC
896 1B
40A 14VDC
896H 1B
40A 14VDC
15A 28VDC
896 1C
NO : 40A 14VDC
NC : 30A 14VDC
896H 1C
896 2A
2×15A 14VDC
896H 2A
NO : 50A 14VDC, 20A 28VDC 2×30A 14VDC
NC : 30A 14VDC, 15A 28VDC 2×10A 28VDC
Coil Rating(DC)
Rated
voltage
(V)
12
24
Rated current
10 % at 23°C
(mA)
133
66.7
Coil resistance Max. continuous
10 % at 23°C
( )
90
360
Voltage
at 85°C
(1)
120 % of
rated
voltage
Notes (1) Without switching the load.
Pick up
voltage(Max)
at 23°C
65 % of
rated
voltage
Drop out
voltage(Min)
at 23°C
10 % of
rated
voltage
approx. 1.6W
Power consumption
at rated
voltage
Specification
Contact material
Contact voltage drop
(1)
Insulation resistance
(1)
Operate time
(1)
AgSnO alloy
Typ. 50mV at 10A
20M
Min. (DC 500V)
20ms Max.
20ms Max.
Between open contact
Between contact and coil
:
AC 500V , 50/60Hz 1 min.
:
AC 500V , 50/60Hz 1 min.
55Hz , amplitude 2mm
Release time
(1)
Dielectric strength
(1)
Vibration resistance
Shock resistance
Operating extremes
Operating extremes
Damage limits
Mechanical
10
10G
100G
10,000,000 operations
(frequency 18,000 operations/hr)
Life expectancy
Electrical
Temperature range
Weight
Note (1) initial value
Operating
100,000 operations
(frequency 1,200 operations/hr)
-40
+125°C (no freezing)
Approx. 40 g
308
