RS (ARS)
3 GHz MICROWAVE RELAYS
Miniature size
Lineup includes
50/75Ω type
3. Excellent high frequency
characteristics
• Impedance: 50Ω
(Standard PC board terminal)
Frequency
V. S. W. R. (Max.)
Insertion loss
(dB, Max.)
Isolation (dB, Min.)
to 900 MHz
1.20
0.10
60
to 3 GHz
1.40
0.35
35
RS RELAYS (ARS)
4. Lineup includes surface-mount
terminal type
E and Y layouts available.
5. Lineup includes reversed contact
type
Great design freedom is possible using
reversed contact type in which the
positions of the N.O. and N.C. contacts
are switched.
RoHS compliant
FEATURES
1. Super miniature design
14
×
8.6
×
7.2 mm
.551
×
.339
×
.283 inch
(standard PC board terminal)
• Impedance: 75Ω
(Standard PC board terminal)
Frequency
V. S. W. R. (Max.)
Insertion loss
(dB, Max.)
Isolation (dB, Min.)
to 900 MHz
1.15
0.10
60
to 3 GHz
1.40
0.30
30
TYPICAL APPLICATIONS
1. Broadcasting and video equipment
markets
• Digital broadcasting equipment
• STB/tuner, etc.
2. Mobile phone base stations
3. Communications market
• Antenna switching
• All types of wireless devices
4. Measurement equipment market
• Spectrum analyzer and oscilloscope,
etc.
If you wish to use in applications with low
level loads or with high frequency
switching, please consult us.
60% OFF in volume
(Compared to
RK relay)
• Impedance: 50Ω
(Surface-mount terminal)
Frequency
V. S. W. R. (Max.)
Insertion loss
(dB, Max.)
Isolation (dB, Min.)
to 900 MHz
1.20
0.20
55
to 3 GHz
1.40
0.40
30
2. Lineup includes silent type.
(75Ω type only)
Operation noise (Unit: dB)
• Impedance: 75Ω
(Surface-mount terminal)
40
50
Frequency
V. S. W. R. (Max.)
Insertion loss
(dB, Max.)
Isolation (dB, Min.)
to 900 MHz
1.20
0.20
55
to 3 GHz
1.50
0.50
30
30
RS
(Silent type)
RE
RK
ORDERING INFORMATION
ARS
RS relays
Contact arrangement
1: Standard contact type (1 Form C)
3: Reversed contact type (1 Form C)
Operating function
0: Single side stable standard type (Impedance: 75Ω)
1: 1 coil latching type (Impedance: 75Ω)
2: 2 coil latching type (Impedance: 75Ω)
3: Single side stable silent type (Impedance: 75Ω)
4: Single side stable type (Impedance: 50Ω)
5: 1 coil latching type (Impedance: 50Ω)
6: 2 coil latching type (Impedance: 50Ω)
Nil: Standard PC board terminal
A: Surface-mount terminal, E layout
Y: Surface-mount terminal, Y layout
Coil voltage, DC
03: 3 V, 4H: 4.5 V, 09: 9 V, 12: 12 V, 24: 24 V (H=0.5)
Packing style
Nil: Carton packing (Standard PC board terminal only)
Tube packing (Surface-mount terminal only)
X: Tape and reel packing (picked from 2-pin side) (Surface-mount terminal only)
Z: Tape and reel packing (picked from 18-pin side) (Surface-mount terminal only)
ASCTB106E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
RS (ARS)
TYPES
1. Standard PC board terminal and standard contact type
Impedance
Nominal coil
voltage
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
Nominal coil
voltage
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
Single side stable type
ARS1403
ARS144H
ARS1409
ARS1412
ARS1424
Part No.
1 coil latching type
ARS1503
ARS154H
ARS1509
ARS1512
ARS1524
Part No.
Single side stable type
ARS1003
ARS104H
ARS1009
ARS1012
ARS1024
Standard type
1 coil latching type
ARS1103
ARS114H
ARS1109
ARS1112
ARS1124
2 coil latching type
ARS1203
ARS124H
ARS1209
ARS1212
ARS1224
Silent type
Single side stable type
ARS1303
ARS134H
ARS1309
ARS1312
ARS1324
2 coil latching type
ARS1603
ARS164H
ARS1609
ARS1612
ARS1624
50Ω
Impedance
75Ω
Standard packing: 50 pcs. in an inner package; 500 pcs. in an outer package
2. Standard PC board terminal and reversed contact type
Impedance
Nominal coil
voltage
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
Nominal coil
voltage
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
Single side stable type
ARS3403
ARS344H
ARS3409
ARS3412
ARS3424
Part No.
1 coil latching type
ARS3503
ARS354H
ARS3509
ARS3512
ARS3524
Part No.
Single side stable type
ARS3003
ARS304H
ARS3009
ARS3012
ARS3024
Standard type
1 coil latching type
ARS3103
ARS314H
ARS3109
ARS3112
ARS3124
2 coil latching type
ARS3203
ARS324H
ARS3209
ARS3212
ARS3224
Silent type
Single side stable type
ARS3303
ARS334H
ARS3309
ARS3312
ARS3324
2 coil latching type
ARS3603
ARS364H
ARS3609
ARS3612
ARS3624
50Ω
Impedance
75Ω
Standard packing: 50 pcs. in an inner package; 500 pcs. in an outer package
3. Surface-mount terminal and standard contact type, E layout
Impedance
Nominal coil
voltage
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
Single side stable type
ARS14A03
ARS14A4H
ARS14A09
ARS14A12
ARS14A24
ARS10A03
ARS10A4H
ARS10A09
ARS10A12
ARS10A24
Part No.
1 coil latching type
ARS15A03
ARS15A4H
ARS15A09
ARS15A12
ARS15A24
ARS11A03
ARS11A4H
ARS11A09
ARS11A12
ARS11A24
2 coil latching type
ARS16A03
ARS16A4H
ARS16A09
ARS16A12
ARS16A24
ARS12A03
ARS12A4H
ARS12A09
ARS12A12
ARS12A24
50Ω
75Ω
Standard packing: 40 pcs. in an inner package (tube); 1,000 pcs. in an outer package
Standard packing: 500 pcs. in an inner package (tape and reel); 1,000 pcs. in an outer package
Note: The box at the end of a part number shows where packing type is indicated. If there is no indication, tube packing will be used.
If “X” or “Z” is added, tape and reel packing will be used. Example: ARS14A03 (tube packing), ARS14A03X (tape and reel packing)
4. Surface-mount terminal and standard contact type, Y layout
Impedance
Nominal coil
voltage
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
Single side stable type
ARS14Y03
ARS14Y4H
ARS14Y09
ARS14Y12
ARS14Y24
ARS10Y03
ARS10Y4H
ARS10Y09
ARS10Y12
ARS10Y24
Part No.
1 coil latching type
ARS15Y03
ARS15Y4H
ARS15Y09
ARS15Y12
ARS15Y24
ARS11Y03
ARS11Y4H
ARS11Y09
ARS11Y12
ARS11Y24
2 coil latching type
ARS16Y03
ARS16Y4H
ARS16Y09
ARS16Y12
ARS16Y24
ARS12Y03
ARS12Y4H
ARS12Y09
ARS12Y12
ARS12Y24
50Ω
75Ω
Standard packing: 40 pcs. in an inner package (tube); 1,000 pcs. in an outer package
Standard packing: 500 pcs. in an inner package (tape and reel); 1,000 pcs. in an outer package
Note: The box at the end of a part number shows where packing type is indicated. If there is no indication, tube packing will be used.
If “X” or “Z” is added, tape and reel packing will be used. Example: ARS14Y03 (tube packing), ARS14Y03X (tape and reel packing)
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB106E 201202-T
RS (ARS)
5. Surface-mount terminal and reversed contact type, E layout
Impedance
Nominal coil
voltage
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
Single side stable type
ARS34A03
ARS34A4H
ARS34A09
ARS34A12
ARS34A24
ARS30A03
ARS30A4H
ARS30A09
ARS30A12
ARS30A24
Part No.
1 coil latching type
ARS35A03
ARS35A4H
ARS35A09
ARS35A12
ARS35A24
ARS31A03
ARS31A4H
ARS31A09
ARS31A12
ARS31A24
2 coil latching type
ARS36A03
ARS36A4H
ARS36A09
ARS36A12
ARS36A24
ARS32A03
ARS32A4H
ARS32A09
ARS32A12
ARS32A24
50Ω
75Ω
Standard packing: 40 pcs. in an inner package (tube); 1,000 pcs. in an outer package
Standard packing: 500 pcs. in an inner package (tape and reel); 1,000 pcs. in an outer package
Note: The box at the end of a part number shows where packing type is indicated. If there is no indication, tube packing will be used.
If “X” or “Z” is added, tape and reel packing will be used. Example: ARS34A03 (tube packing), ARS34A03X (tape and reel packing)
6. Surface-mount terminal and reversed contact type, Y layout
Impedance
Nominal coil
voltage
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
3 V DC
4.5 V DC
9 V DC
12 V DC
24 V DC
Single side stable type
ARS34Y03
ARS34Y4H
ARS34Y09
ARS34Y12
ARS34Y24
ARS30Y03
ARS30Y4H
ARS30Y09
ARS30Y12
ARS30Y24
Part No.
1 coil latching type
ARS35Y03
ARS35Y4H
ARS35Y09
ARS35Y12
ARS35Y24
ARS31Y03
ARS31Y4H
ARS31Y09
ARS31Y12
ARS31Y24
2 coil latching type
ARS36Y03
ARS36Y4H
ARS36Y09
ARS36Y12
ARS36Y24
ARS32Y03
ARS32Y4H
ARS32Y09
ARS32Y12
ARS32Y24
50Ω
75Ω
Standard packing: 40 pcs. in an inner package (tube); 1,000 pcs. in an outer package
Standard packing: 500 pcs. in an inner package (tape and reel); 1,000 pcs. in an outer package
Note: The box at the end of a part number shows where packing type is indicated. If there is no indication, tube packing will be used.
If “X” or “Z” is added, tape and reel packing will be used. Example: ARS34Y03 (tube packing), ARS34Y03X (tape and reel packing)
RATING
1. Coil data
1) Single side stable type
Nominal coil
voltage
3
V DC
75%V or less of
nominal voltage
(Initial)
10%V or more of
nominal voltage
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
66.7 mA
44.4 mA
22.2 mA
16.7 mA
8.3 mA
Coil resistance
[±10%] (at 20°C
68°F)
45
Ω
101.3Ω
405
Ω
720
Ω
2,880
Ω
200 mW
110%V or less of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 60°C
140°F)
4.5 V DC
9 V DC
12
24
V DC
V DC
2) 1 coil latching type
Nominal coil
voltage
3
9
12
24
V DC
V DC
V DC
V DC
75%V or less of
nominal voltage
(Initial)
75%V or less of
nominal voltage
(Initial)
Set voltage
(at 20°C
68°F)
Reset voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
66.7 mA
44.4 mA
22.2 mA
16.7 mA
8.3 mA
Coil resistance
[±10%] (at 20°C
68°F)
45
Ω
101.3Ω
405
Ω
720
Ω
2,880
Ω
200 mW
110%V or less of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 60°C
140°F)
4.5 V DC
3) 2 coil latching type
Nominal coil
voltage
3
V DC
75%V or less of
nominal voltage
(Initial)
75%V or less of
nominal voltage
(Initial)
Set voltage
(at 20°C
68°F)
Reset voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
133.3 mA
88.9 mA
44.4 mA
33.3 mA
16.7 mA
Coil resistance
[±10%] (at 20°C
68°F)
22.5Ω
50.6Ω
202.5Ω
360
Ω
1,440
Ω
400 mW
110%V or less of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 60°C
140°F)
4.5 V DC
9 V DC
12 V DC
24 V DC
ASCTB106E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
RS (ARS)
2. Specifications
Item
Contact
Arrangement
Contact material
Contact resistance (Initial)
Nominal switching capacity
Contact carrying power
Max. switching voltage
Rating
Max. switching current
Single side stable type
Nominal
operating
power
V.S.W.R.
High frequency
characteristics,
Impedance: 50Ω
(Initial)
Insertion loss (without D.U.T. board’s loss)
Isolation
V.S.W.R.
High frequency
characteristics,
Impedance: 75Ω
(Initial)
Insertion loss (without D.U.T. board’s loss)
Isolation
Insulation resistance (Initial)
Breakdown
voltage
(Initial)
Electrical
characteristics
Between open contacts
Between contact and earth terminal
Between contact and coil
1 coil latching type
2 coil latching type
1 Form C
Gold plating
Max. 100 mΩ (By voltage drop 10 V AC 10mA)
1W (at 3 GHz, Impedance: 50/75Ω, V.S.W.R.: Max. 1.4), 10 mA 24 V DC (resistive load)
Max. 10W (at 3GHz, Impedance: 50/75Ω, V.S.W.R.: Max. 1.4)
30 V DC
0.5 A DC
200mW
200mW
400mW
Max. 1.20/900MHz, Max. 1.40/3GHz (Standard PC board terminal)
Max. 1.20/900MHz, Max. 1.40/3GHz (Surface-mount terminal)
Max. 0.10dB/900MHz, Max. 0.35dB/3GHz (Standard PC board terminal)
Max. 0.20dB/900MHz, Max. 0.40dB/3GHz (Surface-mount terminal)
Min. 60dB/900MHz, Min. 35dB/3GHz (Standard PC board terminal)
Min. 55dB/900MHz, Min. 30dB/3GHz (Surface-mount terminal)
Max. 1.15/900MHz, Max. 1.40/3GHz (Standard PC board terminal)
Max. 1.20/900MHz, Max. 1.50/3GHz (Surface-mount terminal)
Max. 0.10dB/900MHz, Max. 0.30dB/3GHz (Standard PC board terminal)
Max. 0.20dB/900MHz, Max. 0.50dB/3GHz (Surface-mount terminal)
Min. 60dB/900MHz, Min. 30dB/3GHz (Standard PC board terminal)
Min. 55dB/900MHz, Min. 30dB/3GHz (Surface-mount terminal)
Min. 100MΩ (at 500V DC, Measurement at same location as “Breakdown voltage” section.)
500 Vrms for 1min. (Detection current: 10mA)
500 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
Max. 60°C
140°F
(By resistive method, nominal voltage applied to the coil, contact carrying current: 10mA)
Max. 10 ms (Nominal voltage applied to the coil, excluding contact bounce time)
Max. 6 ms (Nominal voltage applied to the coil, excluding contact bounce time)
(without diode)
Max. 10 ms (Nominal voltage applied to the coil, excluding contact bounce time)
Min. 196 m/s
2
(Half-wave pulse of sine wave: 11 ms, detection time: 10µs)
Min. 980 m/s
2
(Half-wave pulse of sine wave: 6 ms)
10 to 55 Hz at double amplitude of 3 mm (Detection time: 10µs)
10 to 55 Hz at double amplitude of 5 mm
Approx. 40dB
Approx. 30dB
Min. 5×10
6
(at 180 cpm)
Min. 10
6
(at 180 cpm)
Min. 10
6
(at 180 cpm)
Min. 10
6
(Standard PC board terminal), Min. 3×10
5
(Surface-mount terminal)
(10V DC 10mA resistive load)/Min. 3×10
5
(24V DC 10mA resistive load)
Min. 10
6
(Standard PC board terminal), Min. 3×10
5
(Surface-mount terminal)
(1W, at 3GHz, Impedance: 50Ω, V.S.W.R: Max. 1.4) (at 20 cpm)
Min. 3×10
5
(10mA 24V DC resistive load)
Min. 3×10
5
(1W, at 3GHz, Impedance: 75Ω, V.S.W.R: Max. 1.4) (at 20 cpm)
Ambient temperature: –40 to 70°C
–40°F to 158°F
(Single side stable standard and Latching type)
Ambient temperature: –40 to 60°C
–40°F to 140°F
(Single side stable silent type)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Approx. 2 g
.071 oz
Specifications
Temperature rise (at 20°C
68°F)
Operate time (at 20°C
68°F)
Release time (at 20°C
68°F)
Set time and Reset time (at 20°C
68°F)
Mechanical
characteristics
Shock
resistance
Vibration
resistance
Functional
Destructive
Functional
Destructive
Operation noise*
Standard type
Silent type (75Ω, PC board terminal type only)
Mechanical
life
Single side stable standard type
Single side stable silent type
Latching type
50Ω type
Electrical life
75Ω type
Expected life
Conditions
Unit weight
Conditions for operation, transport and storage
* Measured the operation noise of the relay alone (with diodes at both ends of the coil) 30cm away from top side, by the A-weighted, FAST method while applying the rated
voltage.
(Reference) Operation noise of RK relay (existing model): Approx. 50dB
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB106E 201202-T
RS (ARS)

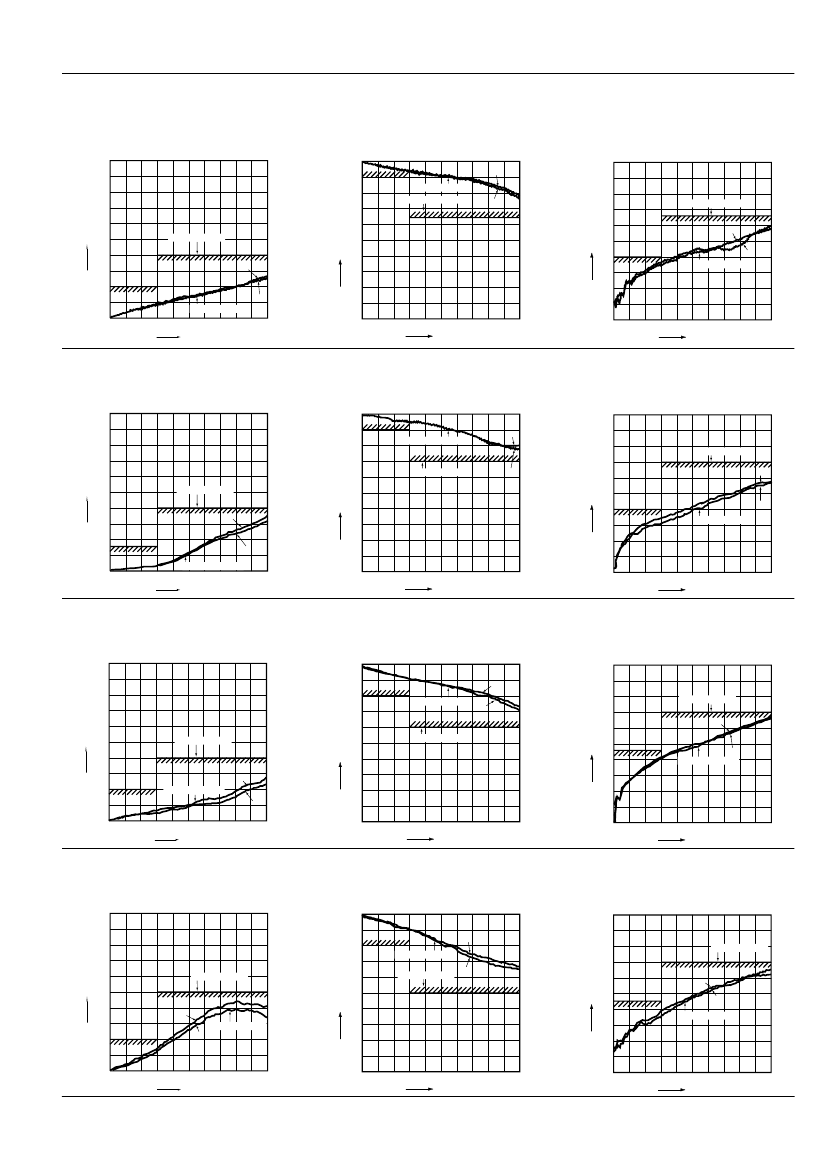

REFERENCE DATA
1.-(1) High frequency characteristics (Impedance: 50Ω, Standard PC board terminal)
Sample: ARS144H; Measuring method: Measured with Agilent Technologies network analyzer (E8363B). *For details see No. 7 under “NOTES”.
• V.S.W.R. characteristics
2.0
• Insertion loss characteristics
(without D.U.T. board’s loss)
0
NO
Insertion loss, dB
Reference value
Standard value
• Isolation characteristics
0
Isolation, dB
NC
Standard value
NO
50
NC
Reference value
V.S.W.R.
1.5
Standard value
NC
0.5
NO
1.0
0.3MHz
Reference value
900MHz
Frequency
3GHz
1.0
0.3MHz
900MHz
Frequency
3GHz
100
0.3MHz
900MHz
Frequency
3GHz
1.-(2) High frequency characteristics (Impedance: 75Ω, Standard PC board terminal)
Sample: ARS104H; Measuring method: Measured with Agilent Technologies network analyzer (E8363B). *For details see No. 7 under “NOTES”.
• V.S.W.R. characteristics
2
• Insertion loss characteristics
(without D.U.T. board’s loss)
0
Reference value
Insertion loss, dB
NO
• Isolation characteristics
0
Standard value
Isolation, dB
Standard value
0.5
NC
NC
50
NO
Reference value
V.S.W.R.
1.5
Standard value
NO
NC
1
0.3MHz
900MHz
Reference value
3GHz
Frequency
1.0
0.3MHz
900MHz
Frequency
3GHz
100
0.3MHz
900MHz
Frequency
3GHz
1.-(3) High frequency characteristics (Impedance: 50Ω, Surface-mount terminal)
Sample: ARS14A4H; Measuring method: Measured with Agilent Technologies network analyzer (E8363B). *For details see No. 7 under “NOTES”.
• V.S.W.R. characteristics
2.0
• Insertion loss characteristics
(without D.U.T. board’s loss)
0
NO
Insertion loss, dB
Reference value
• Isolation characteristics
0
Isolation, dB
NC
Standard value
NO
50
NC
Reference value
V.S.W.R.
1.5
Standard value
0.5
Standard value
NC
Reference value
NO
1
0.3MHz
900MHz
Frequency
3GHz
1.0
0.3MHz
900MHz
Frequency
3GHz
100
0.3MHz
900MHz
Frequency
3GHz
1.-(4) High frequency characteristics (Impedance: 75Ω, Surface-mount terminal)
Sample: ARS10A4H; Measuring method: Measured with Agilent Technologies network analyzer (E8363B). *For details see No. 7 under “NOTES”.
• V.S.W.R. characteristics
2.0
• Insertion loss characteristics
(without D.U.T. board’s loss)
0
NC
Insertion loss, dB
• Isolation characteristics
0
Standard value
1.5
NO
Reference value
NC
Standard value
0.5
NO
Isolation, dB
Reference value
Standard value
V.S.W.R.
NC
50
NO
Reference value
1.0
0.3MHz
900MHz
Frequency
3GHz
1.0
0.3MHz
900MHz
Frequency
3GHz
100
0.3MHz
900MHz
Frequency
3GHz
ASCTB106E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
京公网安备 11010802033920号
EEWORLD
