48ASDP1S4M6QAT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 48ASDP1S4M6QAT

48ASDP1S4M6QAT: DescriptionSlide Switches SLIDE,DPDT,O-N-O,PC,+TAB,LF , Vertical Bracket, PC Mount, no mounting tabs, RoHS Compliant; CategoryMechanical and electronic products switch; File Size151KB，3 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

48ASDP1S4M6QAT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	48ASDP1S4M6QAT	-	-	View	Buy Now

48ASDP1S4M6QAT Overview

Slide Switches SLIDE,DPDT,O-N-O,PC,+TAB,LF , Vertical Bracket, PC Mount, no mounting tabs, RoHS Compliant

48ASDP1S4M6QAT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
body width	9.53 mm
body height	11.43 mm
Body length or diameter	12.7 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	SLIDE SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

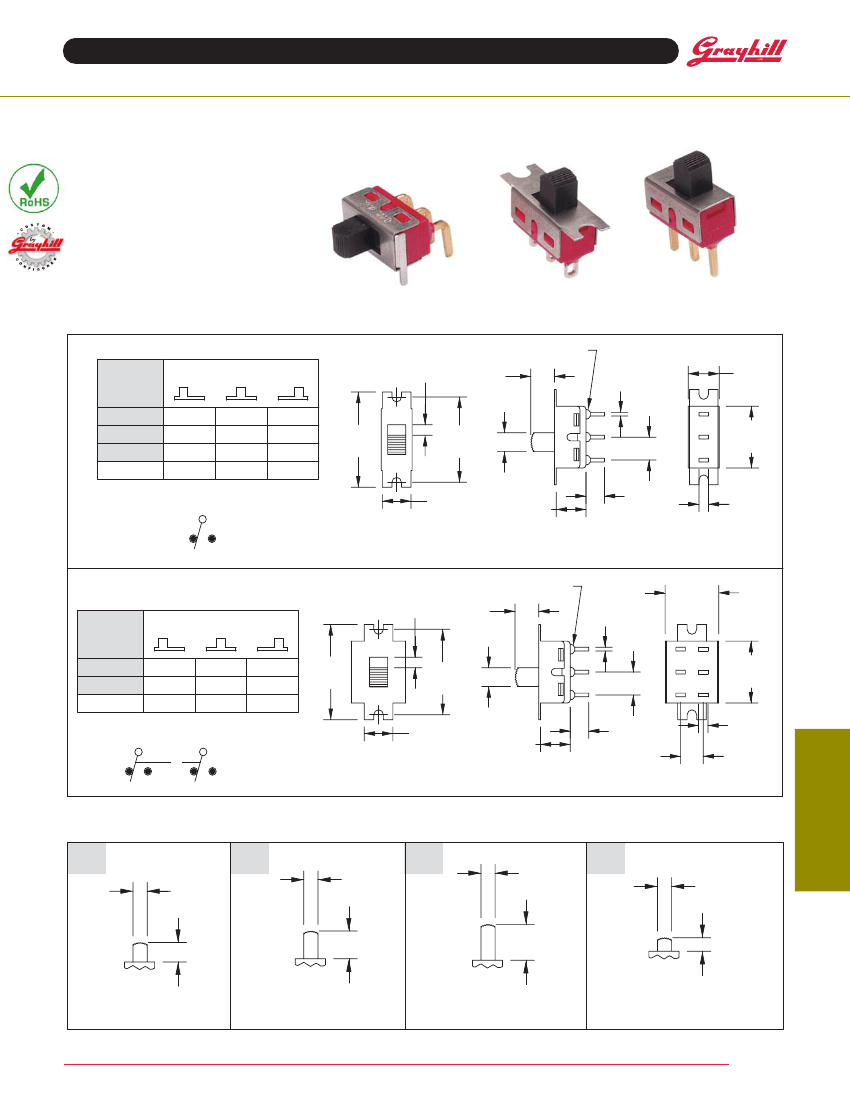

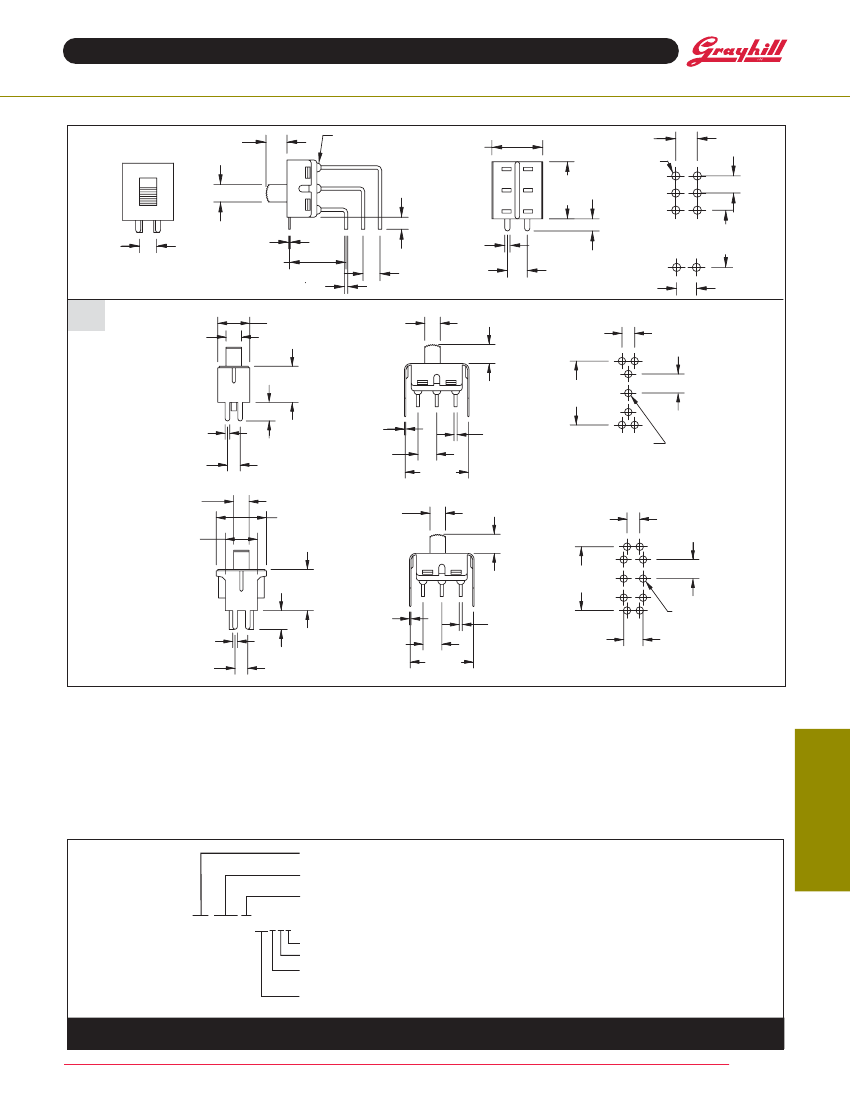

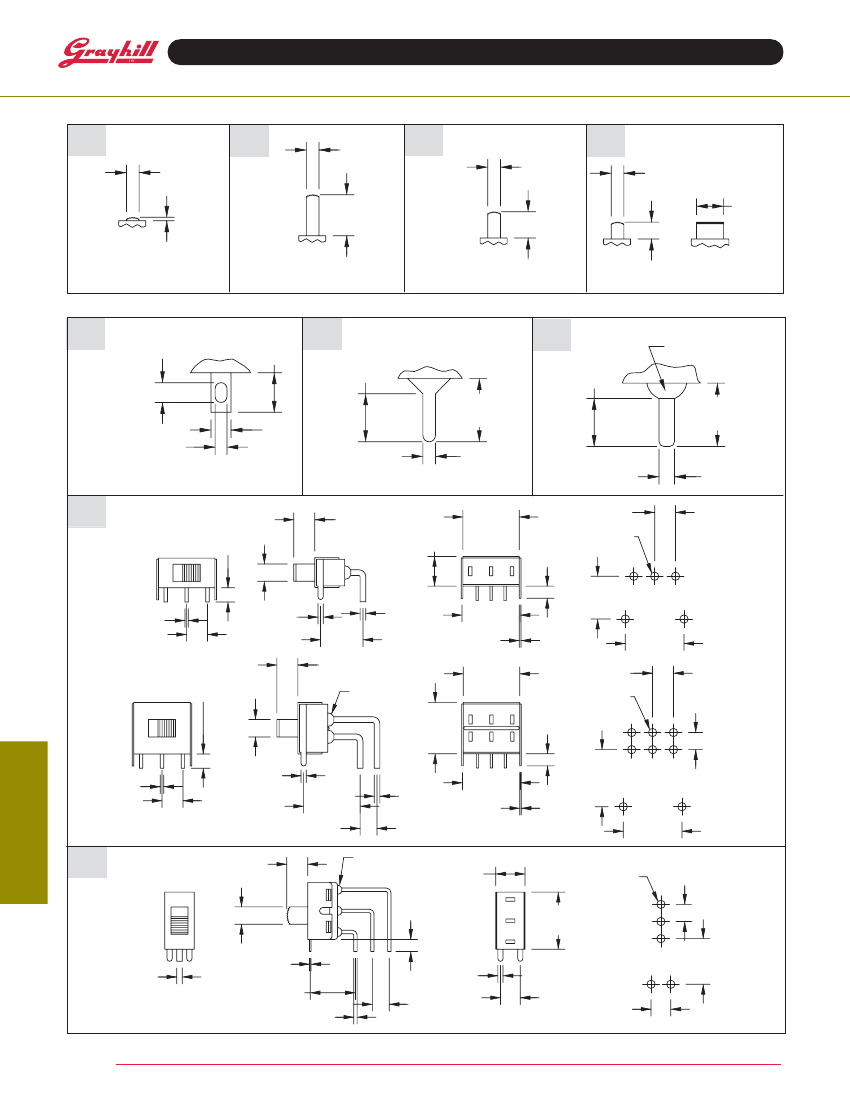

Series 48A: Slide Switches

SERIES 48A

Slide Switches

FEATURES

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuations and

Terminations

DIP Switches

MODELS

SPDT

In inches (and millimeters)

TRAVEL

.085

(2.16)

EPOXY SEAL

.200

(5.08)

.030

(0.76)

.185

(4.70)

.260

(6.60)

MODEL

NO.

SSP1

SSP2

SSP3

TERM. COMM.

SWITCH POSITION

2-1

02COMM.

NONE

OFF

OPEN

(ON)

2-3

.770

(19.56)

.690

(17.53)

.152

(3.86)

.500

(12.70)

()=MOMENTARY

.240

(6.10)

.250

(6.35)

.155

(3.94)

.080

(2.03)

SCHEMATIC

DPDT

TRAVEL

.085

(2.16)

EPOXY SEAL

.200

(5.08)

.030

(0.76)

.185

(4.70)

.450

(11.43)

MODEL

NO.

SDP1

SDP3

TERM. COMM.

SWITCH POSITION

2-1,5-4

NONE

OFF

OPEN 2-3,5-6

()=MOMENTARY

05COMM.

.770

(19.56)

.690

(17.53)

.152

(3.86)

.250

(6.35)

.500

(12.70)

02COMM.

.240

(6.10)

.155

(3.94)

.080

(2.03)

.190

(4.83)

3 4

SCHEMATIC

Slide Switches

ACTUATOR OPTIONS

Std

In inches (and millimeters)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.200

(5.08)

.285

(7.24)

.370

(9.40)

.140

(3.56)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
