Part Number

Search

26-804

Description
Snap Acting/Limit Switch, SPDT, Momentary, 1.4mm, Solder Terminal, Through Hole-straight,
CategoryMechanical and electronic products    switch
File Size242KB,3 Pages
ManufacturerITW Switches
Environmental Compliance
Download Datasheet Parametric Compare View All

26-804 Online Shopping

Suppliers Part Number Price MOQ In stock
26-804 - - View Buy Now

26-804 Overview

Snap Acting/Limit Switch, SPDT, Momentary, 1.4mm, Solder Terminal, Through Hole-straight,

26-804 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1778782345
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator stroke1.4 mm
body width6.35 mm
body height11.2 mm
Body length or diameter19.8 mm
Contact (AC) maximum rated R load8A@250VAC
Maximum contact current (AC)8 A
Maximum contact voltage (AC)250 V
Electrical life50000 Cycle(s)
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating force4.5 N
Maximum operating temperature135 °C
Minimum operating temperature-55 °C
Maximum pre-travel1.27 mm
sealIP40
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typeSNAP ACTING/LIMIT SWITCH
Termination typeSOLDER

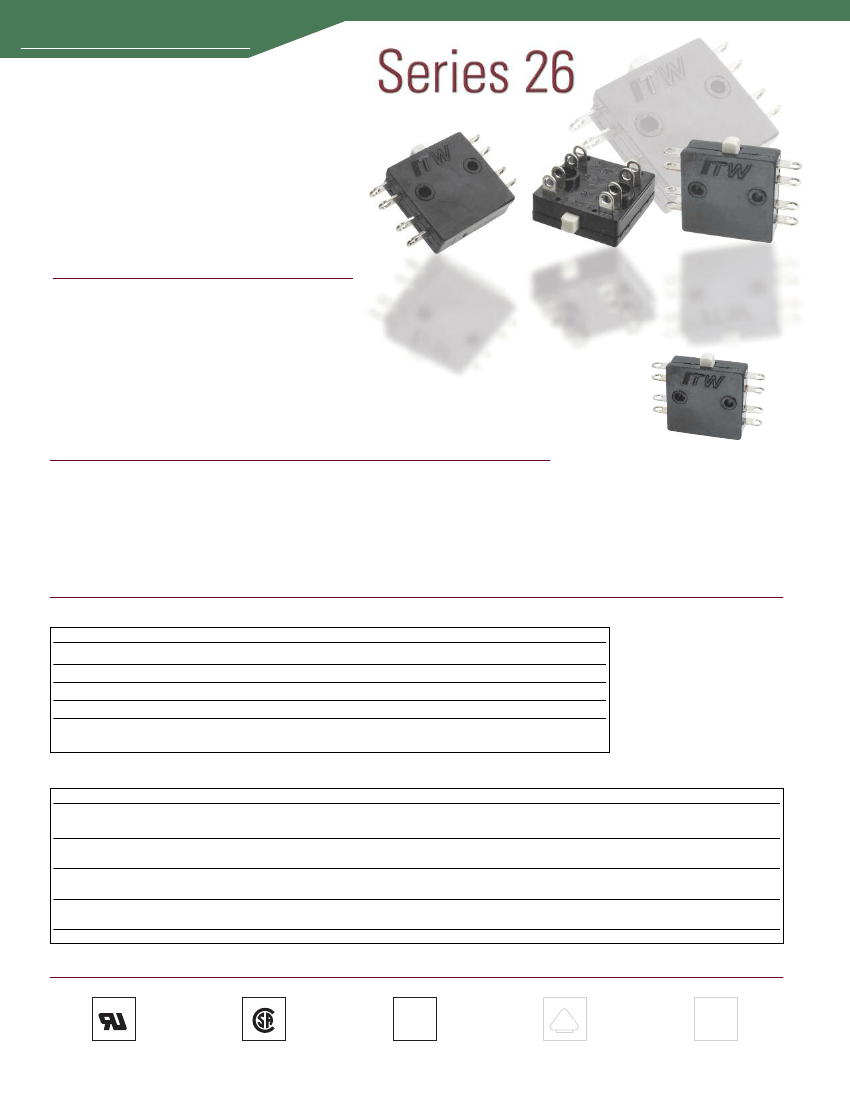

S
NAP
A
CTION
S
WITCHES
S
UB
-M
INIATURE
8
AMP
D
OUBLE
P
OLE
S
NAP
A
CTION
S
WITCHES
This unique design has a DPDT-DB (Form ZZ)
contact arrangement, or can be wired externally
to provide two commons to form standard DPDT
(Form CC) circuitry. This switch can control up to
4 isolated circuits.
A
PPLICATIONS
Aircraft rotary actuator
Aircraft valve actuator
Circuit breakers
Aircraft contractors
Industrial machinery
K
EY
F
EATURES
:
Gold or silver contacts
Meets MIL-PRF-8805/77
End or side terminals available
UL recognized and CSA certified:
8 amps @ 125/250 VAC
Roller lever, lever, short roller lever
and bushing mount actuator are
available
A
CTUAL
S
IZE
A
CTUAL
S
IZE
O
RDERING
I
NFORMATION
:

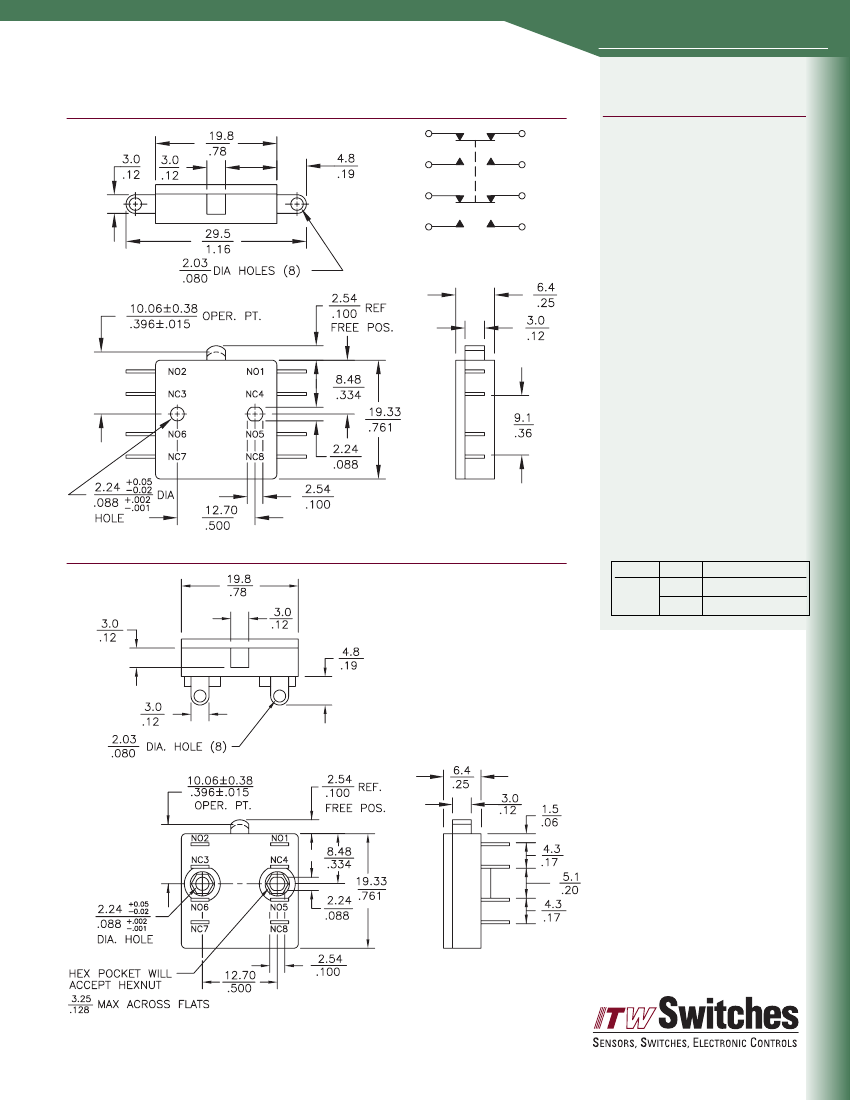

Switches
Part Number
26-804
26-888051
26-904
26-988051
Simultaneity
Simultaneous*
Ref. M8805/77-001
Simultaneous*
Ref. M8805/77-002
Contacts
Silver**
Gold Plated
Silver**
Gold Plated
Terminals
End Solder
End Solder
Side Solder
Side Solder
RoHS Compliant


* Within .004" of plunger travel.
** For electrical loads under 250 mA, consult factory.

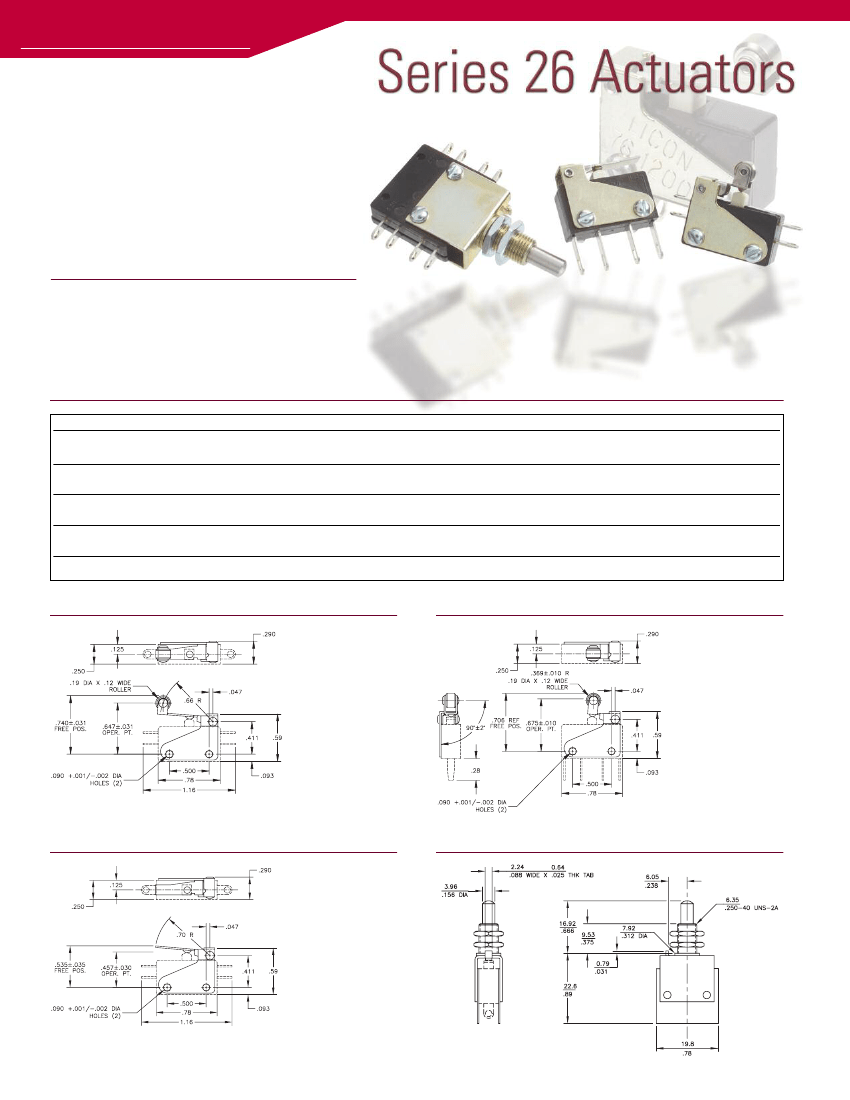

Actuator
(see page 72 for additional specifications)
Part Number
76-1200
Roller Lever
76-1210
Lever
76-1220
Short Roller Lever
76-22604
Bushing Mount
Switch Series
26
26
26
16
Oper. Force
8 oz max
7 oz max
16 oz max
5 oz
Release Force
l 1/2 oz min
2 oz min
5 oz min
Pretravel
.130 max
.155 max
.050 max
.050 max
Overtravel
.026 min
.025 min
.012 min
.156 min
Movement Diff.
.054 ± .022
.065 max
.020 ± .010 - .005
S
TANDARDS
/ A
GENCY
/ R
ATINGS
:

®


RoHS
COMPLIANT
2002 / 95 / EC
V
D E
IEC
IP67
COMPLIANT
www.itwswitches.com
60
Contact an Authorized Distributor or Factory for Pricing
