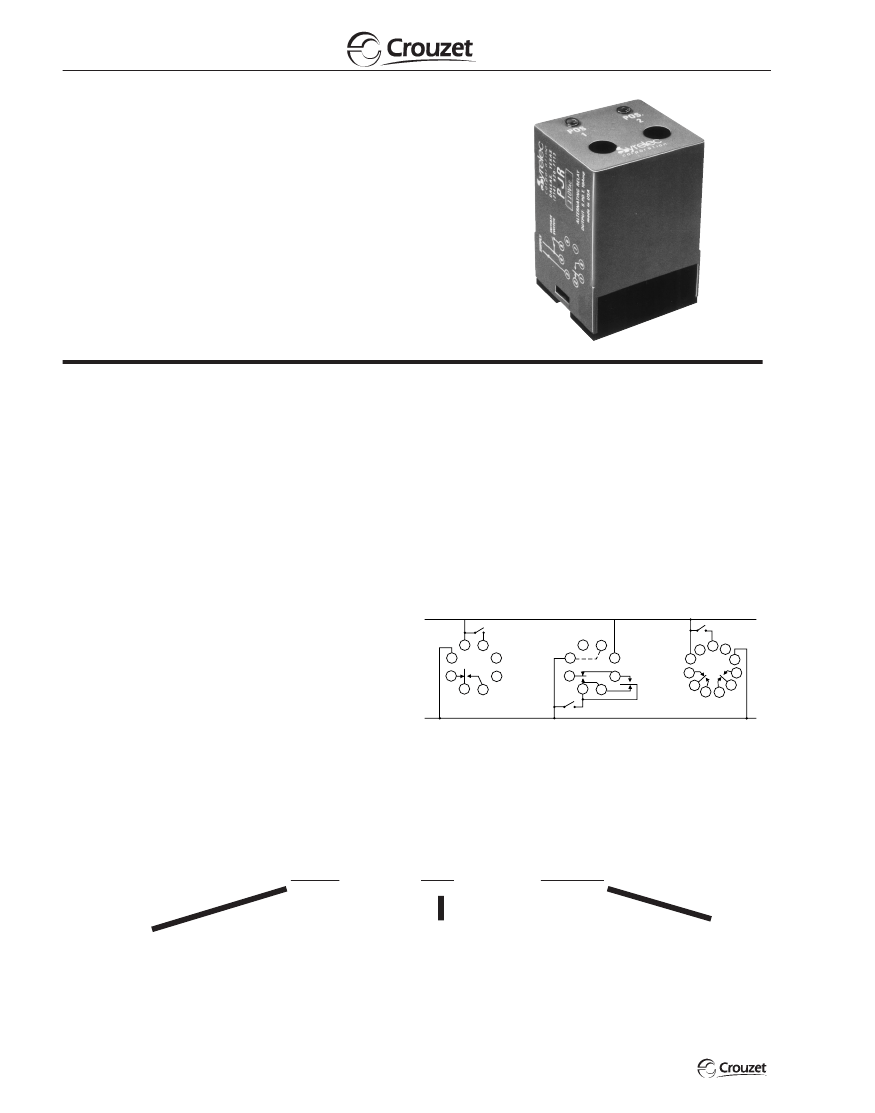

JR SERIES
ALTERNATING RELAY
UL listed
CSA recognized
•
•
•
•
Duplex Alternating Control
SPDT or DPDT Control Relay
10 Amp Rated
Externally Controlled
The electronic alternating relay is designed to replace mechanical
style devices used in control applications requiring a duplexing
or alternating action of the control circuits to operate pumps,
compressors, etc. This is achieved by activating a control switch
which is common to one side of the input control voltage. The output
contact of the relay(s) change state when this switch is opened
(on de-energization of the control circuit). When the control initiate
switch is actuated and released or opened, the relay will change
state. The next time the initiate switch is actuated and released it
will change back to its original state. Two red LED’s located on the
top of the dust resistant enclosure provide the status of the relay.
SPECIFICATIONS:
Input
. . . . . . . . . . . . . . . . . . . . . . . . 24 VAC/DC, 110, 220 VAC
± 15%, 50/60 Hz
Maximum power consumption
. . . 24 VAC: 1.5 VA
110 VAC: 5 VA
220 VAC: 11 VA
Output
. . . . . . . . . . . . . . . . . . . . . . SPDT 10 A resistive
DPDT 10 A resistive
DPDT 10 A crosswired
Minimum pulse
. . . . . . . . . . . . . . . 30 ms
Contact material
. . . . . . . . . . . . . . AgCdO
Maximum loading
. . . . . . . . . . . . . 10 A AC resistive 8 A DC inductive
Maximum switching voltage
. . . . . 250 VAC
250 VDC
Relay maximum power rating
. . . . 2200 VA
80 W
Mechanical life of relay
. . . . . . . . . 3 x 10
6
operations
Electrical life of relay
. . . . . . . . . . . 2 x 10
5
at 2200 VA resistive load
Operating temperature
. . . . . . . . . 14°F to 140°F
-10°C to +60°C
Weight
. . . . . . . . . . . . . . . . . . . . . . 2.8 oz. (100g)
WIRING DIAGRAM:
PJR
INITIATE
SWITCH
PJRX
*
4
6
7
3
2
1
8
5
6
7
4
3
5
LJR2
INITIATE
SWITCH
*
4
3
2
1
5
6
7
8
9
8
2
1
1
1
10
INITIATE SWITCH*
* INITIATE SWITCH must be isolated from other circuits
ORDERING INFORMATION:
L
MOUNTING
JR2
SERIES
110A
INPUT POWER
MOUNTING
L
= 11 pin plug-in
P
= 8 pin plug-in
SERIES
JR2
= DPDT (LJRZ only)
JR
= SPDT
JRX
= DPDT crosswired
INPUT POWER
24A
= 24 VAC/DC
110A
= 110 VAC
220A
= 220 VAC
Products and specifications subject to change without notice.
Order/Technical Support – Tel: (800) 677-5311 / FAX: (800) 677-3865 / www.crouzet-usa.com
2/78
CONTROLS
CONTROLS

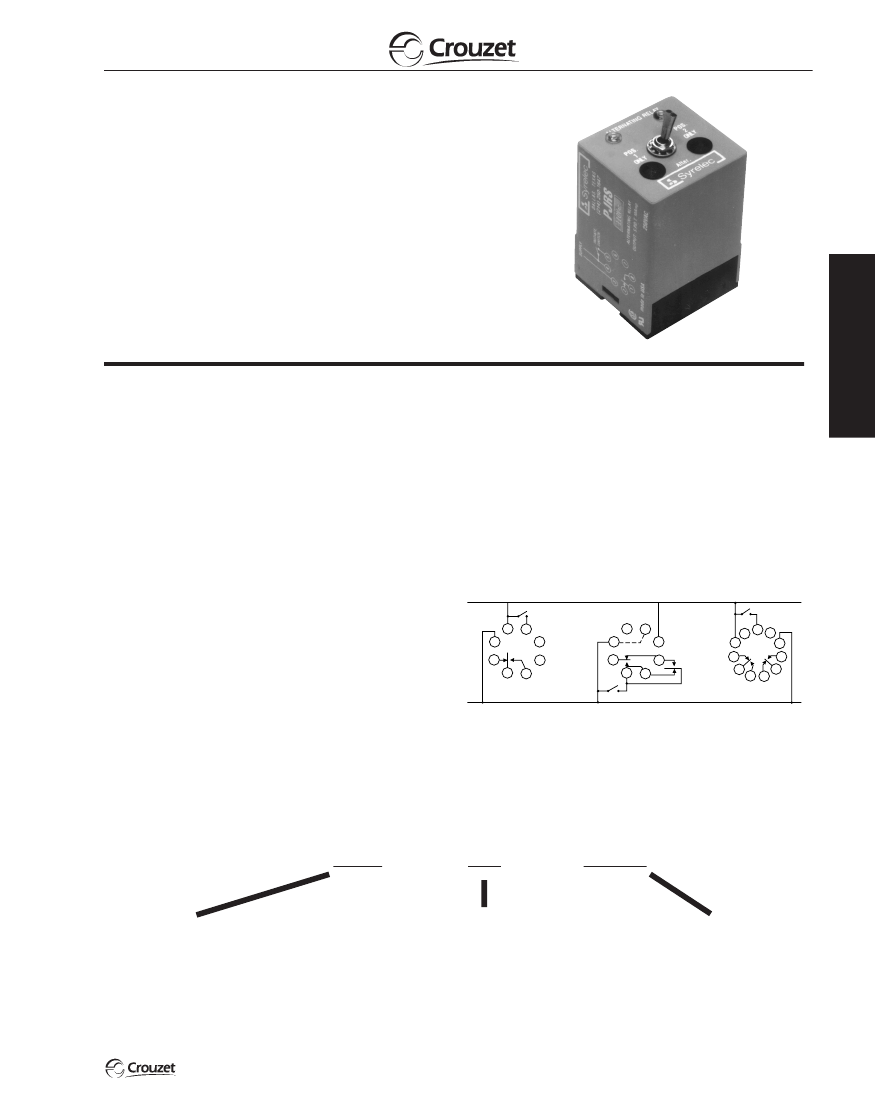

JRS SERIES
ALTERNATING RELAY WITH
SELECTOR SWITCH
UL listed
•
•
•
•
•
Duplex Alternating Control
SPDT or DPDT Control Relay
10 Amp Rated
Externally Controlled
Selection of Lead or Lag Load
2
The electronic alternating relay is designed to replace mechanical
style devices used in control applications requiring a duplexing
or alternating action of the control circuits to operate pumps,
compressors, etc. This is achieved by activating a control switch
which is common to one side of the input control voltage. The
output contact of the relay(s) change state when this switch is
opened (on de-energization of the control circuit). When the control
initiate switch is actuated and released or opened, the relay will
change state. The next time the initiate switch is actuated, it will
change back to its original state. Two red LED’s located on the top
of the dust resistant enclosure provide the status of the relay. A 3
Position Selector switch is installed for selection of normal opera-
tion (alternating) or selection of lead or lag load.
SPECIFICATIONS:
Input
. . . . . . . . . . . . . . . . . . . . . . . . 24 VAC/DC, 110, 220 VAC
±15%, 50/60 Hz
Maximum power consumption
. . . 24 VAC: 1.5 VA
110 VAC: 5 VA
220 VAC: 11VA
Output
. . . . . . . . . . . . . . . . . . . . . . SPDT 10 A resistive
DPDT 10 A resistive
DPDT 10 A crosswired
Minimum pulse
. . . . . . . . . . . . . . . 30 ms
Contact material
. . . . . . . . . . . . . . AgCdO
Maximum loading
. . . . . . . . . . . . . 10 A AC resistive 8 A DC inductive
Maximum switching voltage
. . . . . 250 VAC
250 VDC
Relay maximum power rating
. . . . 2200 VA
80 W
Mechanical life of relay
. . . . . . . . . 3 x 10
6
operations
Electrical life of relay
. . . . . . . . . . . 2 x 10
5
at 2200 VA resistive load
Operating temperature
. . . . . . . . . 14°F to 140°F
-10°C to +60°C
Weight
. . . . . . . . . . . . . . . . . . . . . . 2.8 oz. (100g)
WIRING DIAGRAM:
PJRS
INITIATE
SWITCH
PJRXS
5
6
7
3
2
1
8
4
5
6
7
4
3
LJRS2
INITIATE
SWITCH
4
3
2
1
5
6
7
8
9
8
2
1
1
1
10
INITIATE SWITCH
ORDERING INFORMATION:
L
MOUNTING
JRS 2
SERIES
110A
INPUT POWER
MOUNTING
L
= 11 pin plug-in
P
= 8 pin plug-in
SERIES
LJRS 2
= DPDT
PJRS
= SPDT
PJRXS
= DPDT (crosswired)
INPUT POWER
24A
= 24
VAC/DC
110A
= 110 VAC
220A
= 220 VAC
NOTE:
DPDT relay available only with 11 pin plug-in (L)
.
Products and specifications subject to change without notice.
Order/Technical Support – Tel: (800) 677-5311 / FAX: (800) 677-3865 / www.crouzet-usa.com
2/79
