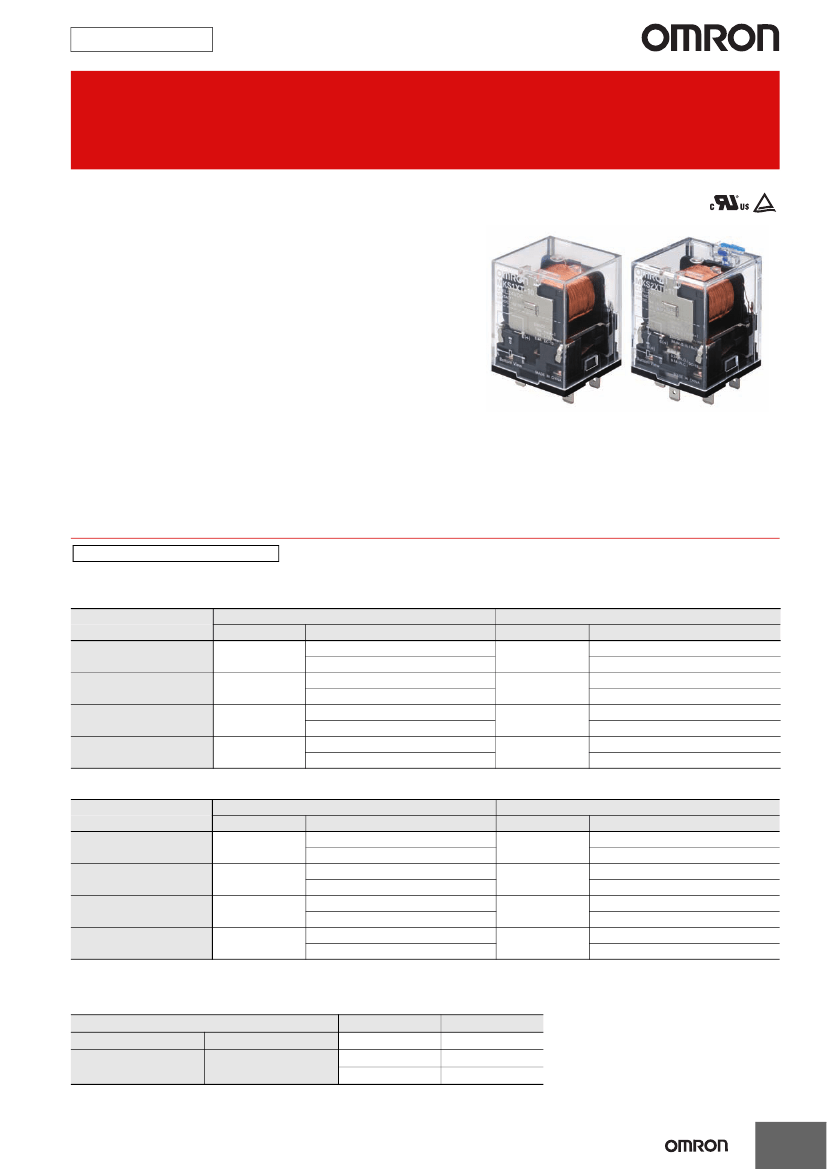

New Product
Power Relays
MK-S(X)
MK-S-series Relays with DC-switching
Models That Can Switch 220 VDC, 10 A
(Resistive Load).
• Switch a DC load of 220 VDC, 10 A (resistive load).
• Models for AC Loads can switch 250 VAC, 15 A (resistive load).
• Lineup includes models with SPST-NO and SPST-NO/SPST-
NC contact forms.
• Using a SPST-NO/SPST-NC contact form enables detecting
contact welding. (When the NO contacts become welded, the
NC contacts will maintain a minimum distance of 0.5 mm.)
• Models available with operation indicators and built-in test
buttons.
• RoHS compliant.
• Standards: UL, IEC (TÜV certification)
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Ordering Information
When your order, specify the rated voltage.
General-purpose Relays
Models for DC Loads
Contact form
Type
Standard Models
Models with Built-in
Operation Indicators
Models with Test Button
Models with Test Button and
Built-in Operation Indicators
Model
MKS1XT-10
MKS1XTN-10
MKS1XTI-10
MKS1XTIN-10
SPST-NO
Rated voltage (V)
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
Model
MKS2XT-11
MKS2XTN-11
MKS2XTI-11
MKS2XTIN-11
SPST-NO/SPST-NC
Rated voltage (V)
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
Models for AC Loads
Contact form
Type
Standard Models
Models with Built-in
Operation Indicators
Models with Test Button
Models with Test Button and
Built-in Operation Indicators
Model
MKS1T-10
MKS1TN-10
MKS1TI-10
MKS1TIN-10
SPST-NO
Rated voltage (V)
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
Model
MKS2T-11
MKS2TN-11
MKS2TI-11
MKS2TIN-11
SPST-NO/SPST-NC
Rated voltage (V)
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
Accessory (Order Separately)
Connecting Socket
Classifications
Back-connecting Socket
Front-connecting Socket
PCB Terminals
Mounts to DIN Track or via
screws
Built-in diode
No
No
Yes
Model
P7M-06P
P7MF-06
P7MF-06-D
1
MK-S(X)
Characteristics
Contact resistance
*1
Operate time
*2
Release time
*2
Max. operating
frequency
Mechanical
Rated load
100 mΩ max.
AC: 20 ms max.
DC: 30 ms max.
20 ms max.
18,000 operations/h
Models for DC loads: 1,800 times/hour
Models for AC loads: 1,200 times/hour
100 MΩ min.
2,500 VAC 50/60 Hz for 1 min between
1,000 VAC 50/60 Hz for 1 min
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
10 to 55 to 10 Hz, 0.50-mm single amplitude (1.0-mm double amplitude)
Back-connecting Socket (P7M-06P) mounting: 1,000 m/s
2
Front-connecting Socket (P7MF-06(-D)) mounting:500m/s
2
100 m/s
2
1,000,000 operations min. (at 18,000 operations/hr)
100,000 operations min. (at rated load and maximum switching frequency)
10 mA at 24 VDC
−40°C
to 60°C (with no icing or condensation)
Note:
The range is
−25°C
to 60°C for models with built-in operation indicators.
5% to 85%
SPST-NO: Approx. 73 g, SPST-NO/SPST-NC: Approx. 82 g
Insulation resistance
*3
Between coil and contacts
Dielectric
strength
Vibration
resistance
Shock
resistance
Endurance
Between contacts of same polarity
Destruction
Malfunction
Destruction
Malfunction
Mechanical
Electrical
*4
Between contacts of different polarity
2,500 VAC 50/60 Hz for 1 min between
Failure rate P level (reference value)
Ambient operating temperature
Ambient operating humidity
Weight
Note:
The values given above are initial values.
*1.
The contact resistance was measured for 1 A at 5 VDC using the voltage drop method.
*2.
The operate time was measured with the rated voltage imposed and any contact bounce ignored at an ambient temperature of 23°C.
*3.
The insulation resistance was measured with a 500-VDC insulation resistance tester at the same places as those used for checking the
dielectric strength.
*4.
The electrical endurance was measured at an ambient temperature of 23°C.
Approved Standards
UL508 (File No. E41515)
*
Model
MKS1XT@-@
Coil ratings
NO contacts
Contact ratings
10 A, 220 VDC (Resistive)
5 A, 220 VDC L/R (T
0.632
) = 7 ms
0.4 A, 220 VDC L/R (T
0.95
) = 300 ms
5 A, 220 VDC (Resistive)
3 A, 220 VDC L/R (T
0.632
) = 7 ms
0.2 A, 220 VDC L/R (T
0.95
) = 300 ms
2 A, 220 VDC (Resistive)
0.3 A, 220 VDC L/R (T
0.632
) = 7 ms
0.1 A, 220 VDC L/R (T
0.95
) = 300 ms
15 A, 250 VAC (Resistive)
15 A, 250 VAC (Resistive)
5 A, 250 VAC (Resistive)
Operations
NO contacts
MKS2XT@-@
12 to 220 VDC
24 to 240 VAC
6,000
NC contacts
NO contacts
NO contacts
NC contacts
MKS1T@-@
MKS2T@-@
CSA Standard: CSA Certification by
: CSA C22.2 No.14
IEC Standard/TÜV Certification: IEC61810-1 (Certification No. R50104853)
Model
MKS1XT@-@
Coil ratings
NO contacts
Contact ratings
DC-1: 10 A, 220 VDC
5 A, 220 VDC L/R (T
0.632
) = 7 ms
DC-13: 0.4 A, 220 VDC
DC-1: 5 A, 220 VDC
3 A, 220 VDC L/R (T
0.632
) = 7 ms
DC-13: 0.2 A, 220 VDC
DC-1: 2 A, 220 VDC
0.3 A, 220 VDC L/R (T
0.632
) = 7 ms
DC-13: 0.1 A, 220 VDC
AC-1: 15 A, 250 VAC 50/60 Hz
AC-1: 15 A, 250 VAC 50/60 Hz
AC-1: 5 A, 250 VAC 50/60 Hz
Operations
MKS2XT@-@
12, 24, 48, 110,
220 VDC
24, 100, 110, 120,
200, 220, 230,
240 VAC
NO contacts
100,000
NC contacts
NO contacts
NO contacts
NC contacts
MKS1T@-@
MKS2T@-@
4
