LOW JITTER CRYSTAL OSCILLATOR
ABLJO
FEATURES:
•
•
•
•
•
•
•
High "Q", 3rd Overtone Crystal Technology
Ultra Low Jitter performance 0.10 ps Max. (12kHz to 20MHz)
Standard LVCMOS RF Output
Wide Operating Temperature (-40ºC to +85ºC) standard
±40 ppm Max. All inclusive Stability (including Aging) over 10-years
(17) Standard Frequencies between 80MHz & 200MHz
9x14mm RoHS Compliant SMT package
RoHS/RoHS II Compliant and Pb free
Pb
14.3 X 8.7 X 5.5 mm
| | | | | | | | | | | | | | |
•
Avionics
• COTS - Military communications
• Low Phase Noise Signal Sources
• High Definition TV
• Test & Measurement
• Ultra Low Jitter RF Communication Circuitry
APPLICATIONS:
STANDARD SPECIFICATIONS
Parameters
RF Output Frequency Range
Minimum
80.00
Typical
Maximum
200.00
Units
MHz
Notes
Standard
Available
Frequencies
80.00MHz,
81.920MHz, 92.160MHz,
96MHz, 98.304MHz, 100MHz,
106.250MHz,
120MHz, 122.880MHz,
125MHz, 150MHz,
155.520MHz,
156.250MHz,
160MHz, 184.32MHz,
187.5MHz, and
200MHz
3.135
3.300
3.465
25.00
30.00
40.00
LVCMOS
0.9*Vdd
45
-40
50
0.1*Vdd
55
3.0
+85
±25.00
±40.00
+85
±2.00
±5.00
±7.00
-73
-107
-134
-148
-154
-158
75
-140
-150
-150
100
Volts
Volts
%
ns
ºC
ppm
ppm
ºC
ppm
ppm
ppm
Volts
mA
mA
mA
Supply Voltage
Current Drain
80MHz ~ 99.999MHz
100MHz ~ 149.999MHz
150MHz ~ 200MHz
Waveform
V
OH
V
OL
Symmetry
Rise & Fall
Times
Operating Temperature Range
Frequency Stability
Over
(-40º
C
to +85ºC)
ALL
effects,
including Aging
Storage
Temperature
Range
Aging
First
Year
5-Years
10-Years
-40
Phase Noise (156.25MHz Carrier)
@ 10
@ 100
@ 1,000
Hz offset
Hz offset
Hz offset
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Femto
Seconds
Vdd=3.3V
@ 10,000 Hz offset
@ 100,000 Hz offset
@ 1,000,000 Hz offset
Integrated RMS Phase Jitter
(12kHz ~ 20MHz BW)
0.10 ps Max.
ABRACON IS
ISO9001:2008
CE
RTIFIED
CERTIFIED
Revised: 09.05.13
30332 Esperanza,
Rancho
Santa
Margarita,
California 92688
tel
949-546-8000
|
fax
949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
LOW JITTER CRYSTAL OSCILLATOR
ABLJO
STANDARD SPECIFICATIONS - continued
RoHS/RoHS II Compliant and Pb free
Pb
14.3 X 8.7 X 5.5 mm
| | | | | | | | | | | | | | |
Parameters
Electrical Frequency
Adjustment
Control
Voltage Range (Vc)
Frequency Pull Range
Frequency Pull
Slope
Control
Voltage Port Impedance
Center Control
Voltage
Control
Port
Linearity
Minimum
0.0
±45.00
Typical
Maximum
3.30
Units
Volts
ppm
Notes
Positive
10
1.45
1.65
1.85
±10
kΩ
Volts
%
TYPICAL PHASE NOISE PERFORMANCE @ 156.25MHZ CARRIER
OPTIONS AND PART IDENTIFICATION:
ABLJO -
- Frequency (MHz) -
Frequency Pull Option
Blank
XO
(Fixed Frequency
V
VCXO (±45 ppm min.)
Tape
& Reel Options
Blank
<
250 units on
cut
tape
T
1,000 units per reel
T2
250 units per reel
Revised: 09.05.13
30332 Esperanza,
Rancho
Santa
Margarita,
California 92688
tel
949-546-8000
|
fax
949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
ABRACON IS
ISO9001:2008
CE
RTIFIED
CERTIFIED
LOW JITTER CRYSTAL OSCILLATOR
ABLJO
OUTLINE DIMENSIONS:
RoHS/RoHS II Compliant and Pb free
Pb
14.3 X 8.7 X 5.5 mm
| | | | | | | | | | | | | | |
Pin
1
2
3
4
5
6
Function
VCXO
XO
Vc
N.C.
N.C.
GND
Output
N.C.
Vdd
Dimensions: inches (mm)
REFLOW PROFILE:
T
S
max to
T
L
(Ramp-up Rate)
Preheat
Temperature
Min. (T
S
Min.)
Temperature Typical
(T
S
Typ.)
Temperature
Max. (T
S
Max.)
Time
(t
S
)
Ramp-up rate (T
L
to T
p
)
Time
Maintained Above:
--Temperature (T
L
)/Time (T
L
)
Peak
Temperature
(T
p
)
Target
Peak
Temperature
(T
p
Target)
Time
within
5°C
of actual peak (t
p
)
Ramp-down Rate
Tune
25°C to Peak
Temperature
(t)
3°C/second
max.
150°C
175°C
200°C
60 ~ 180
seconds
3°C/second
max.
217°C/60 ~ 150 seconds
250°C
max. for
10
seconds
250°C
+0/-5°C
20 ~ 40
seconds
6°C/second
max.
8 minutes max.
ABRACON IS
ISO9001:2008
CE
RTIFIED
CERTIFIED
Revised: 09.05.13
30332 Esperanza,
Rancho
Santa
Margarita,
California 92688
tel
949-546-8000
|
fax
949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
LOW JITTER CRYSTAL OSCILLATOR
ABLJO

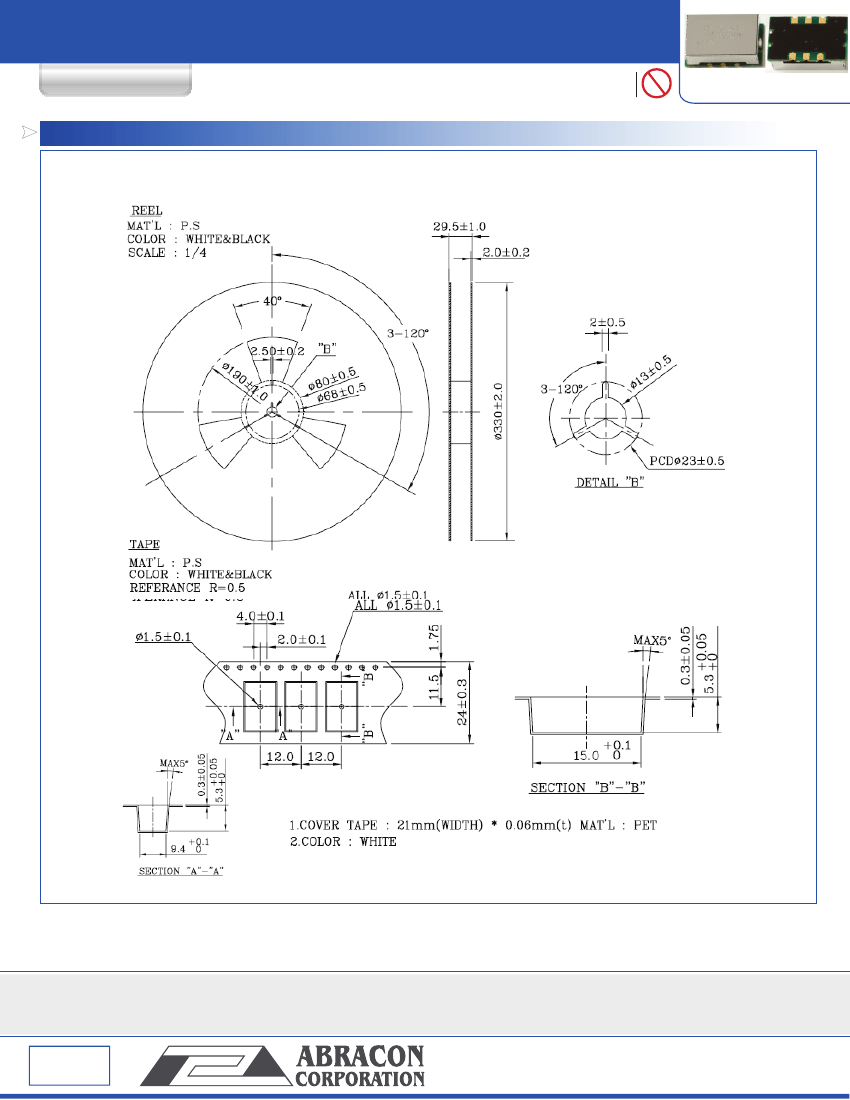

TAPE & REEL:
RoHS/RoHS II Compliant and Pb free
Pb
14.3 X 8.7 X 5.5 mm
| | | | | | | | | | | | | | |
Packaging: (1,000) units per reel standard, (250) units per reel available (option # T2)
ATTENTION:
Abracon Corporation’s products
are
COTS –
Commercial-Off-The-Shelf
products;
suitable for Commercial, Industrial and,
where
designated, Automotive
Applica-
tions. Abracon’s
products
are not
specifically
designed for Military,
Aviation, Aerospace, Life-dependant
Medical applications or any application requiring high reliability
where
component
failure could result
in
loss
of
life and/or
property.
For applications requiring high reliability and/or presenting an extreme
operating
environment, written consent and
authorization from
Abracon
Corporation
is
required. Please
contact
Abracon
Corporation
for more
information.
ABRACON IS
ISO9001:2008
CE
RTIFIED
CERTIFIED
Revised: 09.05.13
30332 Esperanza,
Rancho
Santa
Margarita,
California 92688
tel
949-546-8000
|
fax
949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
