TS63Z100KR10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> TS63Z100KR10

TS63Z100KR10: DescriptionRESISTOR, TRIMMER, CERMET, 13 TURN(S), 0.25 W, 10 ohm, 1/4 INCH, SQUARE, 3 PINS, ROHS COMPLIANT; CategoryPassive components The resistor; File Size117KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

TS63Z100KR10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TS63Z100KR10	-	-	View	Buy Now

TS63Z100KR10 Overview

RESISTOR, TRIMMER, CERMET, 13 TURN(S), 0.25 W, 10 ohm, 1/4 INCH, SQUARE, 3 PINS, ROHS COMPLIANT

TS63Z100KR10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1682838396
package instruction	SMT, 2727
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.75
Actuator direction	HORIZONTAL
Actuator type	SCREW
structure	Rectangular
gang number	1
JESD-609 code	e3
Lead diameter	0.45 mm
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	14
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	5 mm
Package length	6.85 mm
Package form	SMT
Package width	6.85 mm

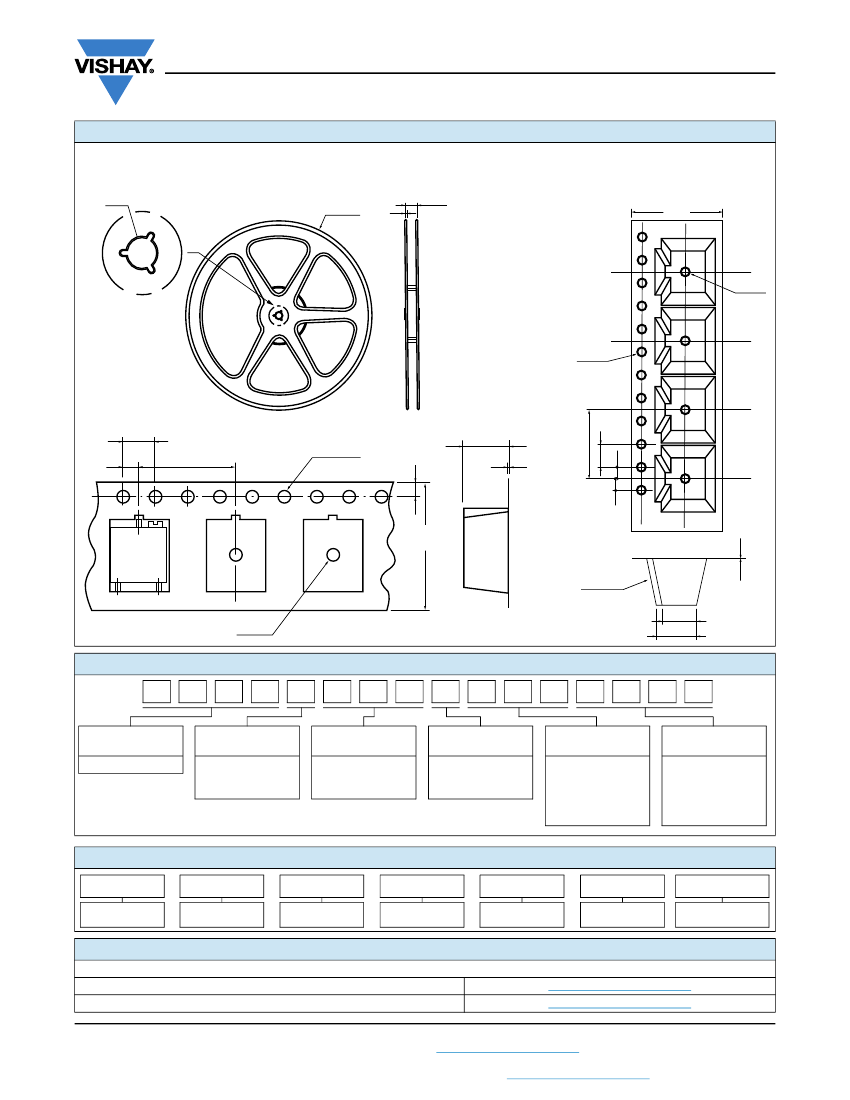

method of packing	TR, 13 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	10 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	5040 deg
size code	2727
surface mount	YES
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	1.58 V

Preview

Download Datasheet

View All

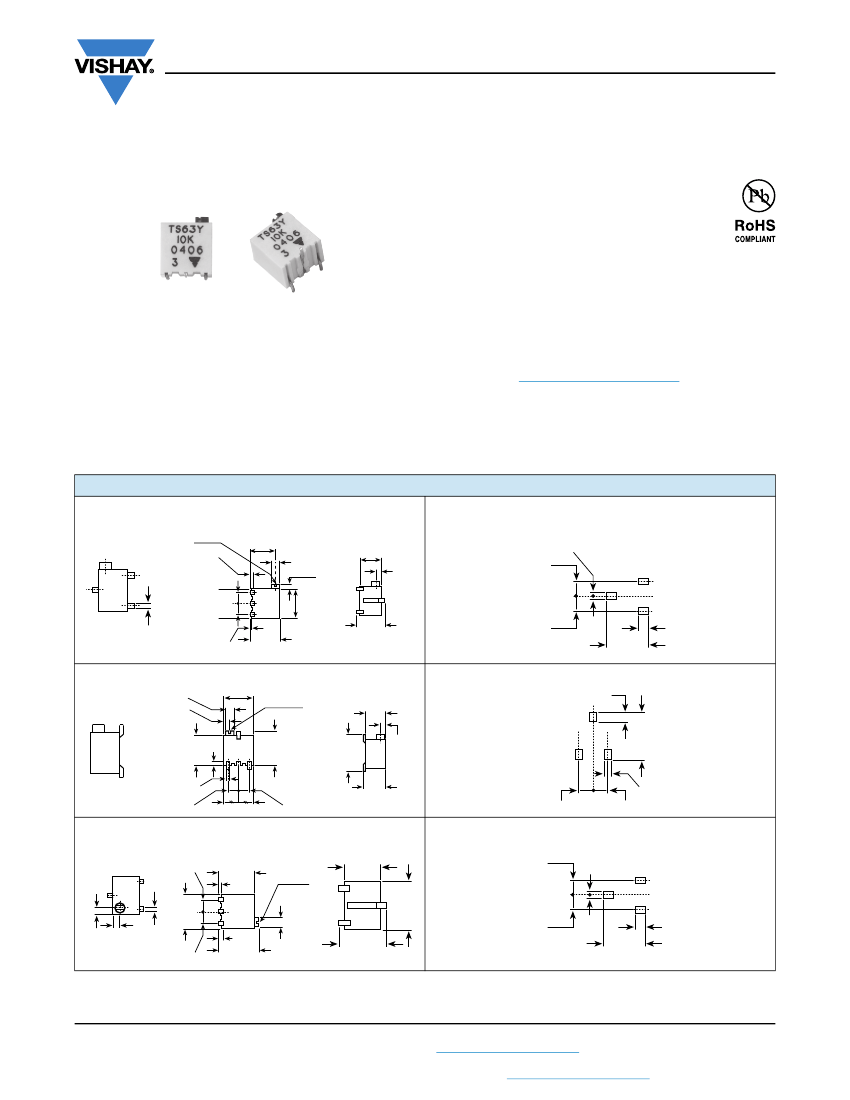

TS63

www.vishay.com

Vishay Sfernice

Multi-Turn Surface Mount 1/4" Square Cermet Trimmers,

Fully Sealed

FEATURES

• 0.25 W at 70 °C

• Industrial grade

• Multi-turn operation

• A low contact resistance variation (down to 2 % Rn)

• Low end contact resistance (1



typical)

• Full sealing

• Tests according to CECC 41000 or IEC 60393-1

The TS63 multiturn trimmer has been designed for use in

PCB surface mounting applications.

Three variations are available according to the positioning of

the control screw and contact positions.

The cermet track gives a high stability performance with an

extended ohmic capacity of 10



to 2 M.

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

DIMENSIONS

in millimeters (± 0.5 mm)

TS63X

Slot 0.5 x 0.5

5.8 ± 0.10

0.25

Ø 1.8

RECOMMENDED

SOLDERING AREAS

5 max.

1 ± 0.10

2.54

0.7

Ø 0.45

2.54

0.20

6.85 max.

6.7 max.

2.54

7.5

TS63Z

Ø 1.8

1.3 ± 0.1

6.85 max.

Slot 0.5 x 0.5

5 max.

1 ± 0.1

0.25

6.85 max.

7.6 max.

9.3

8.85 max.

Ø 0.45

5.3 max.

2.54

TS63Y

6.85 max.

1.3 ± 0.1

Ø 0.45

6.85 max.

0.3

2.54

Ø 1.8

Slot 0.5 x 0.5

5 max.

2.54

6.85

max.

1 ± 0.10

2.54

7.5

8 max.

6.7 max.

Revision: 22-Sep-15

Document Number: 51011

For technical questions, contact:

sferpottrimmers@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000
