T222A124J075SS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> T222A124J075SS

T222A124J075SS: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 75V, 5% +Tol, 5% -Tol, 0.12uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size2MB，11 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T222A124J075SS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T222A124J075SS	-	-	View	Buy Now

T222A124J075SS Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 75V, 5% +Tol, 5% -Tol, 0.12uF, Through Hole Mount, AXIAL LEADED

T222A124J075SS Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1926641896
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
YTEOL	7.28
Other features	TRAY:50
capacitance	0.12 µF
Capacitor type	TANTALUM CAPACITOR
diameter	2.29 mm
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e0
leakage current	0.0006 mA
length	6.35 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	No
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	BULK
polarity	POLARIZED
positive tolerance	5%
Rated (DC) voltage (URdc)	75 V
Guideline	MIL-PRF-39003
ripple current	52 mA
surface mount	NO
Delta tangent	0.03
Terminal surface	TIN LEAD
Terminal shape	WIRE

Preview

Download Datasheet

View All

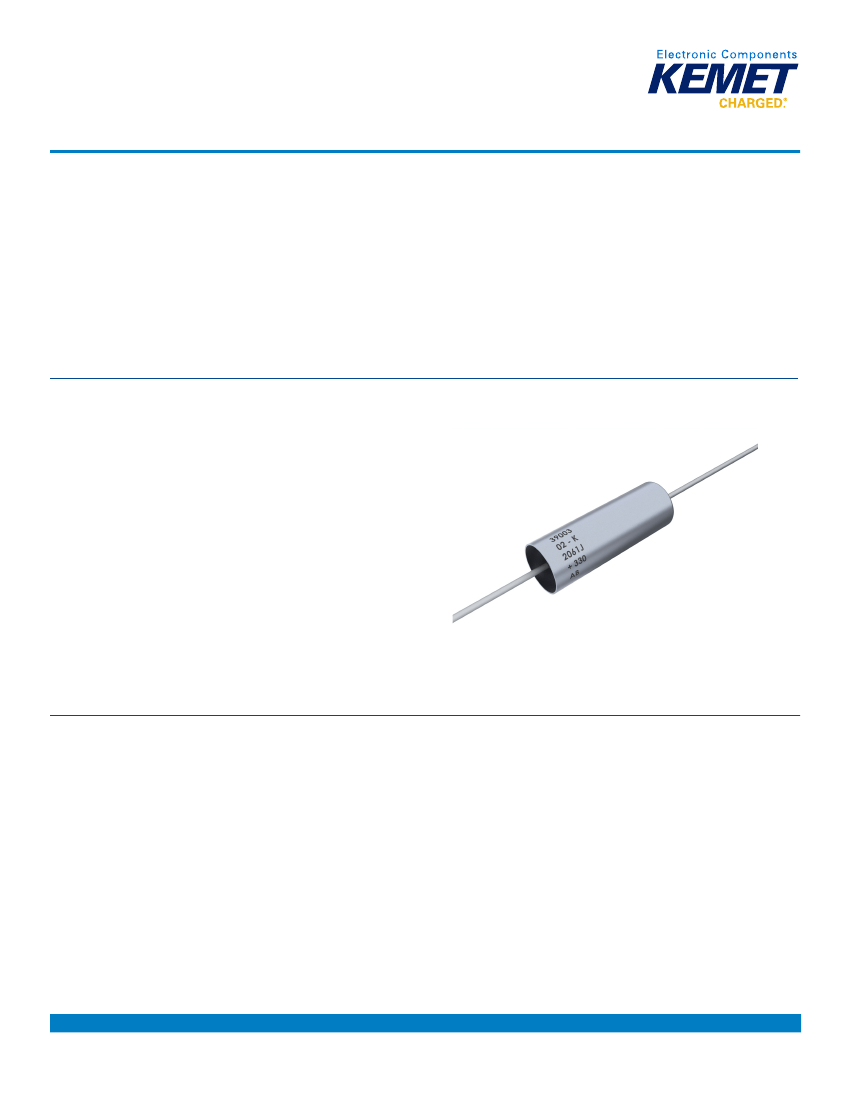

Tantalum Through-Hole Capacitors – Hermetically Sealed

T222 Series Axial MIL–PRF–39003 Polar Miniature

(CSR09 Style)

Overview

The KEMET ultra-miniature T222 Series solid tantalum

capacitors are especially designed for miniaturization

and employ a unique glass-to-metal compression end

seal which has no protruding eyelet. This flush end seal

construction ideally suits the T222 Series for all miniature

high density packaging applications. The capacitors consist

of a dry porous tantalum pellet hermetically sealed in a

solder coated metal case with solder coated alloy 52 and

solder coated nickel. The T222 series is approved to all

ratings and failure rates of MIL–PRF–39003/2.

Benefits

• Taped and reeled per EIA Specification RS–296

• Marking per MIL–STD–1285

• Qualified to MIL–PRF–39003 (CSR09 Style)

• Failure rate options: Graded - B, C, D, and G

Exponential – M, P, R, and S*

• Capacitance values of 0.047 μF to 18 μF

• Tolerances of ± 5%, and ±10%

• Voltage rating of 6 – 75 VDC

• Operating temperature range of −55˚C to +125˚C

• Case sizes: A and B

*Failure rates apply to military products only

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Applications

KEMET ultra-miniature T222 Series solid tantalum capacitors are especially designed for miniaturization.

One world. One KEMET

T2033_T222_AXIAL • 9/20/2016
