855399-EVB Overview

Signal Conditioning 350MHz BW 2.62MHz Eval Board

855399-EVB Parametric

Parameter NameAttribute value
Product CategorySignal Conditioning
ManufacturerQorvo
RoHSDetails
PackagingBulk
Factory Pack Quantity1
Data Sheet
Features
For fixed wireless applications

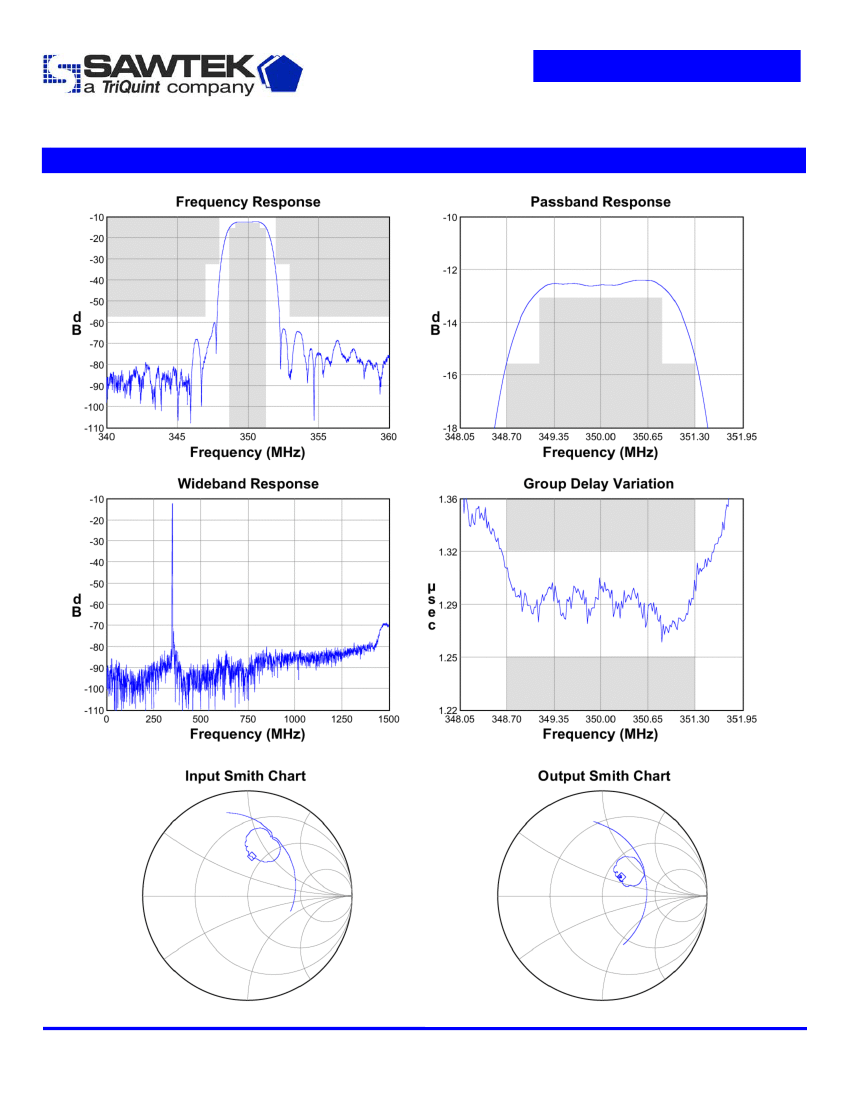

Usable bandwidth of 2.6 MHz
High attenuation
Single-ended or balanced operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb

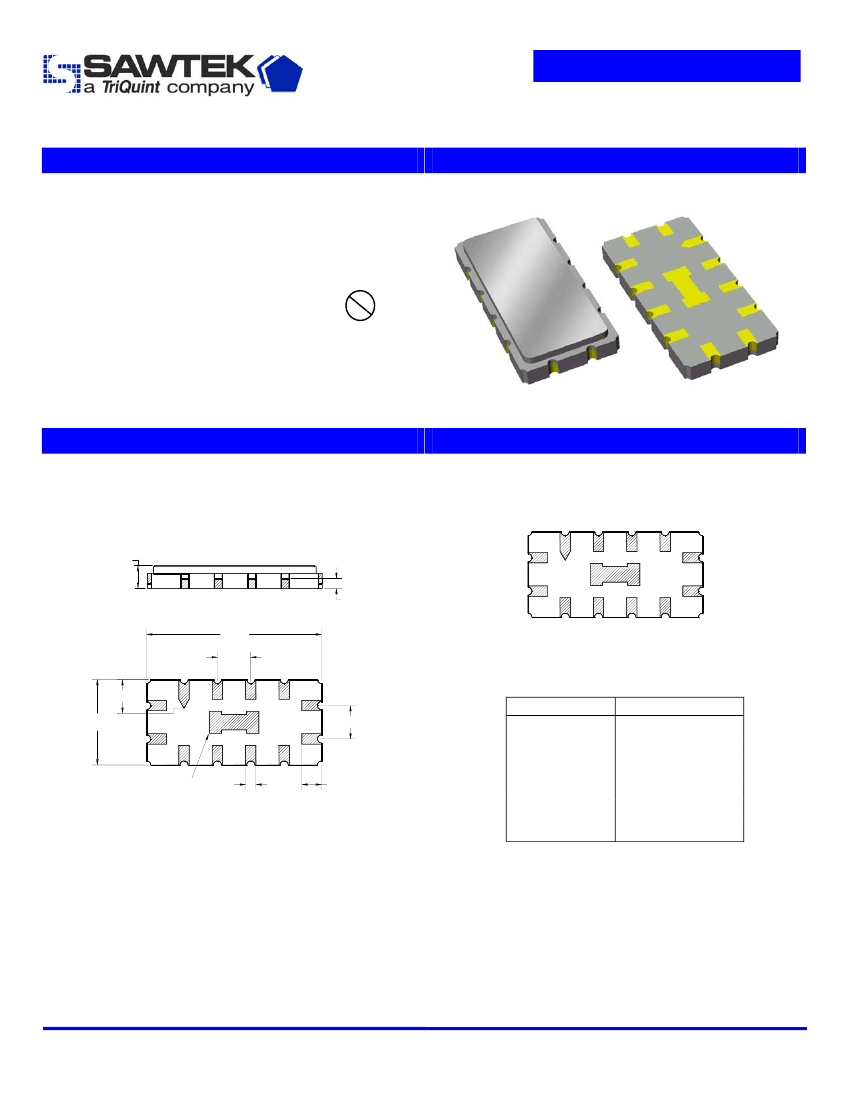

Part Number 855399
350 MHz SAW Filter
Package
Surface Mount 13.30 x 6.50 x 1.75 mm

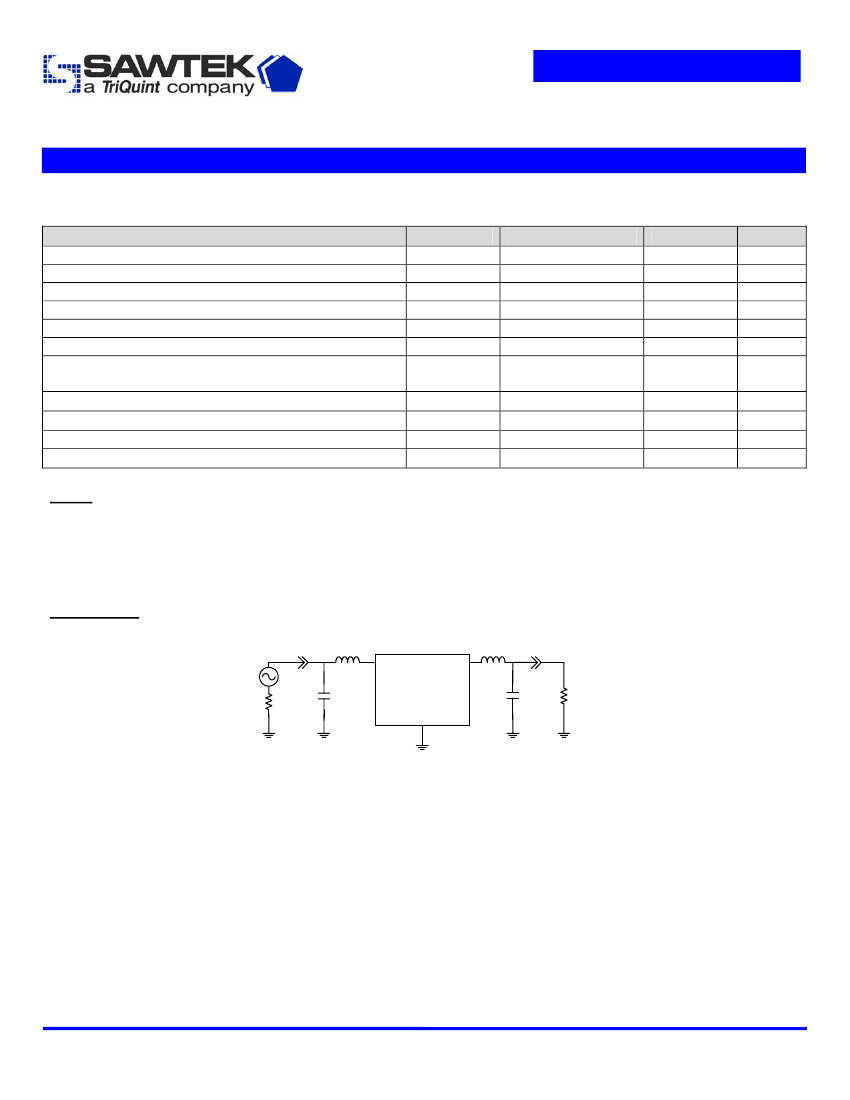

Pin Configuration
Bottom View
1
1.75 NOM.
1.96 MAX.
0.76
13.3
2.54
2.18
6.50
2.54
2
3
4
5
6
12
11
10
9
8
7
1.17 x 3.76
0.79
1.50
Pin No.
5
6
11
12
1,2,3,4
7,8,9,10
Description
Output
Output return
Input
Input return
Case ground
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev B
27-Oct-2005
Page 1 of 5
