T1/E1 Quatra
™
Isolation Modules

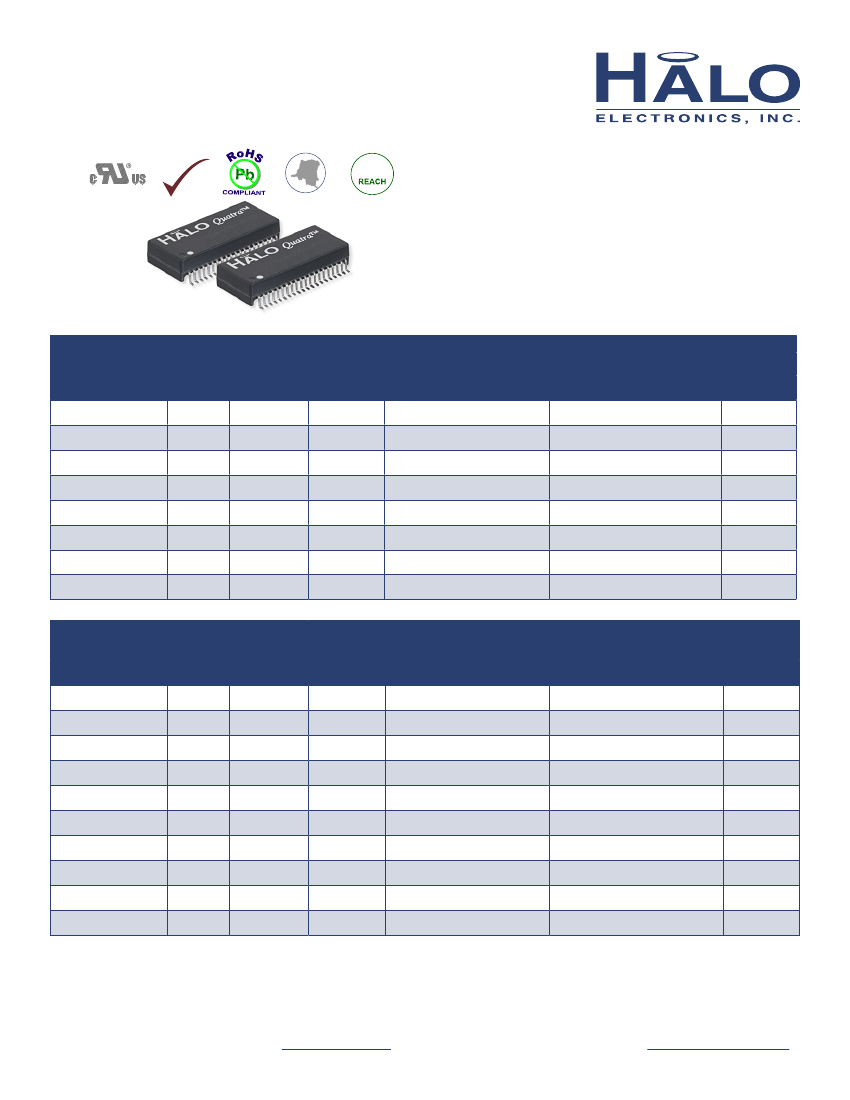

SMD 4 Port T1/E1 Transformer
RoHS
Compliant
Conflict
FREE
ü
Product Features:
T1/E1/CEPT/ISDN-PRI Quad Port Transformers
UL/EN60950 Recognized
DEMKO Recognized
100% Electrical Testing
1500Vrms Hi-Pot
Patented Open Frame Construction
Standard Temp
(0 to 70°C)
Part Number
TG05-1205NXLF
TG05-1205NXRL
TG28-1205NXLF
TG28-1205NXRL
TG29-1205NXLF
TG29-1205NXRL
TG39-1205NXLF
TG39-1205NXRL
Extended Temp
(-40 to +85C°C)
Part Number
TG23-1505NXLF
TG23-1505NXRL
TG27-1505NXLF
TG27-1505NXRL
TG29-1505NXLF
TG29-1505NXRL
TG34-1505NXLF
TG34-1505NXRL
TG36-1505NXLF
TG36-1505NXRL
Circuit
B
B
E
E
A
A
G
G
C
C
Circuit
B
B
F
F
A
A
B
B
Turns Ratio (± 2%)
PRI : SEC
TX
RX
TX
Primary Pins
RX
See Circuit Diagram
See Circuit Diagram
4-5, 6-7, 14-15, 16-17
4-5, 6-7, 14-15, 16-17
38-36, 35-33, 28-26, 25-23
See Circuit Diagram
See Circuit Diagram
RoHS
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
Pb-Free
RoHS (7a)
See Circuit Diagram
See Circuit Diagram
1-3, 8-10, 11-13, 18-20
1-3, 8-10, 11-13, 18-20
1-2, 9-10, 11-12, 19-20
1-2, 9-10, 11-12, 19-20
See Circuit Diagram
See Circuit Diagram
1:2
1:2
1CT:1.36CT
1CT:1.36CT
1:2
1:2
1:1.15
1:1.15
1:2
1:2
1:1
1:1
1:2CT
1:2CT
1:1.15
1:1.15
38-36, 35-33, 28-26, 25-23 RoHS (7a)
Turns Ratio (± 2%)
PRI : SEC
TX
RX
TX
Primary Pins
RX
See Circuit Diagram
See Circuit Diagram
38-36, 33-31, 28-26, 23-21
38-36, 35-33, 28-26, 25-23
37-36, 32-31, 27-26, 22-21
3-4, 8-9, 13-14, 18-19
3-4, 8-9, 13-14, 18-19
RoHS
Pb-Free
RoHS (7a)
Pb-Free
Pb-Free
Pb-Free
Pb-Free
RoHS (7a)
See Circuit Diagram
See Circuit Diagram
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
1-2, 9-10, 11-12, 19-20
1-2, 9-10, 11-12, 19-20
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
1:2.42
1:2.42
1:1.36
1:1.36
1:2
1:2
1:2.42
1:2.42
1:2CT
1:2CT
1:2CT
1:2CT
38-36, 33-31, 28-26, 23-21 RoHS (7a)
38-36, 35-33, 28-26, 25-23 RoHS (7a)
37-36, 32-31, 27-26, 22-21 RoHS (7a)
1:1.14/1.35 1:1.14/1.35
1:1.14/1.35 1:1.14/1.35
1:1.15
1:1.15
1:1
1:1
Notes:
1. Pb-Free parts are RoHS 6/6 compliant. RoHS (7a) parts contain lead per exemption 7a.
2. Parts with RL suffix are not recommended for new designs.
3. Please contact the factory or representative for individual datasheets or additional information.
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com
T1/E1 Quatra
™
Isolation Modules
SMD 4 Port T1/E1 Transformer
Extended Temp
(-40 to +85C°C)
Part Number
TG37-1505NXLF
TG37-1505NXRL
TG37-5176NXLF
TG37-5176NXRL
TG39-1505NXLF
TG39-1505NXRL
TG42-1505NXLF
TG42-1505NXRL
TG49-LVL1NXLF
TG49-LVL1NXRL
TG63-1505NXLF
TG63-1505NXRL
TG63-S003NXLF
TG63-S003NXRL
TG64-1505NXLF
TG64-1505NXRL
TG70-1505NXLF
TG70-1505NXRL
TG73-1505NXLF
TG73-1505NXRL
TG80-1505NXLF
TG80-1505NXRL
TG83-1505NXLF
TG83-1505NXRL
TG87-S004NXLF
TG87-S004NXRL
Circuit
B
B
D
D
B
B
C
C
D
D
E
E
C
C
G
G
D
D
C
C
G
G
C
C
E
E
Turns Ratio (± 2%)
PRI : SEC
TX
RX
TX
Primary Pins
RX
See Circuit Diagram
See Circuit Diagram
40-39, 35-34, 30-29, 25-24
See Circuit Diagram
See Circuit Diagram
38-37, 33-22, 28-27, 23-22
1-3, 6-8, 11-13, 16-18
1-3, 6-8, 11-13, 16-18
38-36, 33-31, 28-26, 23-21
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
37-36, 32-31, 27-26, 22-21
40-39, 35-34, 30-29, 25-24
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
37-36, 32-31, 27-26, 22-21
37-36, 32-31, 27-26, 22-21
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
RoHS
Pb-Free
RoHS (7a)
Pb-Free
Pb-Free
RoHS (7a)
Pb-Free
Pb-Free
RoHS (7a)
Pb-Free
Pb-Free
RoHS (7a)
Pb-Free
Pb-Free
Pb-Free
RoHS (7a)
Pb-Free
Pb-Free
Pb-Free
RoHS (7a)
See Circuit Diagram
See Circuit Diagram
4-5, 9-10, 14-15, 19-20
4-5, 9-10, 14-15, 19-20
See Circuit Diagram
See Circuit Diagram
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
4-5, 9-10, 14-15, 19-20
4-5, 9-10, 14-15, 19-20
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
3-4, 8-9, 13-14,18-19
3-4, 8-9, 13-14,18-19
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
4-5, 9-10, 14-15, 19-20
4-5, 9-10, 14-15, 19-20
3-4, 8-9, 13-14, 18-19
3-4, 8-9, 13-14, 18-19
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
1-2, 6-7, 11-12, 16-17
38-36, 33-31, 28-26, 23-21
38-36, 33-31, 28-26, 23-21
1:1.14
1:1.14
1:1.14CT
1:1.14CT
1:1.15
1:1.15
1:1.41
1:1.41
1:2CT
1:2CT
1:1.15
1:1.15
1:1.15
1:1.15
1:1/1.26
1:1/1.26
1:1.36CT
1:1.36CT
1:2.3
1:2.3
1:2.45CT
1:2.45CT
1:2
1:2
1:2CT
1:2CT
1:1.14
1:1.14
1:1.14CT
1:1.14CT
1:1.15
1:1.15
1:1.41
1:1.41
1CT:2
1CT:2
1:2CT
1:2CT
1:2
1:2
1:2CT
1:2CT
1:1.36CT
1:1.36CT
1:1
1:1
1:2.45CT
1:2.45CT
1:1
1:1
1:1
1:1
40-39, 35-34, 30-29, 25-24 RoHS (7a)
38-37, 33-22, 28-27, 23-22 RoHS (7a)
38-36, 33-31, 28-26, 23-21 RoHS (7a)
37-36, 32-31, 27-26, 22-21 RoHS (7a)
40-39, 35-34, 30-29, 25-24 RoHS (7a)
37-36, 32-31, 27-26, 22-21 RoHS (7a)
37-36, 32-31, 27-26, 22-21 RoHS (7a)
Notes:
1. Pb-Free parts are RoHS 6/6 compliant. RoHS (7a) parts contain lead per exemption 7a.
2. Parts with RL suffix are not recommended for new designs.
3. Please contact the factory or representative for individual datasheets or additional information.
OCL:
DCR:
LL:
Standard Temp
1.2mH (typ)
0.7Ω (max)
0.4µF (max)
Extended Temp
1.5mH (typ)
0.8Ω (max)
0.5µF (max)
Electrical Specifications @ 25°C
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com

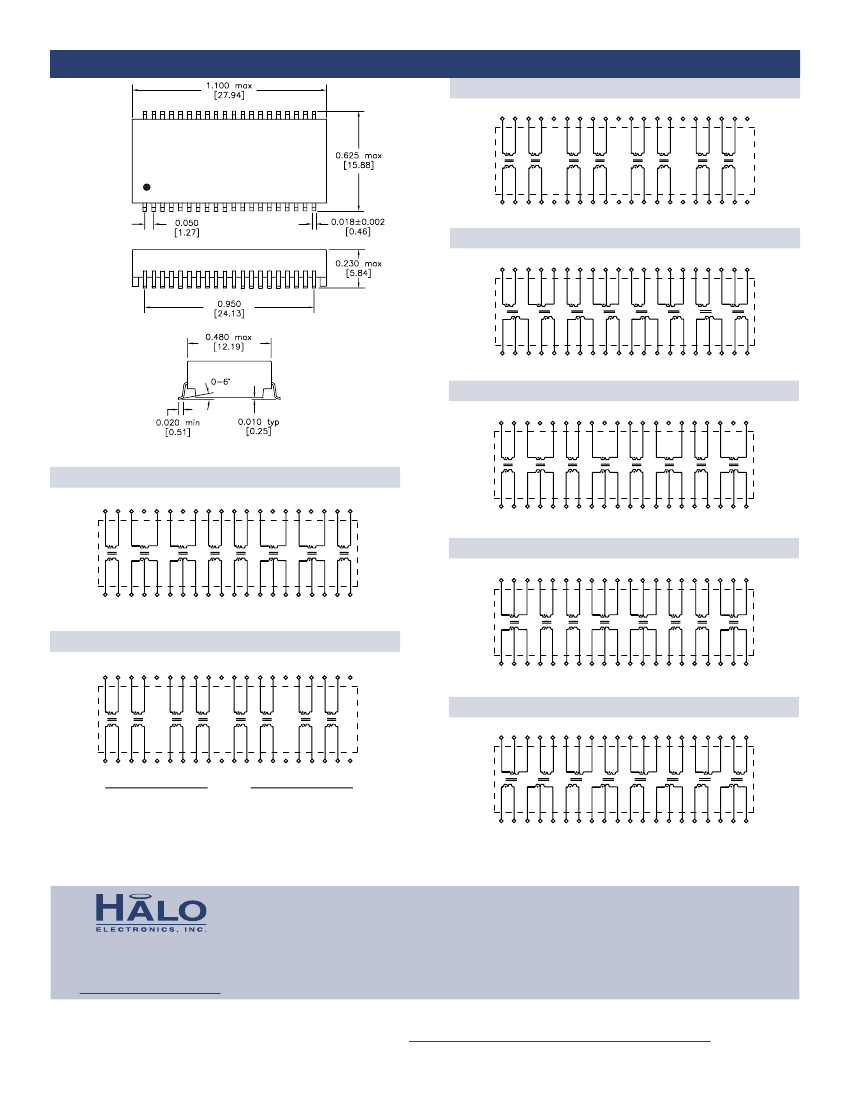

HALO Quatra™ T1/E1 Transformer
Circuit C
40 39 38
37 36 35 34 33 32
31 30 29 28 27 26 25 24
23 22
21
1
2
3
4
5
6
7
8
9
10 11
12 13 14 15 16 17 18 19 20
Circuit D
40 39 38
37 36 35 34 33 32
31 30 29 28 27 26 25 24
23 22
21
1
2
3
4
5
6
7
8
9
10 11
12 13 14 15 16 17 18 19 20
Circuit E
40 39 38
37 36 35 34 33 32
31 30 29 28 27 26 25 24
23 22
21
Dimensions: inch [mm]
Co-Planarity: 0.004 [0.10]
Circuit A
40 39 38
37 36 35 34 33 32
31 30 29 28 27 26 25 24
23 22
21
1
2
3
4
5
6
7
8
9
10 11
12 13 14 15 16 17 18 19 20
Circuit F
40 39 38
37 36 35 34 33 32
31 30 29 28 27 26 25 24
23 22
21
1
2
3
4
5
6
7
8
9
10 11
12 13 14 15 16 17 18 19 20
Circuit B
40 39 38
37 36 35 34 33 32
31 30 29 28 27 26 25 24
23 22
21
1
2
3
4
5
6
7
8
9
10 11
12 13 14 15 16 17 18 19 20
Circuit G
40 39 38
37 36 35 34 33 32
31 30 29 28 27 26 25 24
23 22
21
1
2
3
4
5
6
7
8
9
10 11
PRIMARY
12 13 14 15 16 17 18 19 20
Patented Construction
US Patent Numbers:
5,656,985
6,297,721 B1
6,297,720 B1 6,320,489 B1
6,344,785 B1 6,662.431 B1
1
2
3
4
5
6
7
8
9
10 11
12 13 14 15 16 17 18 19 20
2880 Lakeside Drive #116
Santa Clara, CA 95054
(650) 903-3800
www.haloelectronics.com
HALO
®
Electronics is a leading supplier of high quality communication magnetics
including signal transformers, filters, CMR chokes, PoE power transformers,
DC/DC converters, and integrated Ethernet connectors. HALO’s leading edge
technology solutions are manufactured in ISO9001 and ISO14001 factories
offering high quality products at a competitive price.
© Copyright 2017 HALO Electronics, Inc. All rights reserved.
Revised 7/2017 Download the latest version at
www.haloelectronics.com/pdf/discrete-quatra-t1e1pdf
