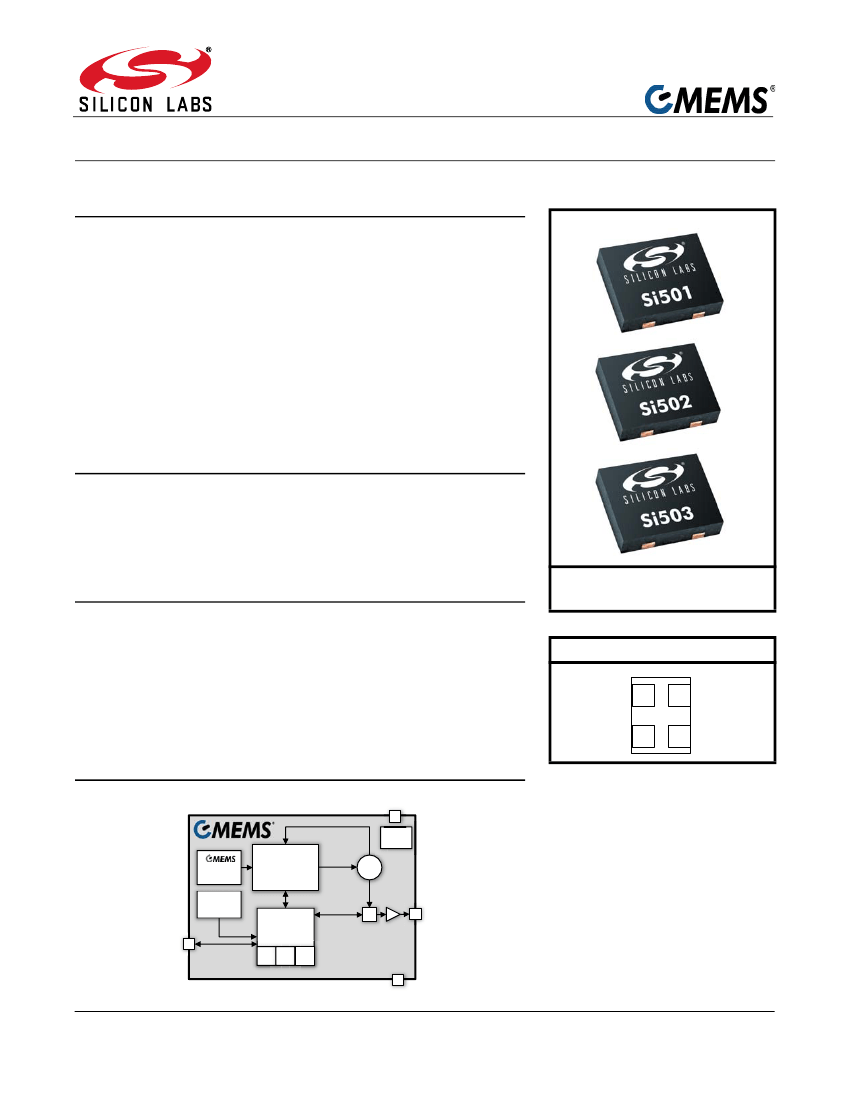

Si501/2/3

–100

CMEMS



SC ILLA TOR

Features



Wide frequency range: 32 kHz to

100 MHz



Contact Silicon Labs for

frequencies above 100 MHz

Si501 single frequency w/ OE

Si502 dual frequency w/ OE/FS

Si503 quad frequency w/ FS

±20/30/50 ppm frequency stability

including 10-year aging

LVCMOS output

Low period jitter

Low power

Continuous supply voltage range:

+1.71 V to +3.63 V



User selectable tRise/tFall options

Glitchless start and stop

Excellent short-term stability, long-

term aging

Industry standard footprints:

2x2.5, 2.5x3.2, 3.2x5 mm

RoHS compliant, Pb-free

Short lead times: <2 weeks

–20 to +70 °C: Extnd commercial

–40 to +85 °C: Industrial

The Si50x family also includes the

Si504 for in-circuit programmability

(See the Si504 Data Sheet)

Applications



Storage (SATA/SAS/PCIe)

General purpose processors

Industrial controllers

Embedded controllers

Motor control

Flow control



Office/Home automation

IP cameras/surveillance

Display and control panels

Outdoor electronics

Multi-function printers

Office equipment

Description

The Si501/2/3 CMEMS oscillator family provides monolithic, MEMS-based IC

replacements for traditional crystal oscillators. Silicon Laboratories’ CMEMS

technology combines standard CMOS + MEMS in a single, monolithic IC to provide

integrated, high-quality and high-reliability oscillators. Each device is factory tested

and configured for guaranteed performance to data sheet specifications across

voltage, process, temperature, shock, vibration, and aging.

Additional information on the Si50x CMEMS oscillator architecture and CMEMS

technology is available in white papers on the Silicon Labs website at

www.siliconlabs.com/cmems.

Ordering Information:

See Section 5.

Pin Assignments

FS/OE 1

GND 2

Patents pending

4 V

3 CLK

Functional Block Diagram

VDD

LDO

Digital

Frequency-Locked

Loop (FLL)

Resonator

& Oscillator

Temperature

Sensor

VCO

FS/OE

Temp Comp /

Digital

Control

NVM RAM ROM

CLK

GND

Rev. 1.0 6/14

Si501/2/3

Si501/2/3

ABLE

Section

ONTENTS

Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2. Si501/2/3 Typical Applications Circuits, AC Waveforms, and Functional

Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.1. Si501/2 Applications Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.2. Si501/2 AC Waveforms and Functional Descriptions . . . . . . . . . . . . . . . . . . . . . . . . .9

2.3. Si503 Applications Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.4. Si503 AC Waveform and Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1. OE Enable and Disable States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2. Output Rise and Fall settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4. Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.1. Si501 Ordering Guide and Part Number Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

5.2. Si502 Ordering Guide and Part Number Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

5.3. Si503 Ordering Guide and Part Number Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

6. Package Dimensions and Land Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.1. Package Outline: 3.2 x 5 mm 4-pin DFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.2. Package Outline: 2.5 x 3.2 mm 4-pin DFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.3. Package Outline: 2 x 2.5 mm 4-pin DFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7. Top Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

7.1. 3.2 x 5 mm Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7.2. 3.2 x 5 mm Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7.3. 2.5 x 3.2 mm Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

7.4. 2.5 x 3.2 mm Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

7.5. 2 x 2.5 mm Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7.6. 2 x 2.5 mm Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
