WIN-T0805LF-03-4532-B datasheet, PDF

Datasheet> All Categories > Passive components> WIN-T0805LF-03-4532-B

WIN-T0805LF-03-4532-B: DescriptionThin Film Resistors - SMD 0805 45K3 Ohms 0.1% 25 PPM; CategoryPassive components; File Size765KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

WIN-T0805LF-03-4532-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WIN-T0805LF-03-4532-B	-	-	View	Buy Now

WIN-T0805LF-03-4532-B Overview

Thin Film Resistors - SMD 0805 45K3 Ohms 0.1% 25 PPM

WIN-T0805LF-03-4532-B Parametric

Parameter Name	Attribute value
Product Category	Thin Film Resistors - SMD
Manufacturer	TT Electronics plc
RoHS	Details
Packaging	Reel
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

Resistors

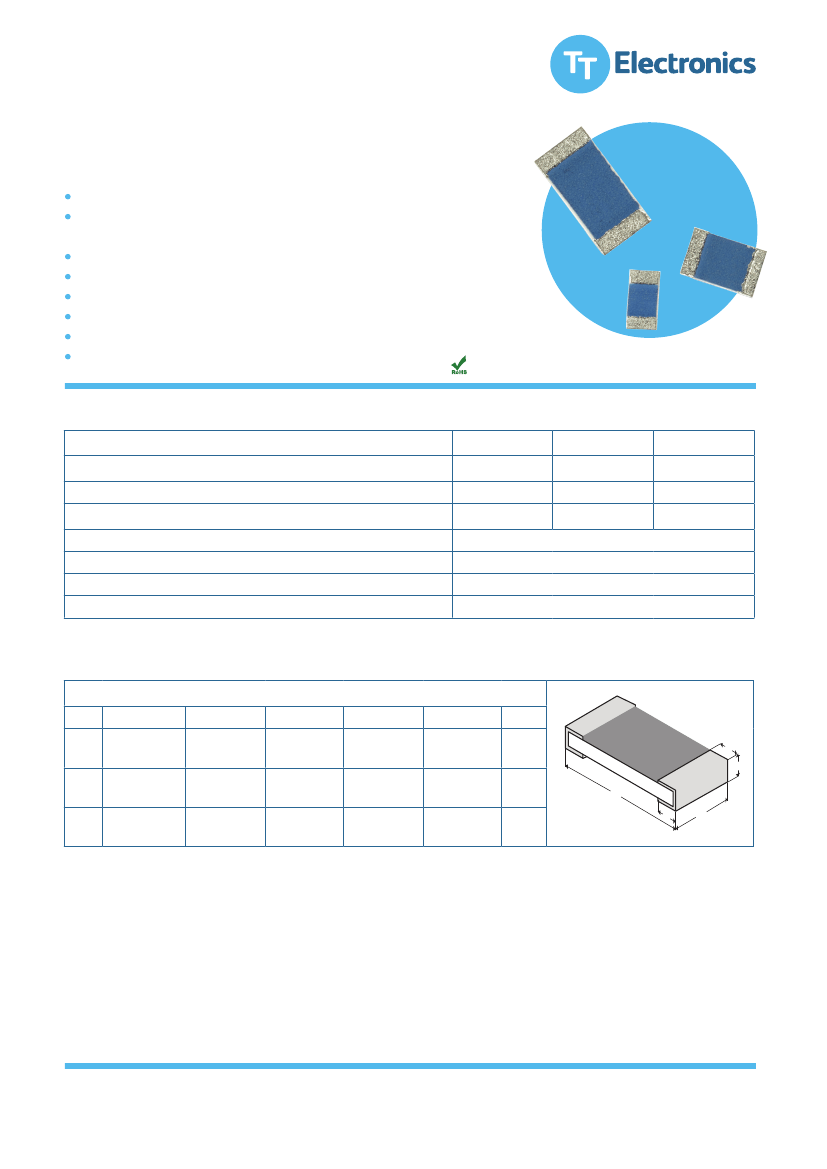

Water Insoluble Nitride Thin Film

Precision Chip Resistors

WIN Series

TaN thin film technology

Inherent moisture protection superior to that of passivated

nichrome chip resistors

High stability in humid and polluted environments

Typical 85°C, 85%RH biased humidity 2000 hour stability <0.1%

Typical moisture resistance stability ±100ppm

Precision ±0.05% tolerance and ±15ppm/°C

Anti-sulfur terminations

100% screened by automated optical inspection

All Pb-free parts comply with EU Directive 2011/65/EU (RoHS2)

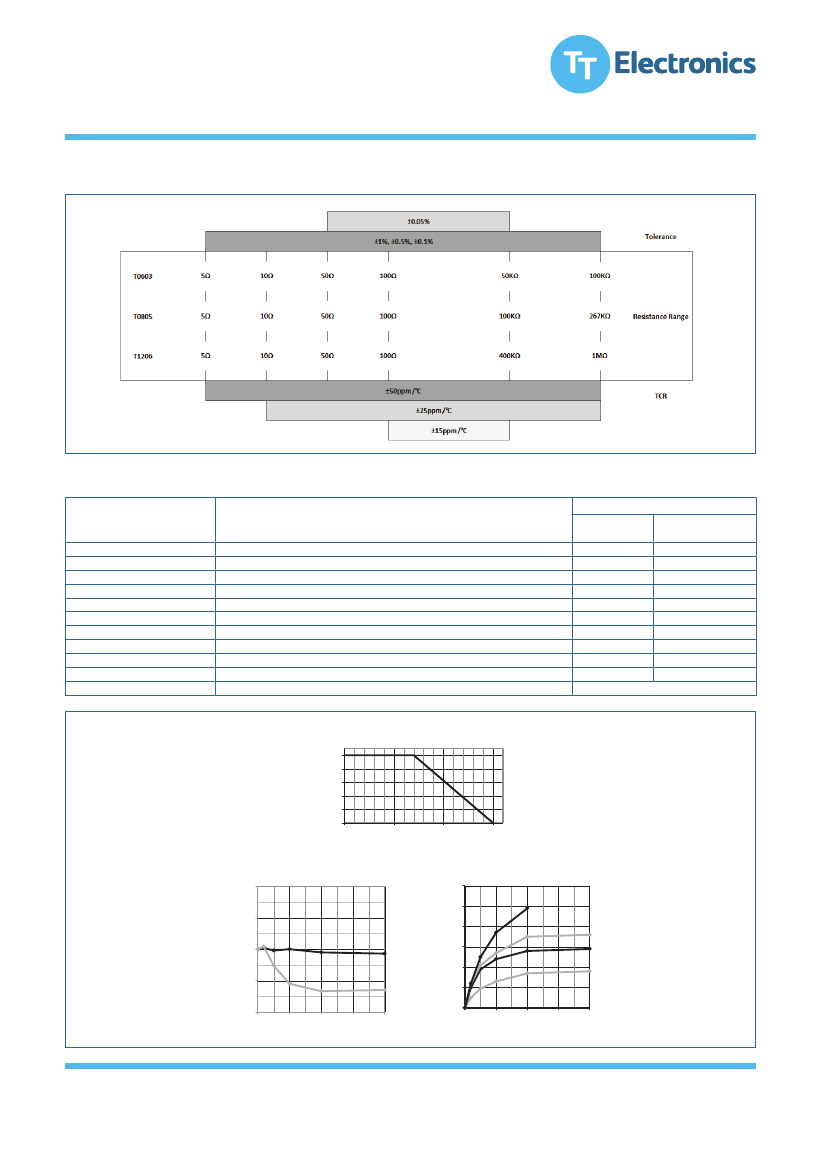

Electrical Data

T0603

Power rating @ 70°C

Resistance range

Limiting element voltage (maximum voltage)

Resistance tolerance

TCR

Standard values

Ambient temperature range

°C

watts

ohms

Vdc or

rms

ppm/°C

0.1

5R to 100K

T0805

0.25

5R to 267K

100

±0.05 ±0.1 ±0.5 ±1

±15 ±25 ±50

E24, E96, E192

-65 to +150

T1206

0.33

5R to 1M0

200

Physical Data

Dimensions in mm & (inch) and weight in mg

T0603

T0805

T1206

1.58 ± 0.15

(0.062 ± 0.006)

2.02 ± 0.15

(0.080 ± 0.006)

3.15 ± 0.15

(0.124 ± 0.006)

0.80 ± 0.10

(0.031 ± 0.004)

1.28 ± 0.15

(0.050 ± 0.006)

1.57 ± 0.15

(0.062 ± 0.006)

Wt. nom

2.0

4.3

9.6

0.45 ± 0.10

0.27 ± 0.20

0.34 ± 0.20

(0.018 ± 0.004) (0.011 ± 0.008) (0.013 ± 0.008)

0.45 ± 0.10

0.31 ± 0.20

0.40 ± 0.20

(0.018 ± 0.004) (0.012 ± 0.008) (0.016 ± 0.008)

0.50 ± 0.15

0.45 ± 0.25

0.52 ± 0.25

(0.020 ± 0.006) (0.018 ± 0.010) (0.020 ± 0.010)

Construction

Conductors, thin film resistive element and epoxy outer protection are applied to an alumina substrate. The chips are supplied with

wrap-around terminations suitable for soldering. The terminations have an electroplated nickel barrier and either 100% matt tin or 60/40 SnPb finish.

Marking & Solvent Resistance

WIN resistors have no marking on the component body. The body protection is resistant to all normal cleaning solvents suitable for printed circuits

General Note

TT Electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.

BI Technologies IRC Welwyn

http://www.ttelectronics.com/resistors

02.17

Recommended Resources

Phase detection circuit

Application circuit when using single power supply

Electromechanical control filter circuit

AC and DC adapter circuit diagram designed using L4990

Overvoltage automatic power-off device

Multi-channel centralized control adjustable integrated stabilized power supply

Has anyone participated in Renesas' 1 yuan chip promotion?: I saw that the actual price after tax was 1.17 yuan per piece. You can only buy in multiples of 490....; tourlet MCU

Please help with the garbled prompt information problem: The operating system is Wince, and the programming language is EVC. An int variable is associated with the Edit control, and its valid range is set to 1 to 5000. When the input value is outside this r...; sanron Embedded System

What kind of people use professional development software like ARM DS-5?: RT May I ask what kind of people use professional development software like ARM DS-5?...; szarm ARM Technology

Deluxe set is already in place: There are a lot of things, and I haven’t checked them out carefully yet, so here’s a family photo first....; billjing RF/Wirelessly

Problems with traditional buses in DSP engineering high-speed interfaces: [i=s]This post was last edited by Aguilera on 2017-3-23 08:35[/i] [size=4] Traditional buses mostly use parallel bus working mode. Such buses are generally divided into three groups: data lines, addre...; Aguilera DSP and ARM Processors

Help, why can't my CAN communication send information even though it has entered the sending interruption?: The program is as shown in the figure, using 16M progress, stm32f103 cpu, MCP2551can chip, there is a problem that I clearly did not configure the PA8 pin, but the PA8 pin will output a 2.2v voltage. ...; PHEL stm32/stm8
