298D106X06R3M2T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 298D106X06R3M2T

298D106X06R3M2T: DescriptionStandard LEDs - SMD Green/Yellow Dual Color; CategoryPassive components capacitor; File Size418KB，18 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

298D106X06R3M2T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	298D106X06R3M2T	-	-	View	Buy Now

298D106X06R3M2T Overview

Standard LEDs - SMD Green/Yellow Dual Color

298D106X06R3M2T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	10 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	5000 mΩ
high	0.9 mm
JESD-609 code	e3
leakage current	0.0006 mA
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	No
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	0.0284 mA
size code	0603
surface mount	YES
Delta tangent	0.008
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
width	0.85 mm
Base Number Matches	1

Preview

Download Datasheet

View All

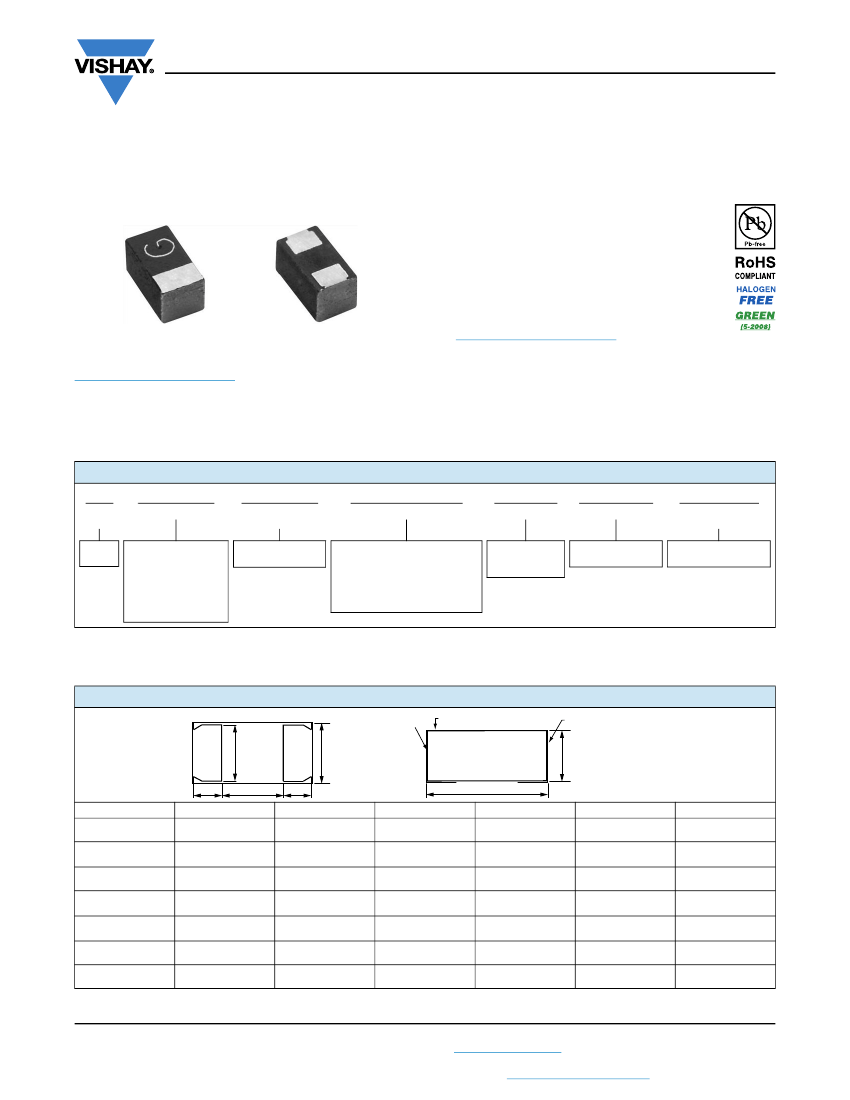

298D, 298W

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors

298D M

ICROTAN®

, 298W Extended Range M

ICROTAN®

Leadframeless Molded

FEATURES

• Small sizes include 0603 and 0402 footprint

• Lead (Pb)-free L-shaped face-down terminations

• 8 mm tape and reel packaging available per

EIA-481 and reeling per IEC 60286-3

7" [178 mm] standard

• Mounting: surface mount

• Material categorization:

for definitions of compliance please see

www.vishay.com/doc?99912

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40169

Operating Temperature:

298D: -55 °C to +125 °C

(above 85 °C, voltage derating is required)

298W: -55 °C to +125 °C

(above 40 °C, voltage derating is required)

Capacitance Range:

298D: 0.33 μF to 220 μF

298W: 2.2 μF to 220 μF

Capacitance Tolerance:

± 20 % standard, ± 10 % available

Voltage Range:

2.5 V

to 50 V

ORDERING INFORMATION

298D

TYPE

298D

298W

335

CAPACITANCE

This is expressed

in picofarads. The

first two digits are

the significant

figures. The third

is the number of

zeros to follow.

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

010

DC VOLTAGE RATING

This is expressed in volts.

To complete the

three-digit block, zeros

precede the voltage rating.

A decimal point is indicated

by an “R” (6R3 = 6.3 V).

CASE CODE

See Ratings

and Case

Codes table

TERMINATION

2 = 100 % tin

4 = gold plated

REEL SIZE AND

PACKAGING

T = tape and reel

7" [178 mm] reel

Note

• Preferred tolerance and reel sizes are in bold.

We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.

Voltage substitutions will be marked with the higher voltage rating

DIMENSIONS

in inches [millimeters]

Anode Termination

Anode Polarity Bar

Cathode Termination

CASE CODE

0.039 + 0.008

[1.0 + 0.2]

0.063 ± 0.008

[1.60 ± 0.2]

0.079 ± 0.008

[2.00 ± 0.20]

0.081 ± 0.006

[2.06 ± 0.15]

0.094 ± 0.004

[2.4 ± 0.1]

0.126 ± 0.008

[3.2 ± 0.2]

0.126 ± 0.008

[3.2 ± 0.2]

0.020 + 0.008

[0.5 + 0.2]

0.033 ± 0.008

[0.85 ± 0.2]

0.050 ± 0.008

[1.25 ± 0.20]

0.053 ± 0.006

[1.35 ± 0.15]

0.057 ± 0.004

[1.45 ± 0.1]

0.063 ± 0.008

[1.6 ± 0.2]

0.063 ± 0.008

[1.6 ± 0.2]

H (MAX.)

0.024

[0.6]

0.035

[0.9]

0.035

[0.9]

0.062

[1.57]

0.047

[1.2]

0.039

[1.0]

0.071

[1.8]

0.01 ± 0.004

[0.25 ± 0.1]

0.020 ± 0.004

[0.50 ± 0.1]

0.020 ± 0.004

[0.50 ± 0.10]

0.020 ± 0.004

[0.51 ± 0.1]

0.020 ± 0.004

[0.50 ± 0.1]

0.031 ± 0.004

[0.80 ± 0.1]

0.031 ± 0.004

[0.80 ± 0.1]

P2 (REF.)

0.02

[0.5]

0.024

[0.60]

0.040

[1.00]

0.043

[1.1]

0.057

[1.40]

0.063

[1.60]

0.063

[1.60]

0.015 ± 0.004

[0.38 ± 0.1]

0.024 ± 0.004

[0.60 ± 0.1]

0.035 ± 0.004]

[0.90 ± 0.10]

0.035 ± 0.004

[0.90 ± 0.1]

0.035 ± 0.004

[0.90 ± 0.1]

0.047 ± 0.004

[1.20 ± 0.1]

0.047 ± 0.004

[1.20 ± 0.1]

Revision: 18-Jul-17

Document Number: 40065

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
