Datasheet> All Categories > The connector> The connector> 8004-3091

8004-3091: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8004-3091 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

8004-3091 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.492 inch
subject depth	0.35 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8004
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

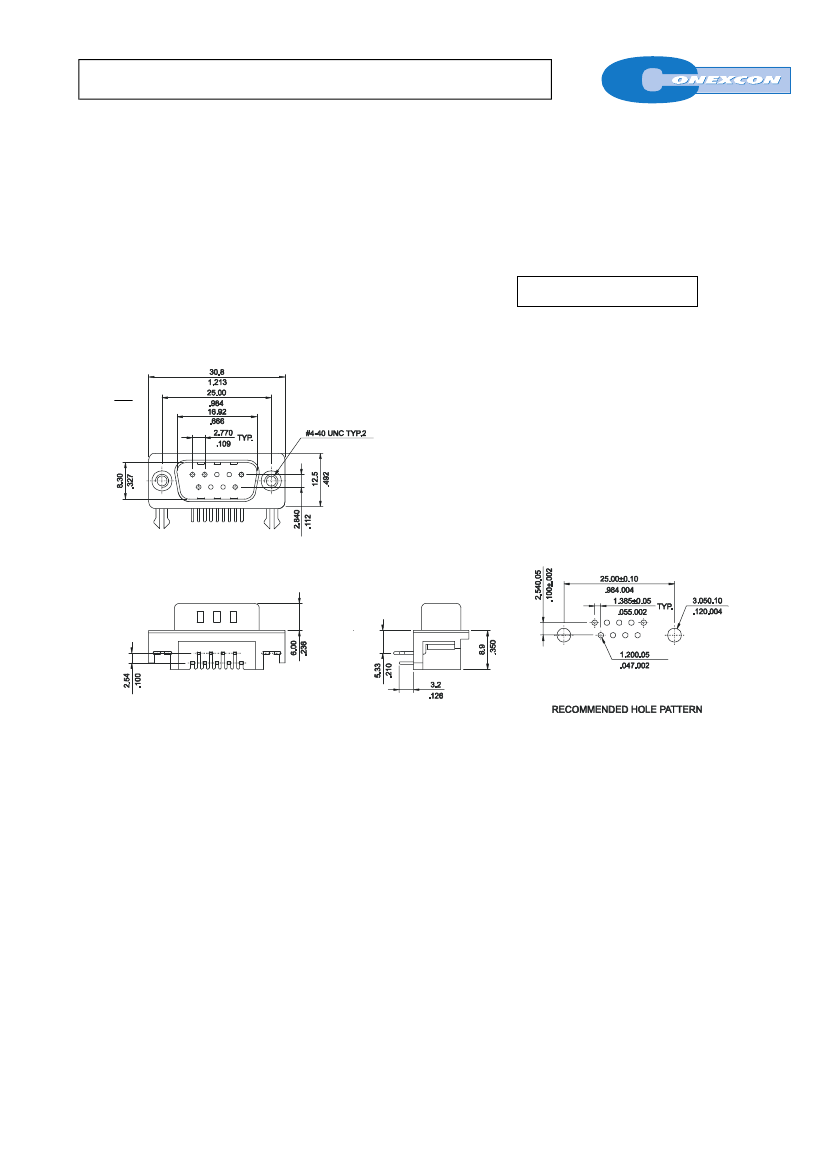

5.33mm RIGHT ANGLE D-SUB PLUG

SERIES.

8004 SERIES

For PCB Solder.

Features

Low Profile.

Shell: Steel, tin plated as standard

Standard connector C = 1 (Riveted ground hooks with

#4-40 UNC open

For other options consult the Sales Office

Ordering

Available in 9 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass

Different plating options are available

Dimensional Information

8004 -

T09C

T = Contact Plating

Unit:

mm.

Inch.

T =

Gold flash over 50µ” nickel

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

C = Hardware Options

C =

Riveted ground hooks pre-loaded #4.40

UNC Hexagonal screws

C =

Riveted ground hooks with #4.40 UNC open

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
