43F1K1E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 43F1K1E

43F1K1E: DescriptionWirewound Resistors - Through Hole 3W 1K ohm 1%; CategoryPassive components; File Size332KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com

Download Datasheet Parametric View All

43F1K1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	43F1K1E	-	-	View	Buy Now

43F1K1E Overview

Wirewound Resistors - Through Hole 3W 1K ohm 1%

43F1K1E Parametric

Parameter Name	Attribute value
Product Category	Wirewound Resistors - Through Hole
Manufacturer	Ohmite
RoHS	Details
Resistance	1.1 kOhms
Power Rating	3 W
Tolerance	1 %
Temperature Coefficient	20 PPM / C
Voltage Rating	200 V
Operating Temperature Range	+ 25 C to + 275 C
Diameter	5.5 mm
Length	15.1 mm
Termination Style	Axial
Packaging	Bulk
Maximum Operating Temperature	+ 275 C
Minimum Operating Temperature	+ 25 C
Product	Power Resistors Wirewound Silicone Coated
Factory Pack Quantity	25
Type	Wirewound Resistor

Preview

Download Datasheet

View All

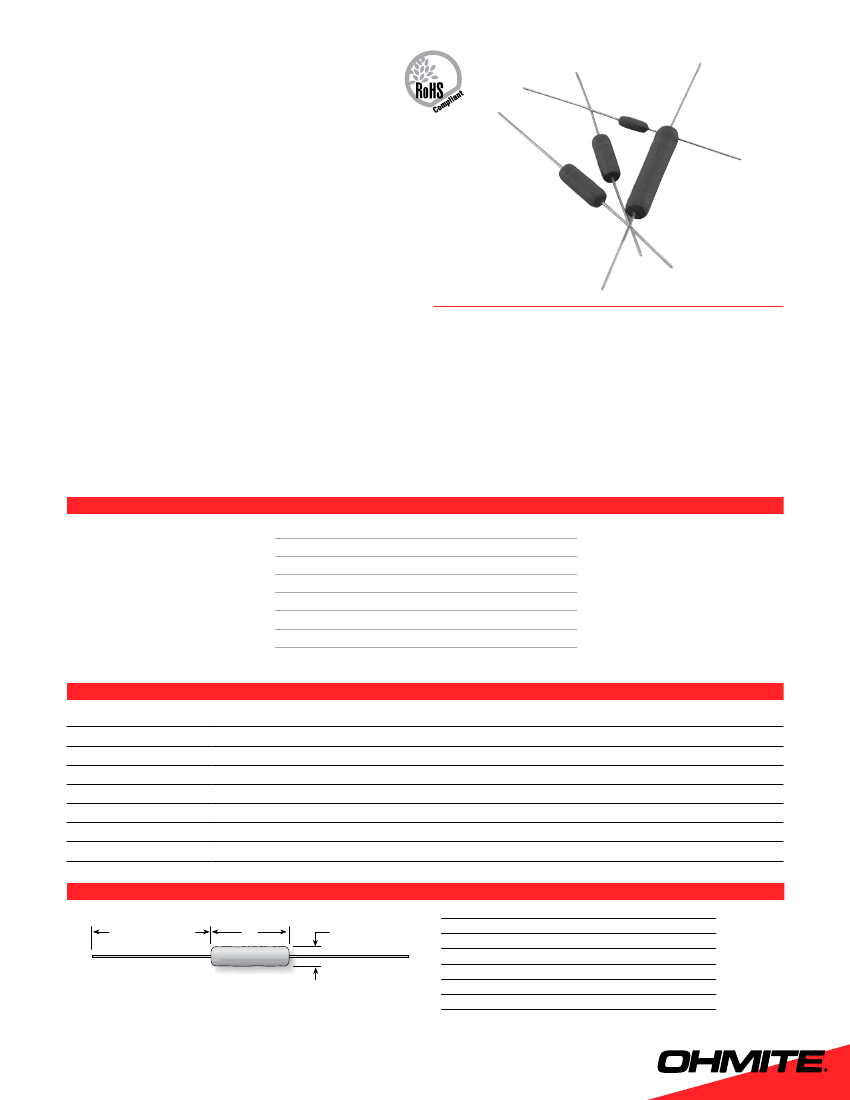

Ohmicone Silicone-Ceramic Conformal

Axial Terminal Wirewound

1% and 5% Tolerance Standard

40 Series

Ohmite 40 Series resistors are the most economical

conformal silicone-ceramic coated resistors offered.

These all-welded units are characterized by their low

temperature coefficients and resistance to thermal

shock, making them ideal for a wide range of electri-

cal and electronic applications.

Units with 1% and 5% tolerances are identical in

construction and electrical specifications. Durable

but economical 40 Series resistors exceed industry

requirements for quality.

F e at u r e S

• Economical

• Applications include commercial, industrial and

communications equipment

• Stability under high temperature conditions

• All-welded construction

• RoHS compliant; add “E” suffix to part number to

specify.

S e r i e S S P e C i F i C at i O N S

Series

Non-Inductive versions available. Insert “N” before tolerance code.

Example: 42NJ27R

Wattage

1.0

2.0

3.0

5.0

7.0

10.0

Ohms

0.10-6K

0.10-8K

0.10-20K

0.10-70K

0.10-80K

0.10-150K

Voltage

150

100

200

460

670

1000

CharaCteriStiCS

Coating

Conformal silicone-ceramic.

Core

Ceramic.

Terminals

Solder-coated copper clad axial. RoHS solder composition is 96% Sn, 3.5% Ag, 0.5% Cu

Derating

Linearly from 100% @ +25°C to 0% @ +275°C.

Tolerance

±5% (J type), ±1% (F type) (other tolerances available).

Power rating

Based on 25°C free air rating

Overload

Under 5 watts: 5 times rated wattage for 5 seconds. 5 watts and over: 10 times rated wattage for 5 seconds.

Temperature coefficient

Under 1Ω: ±90 ppm/°C; 1Ω to 9.99Ω: ±50 ppm/°C; 10Ω and over: ±20 ppm/°C

DimeNSiONS

(in./mm max.)

Series

Wattage

1.0

2.0

3.0

5.0

7.0

10.0

Length

0.437 /

11.1

0.406 /

10.3

0.593 /

15.1

0.937 /

23.8

1.280 /

32.5

1.900 /

48.3

Diam.

0.125 /

3.2

0.219 /

5.6

0.219 /

5.6

0.343 /

8.7

0.343 /

8.7

0.406 /

10.3

Lead ga.

1.5 in. /

38.1mm

(continued)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
