2436 MHz BAW Filter
Applications
WiFi bandpass filter that enables the coexistence of 4G
(WiMAX/LTE/TD-LTE) & WiFi signals
Handsets
Portable Hotspots
Mobile Routers
Smart Meters
High-power WLAN Access Points
Applicable reject bands: 2.6 GHz WiMAX/LTE,
2.3GHz WiMAX/LTE, LTE Bands 7 & 38, TD-LTE
Band 40, WCS, WiBro, Indian 2.3GHz 4G band
1.4 x 1.2 x 0.46 mm
Product Features
Low Loss in WLAN band w/ extended upper corner for
inclusion of Bluetooth
High Rejection in 2300-2380 MHz bands:
WiMAX/WCS/WiBro/Band 40/Indian 4G band
Industry-leading small size: 1.4 x 1.2 x 0.46 mm
+28 dBm (CW) power handling
Performance over -30 to +85 ºC
Single-ended operation
Ceramic chip-scale package (CSP)
Hermetically Sealed
RoHS compliant, Pb-free

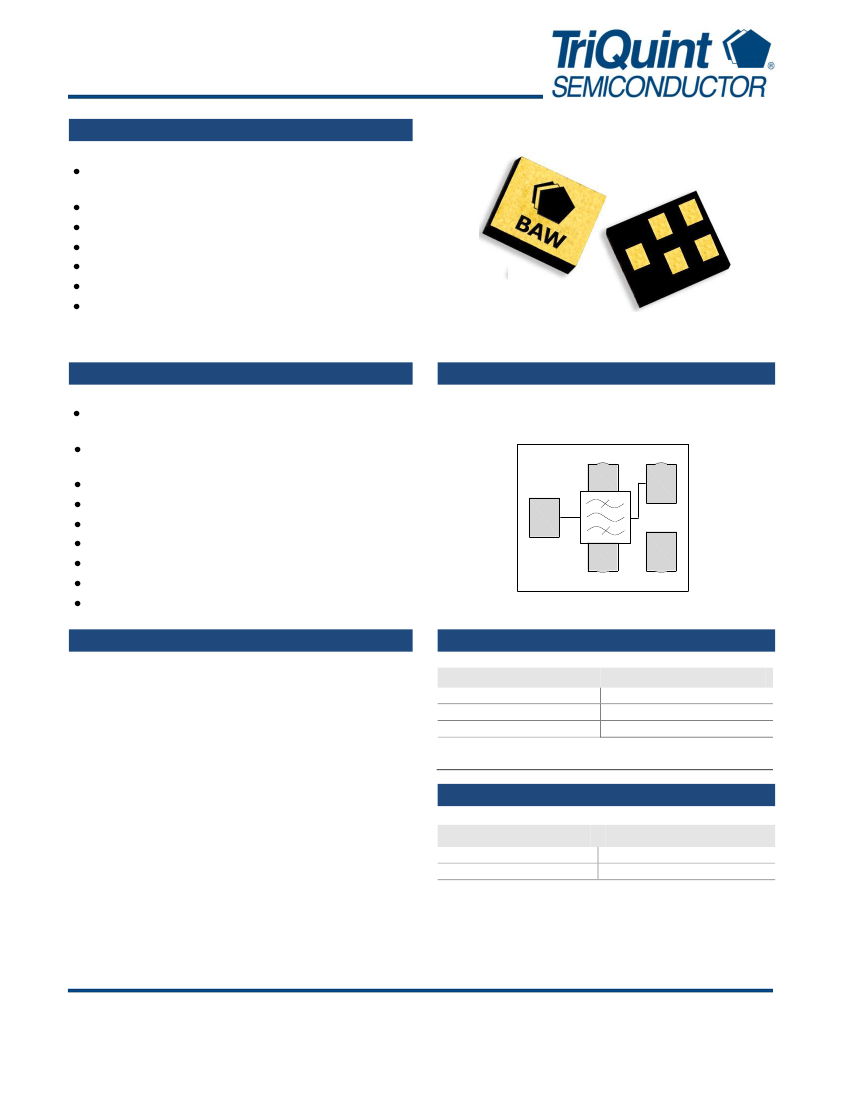

Functional Block Diagram
Top view
Gnd
Output
5
Input
1
2
4
3
Gnd
Gnd
General Description
885017 is a high-performance, high-power Bulk Acoustic
Wave (BAW) bandpass filter with extremely steep skirts,
simultaneously exhibiting low loss in the WiFi band & high
near-in rejection in the 2.3GHz & 2.6GHz
WiMAX/LTE/TD-LTE bands.
885017 is specifically designed to enable coexistence of
WiFi and WiMAX/LTE signals within the same device or in
close proximity to one another.
885017 uses advanced and inexpensive packaging
techniques to achieve an industry-leading 1.4 x 1.2 x 0.46
mm package. The filter exhibits excellent power handling
capabilities.
885017 is referenced on multiple designs with the leading
WiMAX chipset makers
Pin Configuration
Pin # SE
1
4
2,3,5
Description
Input
Output
Case Ground
Ordering Information
Part No.
885017
885017-EVB
Description
packaged part
evaluation board
Standard T/R size = 10,000 units/reel.
Data Sheet Rev A 11/28/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
885017
2436 MHz BAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-30 to + 85 ºC (unless otherwise noted)
Parameter
Center Frequency
Maximum Insertion Loss
Conditions
2400 - 2472 MHz
@ 25 ºC
2400 - 2472 MHz
-30 to +85 ºC
2401 - 2480 MHz
-30 to +55 ºC
2401 - 2480 MHz
+55 to +85 ºC
2480 - 2482 MHz
(6) +25 ºC
800 - 2000 MHz
2000 - 2300 MHz
2300 - 2360 MHz
2360 - 2370 MHz
(6)
2370 - 2380 MHz
(6)
2496 - 2502 MHz
(7)
2500 - 2502 MHz
2500 - 2510 MHz
(7)
2502 - 2690 MHz
2690 - 5000 MHz
7200 - 7416 MHz
2400 - 2472 MHz (within any
18MHz Channel)
2400 - 2472MHz
Min
-
-
-
-
-
-
22
24
25
15
5
-
-
-
25
25
-
-
6.0
-
-
Typical
(3)
2436
1.8
-
2.5
2.5
3.0
25
26
36
20
8
20
30
45
30
28
14
1.3
10
50
50
Max
-
2.5
3.5
3.5
5.0
5.0
-
-
-
-
-
-
-
-
-
-
-
2.0
-
-
-
Units
MHz
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB ave
dB
dB ave
dB
dB
dB
dB p-p
dB
Absolute Attenuation
(4)
Amplitude Ripple
Input/output Return Loss
Source Impedance (single-ended)
(5)
Load Impedance (single-ended)
(5)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Typical values are based on average measurements at room temperature
4. Relative to zero dB
5. This is the optimum impedance in order to achieve the performance shown
6. These bands fall on the filter transitions, thus the typical attenuation/loss values given are prone to high variability
7. Average attenuation level over the band
Absolute Maximum Ratings
Parameter
(8)
Operating Temperature
Storage Temperature
Input Power
(9)
(In passband, CW signal)
8.
9.
Rating
-30 to +85
o
C
-40 to +85
o
C
+28 dBm
Operation of this device outside the parameter ranges given above may cause permanent damage.
Represents the maximum allowable power level without electrical degradation equivalent to duration of 10,000 hours at 55 C
Data Sheet Rev A 11/28/12
© 2012 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
885017
2436 MHz BAW Filter

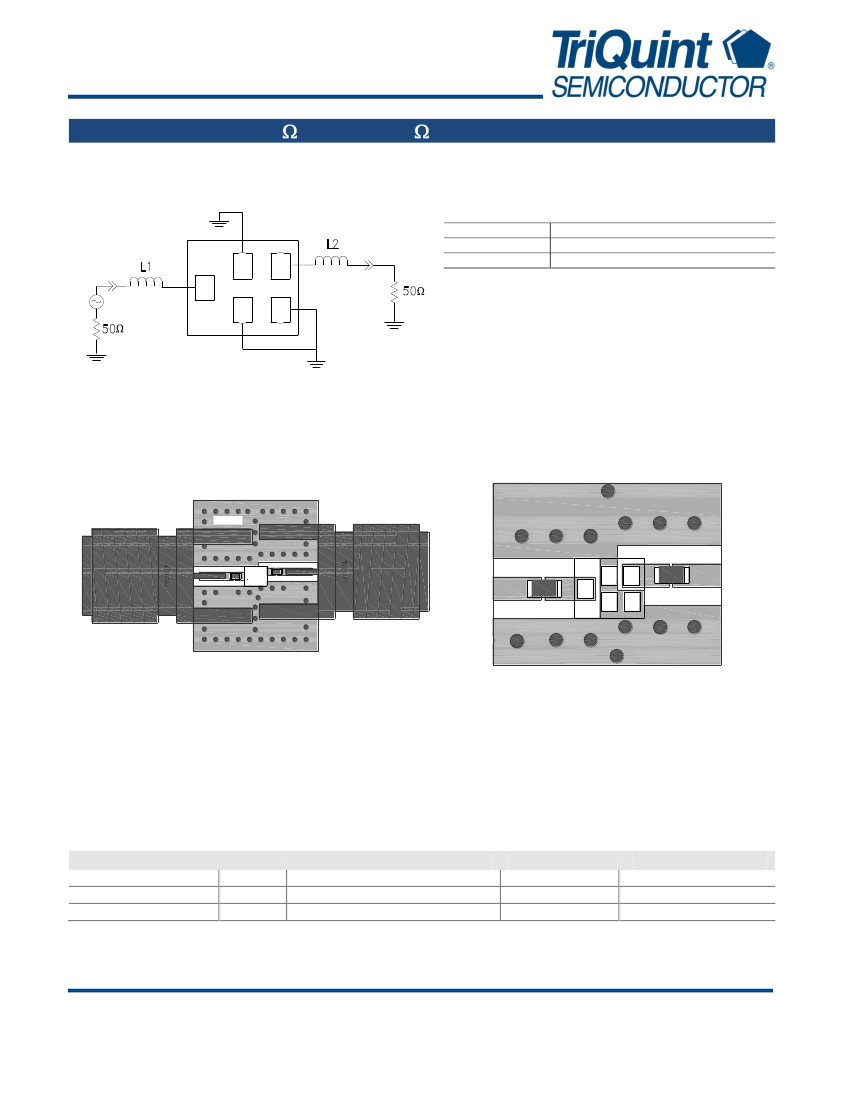

Reference Design – 50
Schematic (top view)
SE Input, 50
SE Output
Pin Functions
Pin #
5
1
2
3
4
Description
Input
Output
Ground
1
4
2,3,5
1. Notes:
Actual matching values may vary due to PCB layout and parasitic
PC Board
PCB routing detail
960568
L1
22 M
WWY
L2
L1
1
5 4
2 3
L2
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
Grey indicates metalized area
2.
This footprint represents a recommendation only
3.
For solder pad recommendation see mechanical information
Bill of Material
Reference Desg.
L1
L2
PCB
Value
1.5nH
1.5nH
N/A
Description
Chip Inductor, 0402, +/- 0.2nH
Chip Inductor, 0402, +/- 0.2nH
3-layer
Manufacturer
MuRata
MuRata
multiple
Part Number
LQG15HN1N5S02
LQG15HN1N5S02
960568
Data Sheet Rev A 11/28/12
© 2012 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
885017
2436 MHz BAW Filter

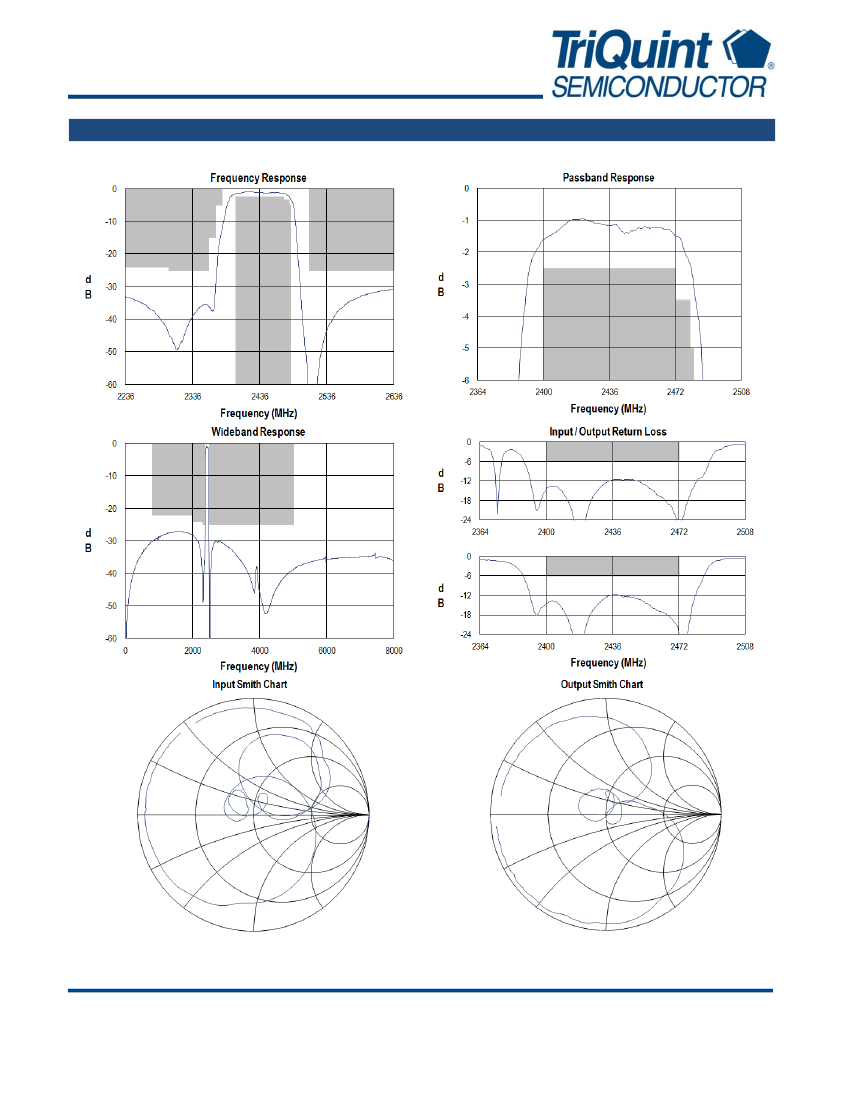

Typical Performance
(at room temperature)
Data Sheet Rev A 11/28/12
© 2012 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
885017
2436 MHz BAW Filter

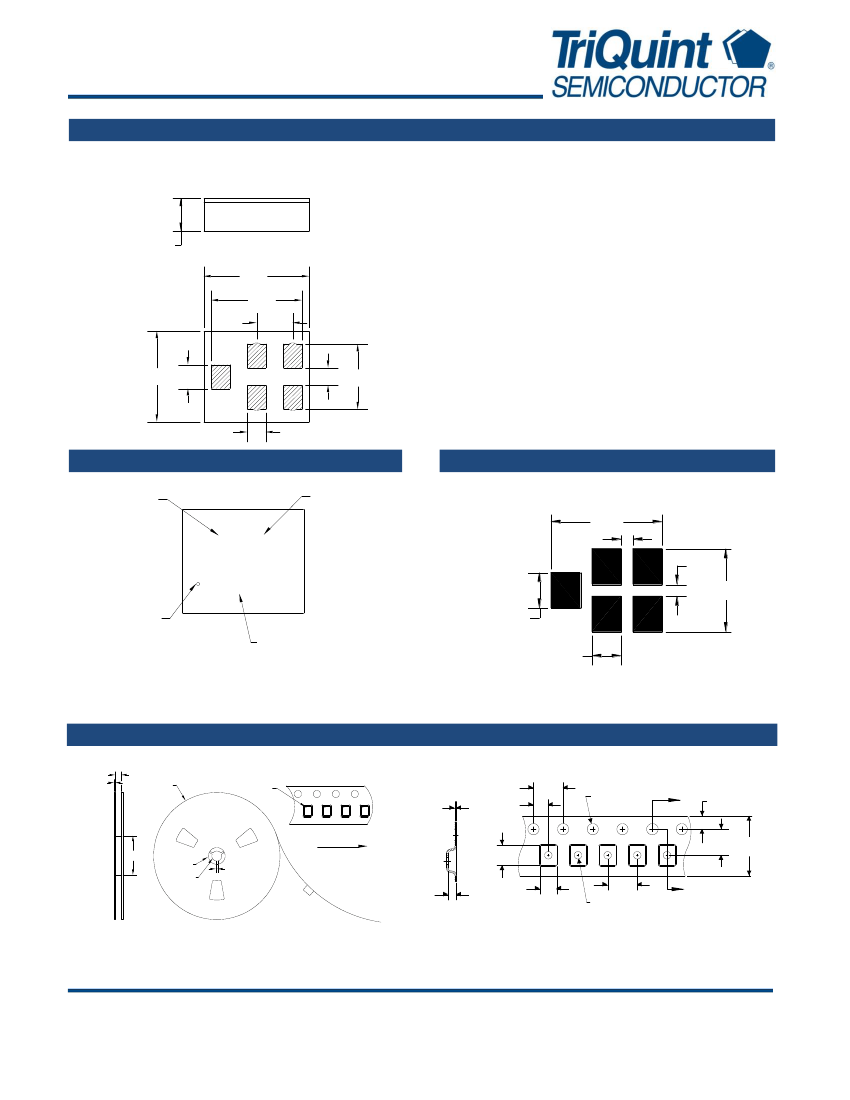

Mechanical Information
Package Information, Dimensions and Marking
Package Style: CSP-5BT
Dimensions: 1.4 x 1.2 x 0.46 mm
0.46 NOM.
0.50 MAX.
1.40
1.25
0.50
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
0.25
0.90
1.20 0.325
0.25
Marking
Marking
code
MFG site
PCB Footprint
1.35
22 M
WWY
ID dot
Date code
0.35
0.425
0.15
0.15
1.00
The date code consists of: WW = 2 digit week,
Y = last digit of year, M = manufacturing site code
Tape and Reel Information
Standard T/R size = 10,000 units/reel. All dimensions are in millimeters
2.7
8.8
Ø330
ID dot
Section A-A
0.3
2.0
4.0
Ø1.5
A
1.75
Ø102 Ø20.2
Ø13.0
Direction of travel
2.0
1.73
0.65
1.47
4.0
Ø1.0
A
3.5 8.0
Data Sheet Rev A 11/28/12
© 2012 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
