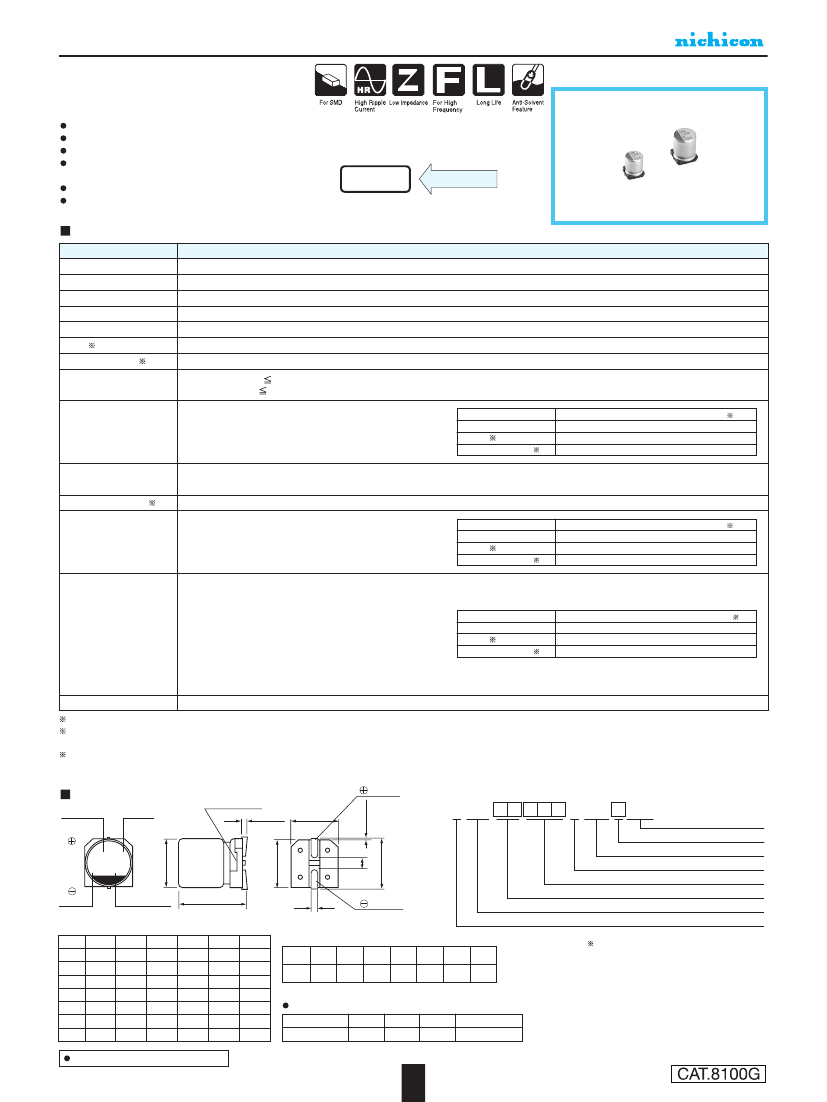

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
PCR
Specifications
Item
Category Temperature Range
Rated Voltage Range
Chip Type, High Reliability
High reliability, High voltage (to 80V).
Low ESR, High ripple current.
Long life of 4000 hours at 125°C.
SMD type : Lead free reflow soldering condition at
260°C peak complete correspondence.
Compliant to the RoHS directive (2011/65/EU).
ESR after Endurance at -40°C.
PCR
High Capacitance
Long Life Assurance
PCX
Performance Characteristics
– 55 to +125°C
16 to 80V
22 to 1000µF
± 20% at 120Hz, 20°C
Less than or equal to the specified value at 100kHz, 20°C
Rated Capacitance Range
Capacitance Tolerance
ESR (
1)
2)
Tangent of loss angle (tan
δ)
Less than or equal to the specified value at 120Hz, 20°C
Leakage Current (
After 2 minutes' application of rated voltage, leakage current is not more than 0.03CV or 3(µA), whichever is greater.
Z+125°C / Z+20°C
Z– 55°C / Z+20°C
1.25
1.25
(100kHz)
Temperature Characteristics
(Max.Impedance Ratio)
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 4000 hours at 125°C.
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Within ± 20% of initial capacitance value ( 3)
150% or less of the initial specified value
200% or less of the initial specified value
Less than or equal to the initial specified value
Shelf Life
ESR after Endurance (
1)
After storing the capacitors under no load at 125°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Less than or equal to the specified value at 100kHz, -40°C
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 85°C, 85% RH.
After soldering the capacitor under the soldering conditions
prescribed here, the capacitor shall meet the specifications listed at
right.
Pre-heating shall be done at 150 to 200°C and for 60 to 180 sec.
The duration for over +230°C temperature at capacitor surface shall
not exceed 60 seconds.
In case peak temperature is 260°C or less, reflow soldering shall be
two times maximum.
Measurement for solder temperature profile shall be made at the
capacitor top and the terminal.
Navy blue print on the case top
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Damp Heat
(Steady State)
Within ± 20% of initial capacitance value ( 3)
150% or less of the initial specified value
200% or less of the initial specified value
Less than or equal to the initial specified value
Resistance to
Soldering Heat
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Within ± 10% of the initial capacitance value ( 3)
130% or less than the initial specified value
130% or less than the initial specified value
Less than or equal to the initial specified value
Marking
1 ESR should be measured at both of the terminal ends closest where the terminals protrude through the plastic platform.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120
minutes at 105°C.
3 Initial value : The value before test of examination of resistance to soldering.
0.5 MAX.
Dimensions
Capacitance
Positive
Type numbering system (Example : 35V 150µF)
1
2
3
4
5
6
7
8
9 10 11 12 13 14
Taping code
Size code
Configuration
Plastic platform
0.3 MAX.
C±0.2
Lot No.
PCR 1 V 1 5 1 MC L 1 GS
φD±0.5
B ±0.2
A±0.2
CR
150
V
331
Capacitance tolerance (±20%)
Rated capacitance (150µF)
Rated voltage (35V)
Series
Voltage
(V:35V)
L
+0.1
-0.4
E
H
Negative
Series name
Type
(mm)
Size
φD
L
A
B
C
E
H
φ8
× 7L
φ8
× 10L
φ8
× 12L
φ10
× 8L
φ10
×10L
φ10×12.7L
8.0
8.0
8.0
10.0
10.0
10.0
6.9
9.0
8.3
8.3
3.2
9.9
9.0
8.3
8.3
3.2
11.9
9.0
8.3
8.3
3.2
7.9
11.0
10.3
10.3
4.6
9.9
11.0
10.3
10.3
4.6
12.6
11.0
10.3
10.3
4.6
Voltage
V
Code
16
C
20
D
25
E
35
V
50
H
63
J
80
K
φ8 ×
10L,
φ10 ×
10L :
The vibration structure-resistant product
is also available upon request, please ask for details.
Frequency coefficient of rated ripple current
0
Frequency0/ 120Hz
Coefficient
0.05
1kHz
0.30
10kHz 100kHz or more
0.70
1.00
0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1
Dimension table in next page.
