EKMS451VSN271MR35S

Description
Aluminum Electrolytic Capacitors - Snap In 450Volts 270uF 20% Tol.
CategoryPassive components    capacitor
File Size317KB,5 Pages
ManufacturerUnited Chemi-Con
Websitehttp://www.chemi-con.com/
Environmental Compliance
Download Datasheet Parametric View All

EKMS451VSN271MR35S Online Shopping

Suppliers Part Number Price MOQ In stock
EKMS451VSN271MR35S - - View Buy Now

EKMS451VSN271MR35S Overview

Aluminum Electrolytic Capacitors - Snap In 450Volts 270uF 20% Tol.

EKMS451VSN271MR35S Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerUnited Chemi-Con
package instruction,
Reach Compliance Codecompliant
capacitance270 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter30 mm
dielectric materialsALUMINUM
length35 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
Package formSnap-in
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)450 V
ripple current1340 mA
seriesKMS
Terminal pitch10 mm

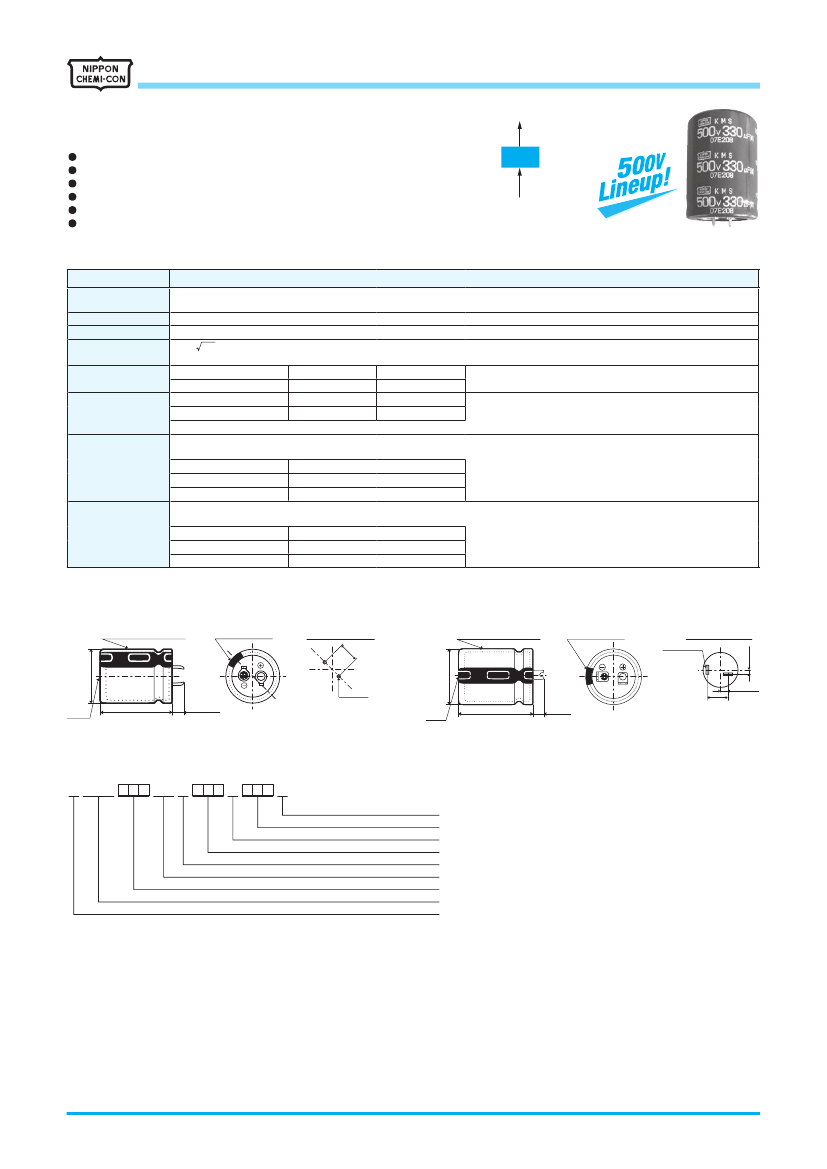

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Downsized snap-ins, 105℃
KMS
LXS P268
Longer life
Series
・For
solar power generation
・Endurance
with ripple current : 105℃ 3,000 hours
・Rated
voltage range : 160 to 500V
・Capacitance
range : 47 to 3,300µF
・Non
solvent resistant type
・RoHS
Compliant
KMS
Downsized
Higher ripple
KMM P250
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-25 to +105℃
160 to 500V
dc
±20%
(M)
I≦3 CV
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
Rated voltage (V
dc
)
160 to 400V
420 to 500V
tanδ (Max.)
0.15
0.20
Rated voltage (V
dc
)
160 to 400V
420 to 500V
Z(-25℃)/Z(+20℃)
4
8
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Characteristics
Shelf Life
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 3,000 hours at 105℃.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±15%
of the initial value
D.F. (tanδ)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
◆DIMENSIONS
[mm]
Terminal
Code : VS (
φ22
to
φ35)
: Standard
Negative mark
PC board pin-out
10
Terminal
Code : LI (
φ35)
Negative mark
4.2±0.5
PC board pin-out
2-1.2×6
Sleeve (PET : Brown)
φD+1max.
Sleeve (PET : Brown)
φD+1max.
2-φ2
L±2.5
4.0±0.5
5±0.5
L±2.5
4.5±1
14.2±1
Vent
Vent
The standard design has no plastic disc.
◆PART
NUMBERING SYSTEM
E KMS
A A A
V S N
A A A
M
A A A
S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 100µF:101, 1,000µF:102)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 160V:161, 400V:401)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (snap-in type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
247
CAT. No. E1001O
