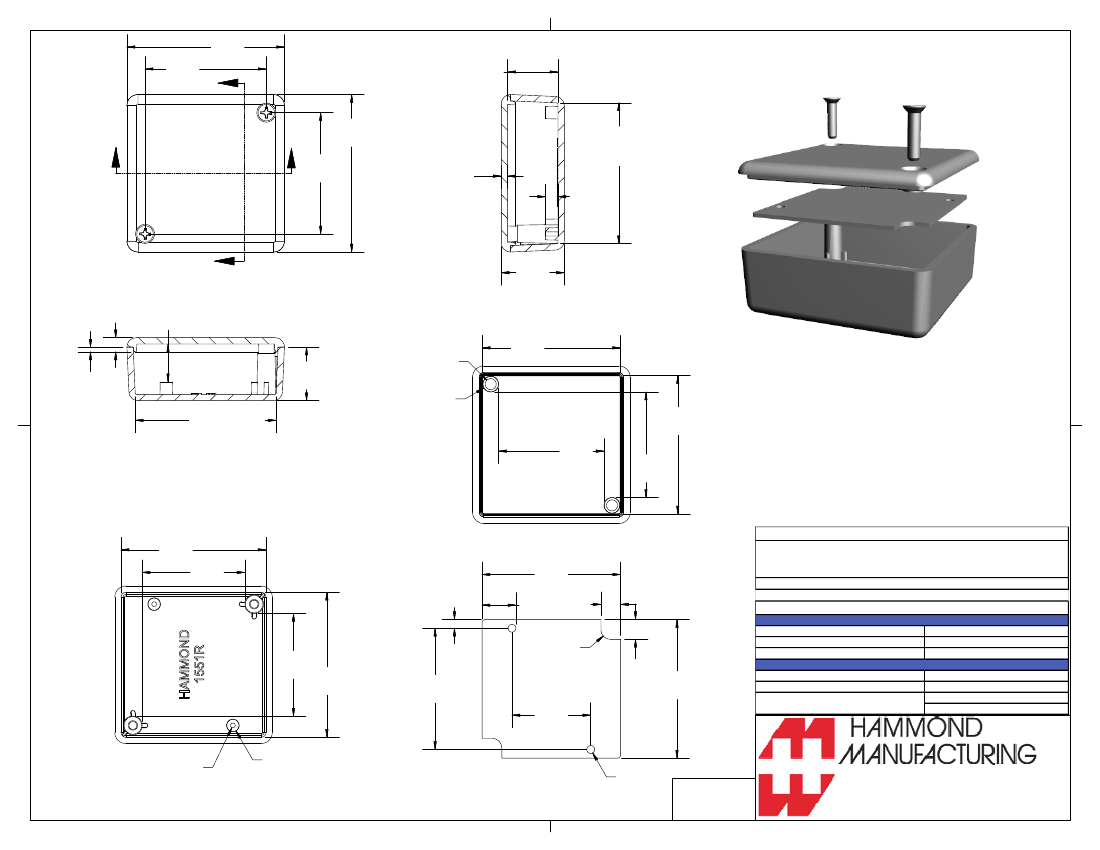

38.50
[1.52]
50.00
[1.97]
B
50.00
[1.97]
38.50
[1.52]
15.98
[.63]
(INSIDE HEIGHT)
44.72
[1.76]
2.00
[.08]
(INSIDE WIDTH)
A
A
4.00
[.16]
B
TOP VIEW
4.50
[.18]
12.00
[.47]
3.50
20.00
[.79]
END VIEW
SECTION B-B
43.88
[1.73]
1.50
[.06]
44.72
[1.76]
(INSIDE LENGTH)
17.00
[.67]
[.14]
5.00
[.20]
33.50
[1.32]
43.88
[1.73]
33.50
[1.32]
SIDE VIEW
SECTION A-A
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
46.00
[1.81]
INSIDE LID
32.64
[1.29]
2.75
[.11]
44.00
[1.73]
10.75
[.42]
6.25
[.25]
NOTE
Purchased assembly includes box, lid, 2 cover screws.
Enclosure molded from general purpose ABS Plastic.
Other materials / colours available consult factory.
Recommended Torque : (35-43) Ozf.in / (25-30) cN.m
PART NUMBERS
1551R Enclosure
1551RBK
Black Enclosure - Ral 9011 - UL94 - HB
1551RGY
Gray Enclosure - RAL 7035 - UL94 - HB
1551RTBU
Tranlucent Blue - UL94 - HB
ACCESSORIES
1591TS100BK (Pkg 100)
Black Cover Screws #4 X 1/2" Self-tapping
1591TS100 (Pkg 100)
Plated Cover Screws #4 X 1/2" Self-tapping
1551ATS50 (Pkg 50)
P.C. Board Screws
[#2 x 3/16" self-tapping (4.8mm)]
1551ATS100 (Pkg 100)
32.64
[1.29] 46.00
[1.81]
R3.00
[.12]
38.50
[1.52]
25.00
[.98]
6.25
[.25]
44.00
[1.73]
ACCEPTS #2
SELF-TAPPING
SCREW
4.00
[.16]
2.50
®
Dimensions:
mm
[inches]
INSIDE BOX
MAXIMUM
P.C. BOARD SIZE
[.10]
1551R
