BY229-400-E3/45 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BY229-400-E3/45

BY229-400-E3/45: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 400V V(RRM), Silicon, TO-220AC, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size130KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

BY229-400-E3/45 Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 400V V(RRM), Silicon, TO-220AC, ROHS COMPLIANT, PLASTIC PACKAGE-2

BY229-400-E3/45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-220AC
package instruction	R-PSFM-T2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW LEAKAGE CURRENT
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.85 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.145 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

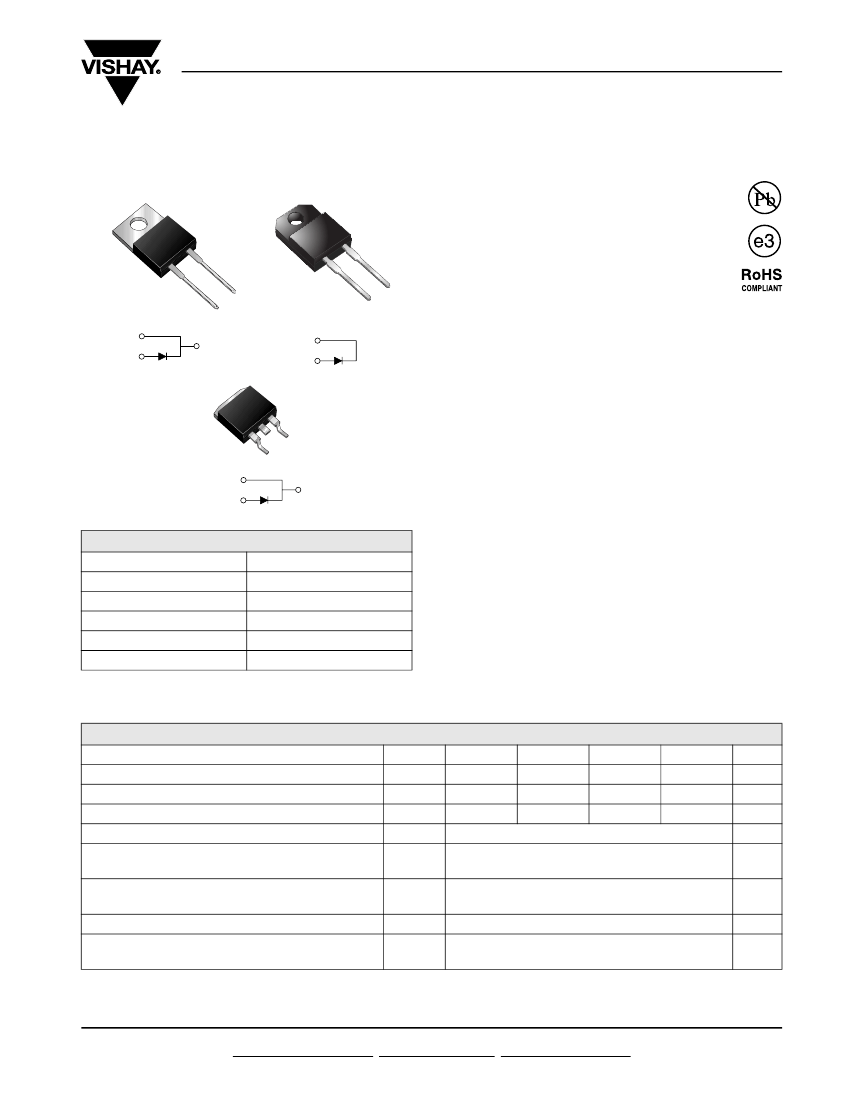

BY229(X,B)-200 thru BY229(X,B)-800

Vishay General Semiconductor

Fast Switching Plastic Rectifier

TO-220AC

ITO-220AC

FEATURES

• Glass passivated chip junction

• Superfast recovery time for high efficiency

• Low leakage current

• High forward surge capability

BY229 Series

PIN 1

PIN 2

• Meets MSL level 1, per J-STD-020, LF

maximum peak of 245 °C (for TO-263AB package)

• Solder dip 260 °C, 40 s (for TO-220AC and

ITO-220AC package)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

BY229x Series

PIN 1

CASE

PIN 2

TO-263AB

BY229B Series

PIN 1

PIN 2

HEATSINK

For use in fast switching rectification of power

supply, inverters, converters and freewheeling diodes

application.

MECHANICAL DATA

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

8.0 A

200 V to 800 V

100 A

145 ns

1.85 V

150 °C

Case:

TO-220AC, ITO-220AC, TO-263AB

Epoxy meets UL 94V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for commercial grade, meets JESD 201 class

1A whiskter test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum recurrent peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

= 100 °C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Maximum slope of reverse recovery current

= 2.0 A, V

= 30 V, dI/dt = 20 µs

Operating junction and storage temperature range

Isolation voltage (ITO-220AC only)

from terminal to heatsink t = 1 min

SYMBOL

RRM

RMS

F(AV)

FSM

dI/dt

, T

STG

BY229-200

200

140

200

BY229-400

400

280

400

8.0

100

- 40 to + 150

1500

BY229-600

600

420

600

BY229-800

800

560

800

UNIT

A/μs

°C

Document Number: 88540

Revision: 06-Nov-07

For technical questions within your region, please contact one of the following:

PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com

www.vishay.com
