FCN-723B014/2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FCN-723B014/2

FCN-723B014/2: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Socket; CategoryThe connector The connector; File Size313KB，5 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FCN-723B014/2 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Socket

FCN-723B014/2 Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD TIN
Contact completed and terminated	PALLADIUM
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	720
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	14
UL Flammability Code	94V-1
Base Number Matches	1

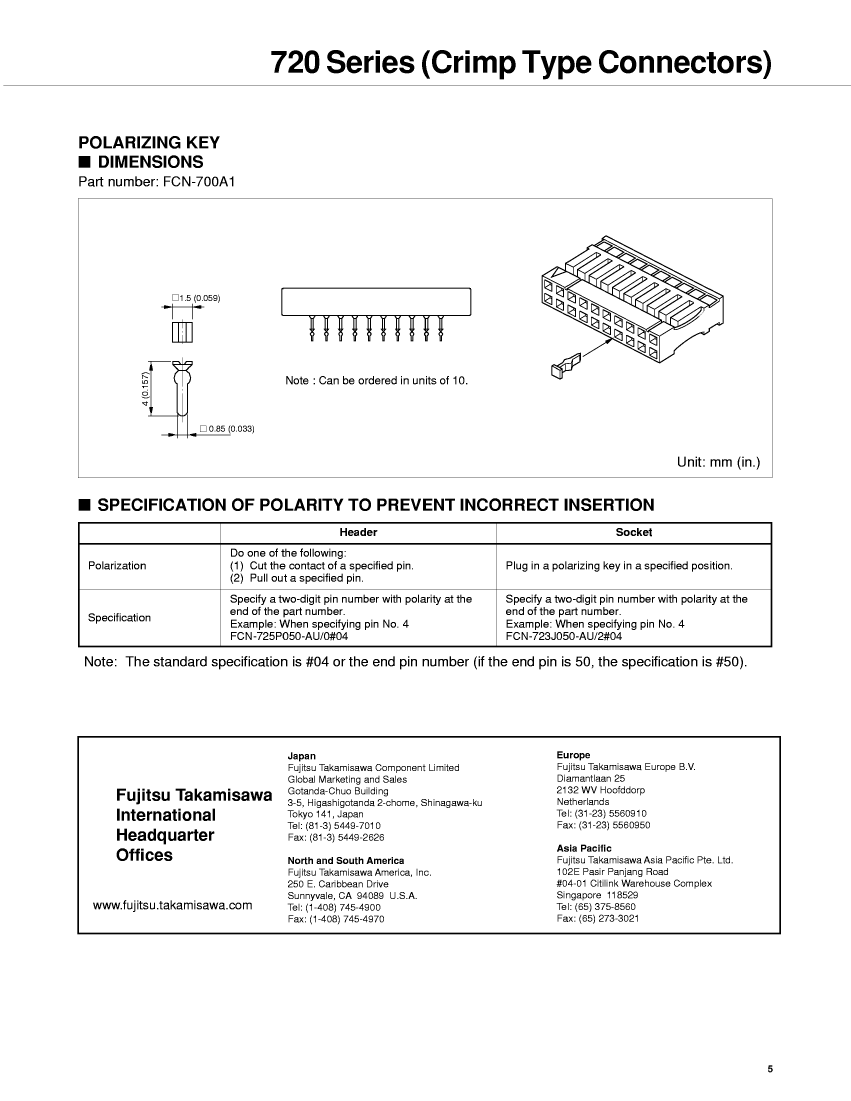

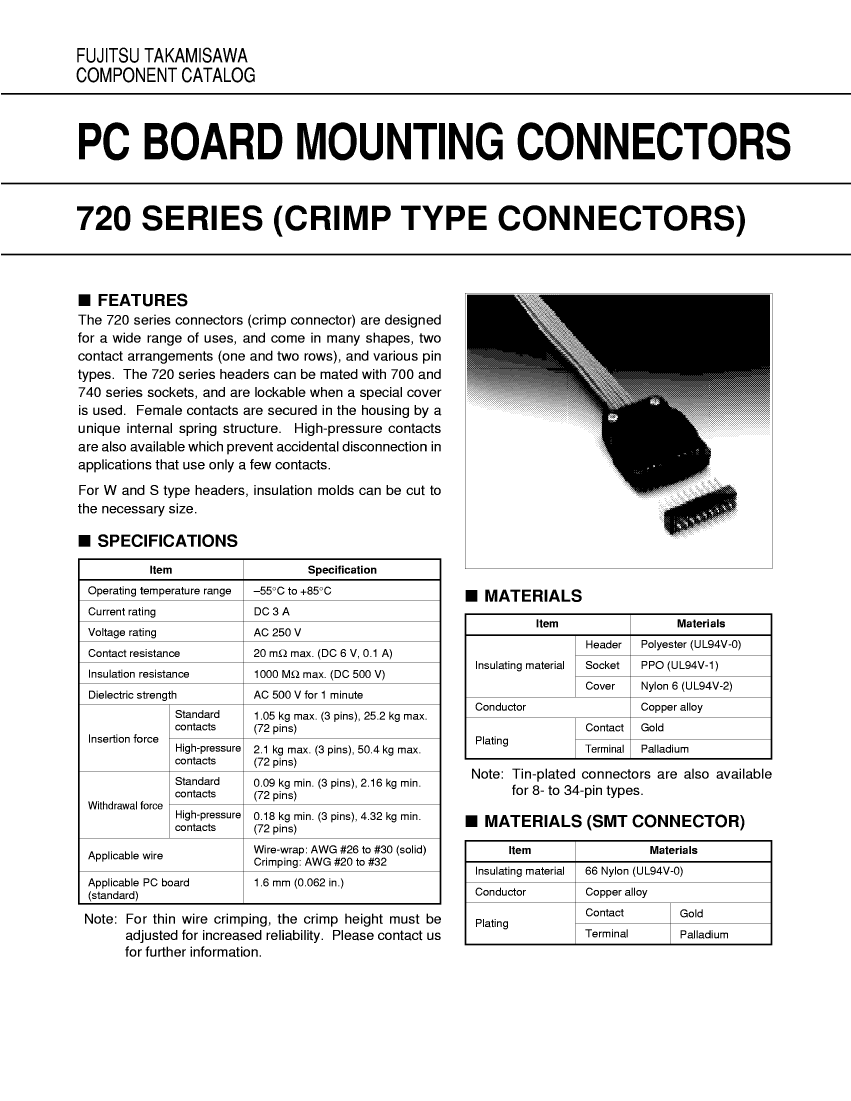

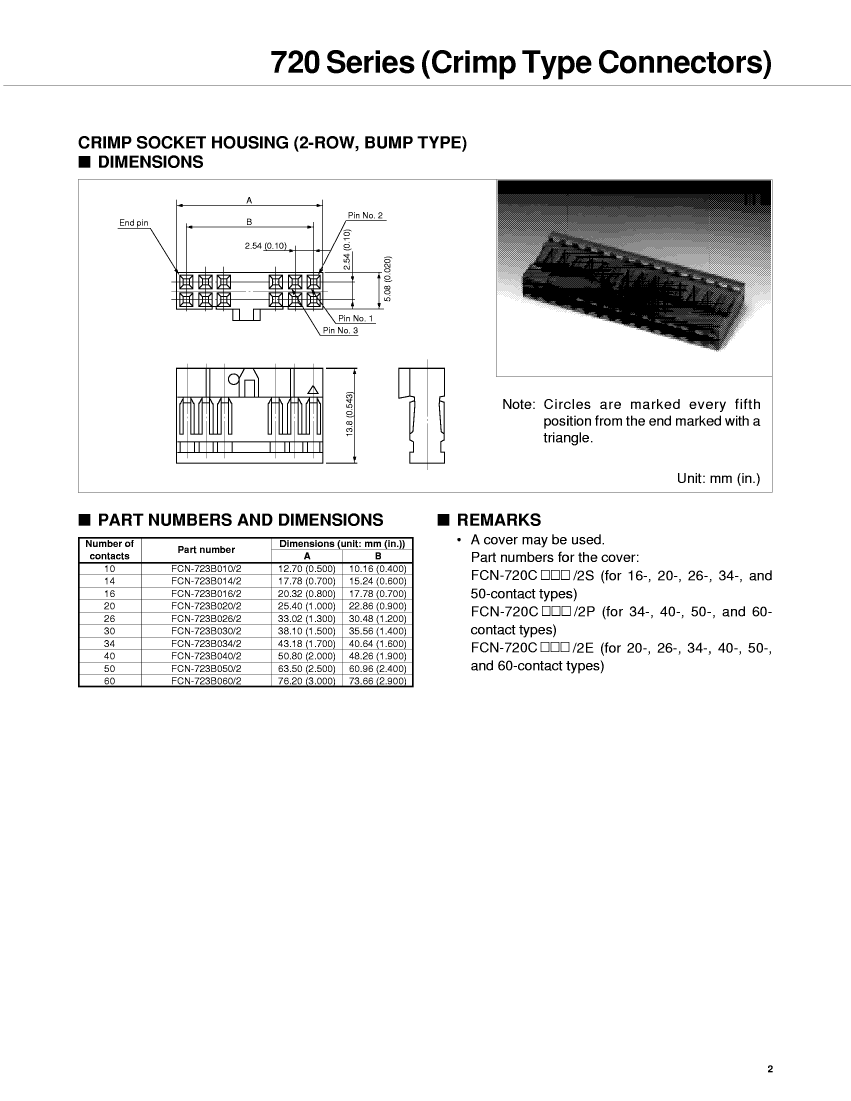

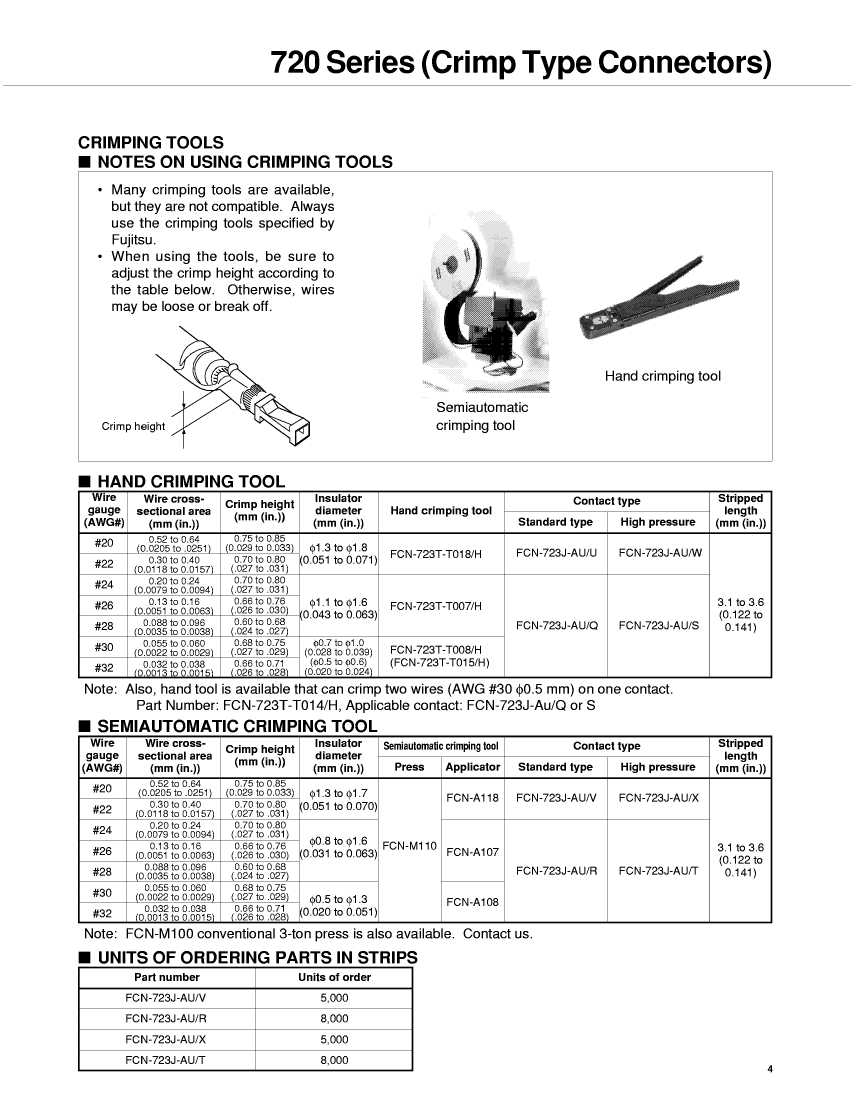

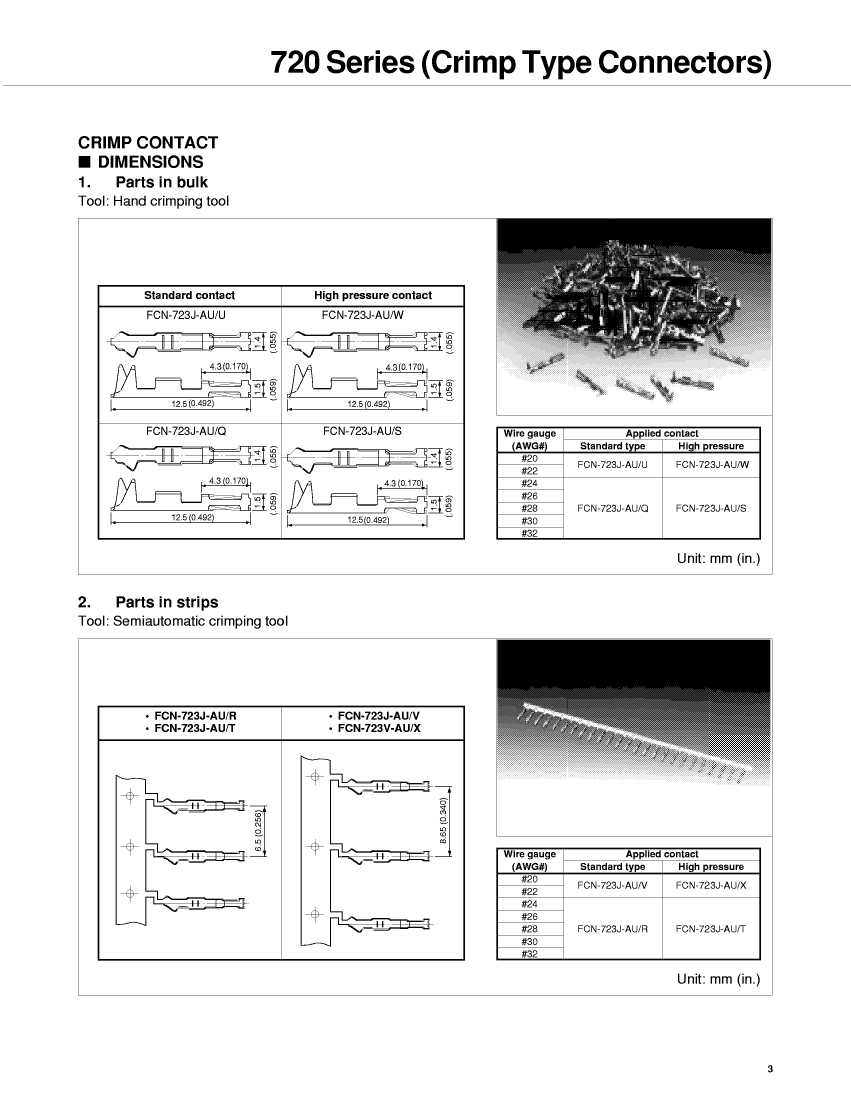

Preview

Download Datasheet

View All

FCN-723B014/2 Related Products

	FCN-723B014/2	FCN-723B010/2	FCN-723B034/2	FCN-723B026/2	FCN-723B030/2
Description	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Socket	Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Socket	Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Socket	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Socket	Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Socket
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD TIN	GOLD TIN	GOLD TIN	GOLD TIN	GOLD TIN
Contact completed and terminated	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	720	720	720	720	720
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	14	10	34	26	30
UL Flammability Code	94V-1	94V-1	94V-1	94V-1	94V-1
Base Number Matches	1	1	1	1	1
