5962R9661601VXC

Description
Bus Driver, 4000/14000/40000 Series, 1-Func, 6-Bit, Inverted Output, CMOS, CDFP16, CERAMIC, FP-16
Categorylogic    logic
File Size299KB,8 Pages
ManufacturerHarris
Websitehttp://www.harris.com/
Download Datasheet Parametric View All

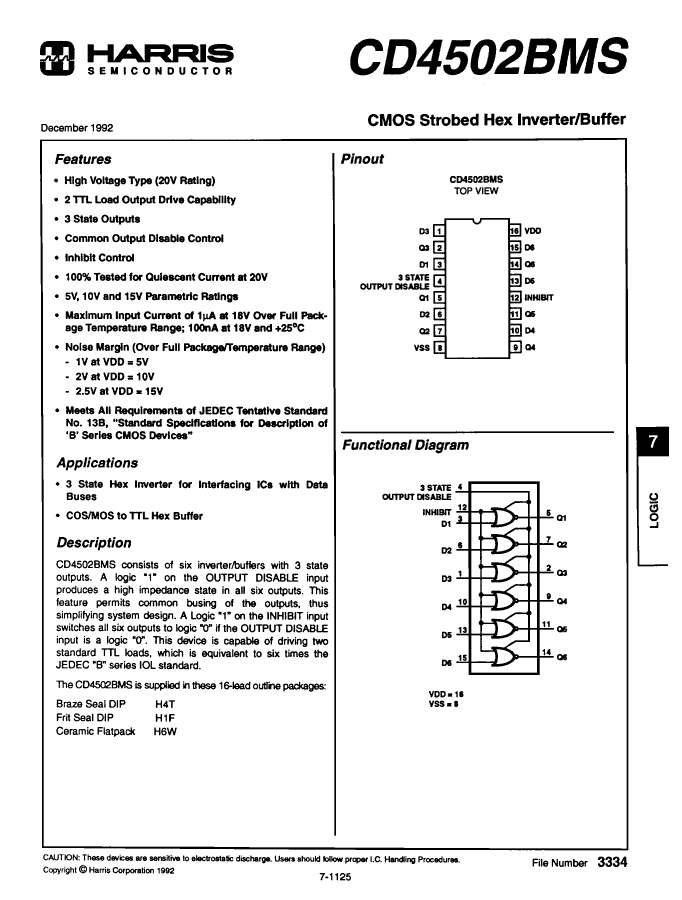

5962R9661601VXC Overview

Bus Driver, 4000/14000/40000 Series, 1-Func, 6-Bit, Inverted Output, CMOS, CDFP16, CERAMIC, FP-16

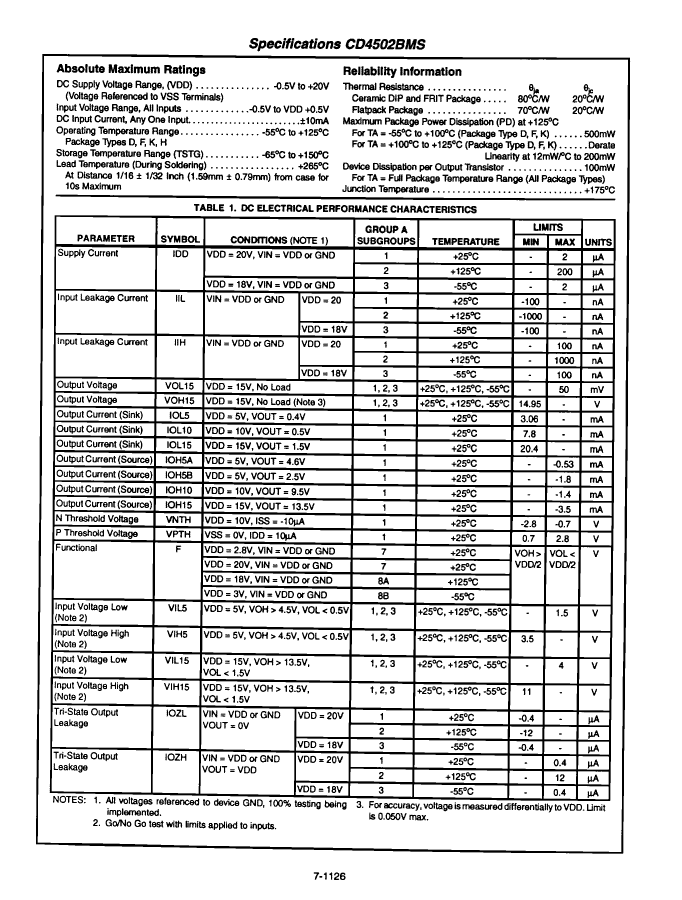

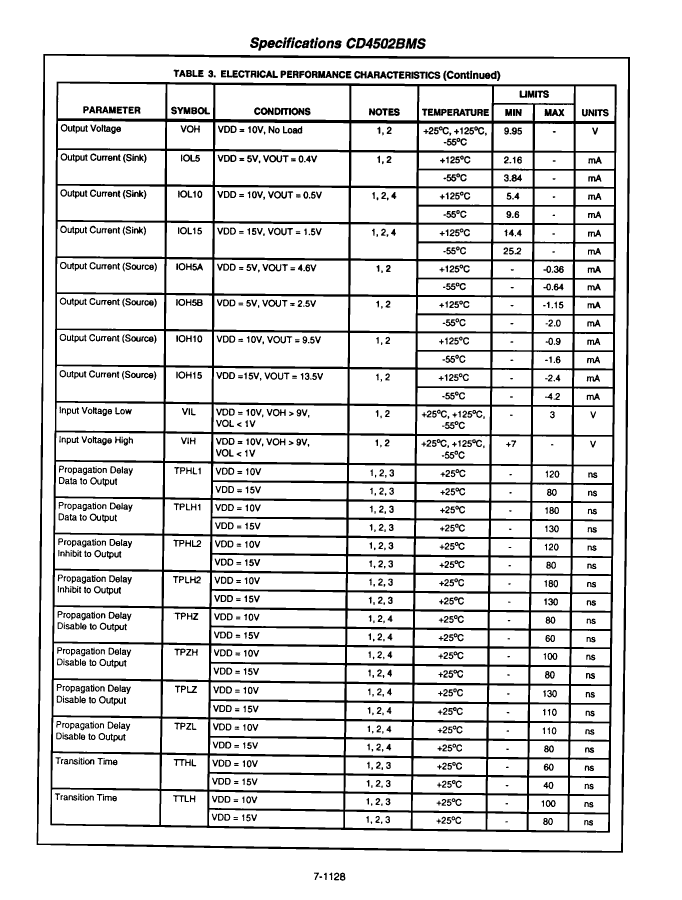

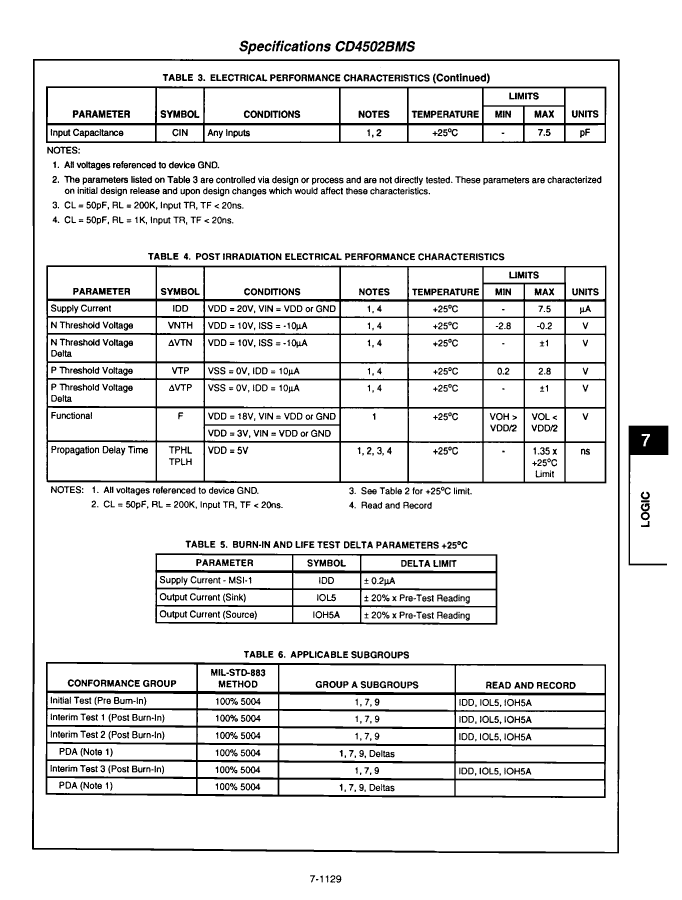

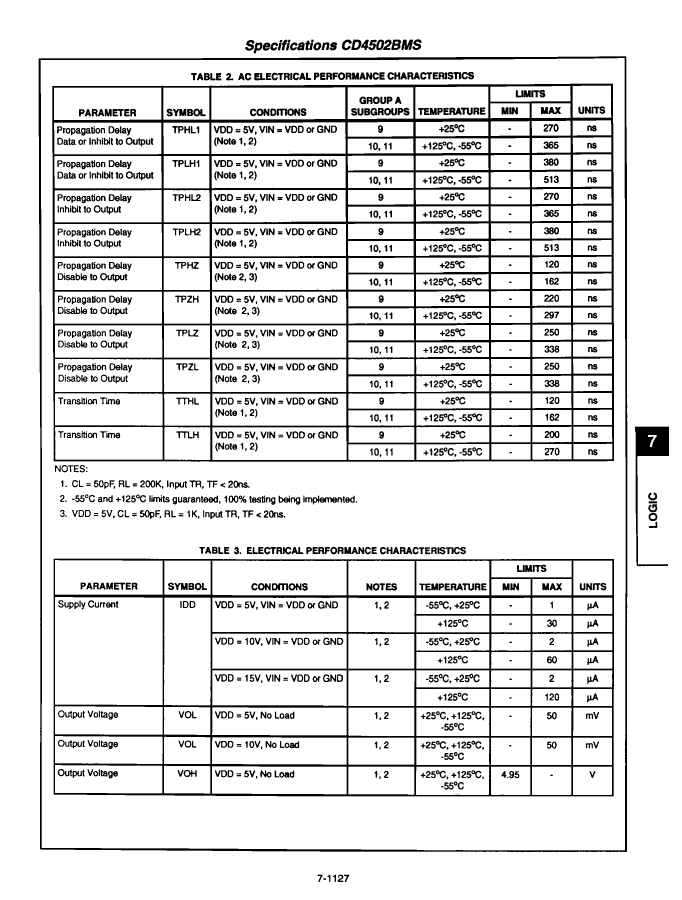

5962R9661601VXC Parametric

Parameter NameAttribute value
package instructionDFP,
Reach Compliance Codeunknown
Other featuresWITH COMMON INHIBIT FOR ALL BITS; RADIATION HARDENED; IOH = 1.15MA @ VOH = 2.5V
series4000/14000/40000
JESD-30 codeR-CDFP-F16
JESD-609 codee4
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
Number of digits6
Number of functions1
Number of ports2
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDFP
Package shapeRECTANGULAR
Package formFLATPACK
propagation delay (tpd)365 ns
Certification statusNot Qualified
Maximum seat height2.92 mm
Maximum supply voltage (Vsup)18 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceGOLD
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
total dose100k Rad(Si) V
width6.73 mm
Base Number Matches1
