50WQ09FNTRPBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 50WQ09FNTRPBF

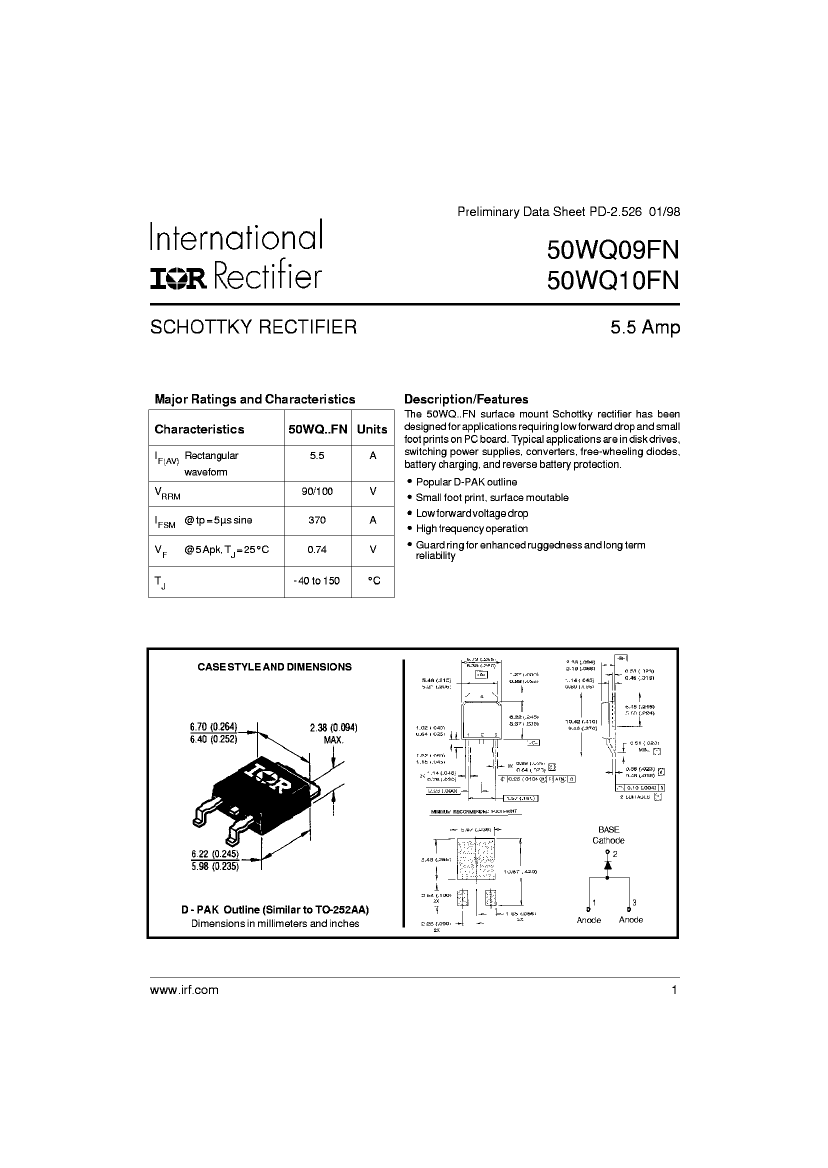

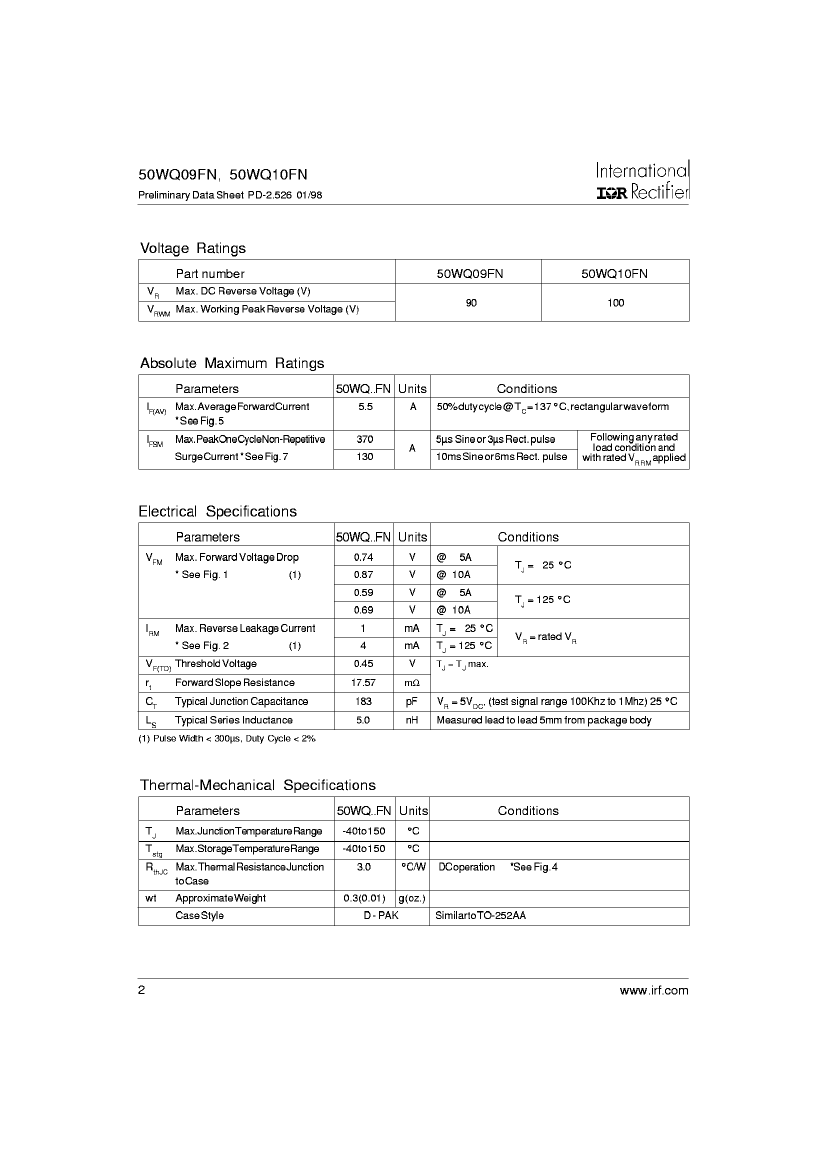

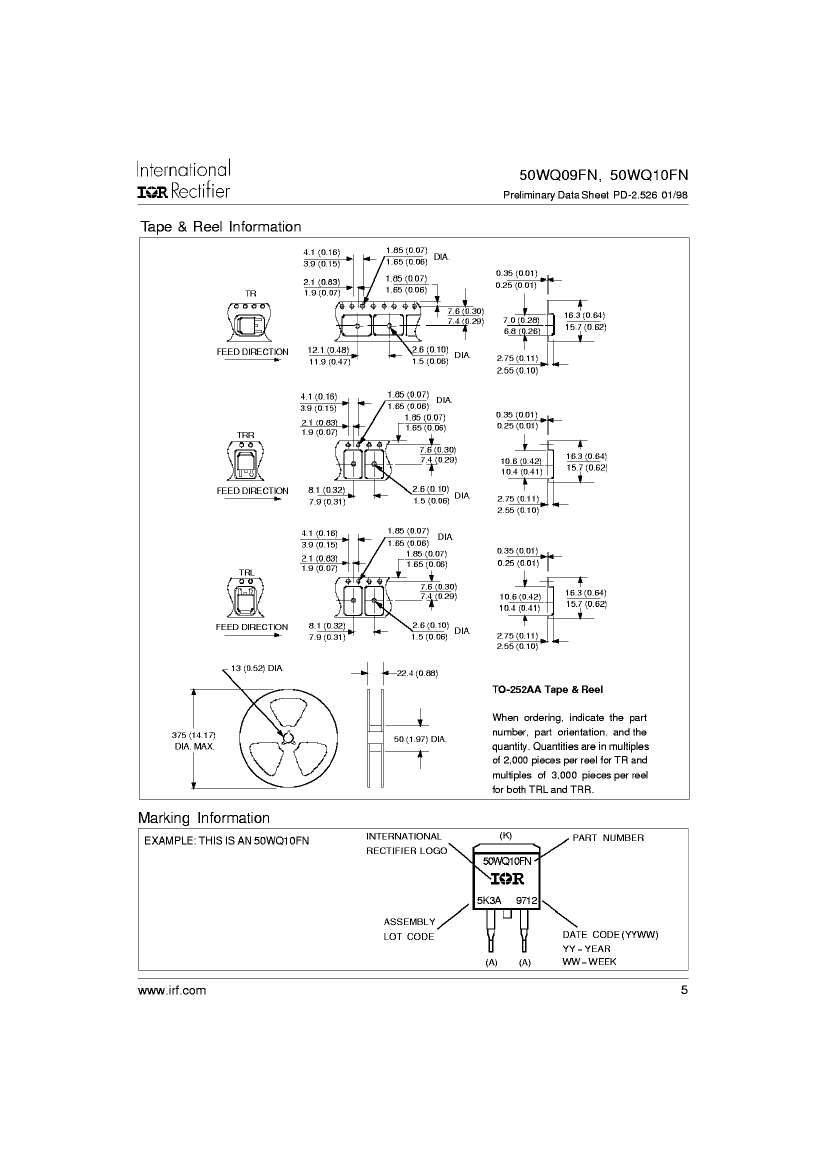

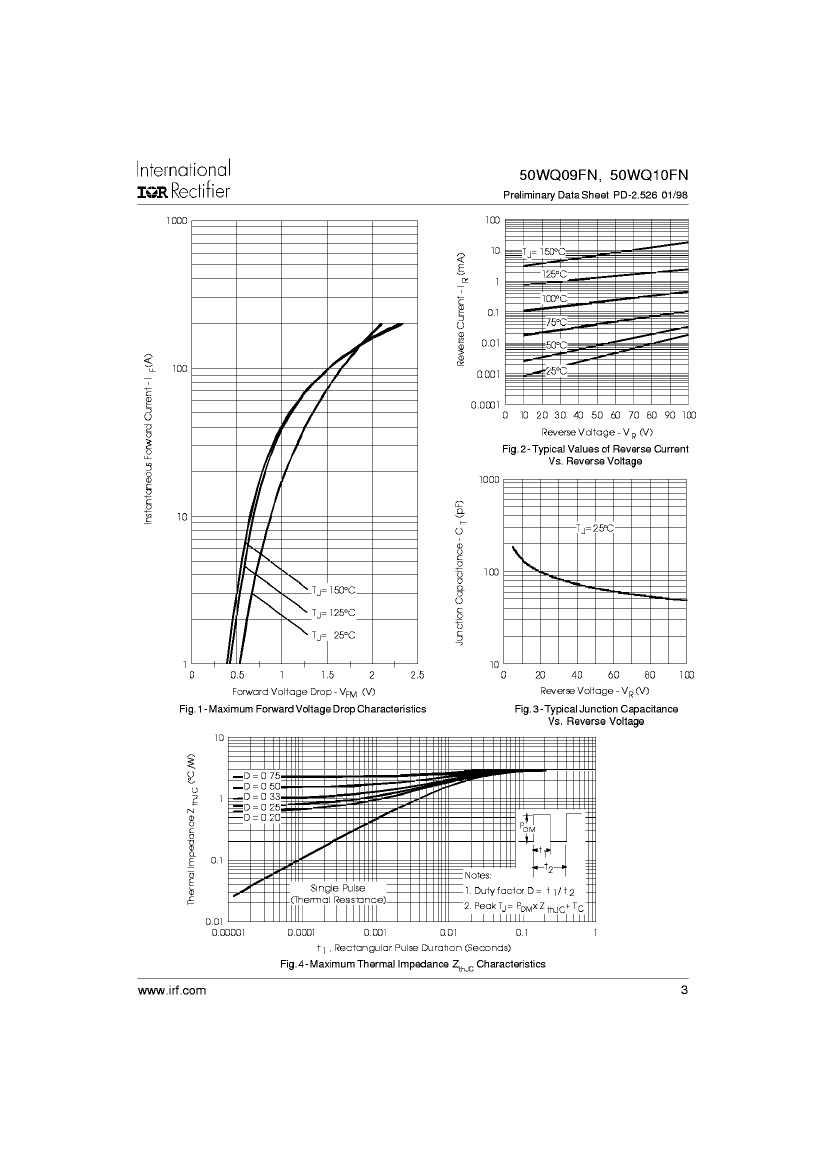

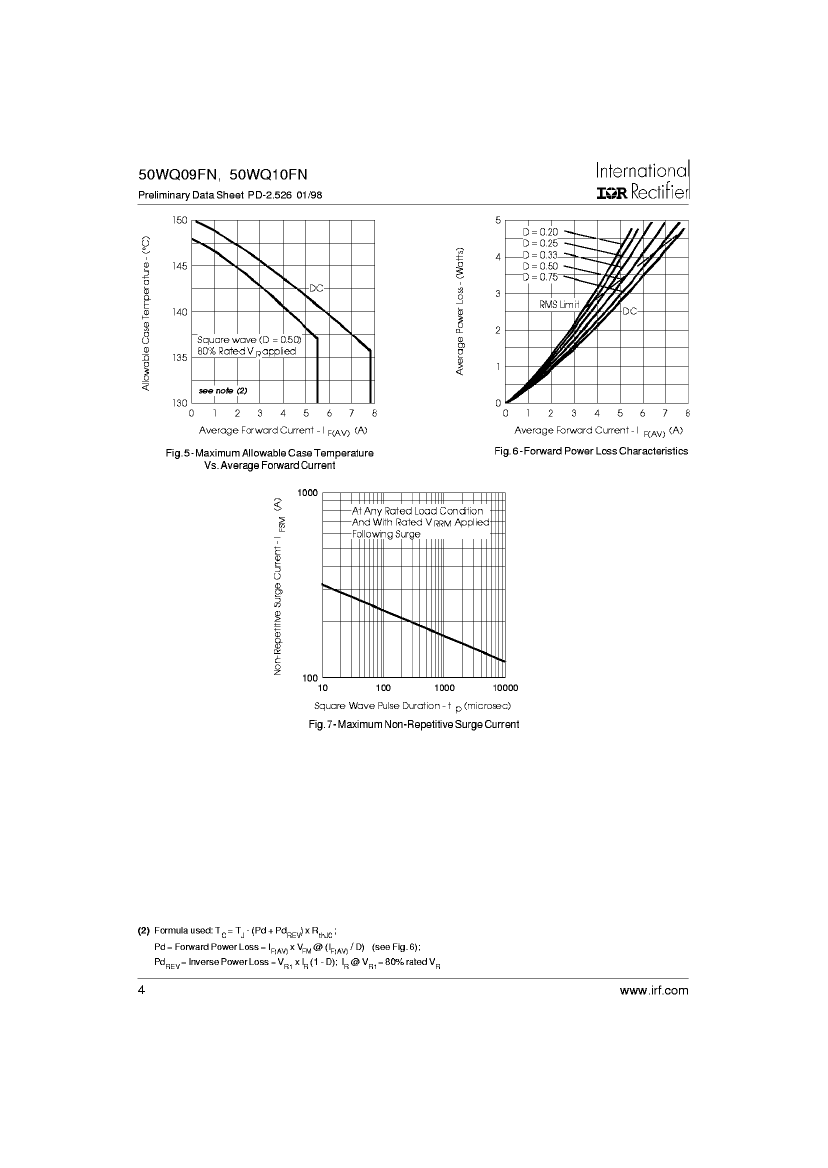

50WQ09FNTRPBF: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3; CategoryDiscrete semiconductor diode; File Size95KB，5 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

50WQ09FNTRPBF Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3

50WQ09FNTRPBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Parts packaging code	TO-252AA
package instruction	SIMILAR TO TO-252AA, DPAK-3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	FREEWHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.87 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	370 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	5.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	90 V
Maximum reverse current	1000 µA
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN OVER NICKEL
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

50WQ09FNTRPBF Related Products

	50WQ09FNTRPBF	50WQ09FNTR	MC0805-223-JT201	50WQ09FNPBF	50WQ09FNTRLPBF	50WQ09FNTRL	50WQ09FN	50WQ09FNTRR
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 22000ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5.5A, 90V V(RRM), Silicon, SIMILAR TO TO-252AA, DPAK-3
package instruction	SIMILAR TO TO-252AA, DPAK-3	R-PSSO-G2	SMT, 0805	SIMILAR TO TO-252AA, DPAK-3	SIMILAR TO TO-252AA, DPAK-3	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Reach Compliance Code	not_compliant	compliant	compliant	not_compliant	not_compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREEWHEELING DIODE	FREEWHEELING DIODE	PRECISION	FREEWHEELING DIODE	FREEWHEELING DIODE	FREEWHEELING DIODE	FREEWHEELING DIODE	FREEWHEELING DIODE
JESD-609 code	e3	e0	e0	e3	e3	e0	e0	e0
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	155 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR PACKAGE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMT	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	METAL GLAZE/THICK FILM	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN OVER NICKEL	TIN LEAD	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Is it lead-free?	Lead free	Contains lead	-	Lead free	Lead free	Contains lead	-	Contains lead
Is it Rohs certified?	conform to	incompatible	-	conform to	conform to	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	-	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
Parts packaging code	TO-252AA	TO-252AA	-	TO-252AA	TO-252AA	TO-252AA	TO-252AA	TO-252AA
Contacts	3	3	-	3	3	3	3	3
application	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	-	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.87 V	0.87 V	-	0.87 V	0.87 V	0.87 V	0.87 V	0.87 V
JESD-30 code	R-PSSO-G2	R-PSSO-G2	-	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Humidity sensitivity level	1	1	-	1	1	1	1	1
Maximum non-repetitive peak forward current	370 A	370 A	-	370 A	370 A	370 A	370 A	370 A
Number of components	1	1	-	1	1	1	1	1
Phase	1	1	-	1	1	1	1	1
Maximum output current	5.5 A	5.5 A	-	5.5 A	5.5 A	5.5 A	5.5 A	5.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Peak Reflow Temperature (Celsius)	260	260	-	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	90 V	90 V	-	90 V	90 V	90 V	90 V	90 V
Maximum reverse current	1000 µA	1000 µA	-	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA
Terminal form	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	30	NOT SPECIFIED	-	30	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	-	1	1	1	1	1
