HIP6005BCV datasheet, PDF - EEWORLD Datasheet

HIP6005BCV: DescriptionSwitching Controller, Voltage-mode, 215kHz Switching Freq-Max, PDSO20; CategoryPower/power management The power supply circuit; File Size639KB，12 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

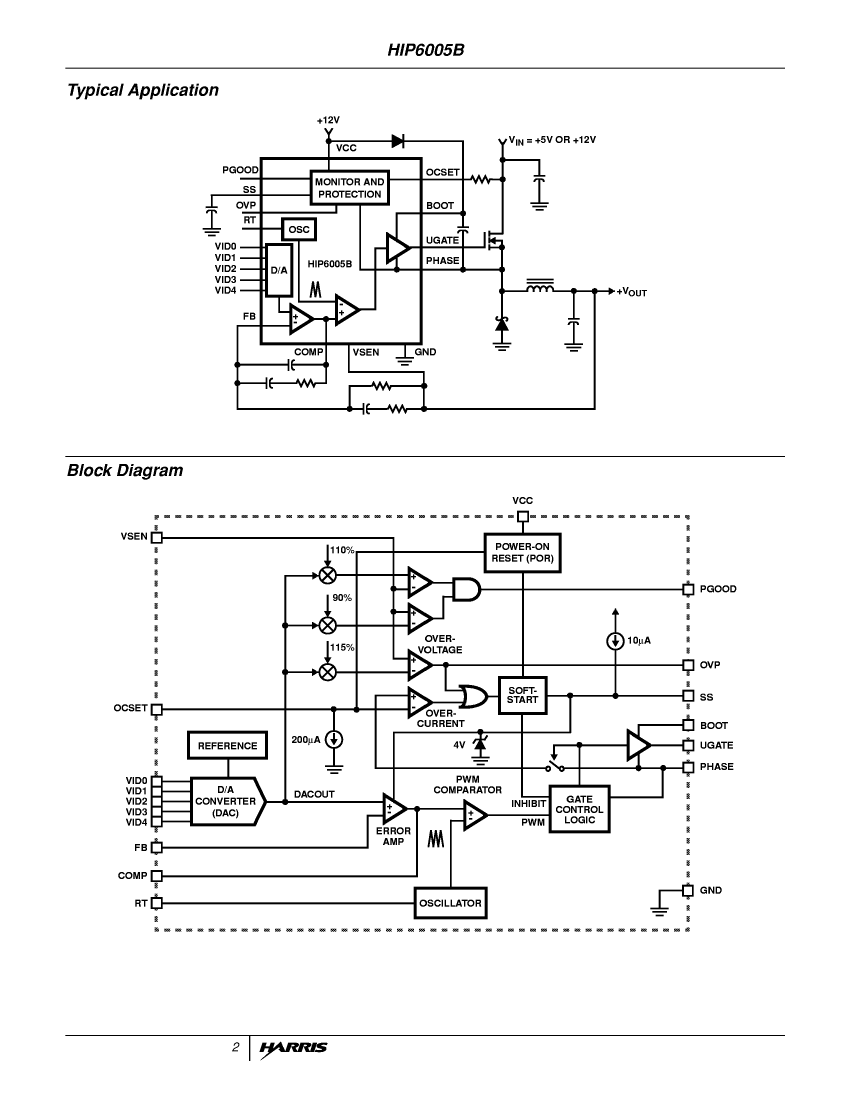

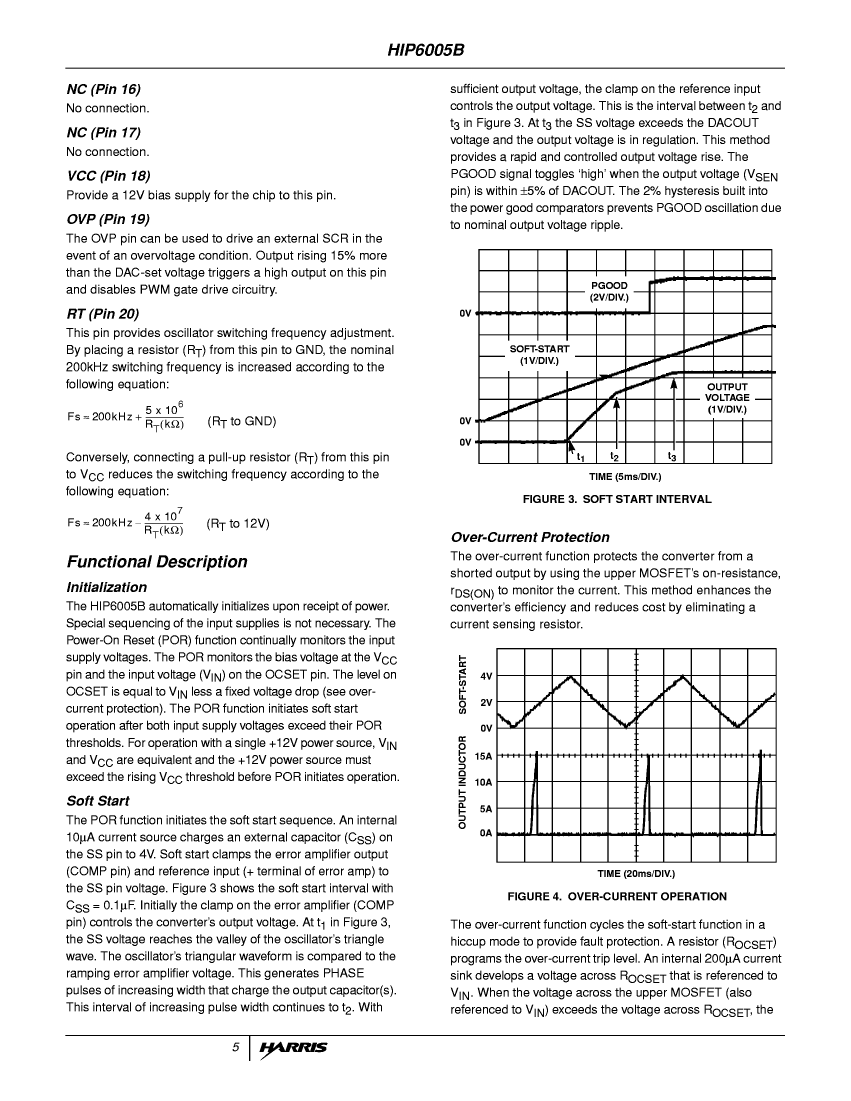

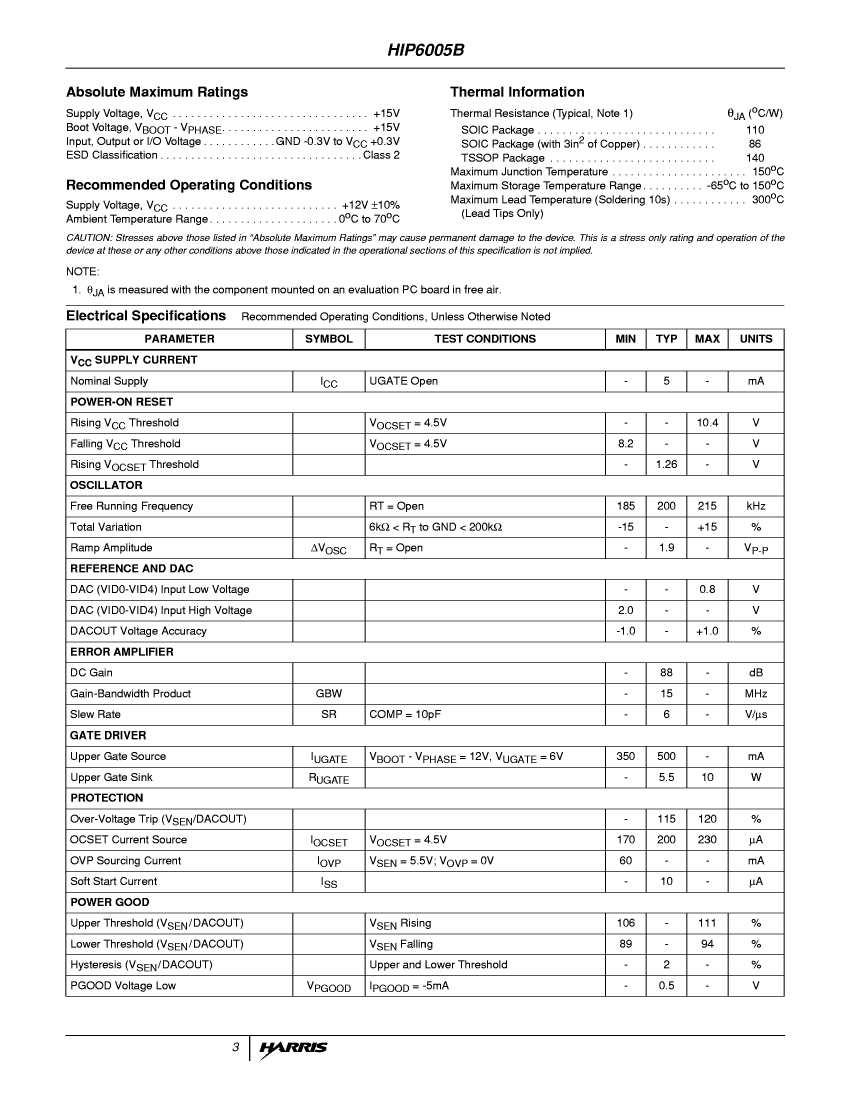

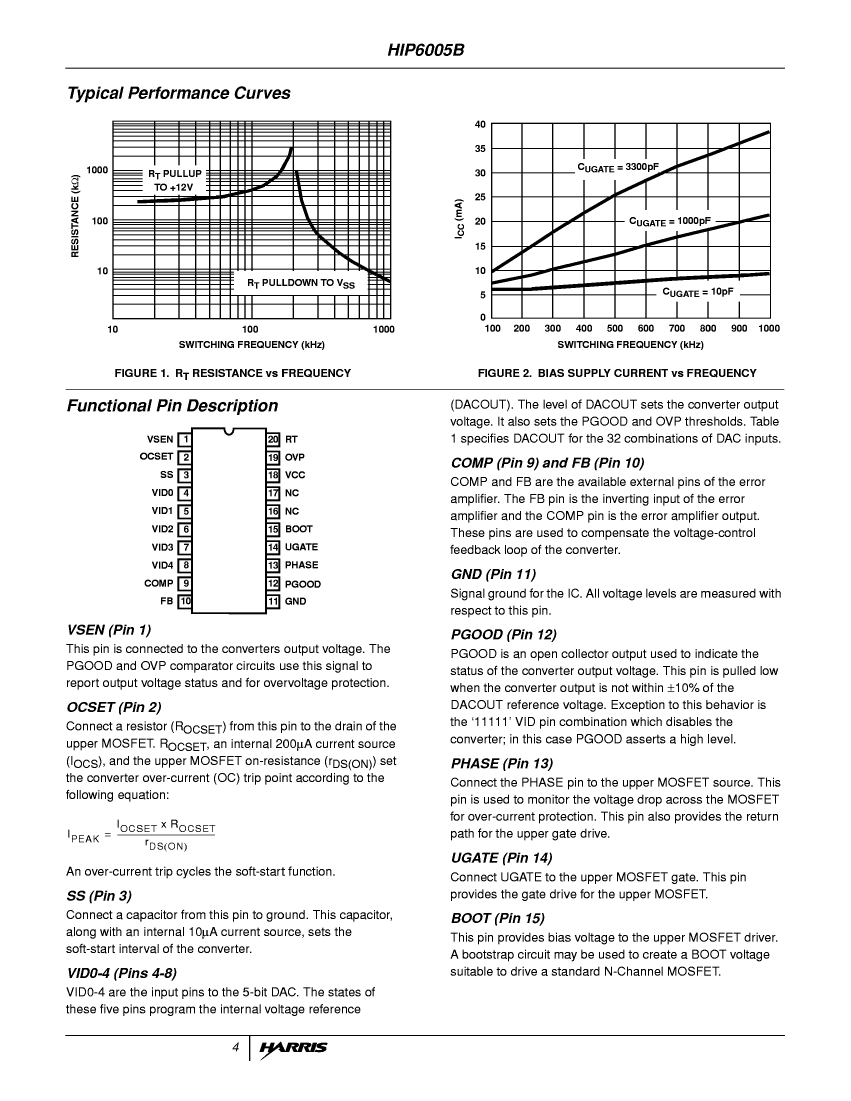

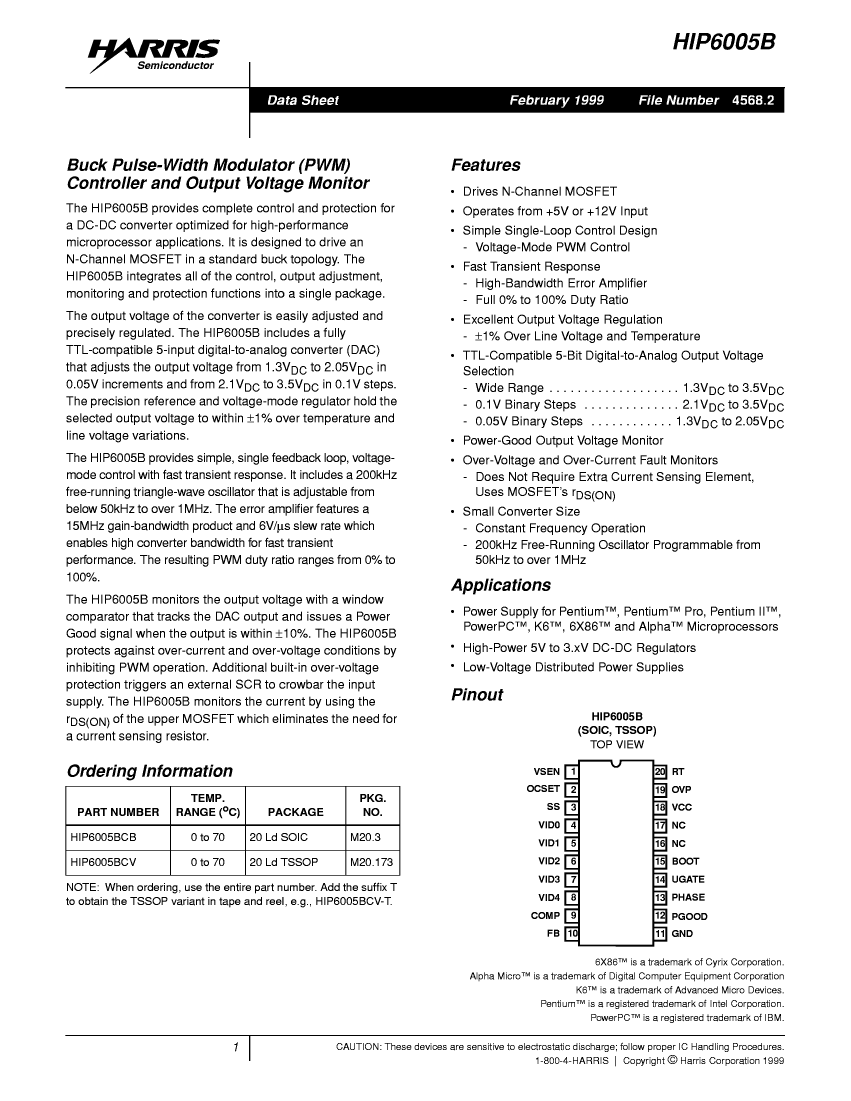

HIP6005BCV Overview

Switching Controller, Voltage-mode, 215kHz Switching Freq-Max, PDSO20

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-PDSO-G20
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Switch configuration	PUSH-PULL
Maximum switching frequency	215 kHz
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	HIP6005BCV	HIP6005BCB	HIP6005BCV-T
Description	Switching Controller, Voltage-mode, 215kHz Switching Freq-Max, PDSO20	Switching Controller, Voltage-mode, 215kHz Switching Freq-Max, PDSO20	Switching Controller, Voltage-mode, 215kHz Switching Freq-Max, PDSO20
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	13.2 V	13.2 V	13.2 V
Minimum input voltage	10.8 V	10.8 V	10.8 V
Nominal input voltage	12 V	12 V	12 V
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Switch configuration	PUSH-PULL	SINGLE	PUSH-PULL
Maximum switching frequency	215 kHz	215 kHz	215 kHz
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
