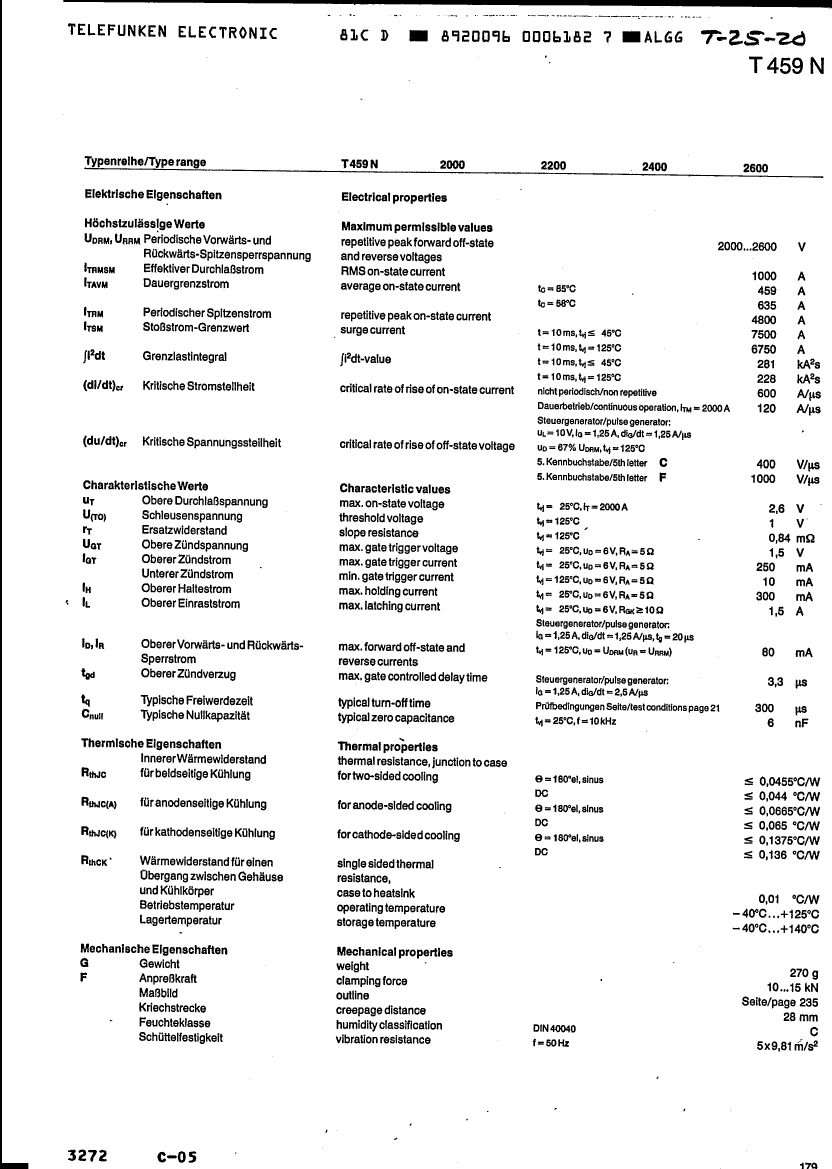

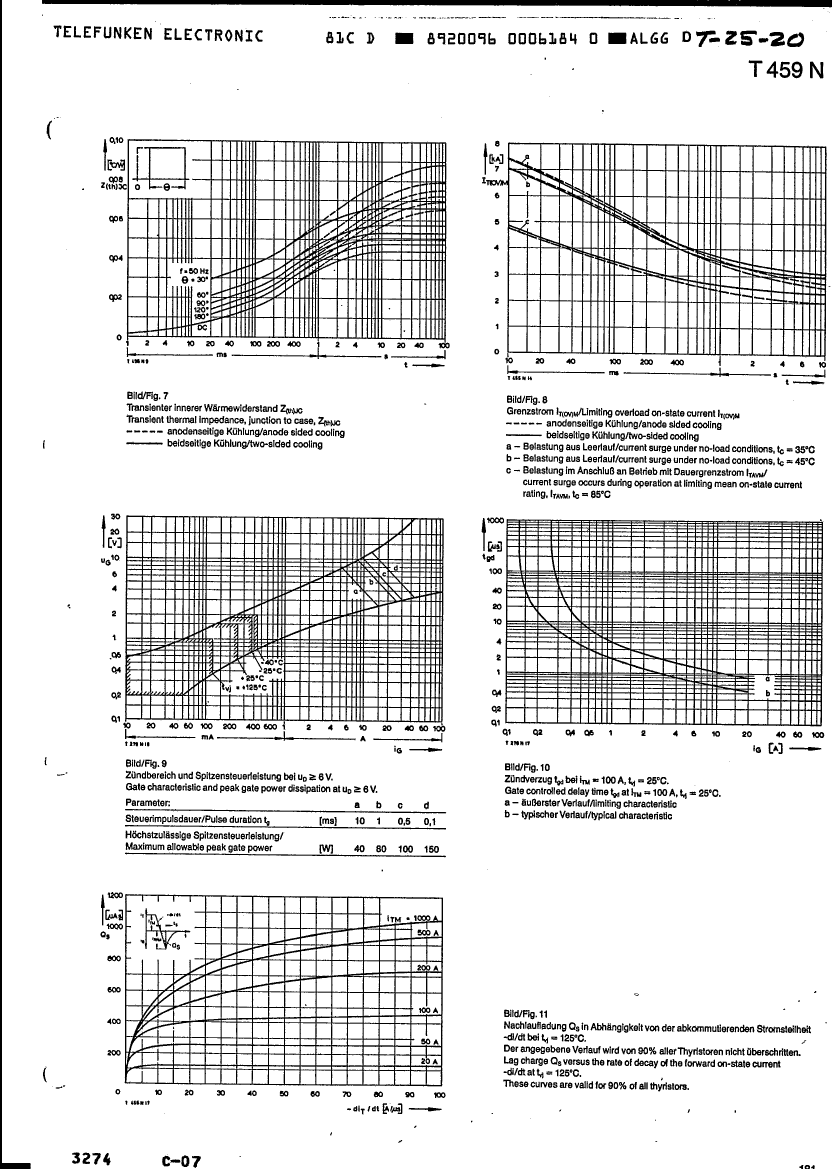

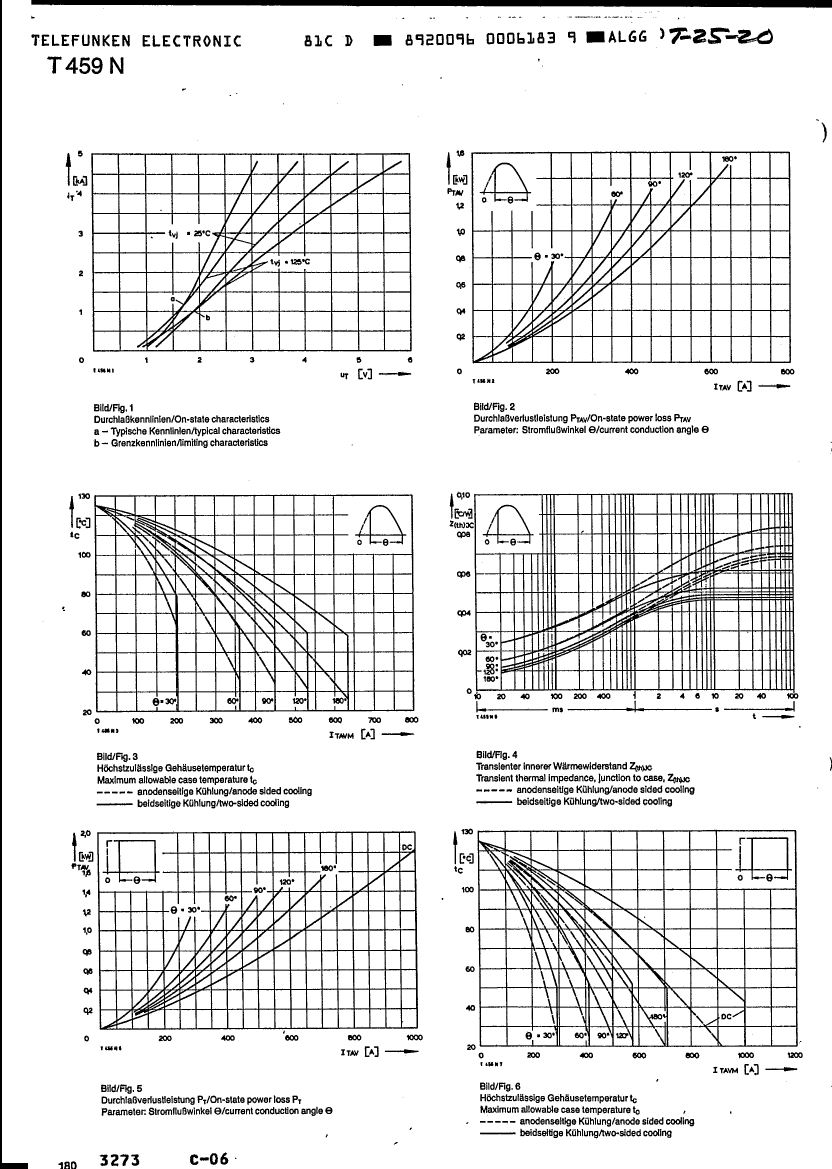

T459N2200TOF: DescriptionSilicon Controlled Rectifier, 459000mA I(T), 2200V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size366KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

T459N2200TOF Overview

Silicon Controlled Rectifier, 459000mA I(T), 2200V V(DRM),

T459N2200TOF Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	300 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	250 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	300 mA
Maximum leakage current	80 mA
On-state non-repetitive peak current	6800 A
Maximum on-state current	459000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	2200 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

T459N2200TOF Related Products

	T459N2200TOF	T459N2400TOF	T459N2600TOF	T459N2200TOC	T459N2000TOF	T459N2400TOC	T459N2600TOC	T459N2000TOC
Description	Silicon Controlled Rectifier, 459000mA I(T), 2200V V(DRM),	Silicon Controlled Rectifier, 459000mA I(T), 2400V V(DRM),	Silicon Controlled Rectifier, 459000mA I(T), 2600V V(DRM),	Silicon Controlled Rectifier, 459000mA I(T), 2200V V(DRM),	Silicon Controlled Rectifier, 459000mA I(T), 2000V V(DRM),	Silicon Controlled Rectifier, 459000mA I(T), 2400V V(DRM),	Silicon Controlled Rectifier, 459000mA I(T), 2600V V(DRM),	Silicon Controlled Rectifier, 459000mA I(T), 2000V V(DRM),
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	300 µs	300 µs	300 µs	300 µs	300 µs	300 µs	300 µs	300 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	500 V/us	1000 V/us	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	300 mA	300 mA	300 mA	300 mA	300 mA	300 mA	300 mA	300 mA
Maximum leakage current	80 mA	80 mA	80 mA	80 mA	80 mA	80 mA	80 mA	80 mA
On-state non-repetitive peak current	6800 A	6800 A	6800 A	6800 A	6800 A	6800 A	6800 A	6800 A
Maximum on-state current	459000 A	459000 A	459000 A	459000 A	459000 A	459000 A	459000 A	459000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Off-state repetitive peak voltage	2200 V	2400 V	2600 V	2200 V	2000 V	2400 V	2600 V	2000 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1	1
