5962-01-173-7739 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-173-7739

5962-01-173-7739: DescriptionD Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,; Categorylogic logic; File Size225KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5962-01-173-7739 Overview

D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,

5962-01-173-7739 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T16
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	80000000 Hz
MaximumI(ol)	0.02 A
Humidity sensitivity level	2A
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Maximum supply current (ICC)	34 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE
Base Number Matches	1

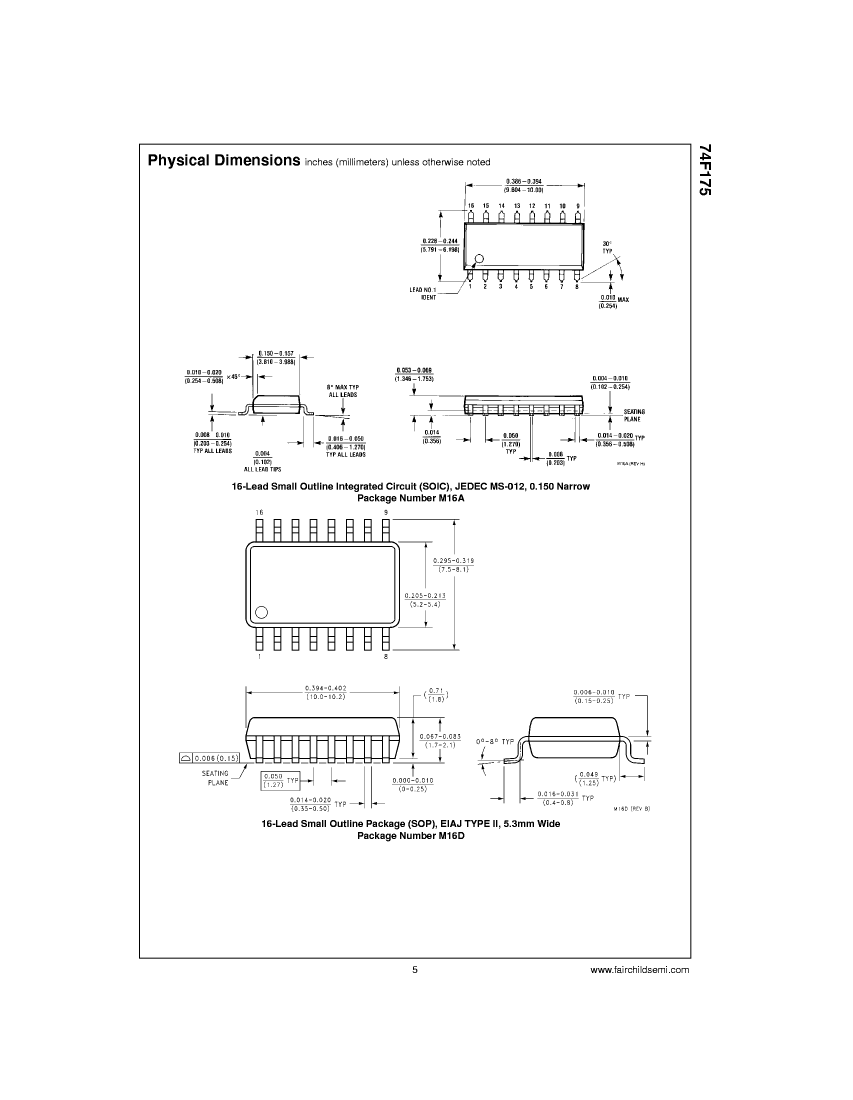

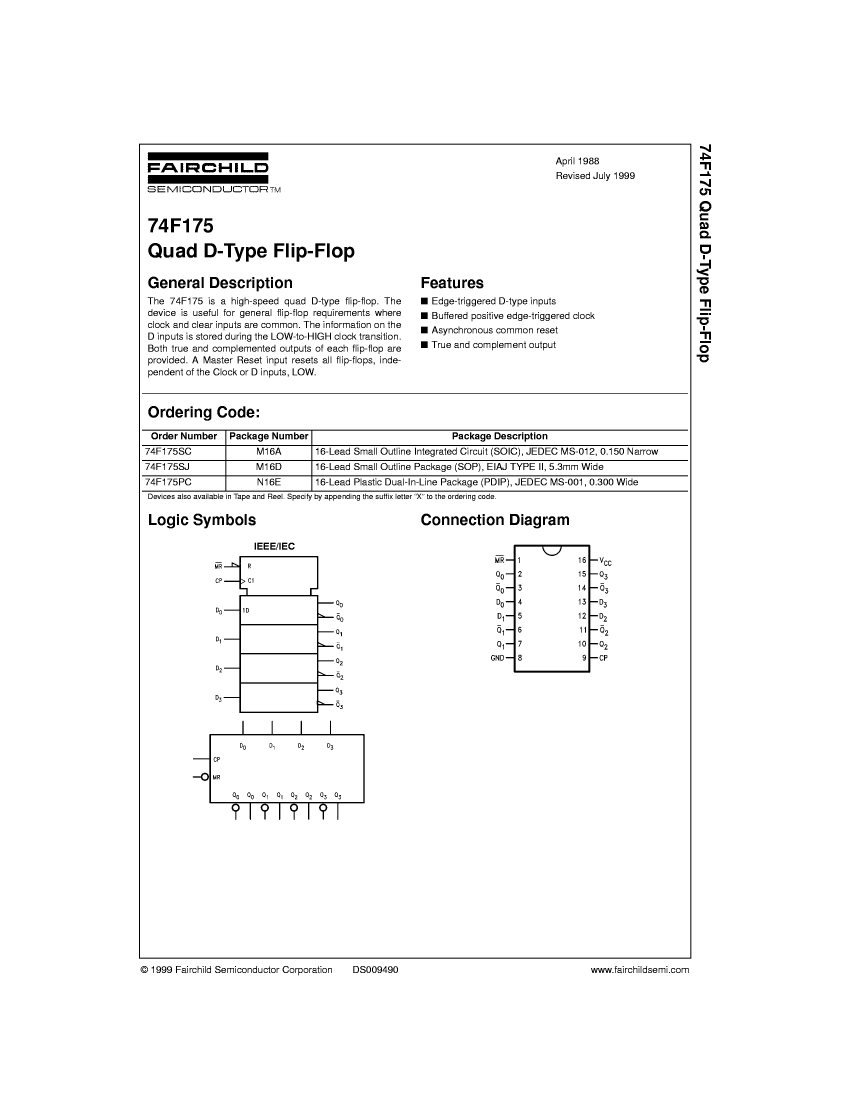

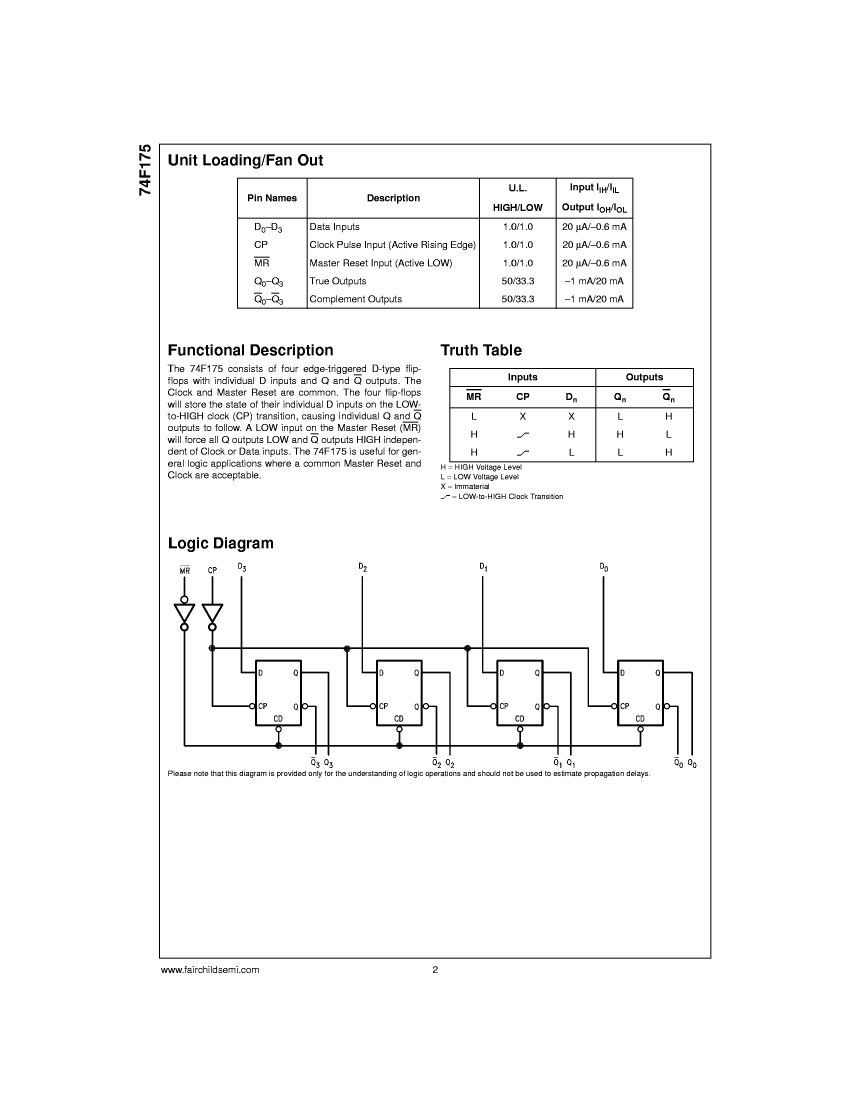

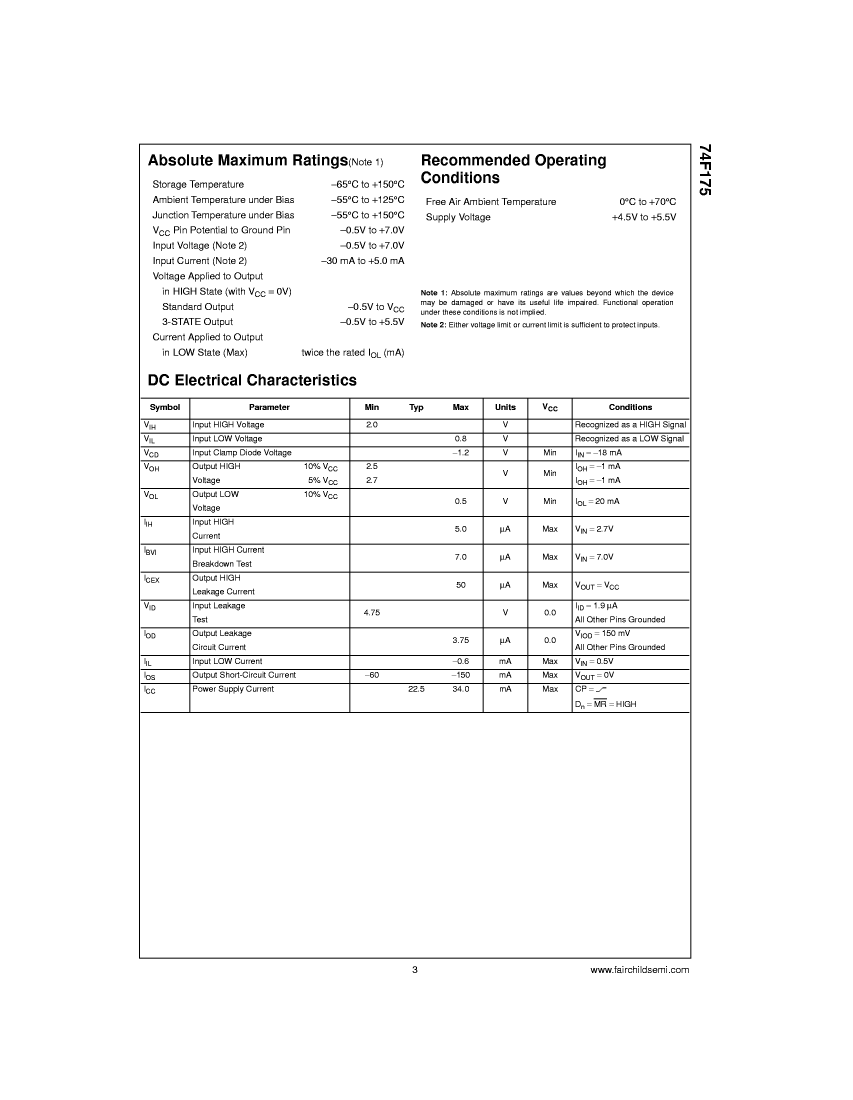

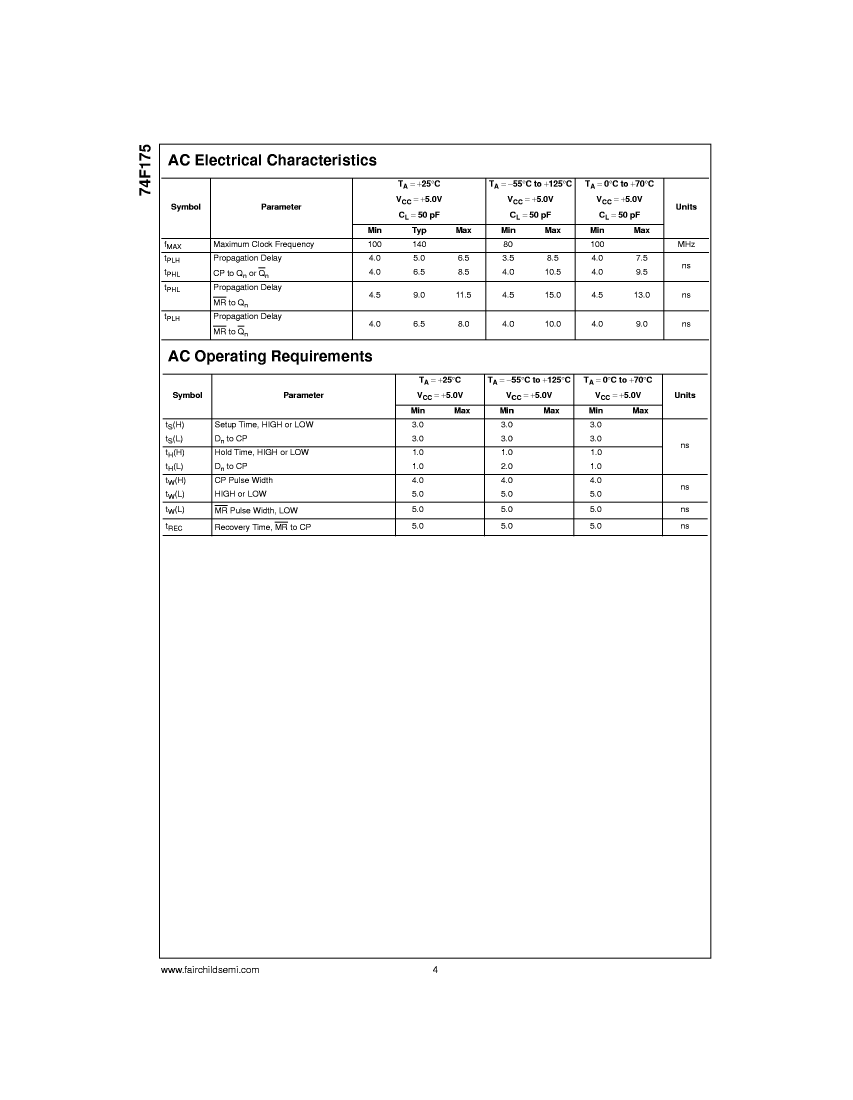

Preview

Download Datasheet

View All

5962-01-173-7739 Related Products

	5962-01-173-7739	5962-01-254-6661	5962-01-323-7459	74F175PCQM	RB020215R8F305	5962-01-150-0317	74F175DCQM
Description	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, PDIP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, PDIP16,	Array/Network Resistor, Isolated, 0.0625W, 15.8ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 0404	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	SMT, 0404	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compli	compliant	compliant	unknown	compliant	compliant
Number of terminals	16	16	16	16	4	16	16
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	125 °C	70 °C	70 °C
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMT	IN-LINE	IN-LINE
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible
Maker	Fairchild	-	Fairchild	Fairchild	-	-	Fairchild
JESD-30 code	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	-	R-XDIP-T16	R-XDIP-T16
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	-	D FLIP-FLOP	D FLIP-FLOP
Humidity sensitivity level	2A	2A	2A	2A	-	2A	2A
Number of functions	4	4	4	4	-	4	4
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	-	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	-	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	-	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Peak Reflow Temperature (Celsius)	250	250	250	250	-	250	250
power supply	5 V	5 V	5 V	5 V	-	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	5 V	5 V
surface mount	NO	NO	NO	NO	-	NO	NO
technology	TTL	TTL	TTL	TTL	-	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	-	30	30
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1	1	-	1	-
