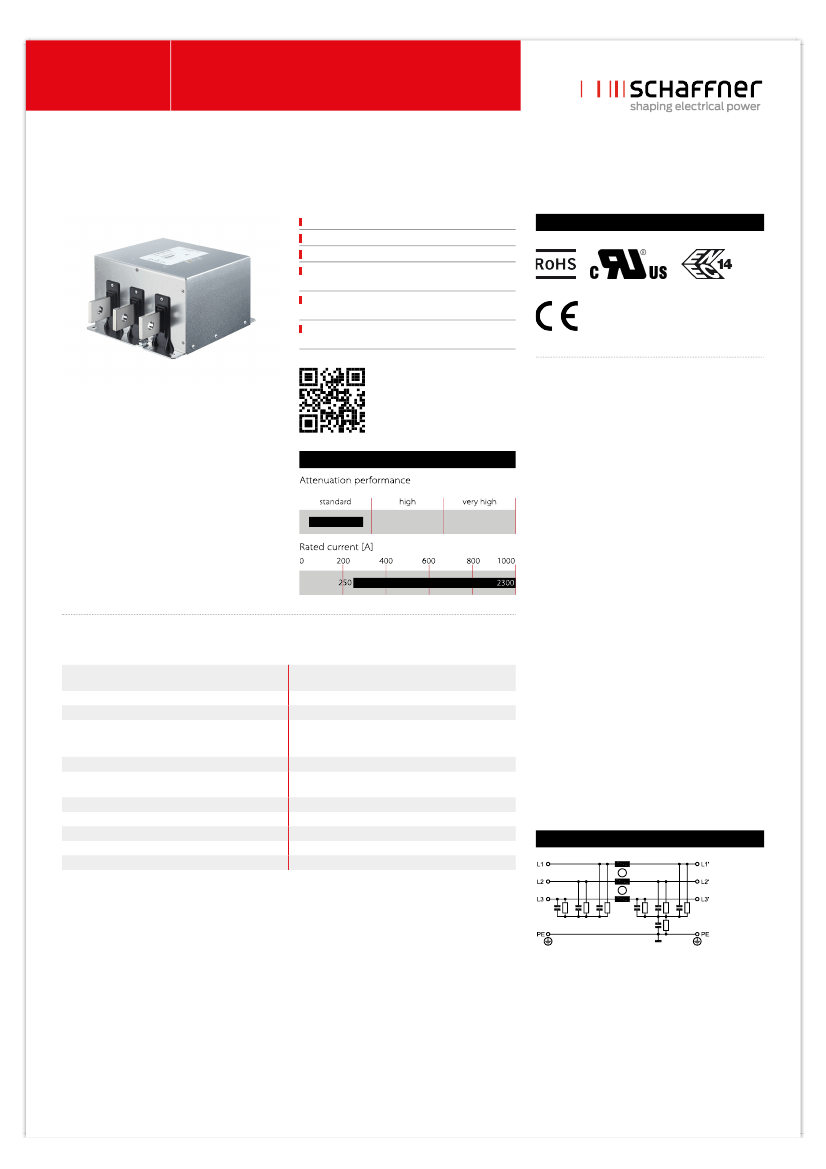

The FN 3311 HV/FN 3310 HV poduct series of standard
EMC/EMI filters are based on Schaffner’s many years of
expertise in filter design for all types of converter and
inverter applications. Installed between the PV
inverter and the power grid, the FN 3311HV and FN
3310HV AC filters are used to influence positively the
conducted emissions on the grid side to help to
comply with the required emission standards.
Features and benefits
The FN 3311 HV/FN 3310 HV series are the most
compact dedicated high current AC filters, not only
suitable for PV applications, but being an optimum fit
with most modern PV inverter topologies. In addition
the filters can be configured in a very flexible way to
fulfil custom specific application requirements.
All FN 3311 HV/FN 3310 HV come in unsymmetrical
housings, which help to prevent inverse installation
and wrong electrical connection. The AC filters FN
3311 HV/FN 3310 HV are key to meet the stringent
international standards for electromagnetic
compatibility and help to ensure a reliable and fault-
free operation of the entire PV system.
Technical specifications
Maximum continuous operating voltage
Operating frequency
Rated currents
High potential test voltage
3x 760/440 VAC for FN 3311 HV
3x 760 VAC for FN 3310 HV and FN 3311 HVIT
DC to 60 Hz
250 to 2300 A @ 50°C
P –> E 3.0 kVAC for 2 s
(FN 3310 HV/FN 3311 HVIT 3.35 kVAC for 2 s)
P –> P 3.45 kVDC for 2 s
IP 00
4x rated current at switch on, max. 8 sec
1.5x rated current for 1 minute, once per hour
-40°C to +100°C
40/100/21 acc. to IEC 60068-1
Ni plated cu bars/Metal
UL 94V-0
UL 1283, CSA 22.2 No. 8, IEC/EN 60939, EN 60721-3
Typical applications
The FN 3311 HV/FN 3310 HV series are primarily
designed for all kind of power line connected
converter and inverter applications between 250 and
2'300 A. However, they are optimised for PV inverter
and can potentially also be applied for general
purpose motor drives applications.
Protection category
Overload capability
Temperature range (operation and storage)
Climatic category
Terminals/Housing
Flammability corresponding to
Design corresponding to
Typical electrical schematic FN 3311 HV
*
*
- FN 3311 HVIT series without resistor to PE
- FN 3310 HV series without resistor and capacitor
to PE
2
EMC/EMI Products
Schaffner Group
Datasheets
2016

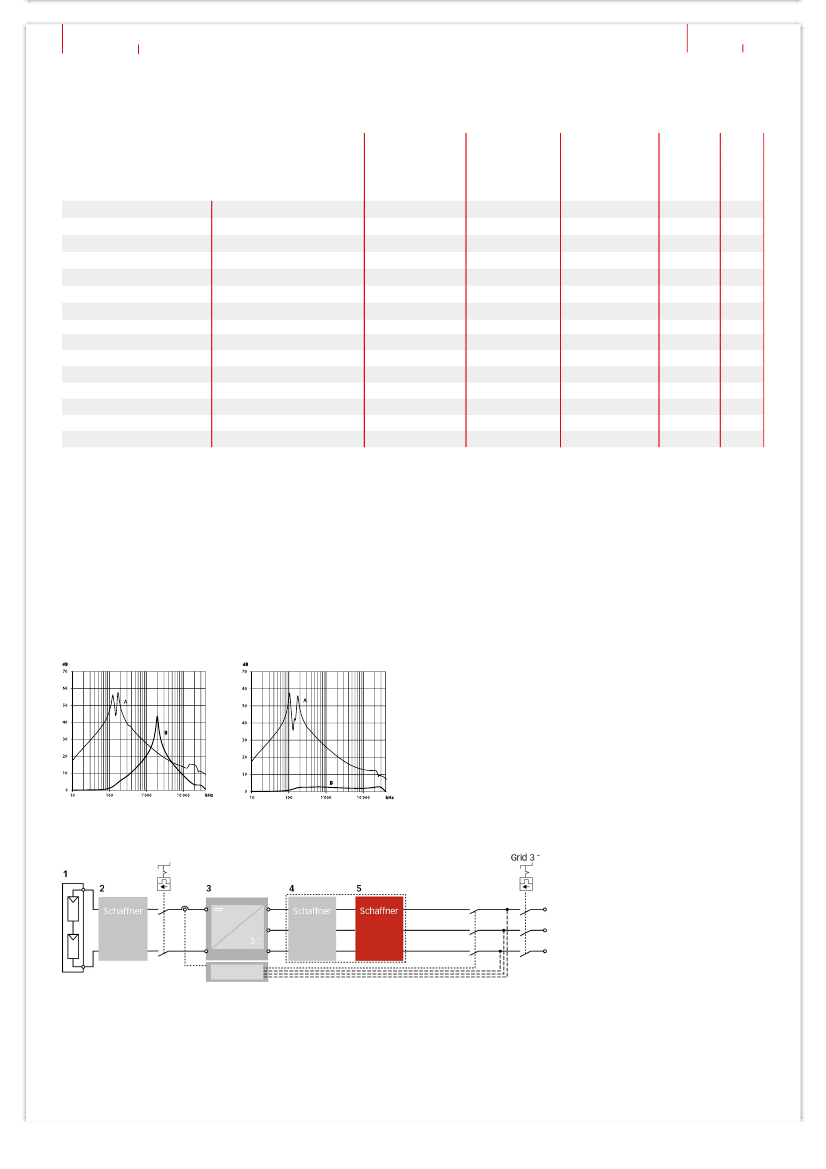

Filter selection table
Filters */**
Rated current
@ 50°C
Typical inverter
AC power rating***
Leakage current****
@ 760 VAC/50 Hz
Power losss
@ 25°C/DC
Weight
[A]
FN 3311 HV with Cy caps
FN 3311 HV-250-99-C18-R55
FN 3311 HV-400-99-C18-R55
FN 3311 HV-600-99-C18-R55
FN 3311 HV-1000-99-C18-R55
FN 3311 HV-1500-99-C18-R55
FN 3311 HV-2300-99-C18-R55
FN 3311 HVIT with Cy caps
FN 3311 HVIT-250-99-C18-R5
FN 3311 HVIT-400-99-C18-R5
FN 3311 HVIT-600-99-C18-R5
FN 3311 HVIT-1000-99-C18-R5
FN 3311 HVIT-1500-99-C18-R5
FN 3311 HVIT-2300-99-C18-R5
250
400
600
1000
1500
2300
[kVA]
[mA]
[W]
[kg]
140
220
330
550
830
1250
0.09
0.09
0.09
0.09
0.09
0.09
18
30
33
70
133
201
2.7
3.3
4.5
6.1
11.0
18.0
FN 3310 without Cy caps
FN 3310 HV-250-99-R5
FN 3310 HV-400-99-R5
FN 3310 HV-600-99-R5
FN 3310 HV1000-99-R5
FN 3310 HV-1500-99-R5
FN 3310 HV-2300-99-R5
250
400
600
1000
1500
2300
140
220
330
550
830
1250
18
30
33
70
133
201
2.7
3.3
4.5
6.1
11.0
18.0
* Filters with higher current ratings available upon request.
** Filters with reduced Cy capacitance to ground for high asymmetrical currents and higher voltages available upon request.
*** Calculated at rated current, 690 VAC and cos phi = 0.8. The exact value depends upon the efficiency of the drive, the motor and the entire application.£
**** Leakage current according IEC 60939-1
Typical filter attenuation curves
Per CISPR 17; A=50 Ω/50 Ω sym; B=50 Ω/50 Ω asym
FN 3311 HV-250...2300-99-C18-R5
and
FN 3311 HVIT-250...2300-99-C18-R55
FN 3310 HV-250...2300-99-R5
Typical block schematic
1
PV modules
2
Schaffner DC filter FN 22xx
3
Central Inverter
4
Schaffner magnetic components
5
Schaffner AC EMC/EMI filter FN 3xxx
Important note: depending on the grounding scheme of the solar power system, including the solar panel and the grid side transformer, the appropriate DC- and AC
EMC/EMI filter version need to be selected. For support, please contact your local Schaffner sales office or partner.
3
EMC/EMI Products
Schaffner Group
Datasheets
2016

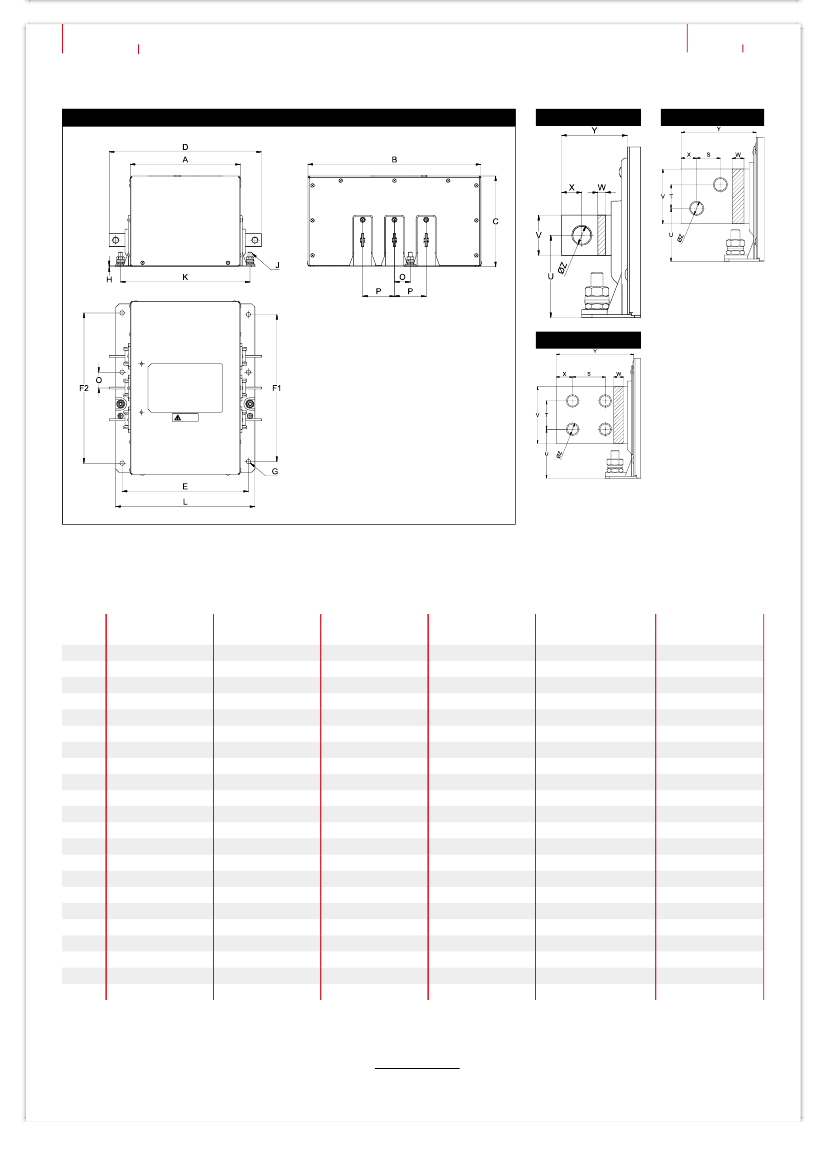

Mechnical data
250 to 2'300 A types
Busbar connections
250 to 1'000 A types
1'500 A types
2'300 A types
Note:
all FN 3311 and FN 3310 provide unsymmetrical mounting hole patterns to prevent inverse filter installation in the field.
Dimensions of FN 3311 HV and FN 3310 HV series
(the FN 3311 HVIT versions have the same dimensions as the FN 3311 HV)
250 A
A
B
C
D
E
F1
F2
G
H
J
K
L
O
P
S
T
U
V
W
X
Y
Z
41
20
3
10
32.5
Ø9
46
25
4
12.5
37.5
Ø11
50
25
8
12.5
37.5
Ø11
53
40
8
20
57.5
Ø13.5
170
267
140
235
195
227
232
Ø7 (6x)
1.5
M6 (2x)
200 (+/- 1)
215
24.5
49 (+/- 0.5)
400 A
175
280
140
250
205
240
245
Ø9 (6x)
2
M8 (2x)
210 (+/- 1)
230
27
54 (+/- 0.5)
600 A
190
290
140
265
220
250
255
Ø9 (6x)
2.5
M8 (2x)
225 (+/- 1)
245
29.5
59 (+/- 0.5)
1'000 A
190
290
140
305
220
250
255
Ø9 (6x)
2.5
M8 (2x)
225 (+/- 1)
245
29.5
59 (+/- 0.5)
1'500 A
195
310
150
360
240
270
275
Ø11 (6x)
2.5
M10 (2x)
241 (+/- 1)
265
34.8
69.5 (+/- 0.5)
26
26
58
60
10
17
82.5
Ø13.5
2'300 A
220
320
165
410
265
275
280
Ø11 (6x)
2.5
M10 (2x)
266 (+/- 1)
290
40
80 (+/- 0.5)
40
35
60.5
70
15
20
95
Ø13.5
All dimensions in mm; 1 inch = 25.4 mm
Tolerances according: ISO 2768-m/EN 22768-m, if not stated otherwise
Please see the brochure "Basics in EMC and Power Quality" on our website www.schaffner.com to find more details on filter connectors.
