3GDW62-E-30N-0.750 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3GDW62-E-30N-0.750

3GDW62-E-30N-0.750: DescriptionLVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, 0.75MHz Nom, SMD, 6 PIN; CategoryPassive components oscillator; File Size156KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

3GDW62-E-30N-0.750 Overview

LVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, 0.75MHz Nom, SMD, 6 PIN

3GDW62-E-30N-0.750 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Euroquartz
package instruction	DILCC6,.4
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	30 ppm
frequency stability	50%
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	800 MHz
Minimum operating frequency	0.75 MHz
Nominal operating frequency	0.75 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	50 OHM
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.4
physical size	11.4mm x 9.6mm x 2.5mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	0.7 ns
Maximum slew rate	25 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

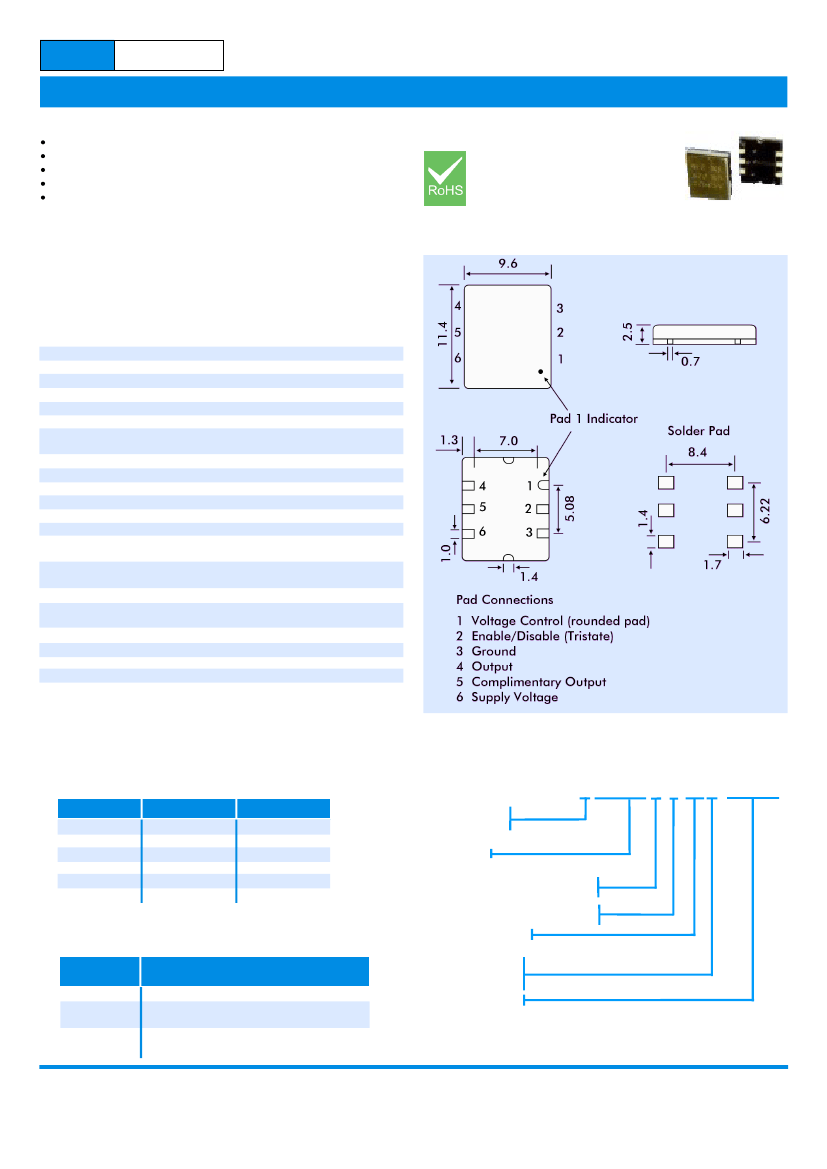

11.4 x 9.6 x 2.5mm 6 pad SMD

Frequency range 750kHz to 800MHz

LVDS Output

Supply Voltage 3.3 VDC

Phase jitter 2.35ps typical

Pull range from ±30ppm to ±150ppm

GDW62 LVDS VCXO

750.0kHz to 800.0MHz

DESCRIPTION

GDW62 VCXOs are packaged in a 6 pad 11.4 x 9.6mm SMD

package. Typical phase jitter for GDW series VCXOs is 2.35ps. Output

is LVDS. Applications include phase lock loop, SONET/ATM, set-top

boxes, MPEG , audio/video modulation, video game consoles and

HDTV.

SPECIFICATION

Frequency Range:

Supply Voltage:

Output Logic:

RMS Period Jitter:

Peak to Peak Jitter:

Phase Jitter:

Initial Frequency Accuracy:

Output Voltage HIGH (1):

Output Voltage LOW (0):

Pulling Range:

Control Voltage Range:

Temperature Stability:

Output Load:

Rise/Fall Times:

Duty Cycle:

Start-up Time:

Current Consumption:

Static Discharge Protection:

Storage Temperature:

Ageing:

Enable/Disable:

RoHS Status:

OUTLINE & DIMENSIONS

750kHz to 800.0MHz

3.3 VDC ±5%

LVDS

4.3ps typical

27.0ps typical

2.35ps typical

Tune to the nominal frequency

with Vc= 1.65 ±0.2VDC

1.4 Volts typical

1.1 Volts typical

From ±30ppm to ±150ppm

1.65 ±1.35 Volts

See table

50W into Vdd or Thevenin equiv.

0.5ns typ., 0.7ns max.

20% Vdd to 80% Vdd

50% ±5%

(Measured at Vdd-1.3V)

10ms maximum, 5ms typical

55mA typical, 60mA maximum

(At 202.50MHz)

2kV maximum

-55° to +150°C

±2ppm per year maximum

See table

Fully compliant or non compliant

PART NUMBERING

FREQUENCY STABILITY

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

ENABLE/DISABLE FUNCTION

Tristate Pad

Status

Not connected

Below 0.3Vdd

(Ref. to ground)

Above 0.7Vdd

(Ref. to ground)

Output Status

LVDS and Complimentary LVDS enabled

Both outputs are disabled (high impedance)

Both outputs are enabled

Example:

3GDW62G-B-80N-60.000

Supply Voltage

3 = +3.3V

Series Designator

GPW62

RoHS Status

G = RoHs compliant

Blank = RoHS non-compliant

Stability over temperature range

(See table)

Pullability in ±ppm

Pullability determinator

N = minimum

M = maximum

T = Typical

Frequency in MHz

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
