FUF5404: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size37KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

FUF5404 Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2

FUF5404 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	not_compliant
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Guideline	IEC-134
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

FUF5400........ FUF5408

3 Amp. Glass Passivated Ultrafast Recovery Rectifier

Dimensions in mm.

DO-201AD

(Plastic)

Voltage

50 to 1000 V.

Current

3 A at 55 ºC.

9.1

± 0.3

62.5

± 0.5

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 °C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

3 mm. to the body.

•

Glass Passivated Junction

•

High current capability

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial Leads

•

Polarity: Color band denotes cathode

FUF 5400 FUF 5401 FUF 5402 FUF 5404 FUF 5406 FUF 5407 FUF 5408

Maximum Ratings, according to IEC publication No. 134

RRM

RMS

F(AV)

FRM

FSM

stg

RSM

Peak Recurrent reverse voltage (V)

Maximum RMS voltage

Maximum DC blocking voltage

Forward current at Tamb = 55 °C

Recurrent peak forward surge current

8.3 ms. peak forward surge current

(Jedec Method)

100

200

140

200

400

280

400

30 A

150 A

600

420

600

800

560

800

1000

700

1000

Max. reverse recovery time from

= 0.5 A ; I

= 1 A ; I

= 0.25 A

Typical Junction Capacitance at 1 MHz

and reverse voltaje of 4V

Operating temperature range

Storage temperature range

Maximum non repetitive peak

reverse avalanche energy.

= 1A ; T

= 25 ºC

Max. forward voltage drop at I

= 3 A

Max. reverse current at V

RRM

at 25 ºC

Max. thermal resistance ( l = 10 mm.)

50 ns

45 pF

– 65 to + 150 °C

20 mJ

75 ns

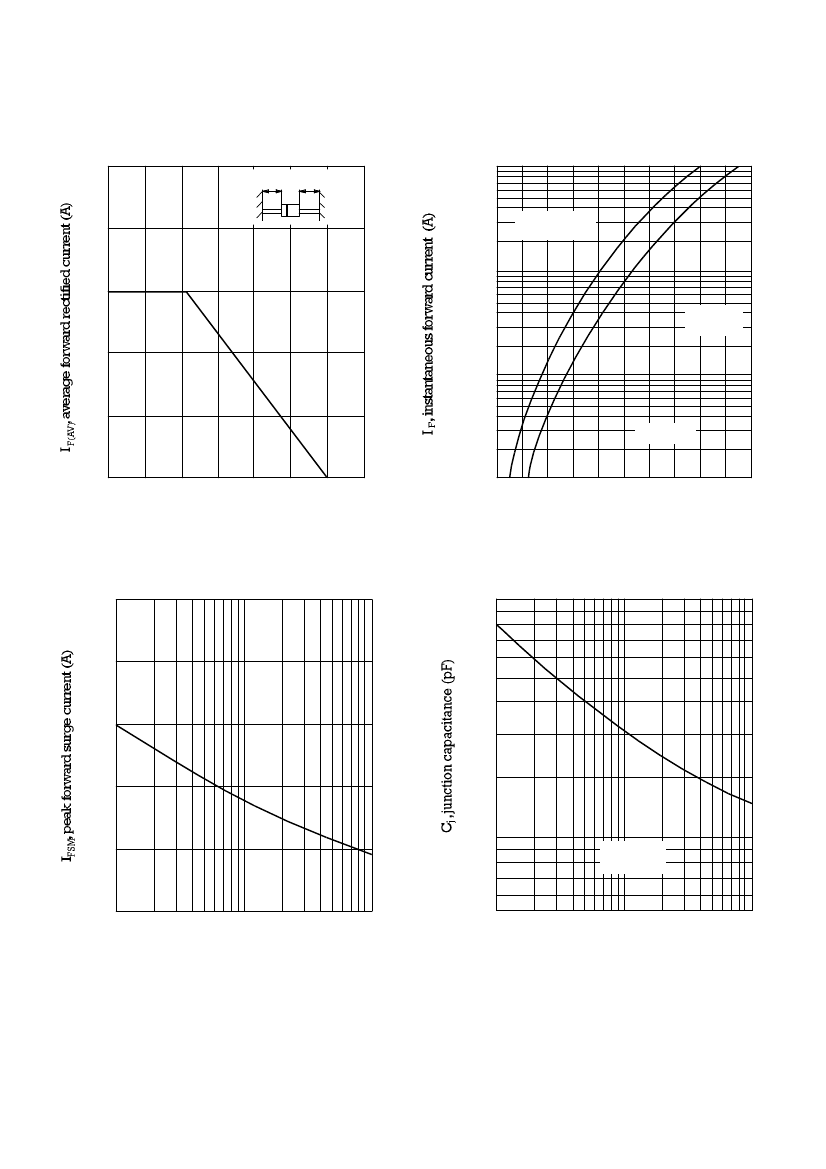

Electrical Characteristics at Tamb = 25 °C

thj-a

1.3 V

5µA

30 °C/W

1.7 V
