W045-0741-000-Z: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size211KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

W045-0741-000-Z Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug

W045-0741-000-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.226 inch
subject depth	0.315 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	W045
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation option 2	DETENTS
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	7
Base Number Matches	1

Preview

Download Datasheet

View All

# of Contacts

ELETRICAL:

CURRENT RATING: 3A AC/DC

VOLTAGE RATING: 250V AC/DC

CONTACT RESISTANCE: 20 m

Ω

max.

WITHSTANDING VOLTAGE: 1000 VAC for 1 min.

INSULATION RESISTANCE: 1000 M

Ω

min.

TEMPERATURE RANGE: -25°C to 85°C

HOW TO ORDER:

W

0

4

5

-

X

4

1

-

0

-

Z

MATERIAL:

# OF POSITIONS:

02 - 20

HOUSING & TERMINATION TYPE:

4 - Housing for Contacts

RoHS COMPLIANT

CONTACT: Copper Alloy, Tin Plated

BASE: Nylon 66 UL94V-0

Rev

0 Issued

Drawn Checked Approved

S.M.

B.S.

Date

4/19/07

SMP TECHNOLOGY, INC.

SCALE:n/a

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

ANGLE +/-

UNIT: mm

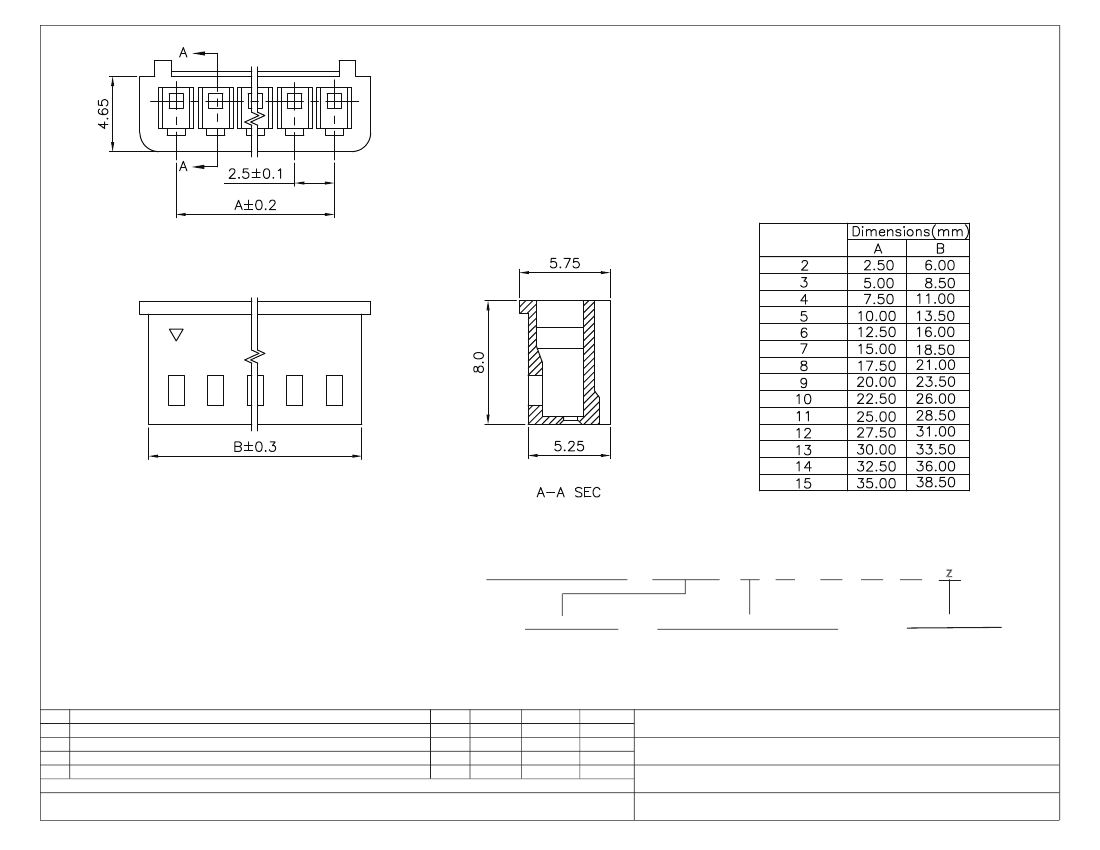

Contact Housing (For Use with Contact P/N: W045-0002-001-Z)

P/N:W045-XX41-000-Z

Pg: 1

W045-0741-000-Z Related Products

	W045-0741-000-Z	W045-0941-000-Z	W045-0241-000-Z	W045-0441-000-Z	W045-1541-000-Z	W045-1041-000-Z
Description	Board Connector, 7 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 9 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 15 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.226 inch	0.226 inch	0.226 inch	0.226 inch	0.226 inch	0.226 inch
subject depth	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	W045	W045	W045	W045	W045	W045
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	DETENTS	DETENTS	DETENTS	DETENTS	DETENTS	DETENTS
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	7	9	2	4	15	10
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99
Objectid	-	-	304393985	304393987	304393998	304393993
